iPhone 12, iPhone 13, iPhone 14, iPhone 15 open-design phone cases, with customizable infill density

Hi! I'm a 3D printing DIY enthusiast dedicated to making very practical models in daily life.

• It is recommended to print with PETG, PLA is also acceptable but more fragile and may crack during installation, so caution is needed
• Using softer TPU might cause the phone to fall out of the case, so the model needs to be slightly scaled down. Open-style phone cases are not suitable for TPU printing
• 3D honeycomb infill is recommended; this structure has been tested to be relatively stable
• Please ensure the PEI build plate is clean. The infill mostly consists of single lines, and a clean PEI build plate is key to perfect printing

Currently supported models

iPhone8/iPhoneSE2/iPhoneSE3

iPhone8 Plus

iPhoneXR,iPhoneXs,iPhoneXsMax

iPhone11,iPhone11Pro,iPhone11ProMax

iPhone12,iPhone12Pro,iPhone12ProMax,iPhone12Mini

iPhone13,iPhone13Pro,iPhone13ProMax,iPhone13Mini

iPhone14,iPhone14Pro,iPhone14Plus,iPhone14ProMax

iPhone15,iPhone15Pro,iPhone15ProMax,iPhone15Plus

iPhone16,iPhone16Pro,iPhone16Plus,iPhone16ProMax

iPhone17,iPhone17Pro,iPhone Air,iPhone17ProMax,iPhone17e

If your desired model is not available, try boosting and leaving the model name, and I will create it in my spare time

******************

20260330

1. Optimized iPhone17Pro, iPhone17ProMax, iPhone Air wall thickness to 1.6, as it was previously too thick
2. Slightly reduced the height of iPhone17Pro to better fit the model
3. Optimized the fit, curvature, and height of the iPhone17ProMax camera component. The overall size has been slightly reduced
4. Optimized XS MAX by adding split lines to prevent corners from cracking during installation, and adjusted the Magsafe groove height

******************

20260312

Added iPhone17e model

******************

20251214

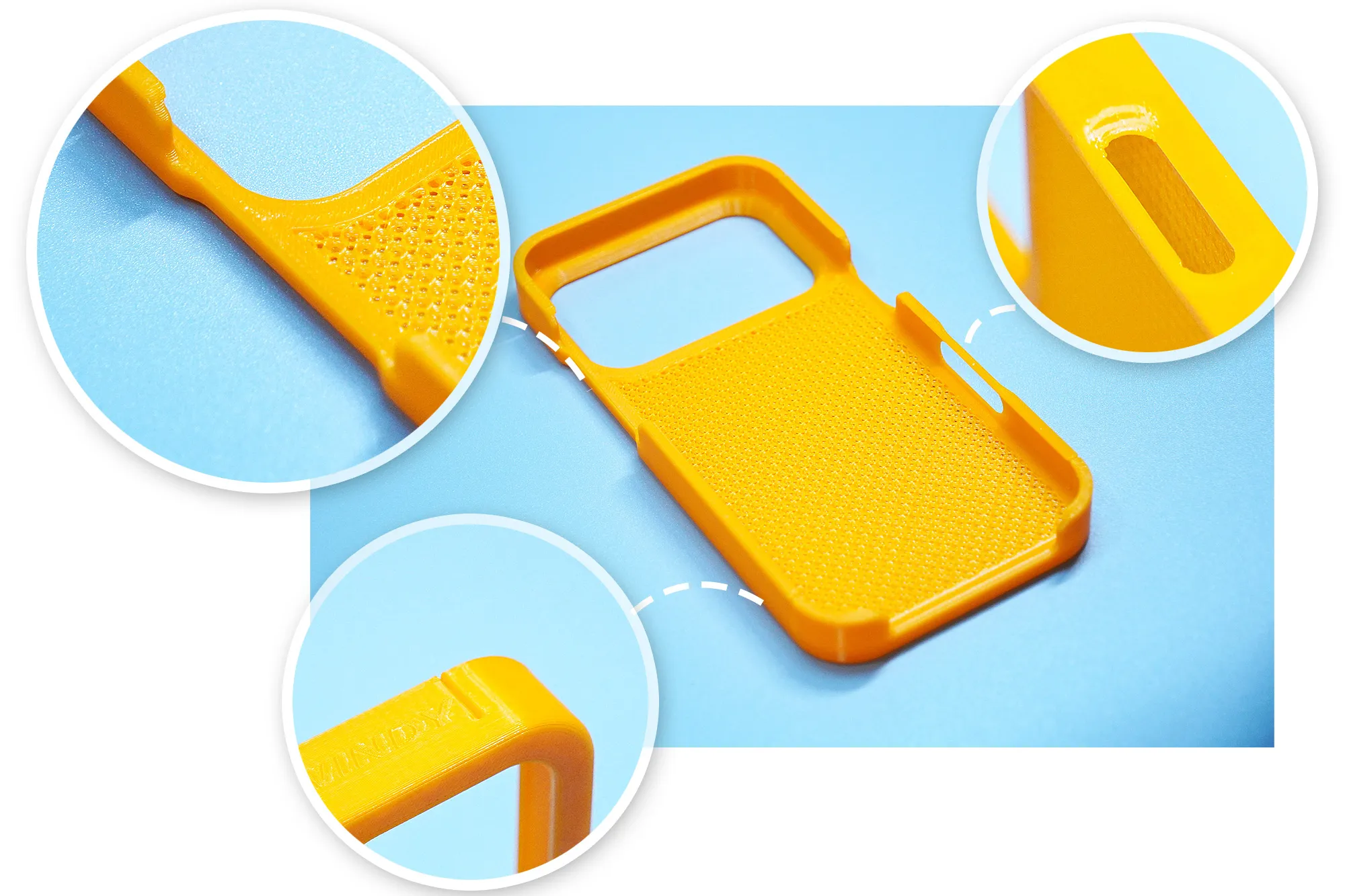

Optimized the iPhone17 series models

1. Adjusted the position of volume and power buttons for easier activation
2. Camera touch button modified to a closed style
3. Optimized and adjusted the protective ring for Pro, ProMax, Air models

4. Added side openings for easier installation and removal



******************

20250922

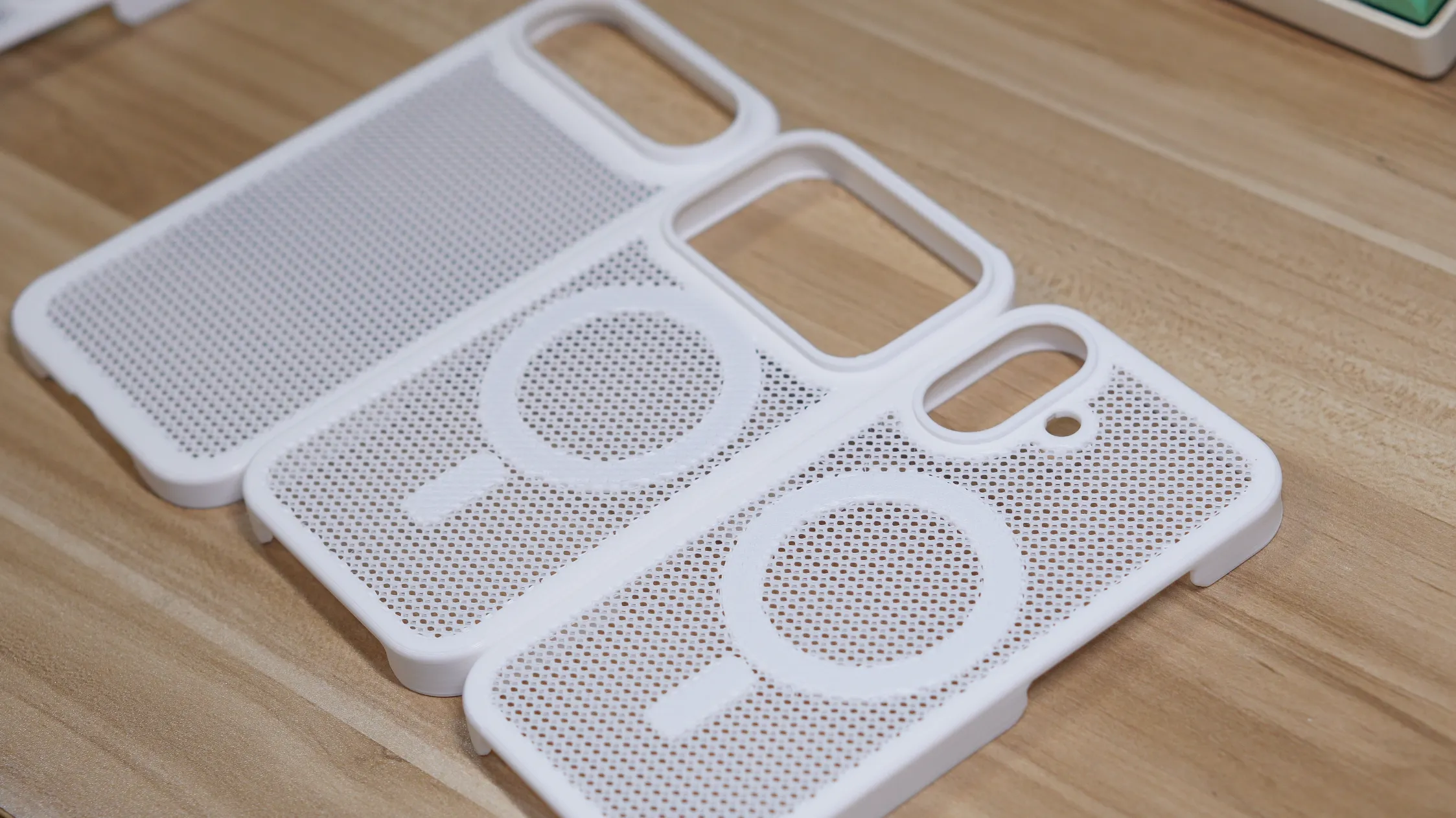

NEW Added iPhone17, iPhone17Pro, iPhone17ProMax, and iPhoneAir

Added a lens protective ring, optimized the modifier, strengthened the Magsafe section, and increased the edge wrap to 2mm, making it less prone to cracking

Currently in the testing phase, feedback and comments are welcome

******************

20250921

Optimized iPhone13ProMax and iPhone13ProMax Magsafe versions

• Adjusted the camera opening for more precise positioning
• For the Magsafe version, adjusted the distance from the groove to the bottom case and the position of the groove for better magnetic attraction

******************

20250826

Optimized iPhone16ProMax and iPhone16ProMax Magsafe versions, slightly reduced overall size to minimize looseness. For the Magsafe version, adjusted the distance from the groove to the bottom case and the position of the groove for better magnetic attraction

******************

20250729

Added iPhone8/iPhoneSE2/iPhoneSE3 Magsafe versions. Although iPhoneSE2/iPhoneSE3 do not support Magsafe, they support Qi wireless charging. Magsafe functionality was achieved by embedding magnets in the phone case

Optimized iPhone13Pro Magsafe version, calibrated the Magsafe position, and reduced the thickness from the magnet to the bottom of the case (now 0.8mm), which should allow it to be securely attached to Magsafe charging devices. Additionally, the structural strength around the magnetic ring has been enhanced, making it less prone to cracking now

******************

20250620

Added iPhone16e version

******************

20250616

Added iPhone15 Plus Magsafe version

******************

20250615

Added iPhone8 Plus and iPhone8 Plus Magsafe versions

******************

20250604 update

Added iPhone11 Magsafe version, adopting a new design that reinforces Magsafe to prevent detachment, and increased the casing to 2mm for greater durability

******************

20250529 update

Optimized iPhone16 Pro and iPhone16 Pro Magsafe versions based on feedback

Slightly reduced the size, hoping to improve the looseness issue, and the camera section has also been re-matched

Additionally, the Magsafe version's style has been improved with a two-layer infill pattern at the bottom to prevent this part from detaching from the printed case

If anyone prints this protective case, we hope to see your feedback, thank you!

******************

20250515 update

Added iPhoneXsMax version

******************

20250513 update

Added iPhone16Plus version

******************

20250429 update

Added iPhone15Pro Magsafe version

Optimized the issue of oversized camera opening for iPhone12, and optimized Magsafe to make it less prone to damage

Adjusted iPhone11 to 99.56% based on feedback in the comments section

20250506 update

Added iPhone12Pro version

******************

20250426 update

Added iPhoneXS version

******************

20250421 update

Added iPhone11Pro version

******************

20250420 update

Added iPhone13Mini Magsafe version

Optimized the size of the iPhone13Mini camera section

******************

20250415 update

Added iPhone12Mini Magsafe version

Optimized and re-uploaded the iPhone13ProMax model

Added iPhone11ProMax model

******************

20250411 update

Due to an error in the previously downloaded XR model, the button position was significantly offset, which has now been fixed

******************

20250408 update

Added iPhone14Plus model

******************

20250405 update

Added iPhone14ProMax model

******************

20250402 update

Added iPhoneXR model

Added iPhone16Pro model

******************

20250329 update

Added iPhone13Mini model

******************

20250328 update

Added iPhone16ProMax model

Adjusted the rounded corners of the iPhone13ProMax model

******************

20250326 update

Added iPhone12 Mini model

Added iPhone15 Plus model

******************

20250310 update

The iPhone15ProMax model was reduced by 0.2mm in the Y direction, hoping to lessen some looseness

******************

20250309 update

Added iPhone15Pro model

Optimized the camera opening position and size for the iPhone15 model

******************

iPhone Hollow Phone Case

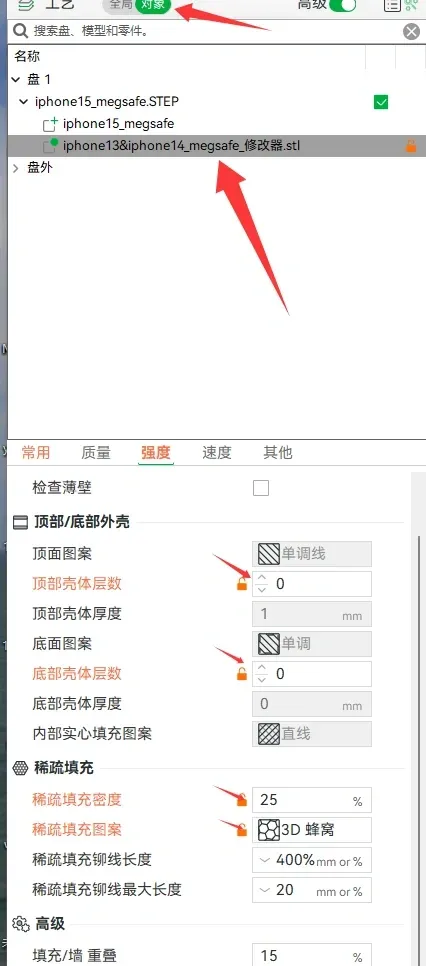

Utilizes the modifier function to directly print the hollow part using infill

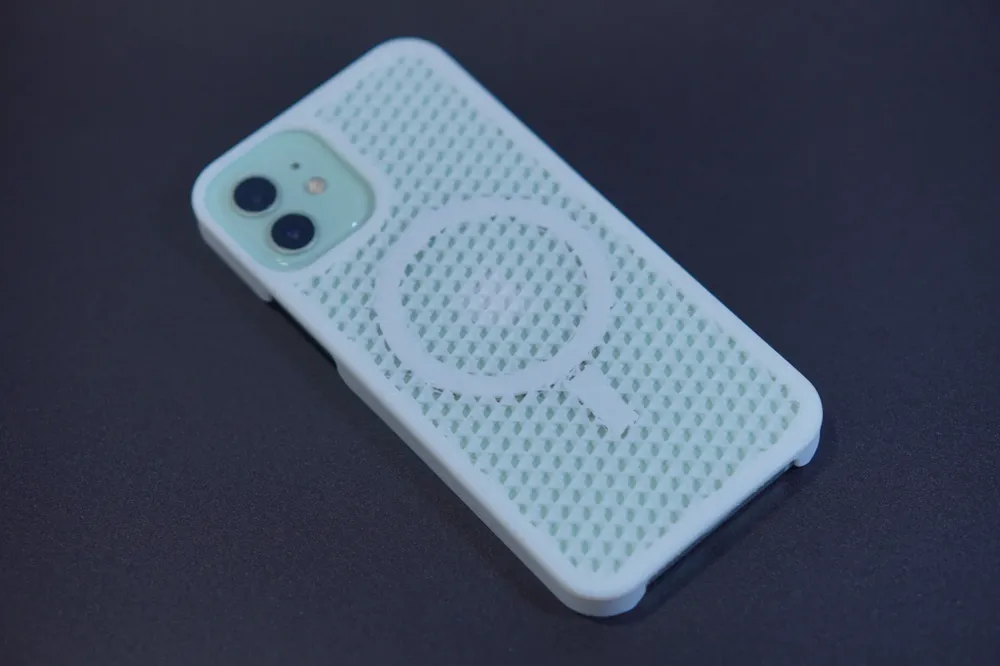

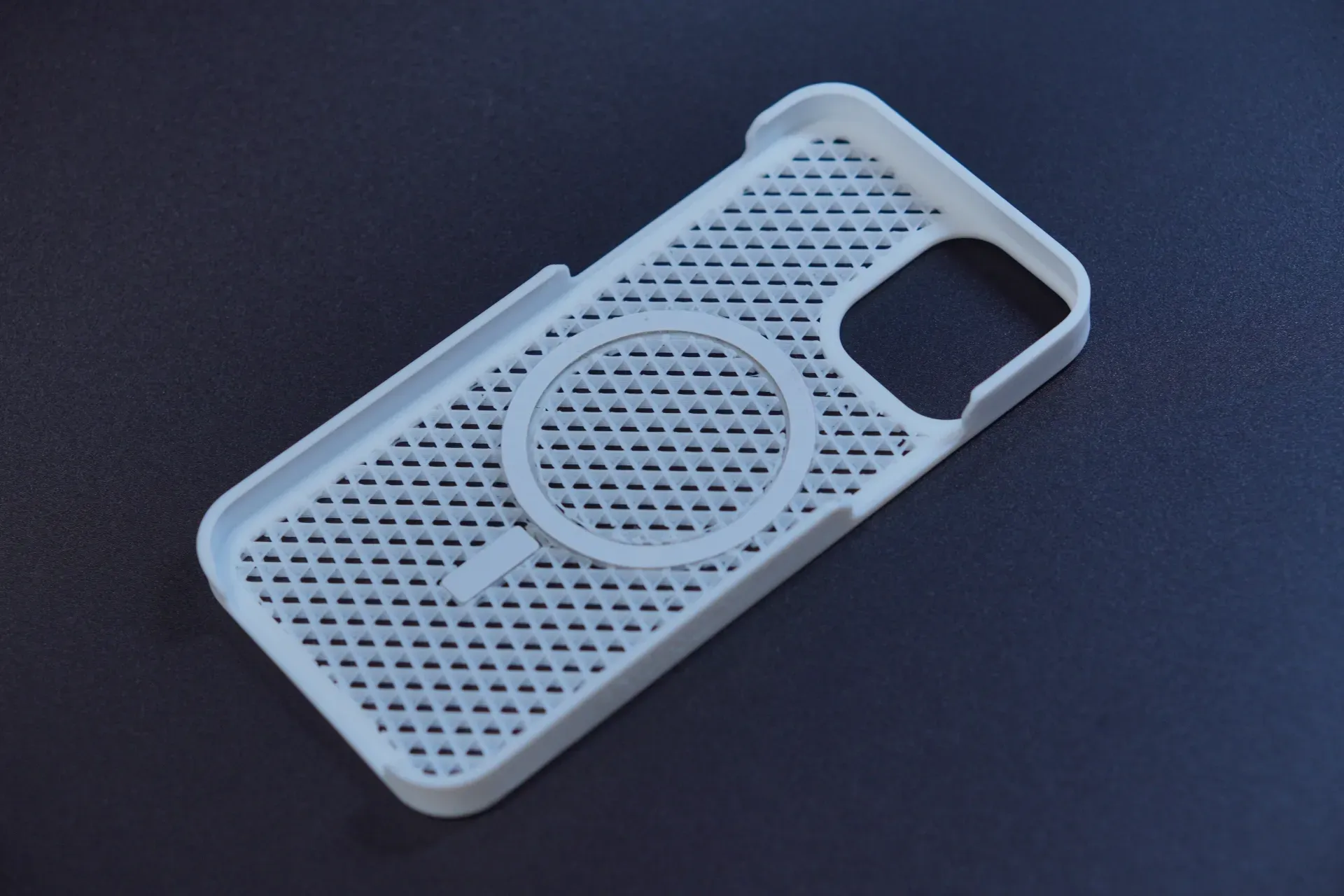

Supports regular and Magsafe versions. For Magsafe, a magnetic ring can be adhered inside the phone case, with an outer diameter of 55mm and an inner diameter of 45mm

You can adjust the infill pattern and density in the slicing software to achieve different effects and styles

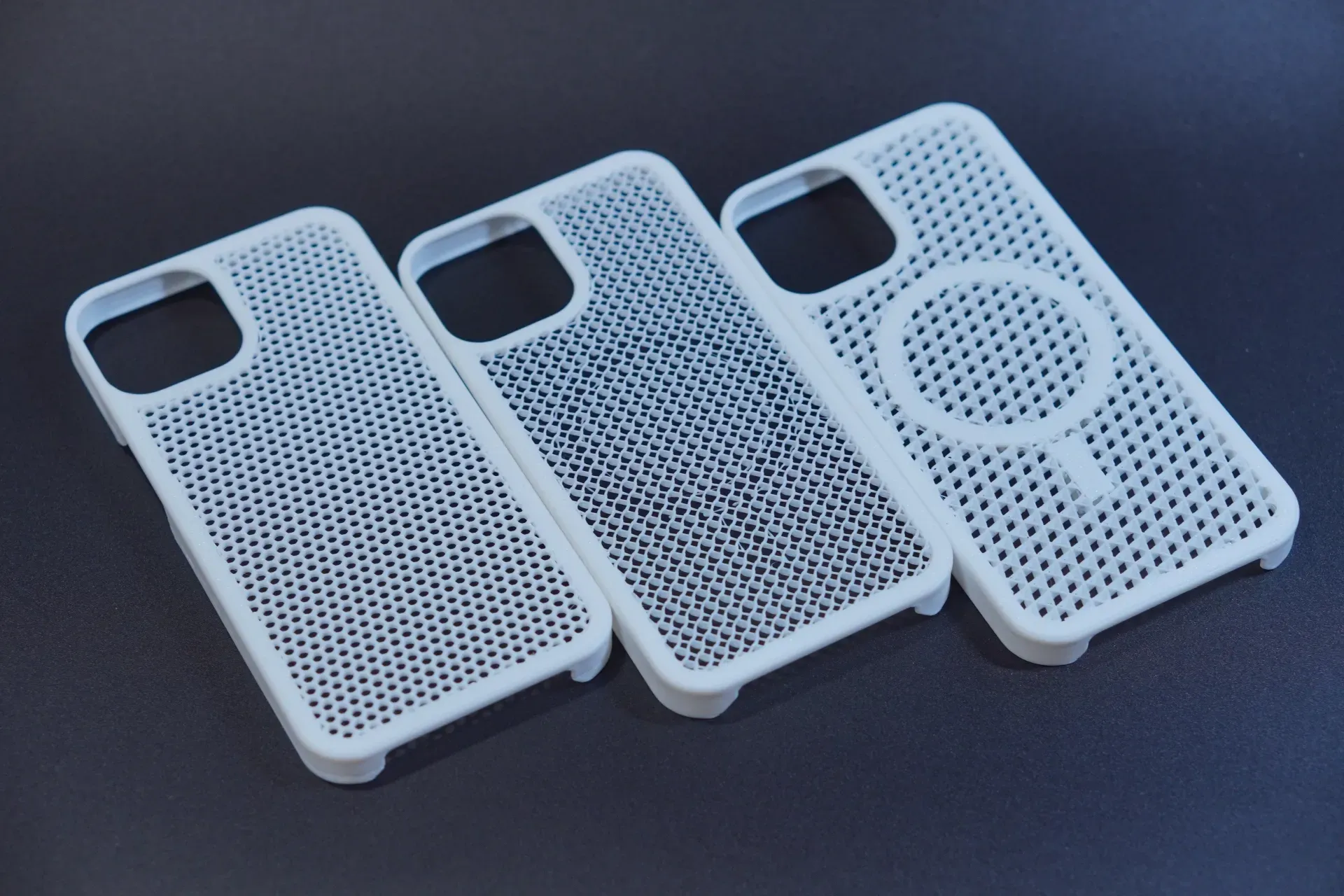

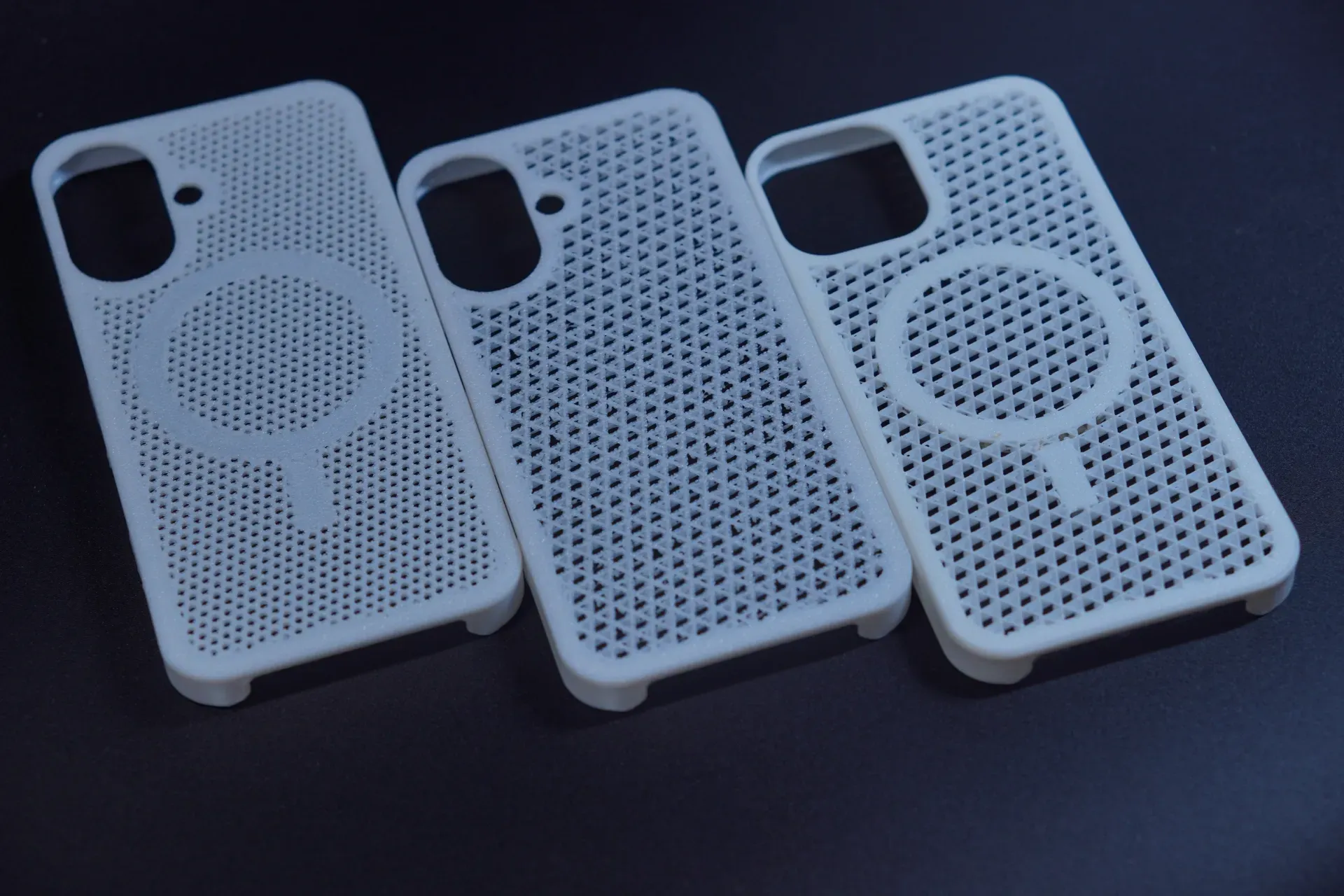

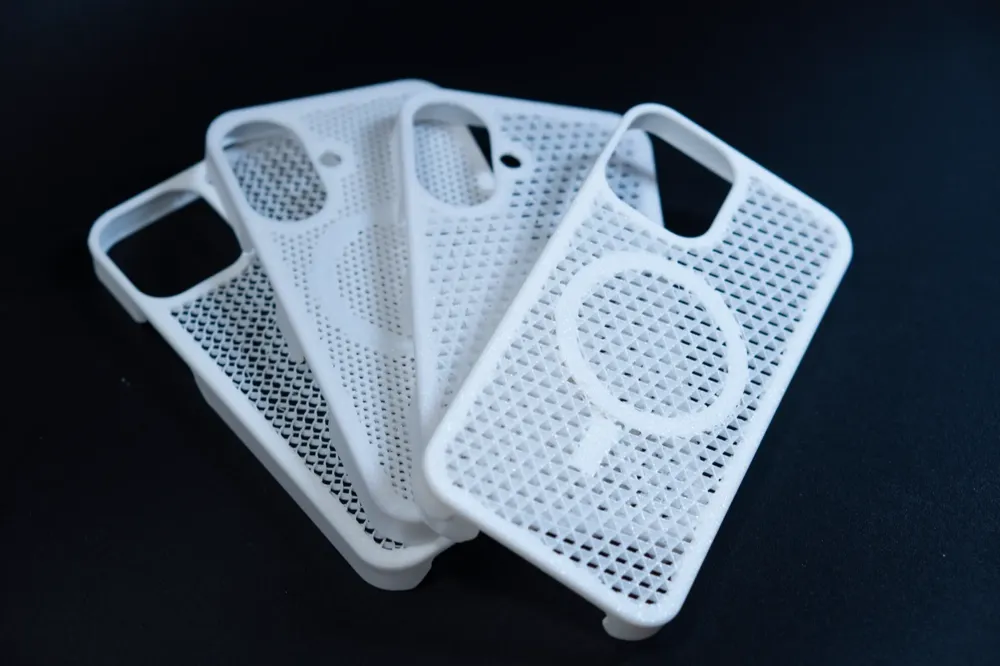

The following three models from left to right are honeycomb, 3D honeycomb, and cubic. The far right is the Magsafe version

As I only have an iPhone12 and iPhone13, all other models were made based on online data. If there are any inaccuracies, please provide feedback in the comments section, thank you everyone

---------------------------------------

Some Issues

1. There has been feedback that some ProMax models were too small. I have now modified them. Those who previously had printing issues can try again
2. If you do not like the hollow style, you can simply delete the modifier
3. 3D honeycomb and gyroid print out softer but are also more prone to cracking. Honeycomb and cubic are relatively stronger, so the latter is recommended for Magsafe

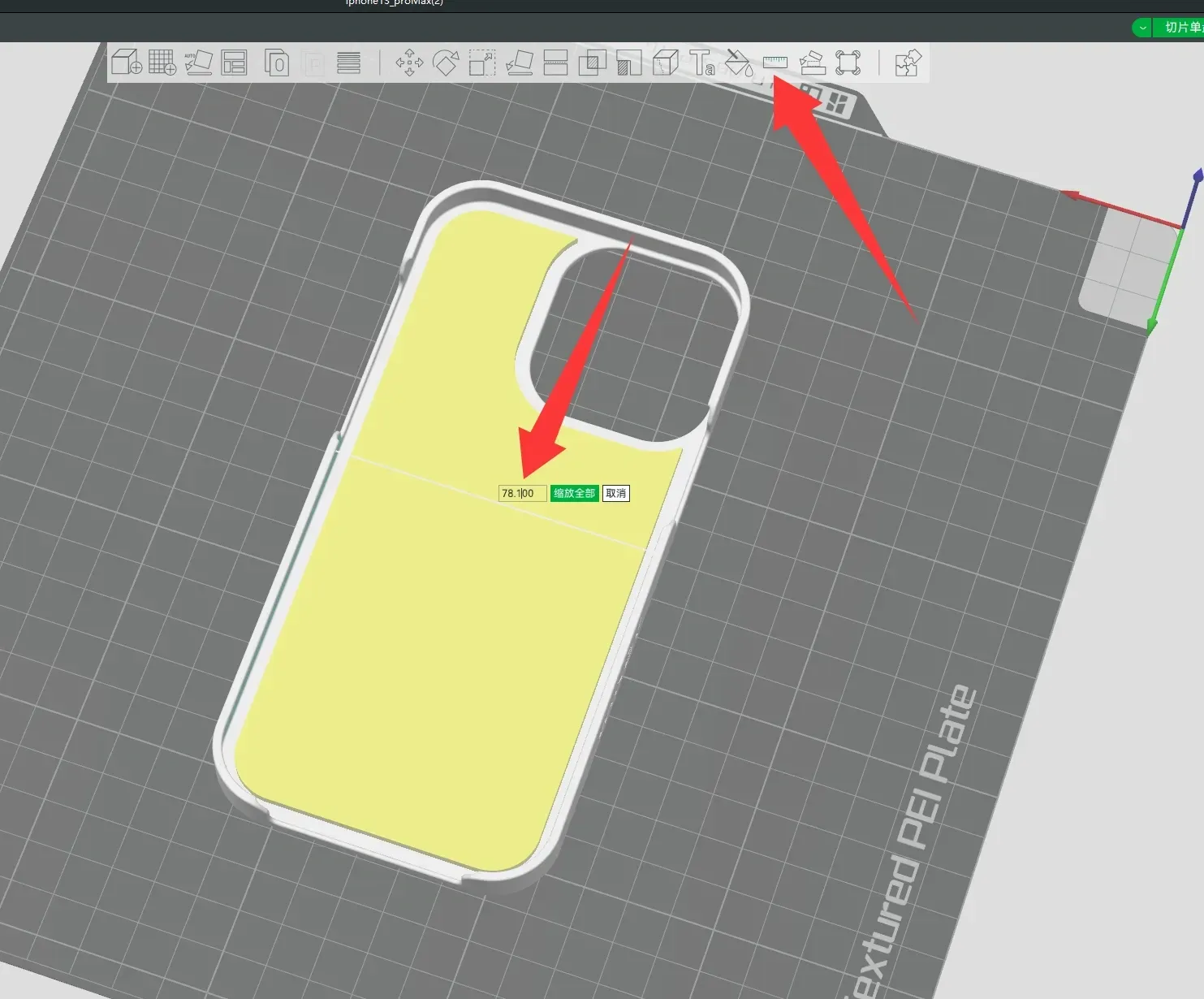

4. If the print is slightly small, you can try using the ruler function to select the inner edges on both sides and increase them by 0.5mm. Feedback in the comments section is also welcome

----------------------------------------------------------------------------------
