Skadis mounting bracket for Nissafors utility cart
IP Report
Print Profile(1)
0.16mm layer, 3 walls, 30% infill
2.2 h
1 plate
Open in Bambu Studio
Boost
23
128
6
2
37
29
Released
Description

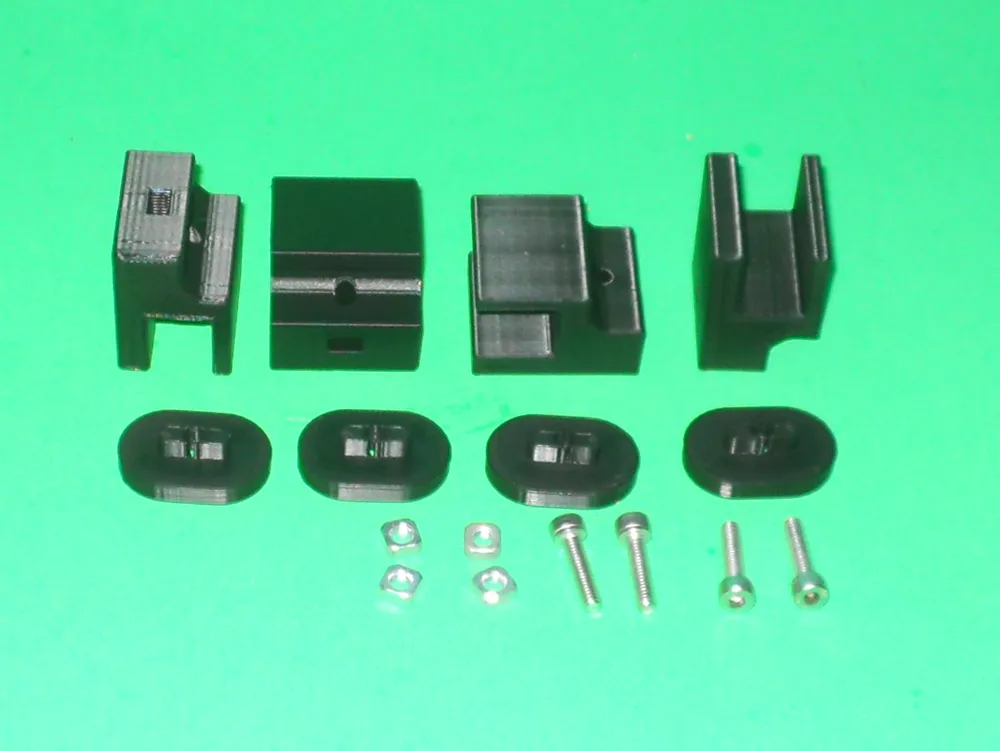

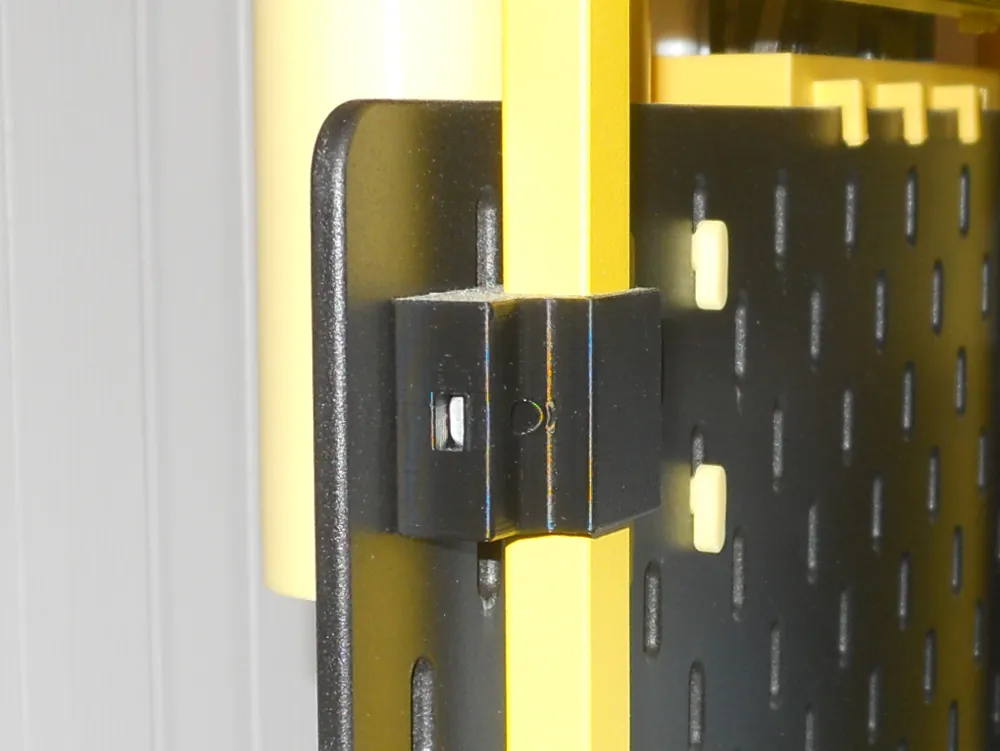

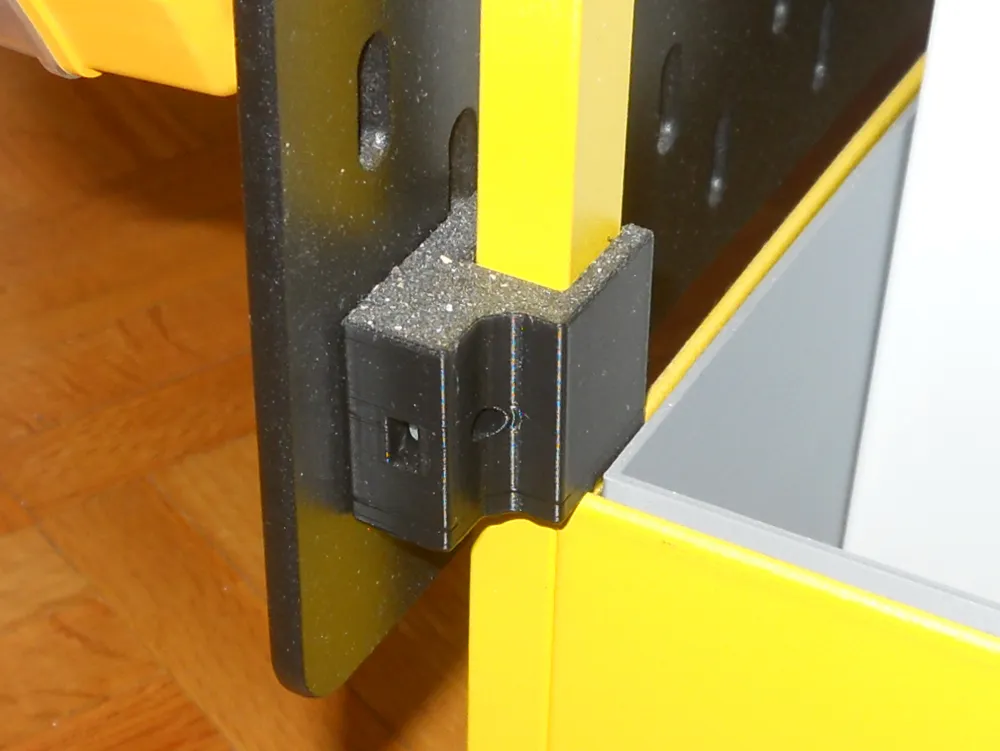

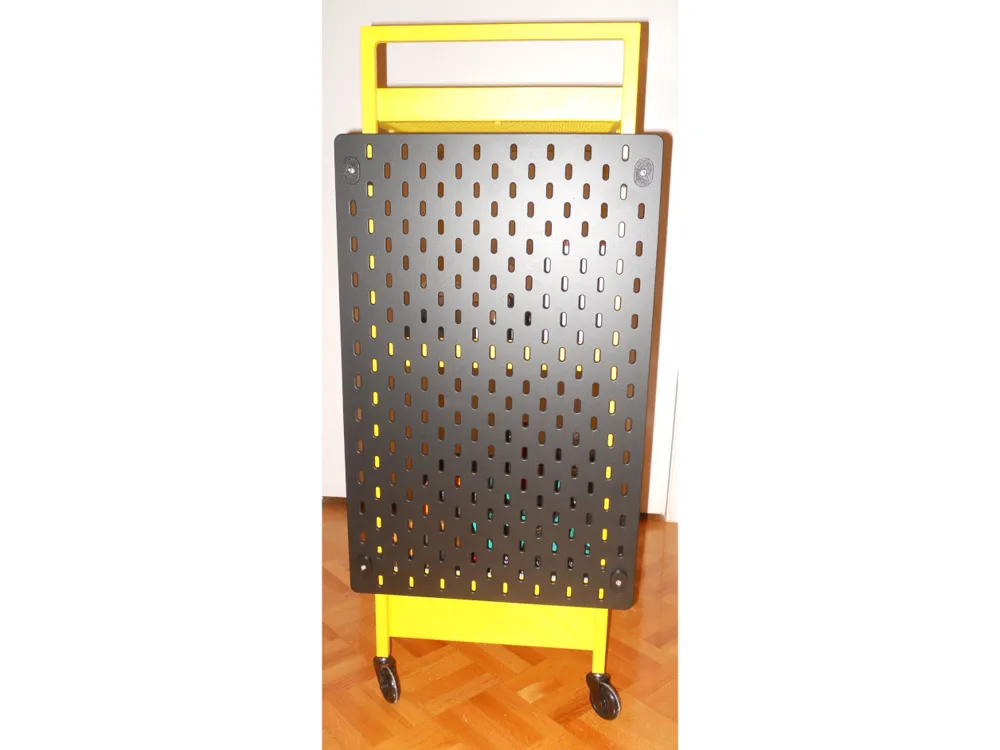

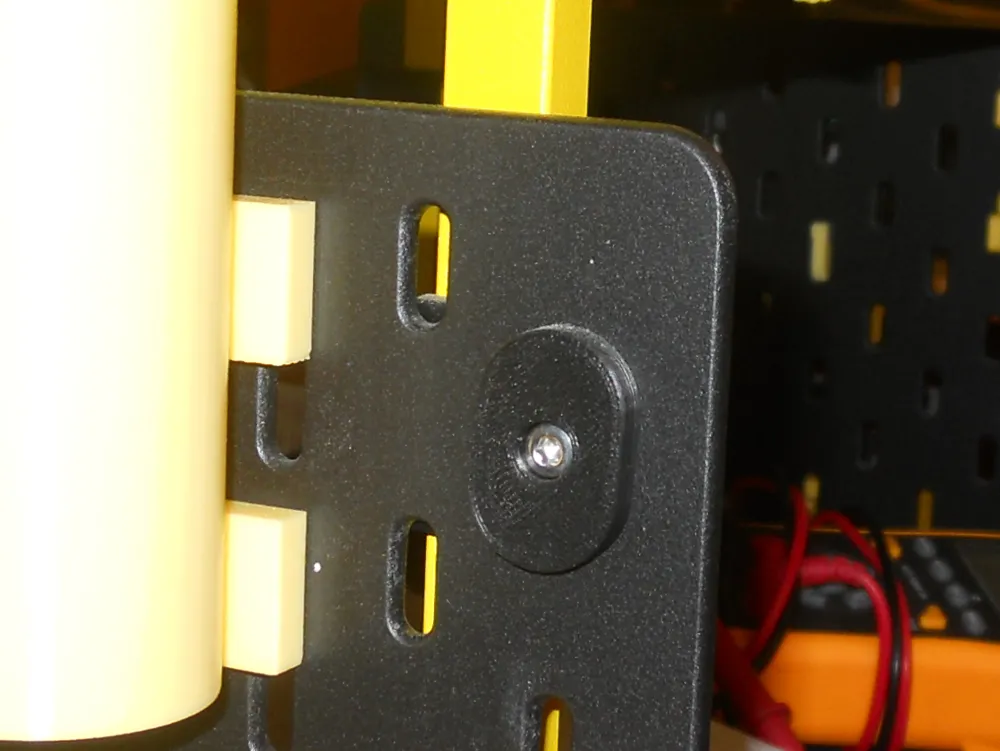

This is a mounting bracket to attach a Skadis pegboard to a Nissafors utility cart. You'll need 4 pieces of each object. Also, you'll need 4 M4 x 16 mm screws along with 4 nuts. The nuts shall be put in the well on the side of the bracket.
Support material is not required. An infill of 30% is recommended.
This object's main web page is: http://www.ctheroux.com/skadis-mounting-bracket-for-nissafors-utility-cart/.

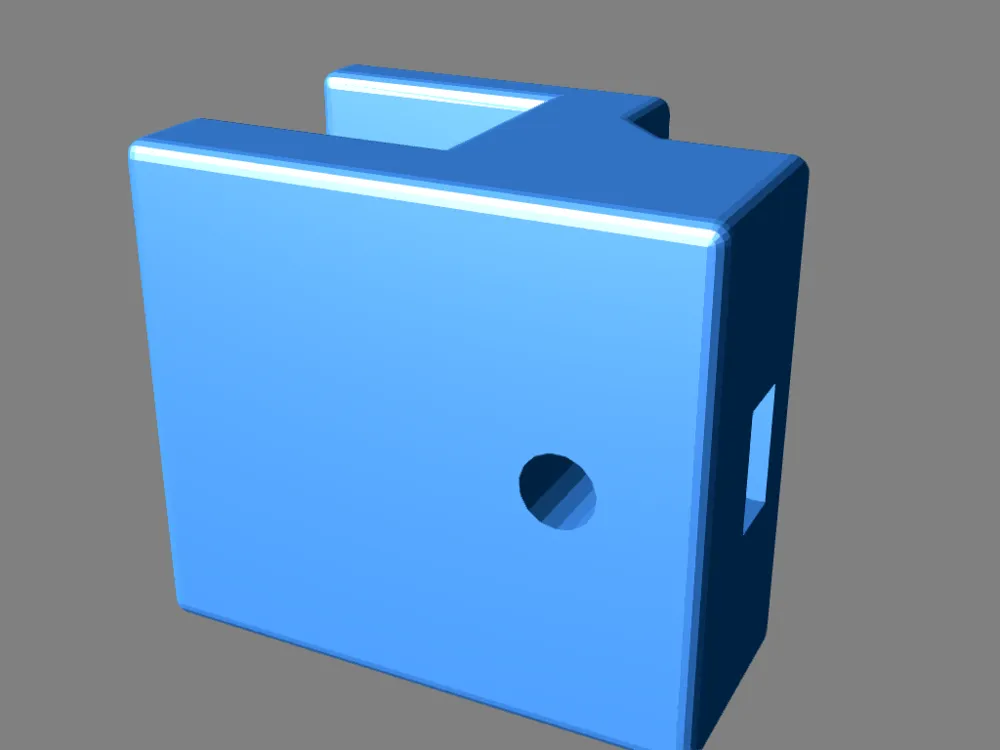

This object was designed using Solid Edge Community Edition.
You can request the source files on the page listed above.
