Bohr template for door rosette fitting
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
2.4 h
1 plate
Open in Bambu Studio
Boost
21
67
7
0
78
55
Released
Description
Content has been automatically translated.

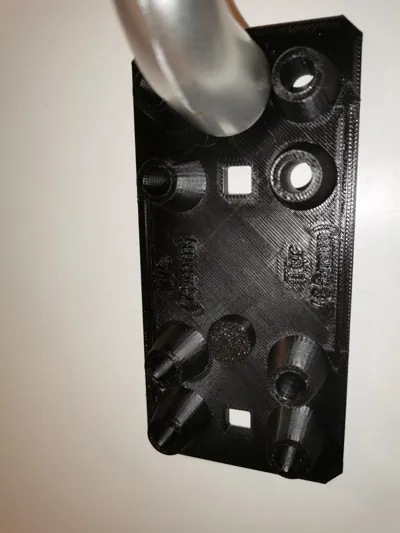

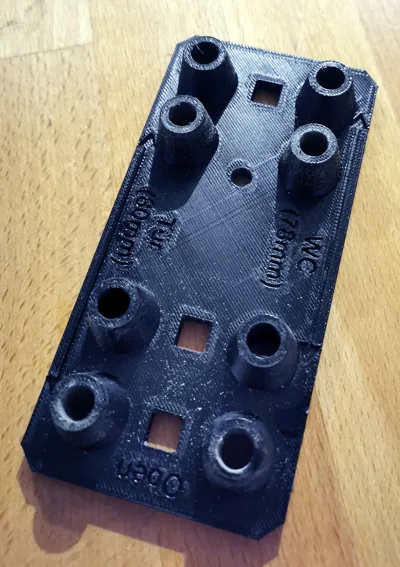

Drilling template for rosette fittings, e.g. Hoppe
Suitable for standard and WC doors
Print the template twice
- Position the templates on both sides (consider standard or WC door!)

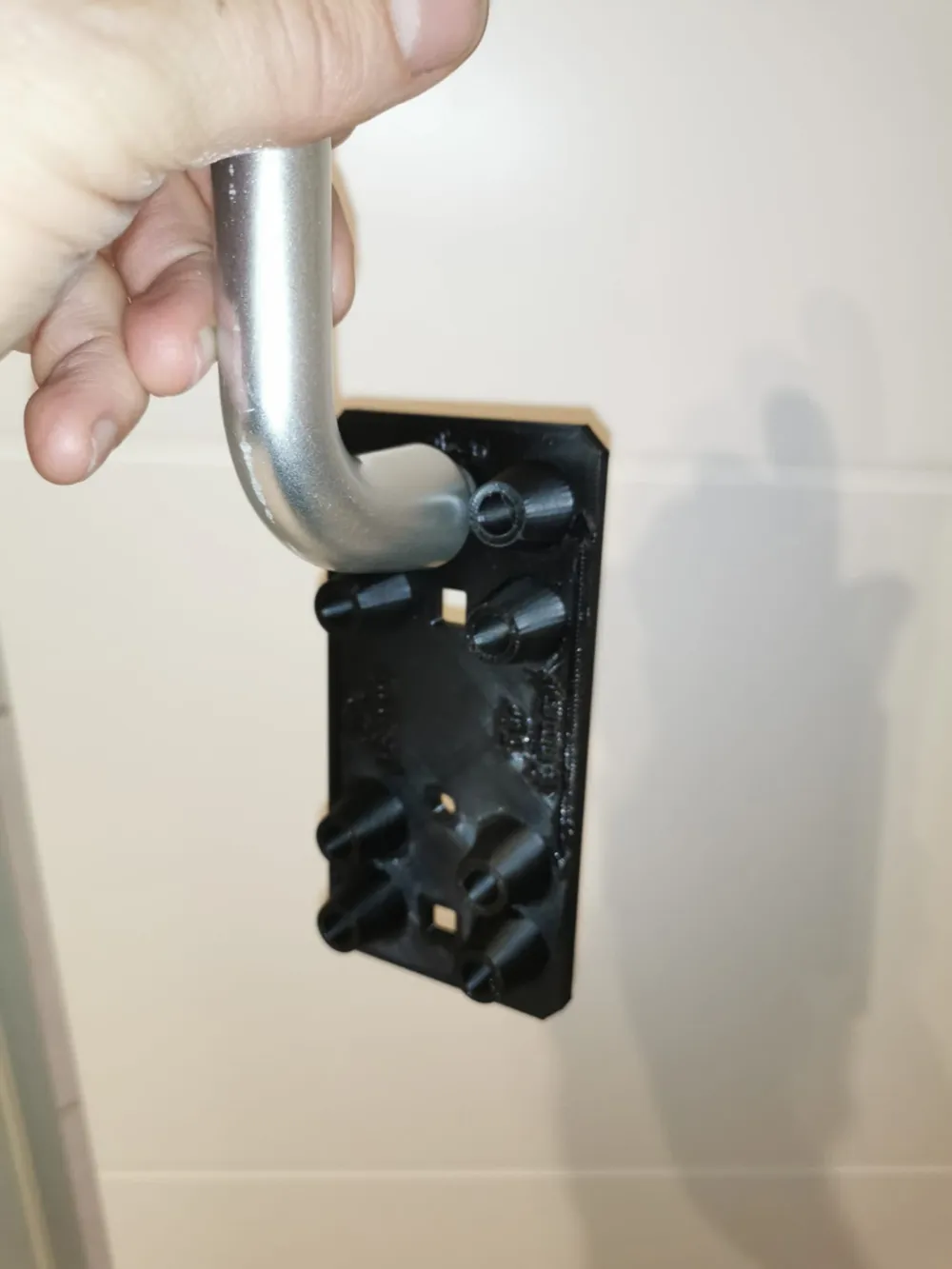

- Thread the door handle and secure the templates.

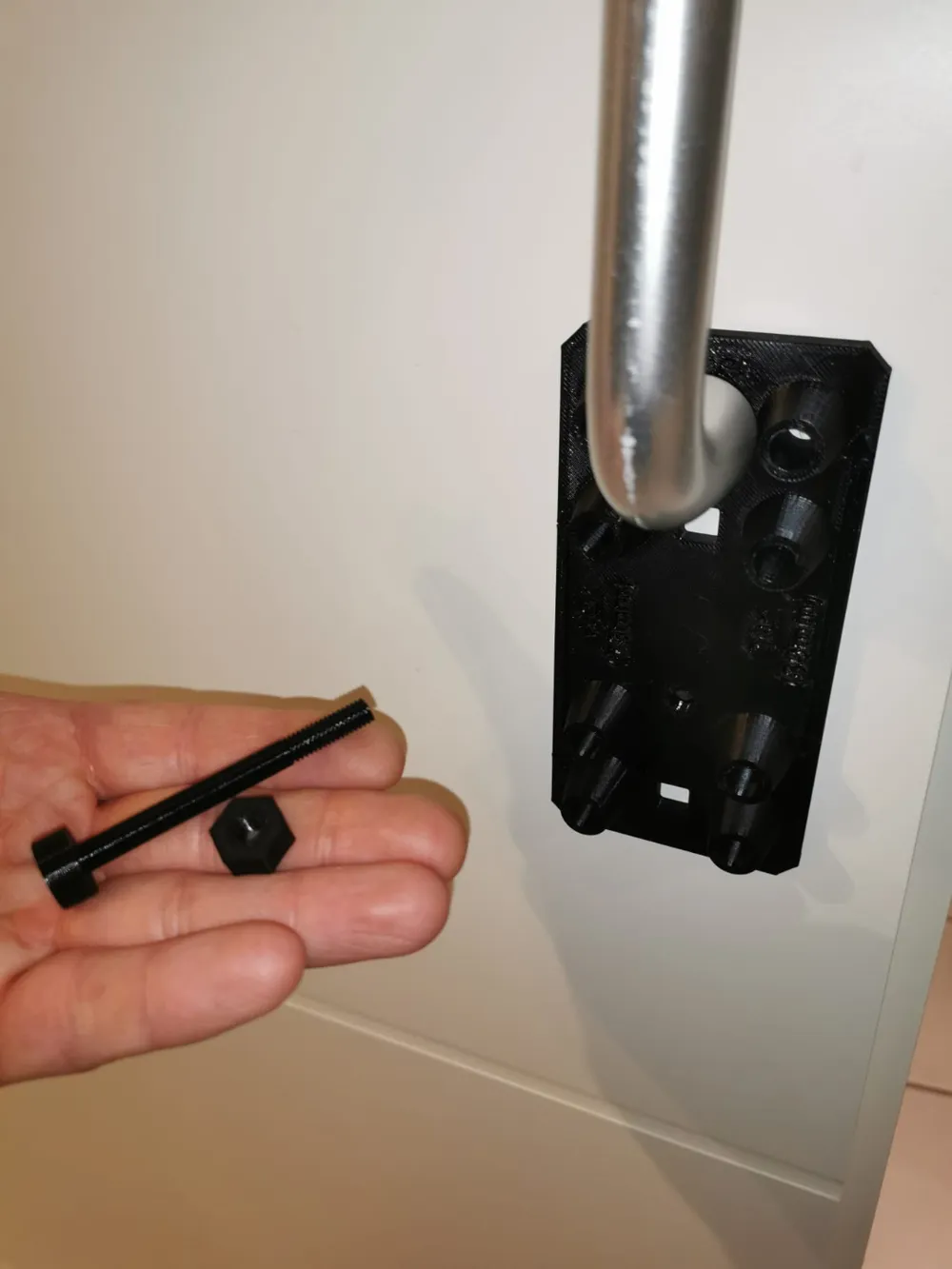

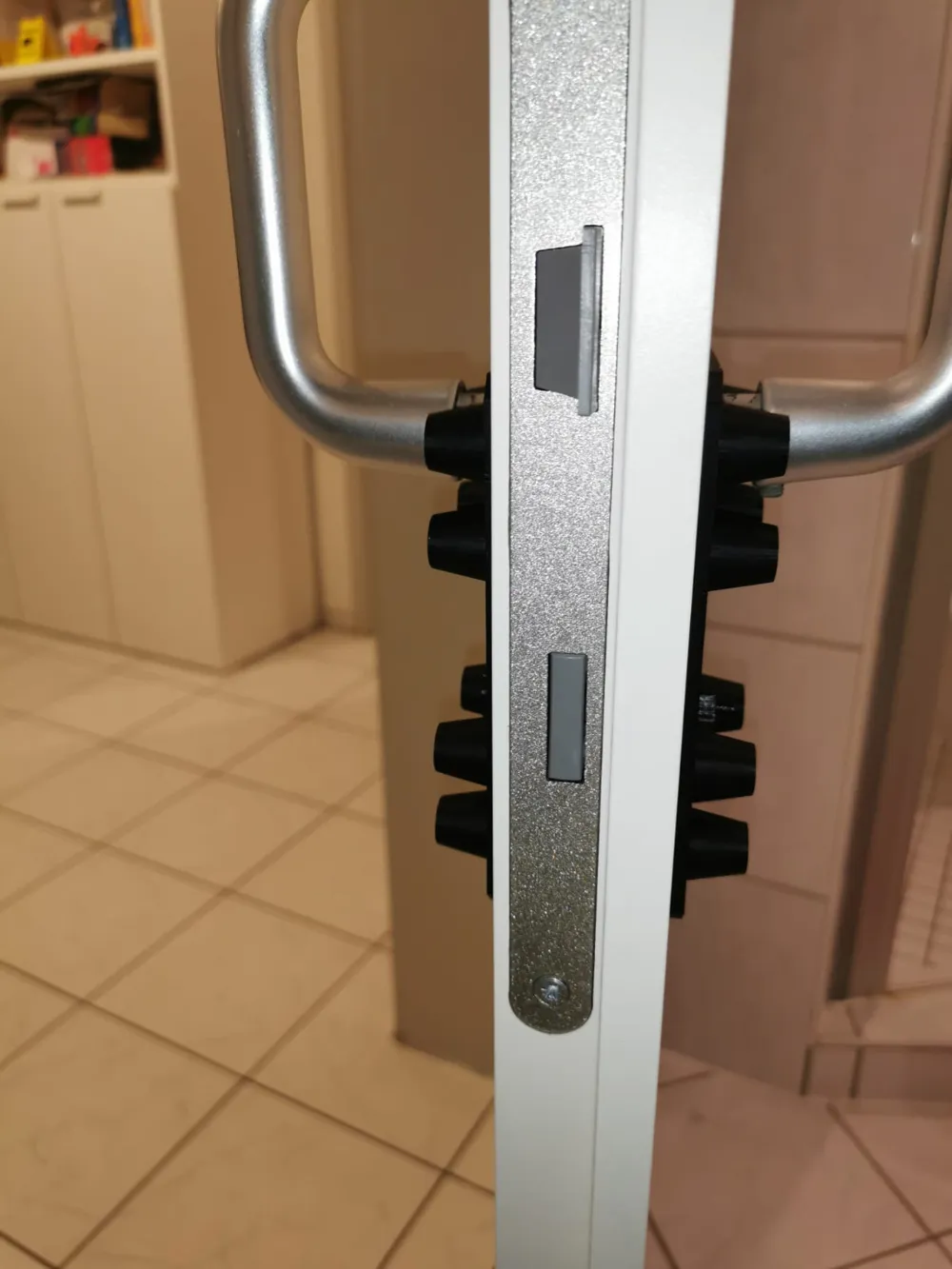

- Guide the screw through the templates and the door lock and secure it with a nut.

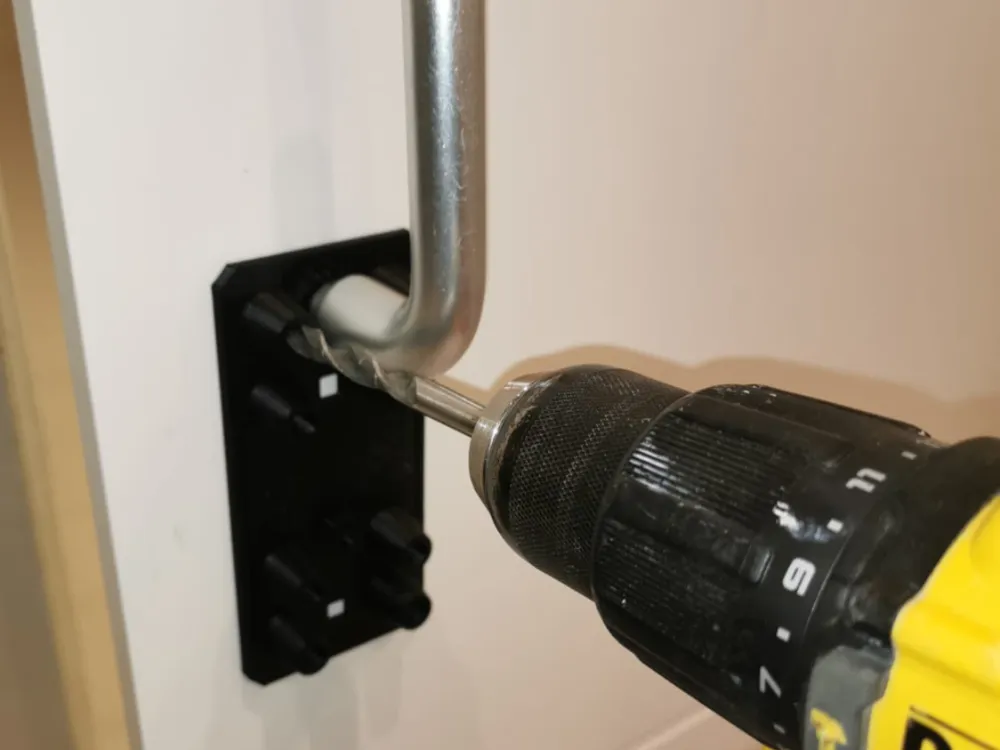

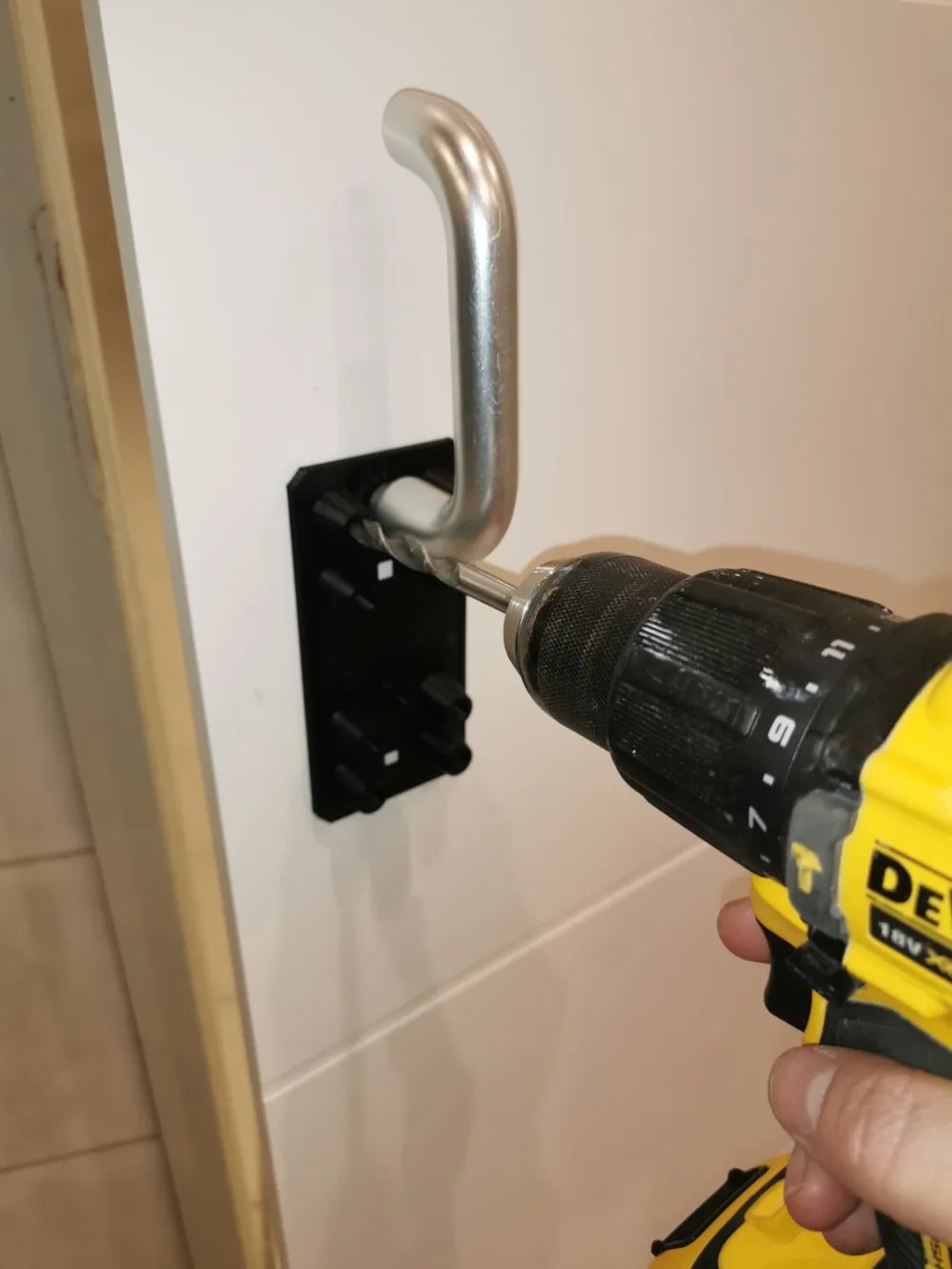

- Drill the required holes.
- Remove the templates
- Mount the fittings and door handle.
