AudioTechnica LP120 Dust Cover Hinges
Print Profile(1)
Description

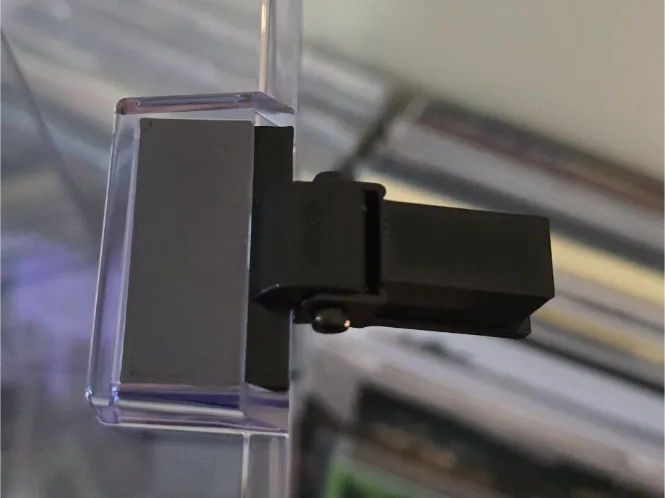

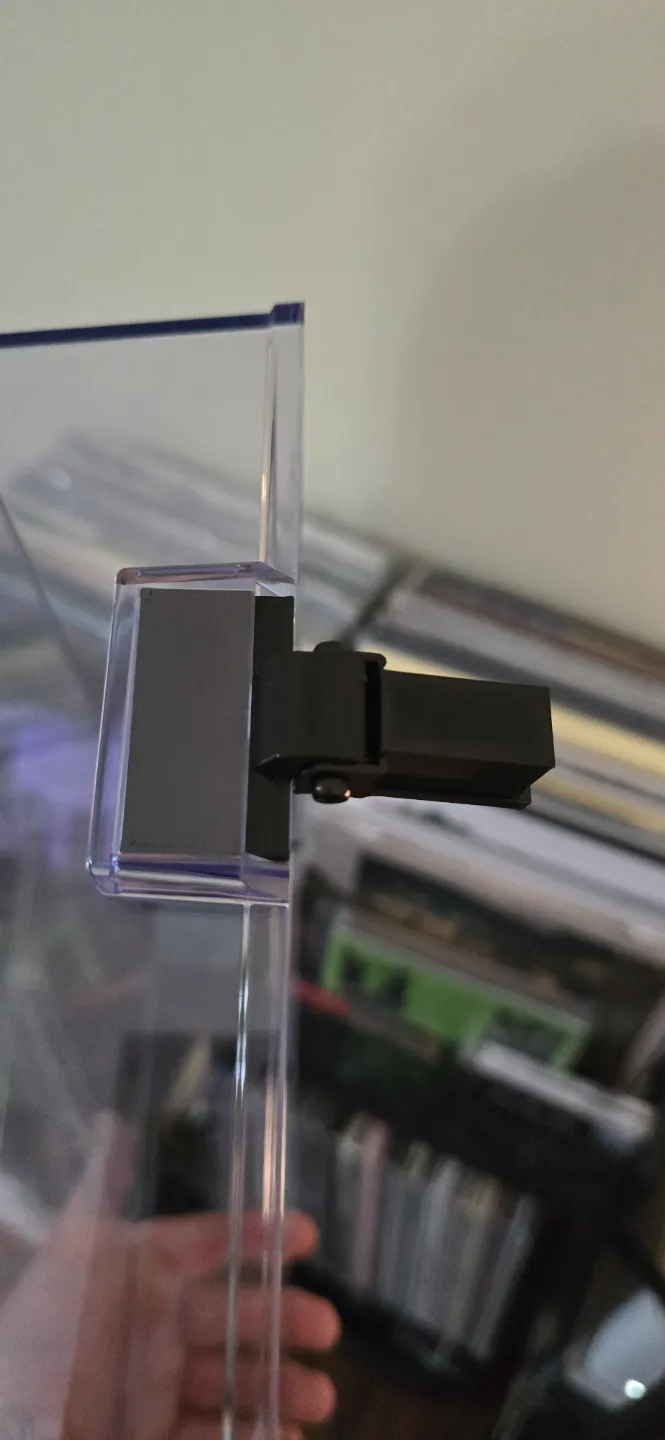

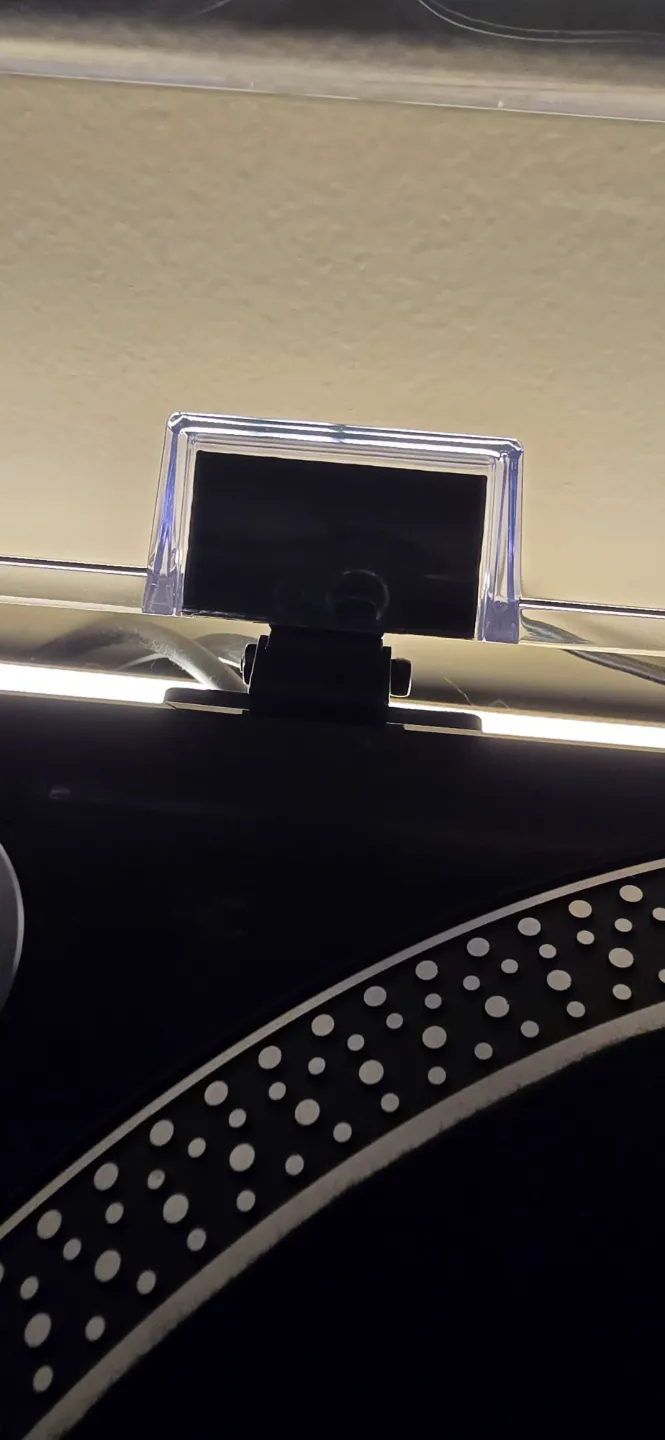

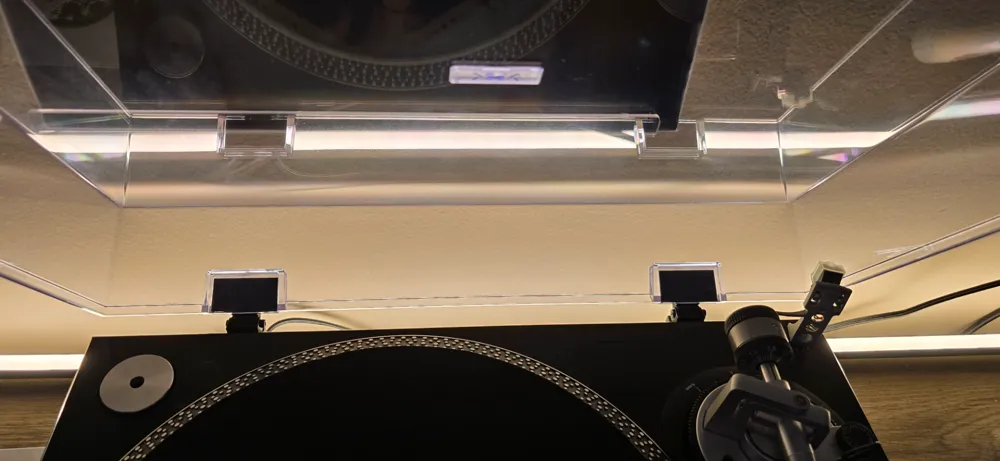

This is a replacement hinge for the Audio Technica LP120 Turntable. I bought my turntable used and it didn't come with a dust cover. I eventually decided to get one, only to find out you have to buy the hinges separately and I figured there had to be a way to print them. So, here we are. I found similar files on yeggi and then tweaked them a little to make it work.

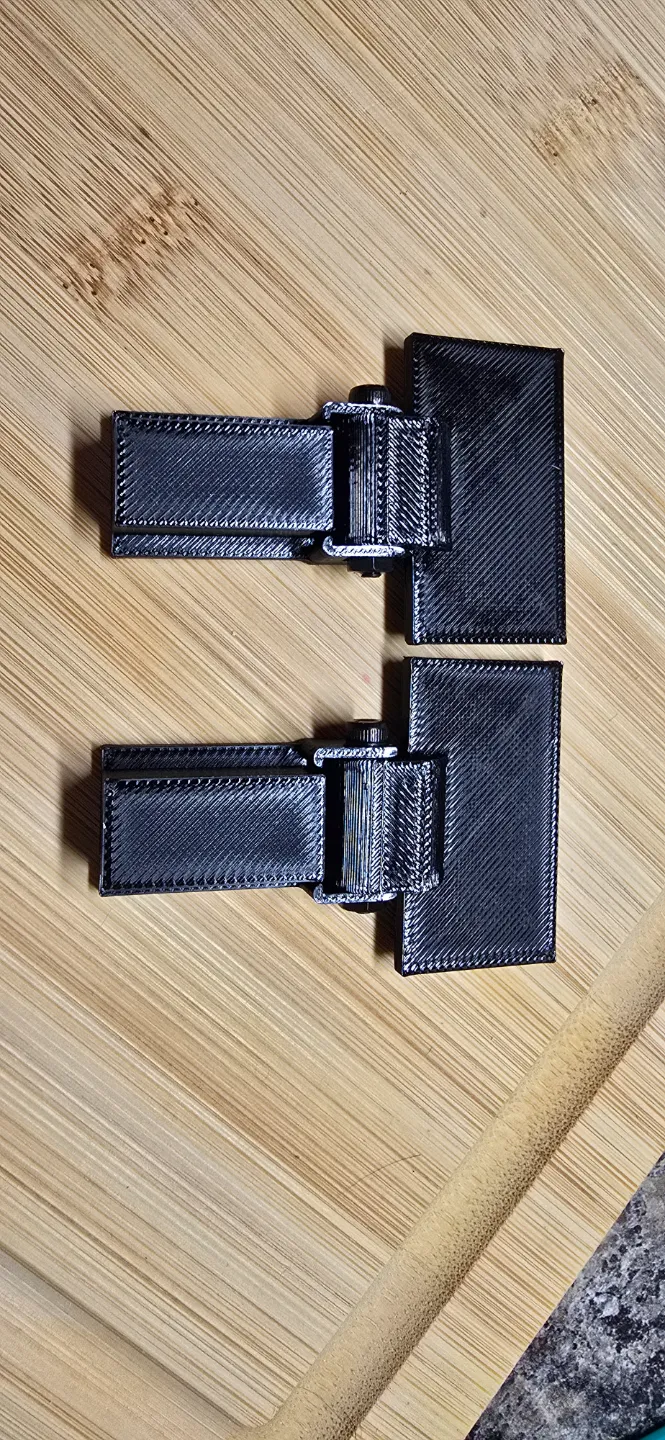

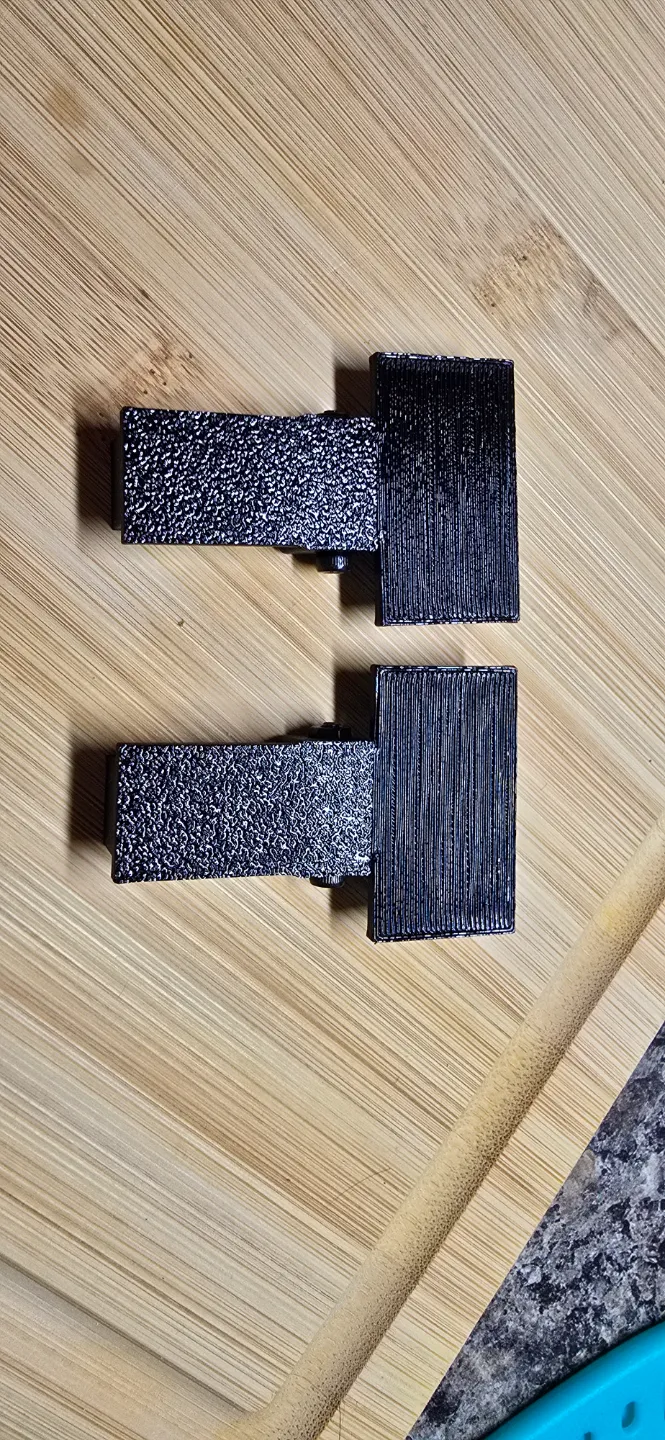

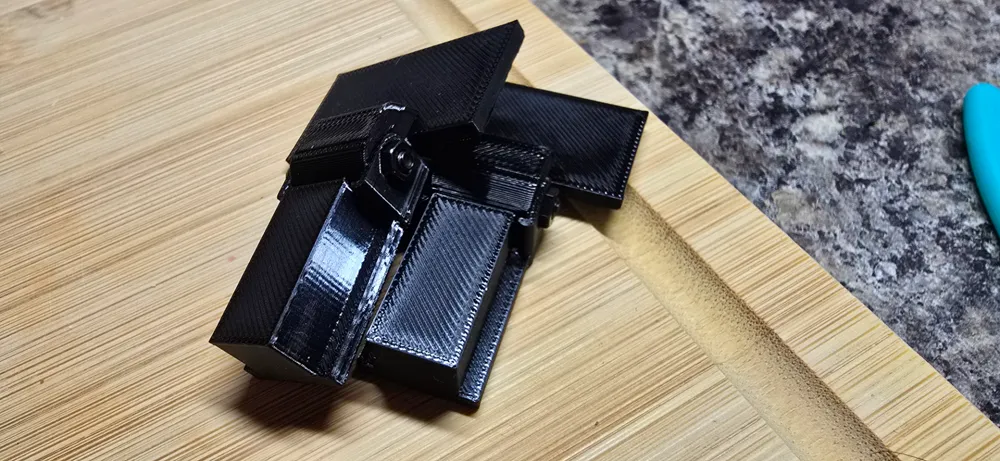

This file includes both sets of hinges, top and bottom, left and right. Because why not. I suggest printing these in PETG to make them a little stronger but I'm sure PLA would work fine. I printed mine with PETG. My print profile should have some good settings for the supports also.

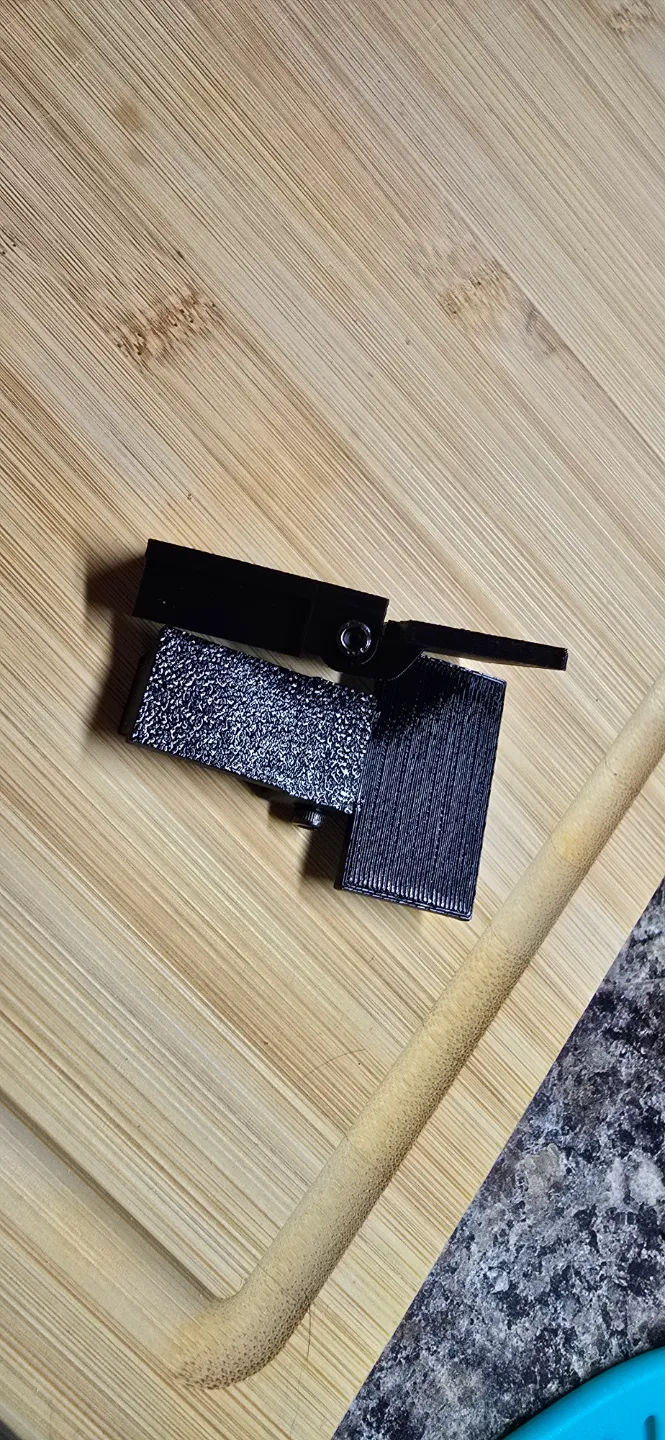

You'll need some screws to put them together, I used some M3 x 20mm screws with nuts and it fits perfectly. I wouldn't use anything bigger than that or it might crack the hinge. I'm not sure how to make this thing any stronger. So good luck!
As always, I have no idea what I'm doing and I'm not sure how to fix things if it doesn't work for you but I'll give it a shot! Make sure your bed is clean and your settings are good and you shouldn't have any issues.
