ESP32-CAM Water Meter Reader - for AI On The Edge - Free 3D Print Model

Search models, users, collections, and posts

Tom's Basement

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 2 walls, 15% infill

Designer

2 h

1 plate

5.0(4)

Open in Bambu Studio

Boost

248

231

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

Round Magnet

M2.5x8 BHCS Machine Screw (20PCS) - AA051

M2.5 Button Head Cap Machine Screws (BHCS)

Bambu Filaments

Select all

PLA Basic

List other parts

ESP32-CAM x 1: https://s.click.aliexpress.com/e/_onxwOOM

Description

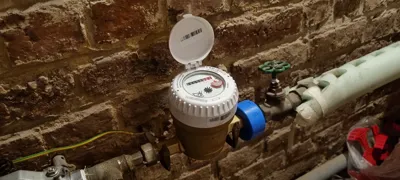

This 3D printable mount is designed to attach an ESP32-CAM to your water meter, enabling AI-powered meter reading for home automation systems like Home Assistant. The design works with the AI On The Edge Device project.

Features:

Secure mount for ESP32-CAM module
Easy access to SD card and USB port

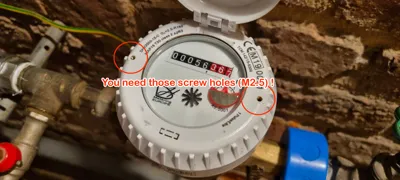

Suitable for belgian residential water meters (if you have screws holes)
Designed for optimal focus distance for meter reading
Protection from moisture and dust
Simple screwed assembly, 2* M2.5x8mm required and 4* 3x6mm round magnets

This mount is part of a larger DIY project that uses artificial intelligence to read analog meters. Compatible with the AI On The Edge Device project. Open source and free to use.

Comment & Rating (14)

@Jikko

I just printed it, it's fantastic! However, I can't find the top cover :) An oversight? I suspect it wouldn't be overly complex to model, but being a complete beginner, I find it challenging with my limited skills :)

The designer has replied

Show original

@TomsBasement

Not at all! I've just added it ;-)

Show original

@Jikko

Replying to @TomsBasement :

Many thanks Similarly, lacking a nearby power outlet for my water meter, and having battery holders (4x1.5V), I thought I could make it work without a plug ^^ Unfortunately, I suspect that updating every 5 minutes, especially with AI, would drain the battery too quickly. In fact, my battery-powered module didn't last a single evening

Show original

@LeCanard

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

I have just completed the print The result is most gratifying Thank you very much

The profile uploader has replied

Show original

@TomsBasement

Fantastic! Thank you for your comment! ;-)

(Edited)

Show original

@hyzteric

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Prints fine

@user_2582815030

Can you post a link to the project that reads a Belgian water meter? Thanks.

The designer has replied

@TomsBasement

Sure, I added it to the description 😉

@hyzteric

Boosted

Thank you for the project! I am currently awaiting delivery of the ESP32, so I have already printed the support ;-)

The designer has replied

Show original

@TomsBasement

Thank you! Have fun 😊

Show original

@user_4110901255

Print Profile

0.2mm layer, 2 walls, 15% infill

I printed it in white and the lid in transparent. The light is well diffused. It works perfectly

(Edited)

Show original

@koying

Boosted

Nice design for Belgian water meters

@mairyjulien

Boosted

top

@ZoltanKocsis

Print Profile

0.2mm layer, 2 walls, 15% infill

No more
