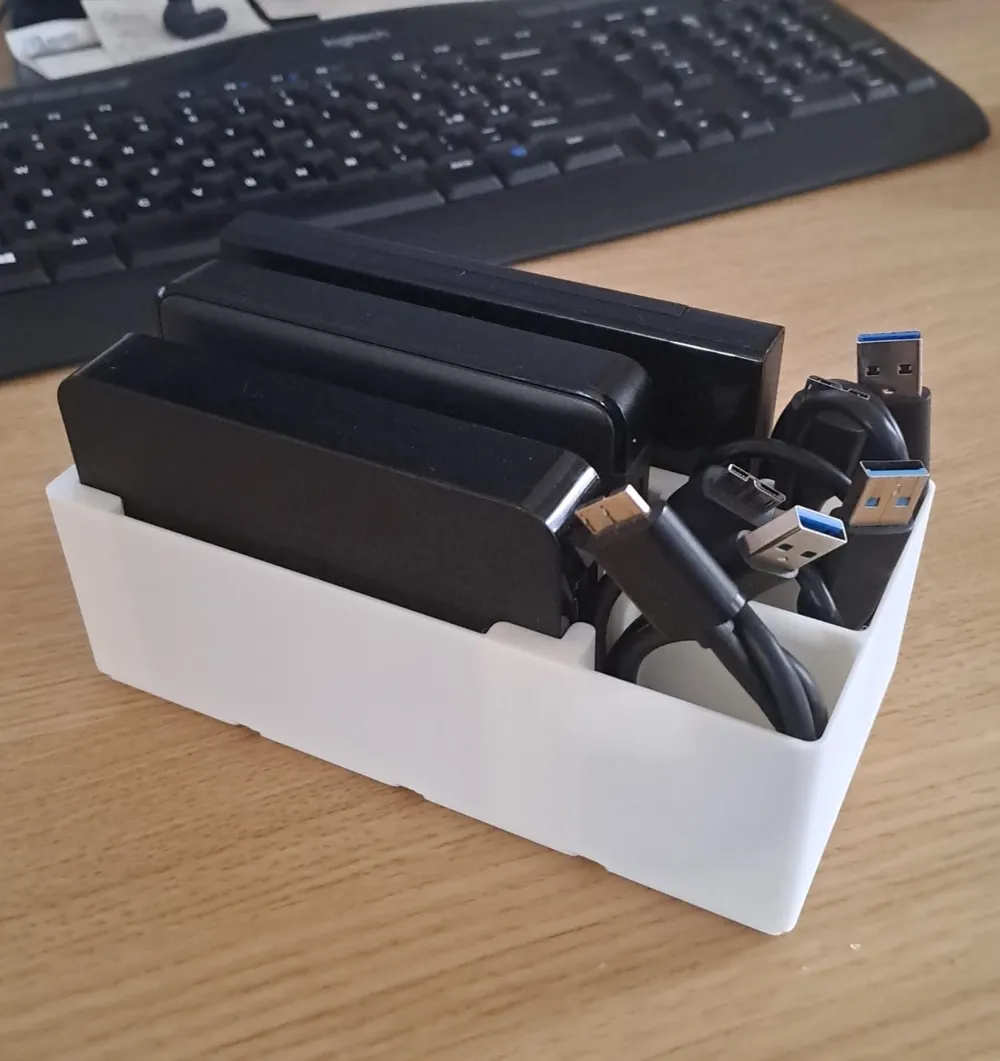

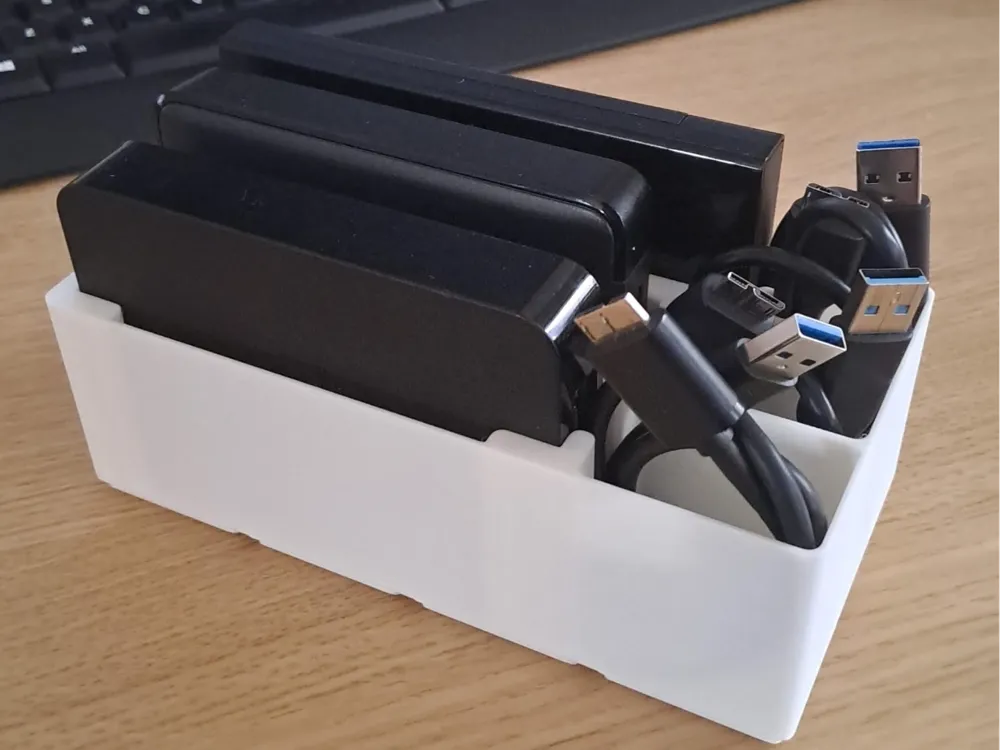

This is a quite huge but optimized Gridfinity element to hold 3 different hard disks and their cables in a separate compartment.
Two of them are for common commercial external drivers 112.50 x 20.40 mm.

The third one is 129 x 14.50 mm (those externa drive enclosure you buy to fit your own drive inside).

Fusion 360 file available for modification.

Credits:
The bin has been designed using https://github.com/Le0Michine/FusionGridfinityGenerator

Gridfinity

harddisk organizer

hdd

external hard drive holder

Comment & Rating (16)

@BudgetOrtho

Unfortunately this was just slightly too small for my external HDD and my SDD enclosure. Partially my fault since I knew the measurements would be close beforehand, but it would be nice to maybe add a few mm of length to the HDD and enclosure slots to allow for more compatibility.
