Dart Board Number Ring (TOR-Style)

Dartboard Number Ring - TOR Style

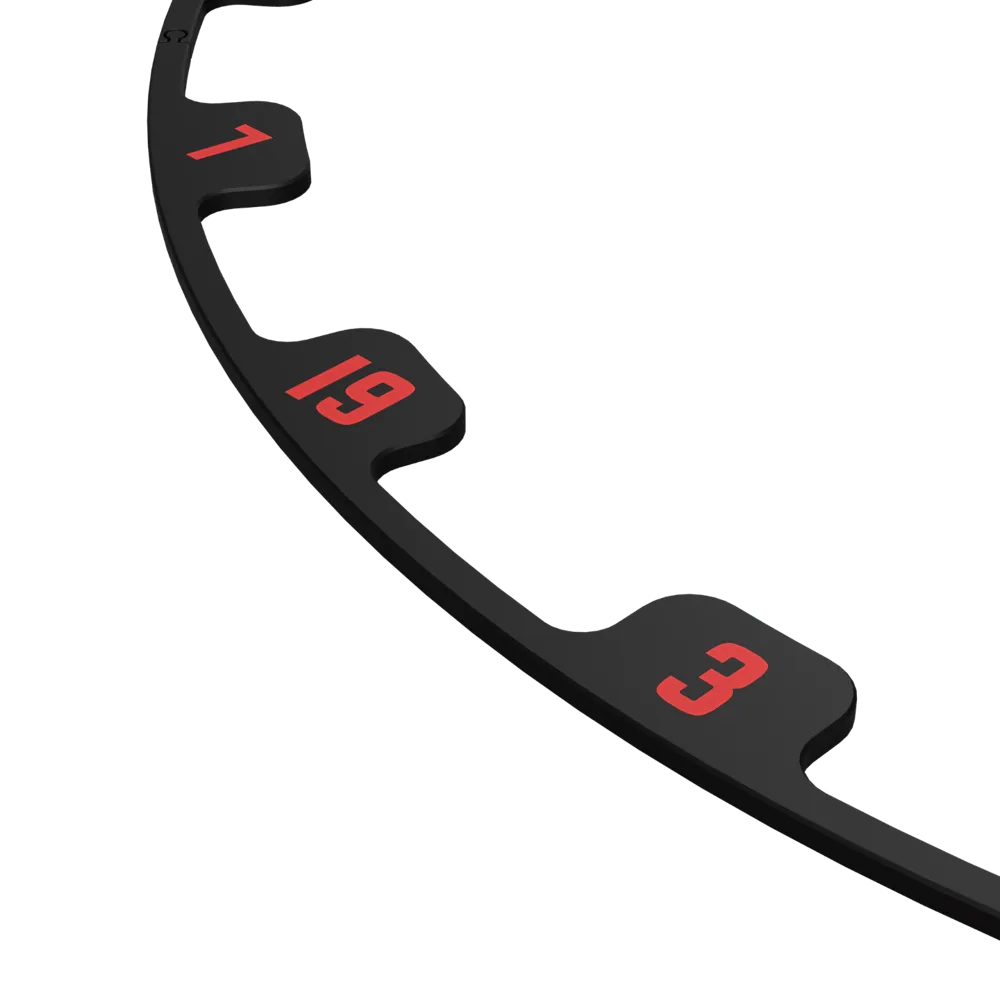

This 3D-printable number ring is designed in the style of the Target Tor dartboard. What makes this design unique is that all numbers are printed in a horizontal orientation. Even better—you get to choose the colors!
Also check out the parametric version if you want to customize your own number ring.

Key Printing Instructions:

• Ensure your print bed is clean and well-prepared for proper adhesion, using recommended methods and apply glue if necessary.
• Bed leveling is crucial for a successful print.
• Designed to fit dartboards with a 450mm diameter. For other sizes, scale the parts in the X and Y directions accordingly (e.g., for a 447mm dartboard, scale to 99.3%).
• The print profile includes two versions of the number ring, each consisting of plates (A) and (B).

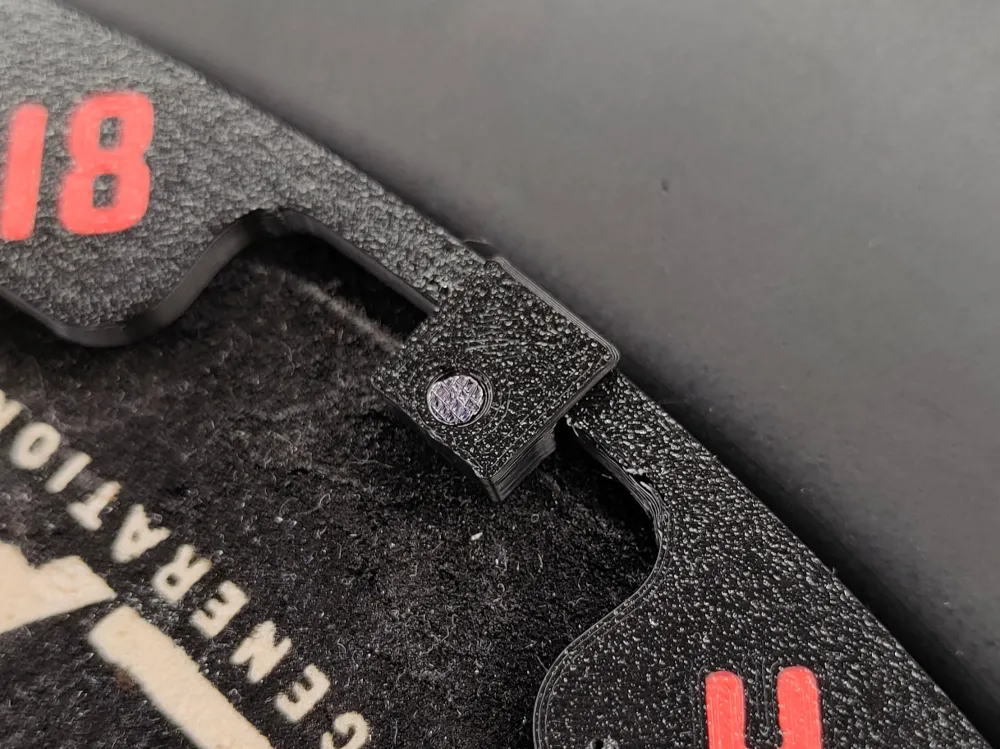

• A drop of glue permanently interlocks the 4 parts.

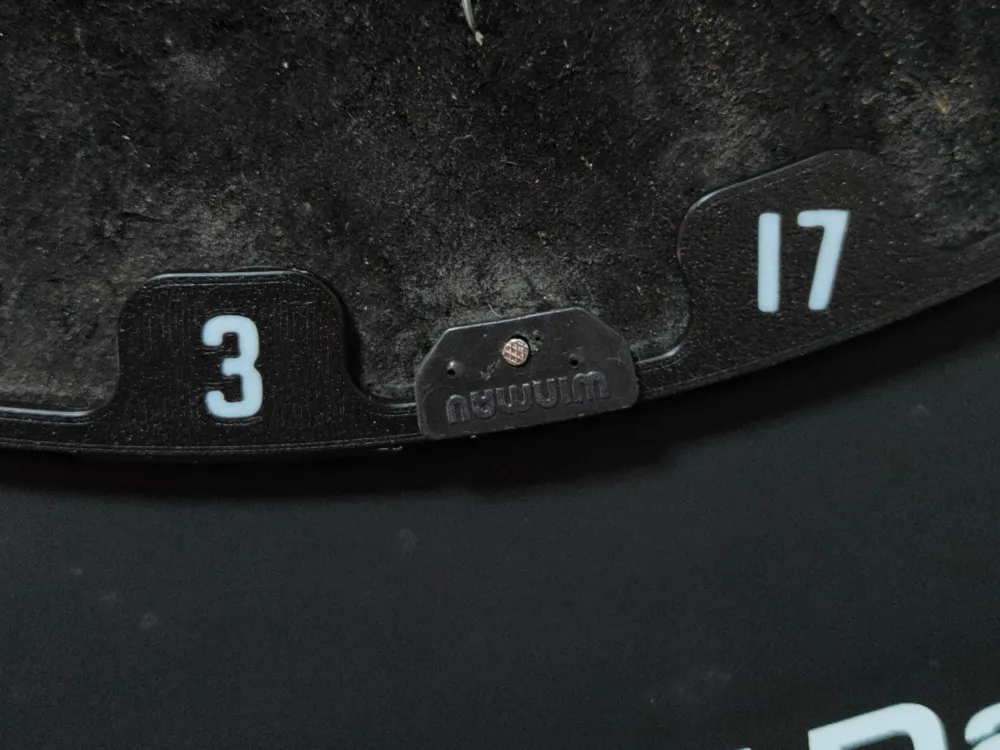

• Use the original ring mounts of your dartboard or  the included brackets.

Printing without an AMS:

1. Use the NO AMS printing profile.
2. The printer will pause after layer 15.
3. Load another filament for the numbers.
4. Resume printing.
5. Switch back to the original filament and repeat the process for plate (B).

Updates:

1. improved bed adhesion for both printing profiles (02/19/2025)
2. uploaded a parametric version of this model
