EV Charging Cable Wall Mount Clip
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
23 min
1 plate
Open in Bambu Studio
Boost
19
66
4
0
90
55
Released
Description

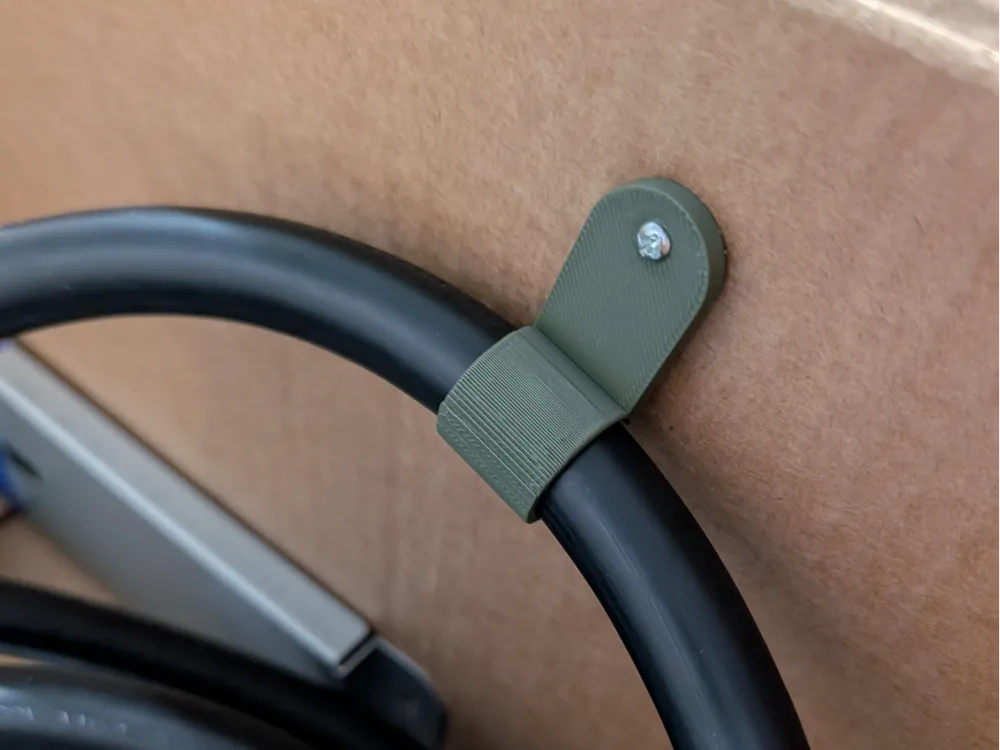

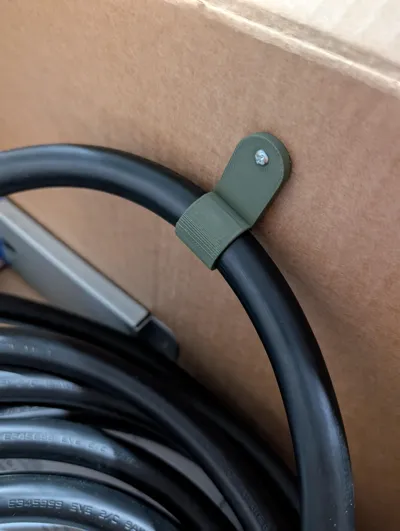

A clip with a 19mm diameter for a EV charging cable. Specifically designed this for use with JuiceBox (Gen 2) cables so I can route/mount it in a way that can store the end of the cable cleanly away from the chargers base station.
Ideally you would print in the orientation provided so no supports are needed, but you can adjust if your needs change, and even scale up/down if needed.
The screw hole is designed for 5x22 screws, but could esily be modified within something like TinkerCad.
