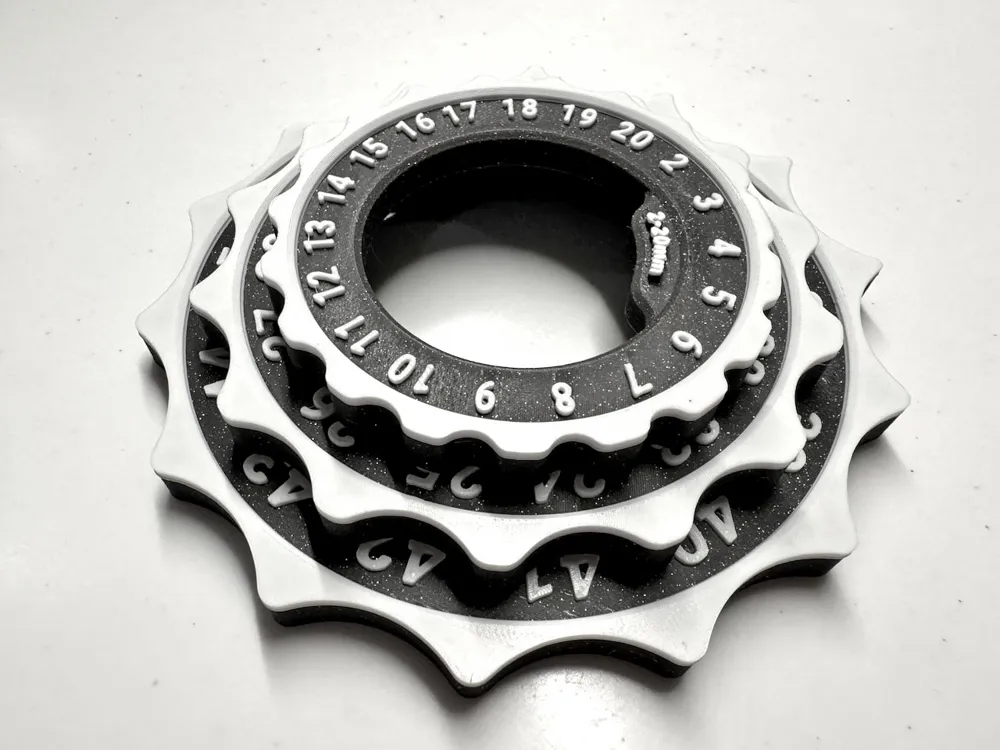

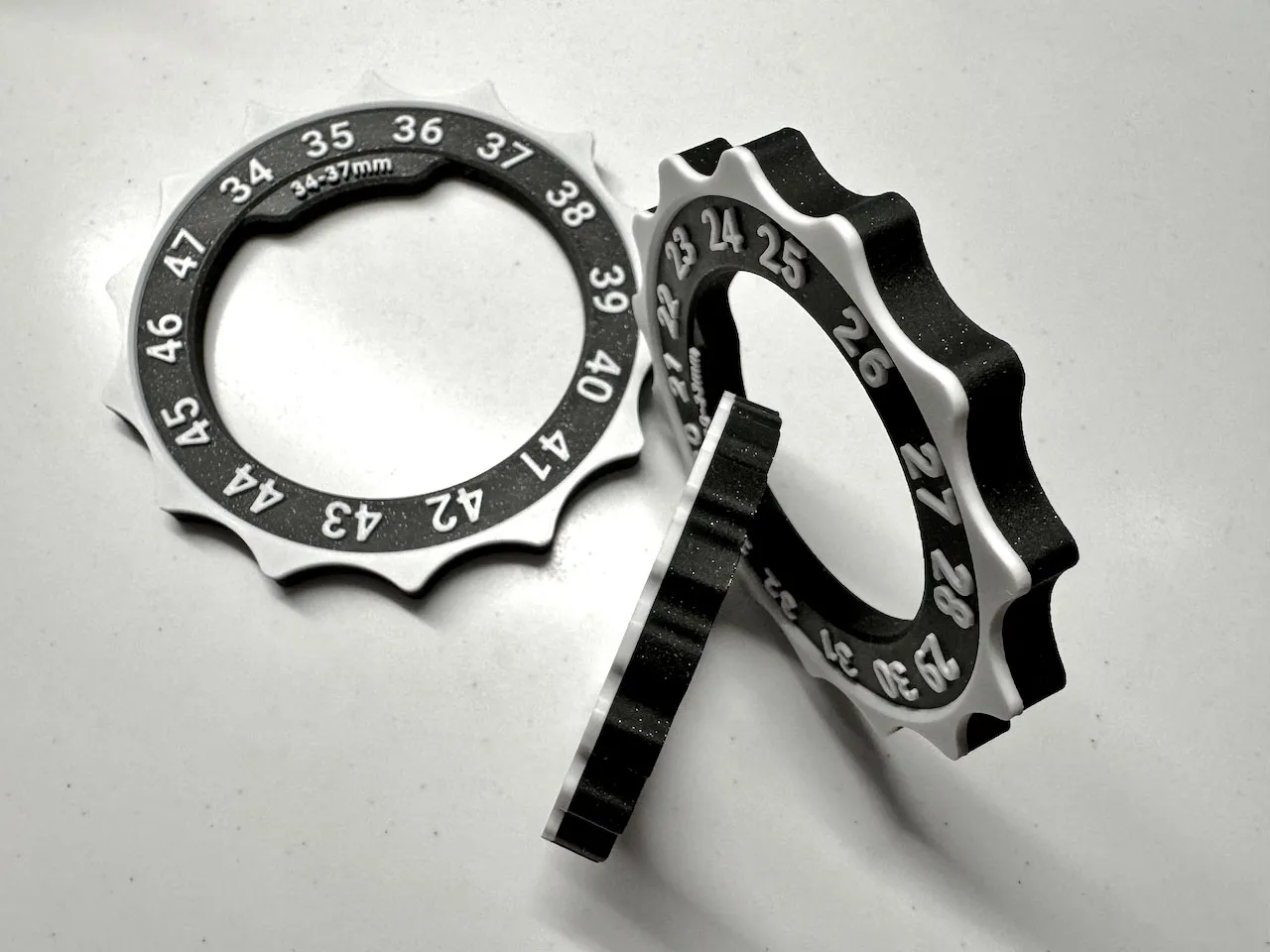

Measure outside fillets (diameters) with this tool – see all the versions below. Pick any two PLA colors and you'll have some stellar measuring tools in no time.

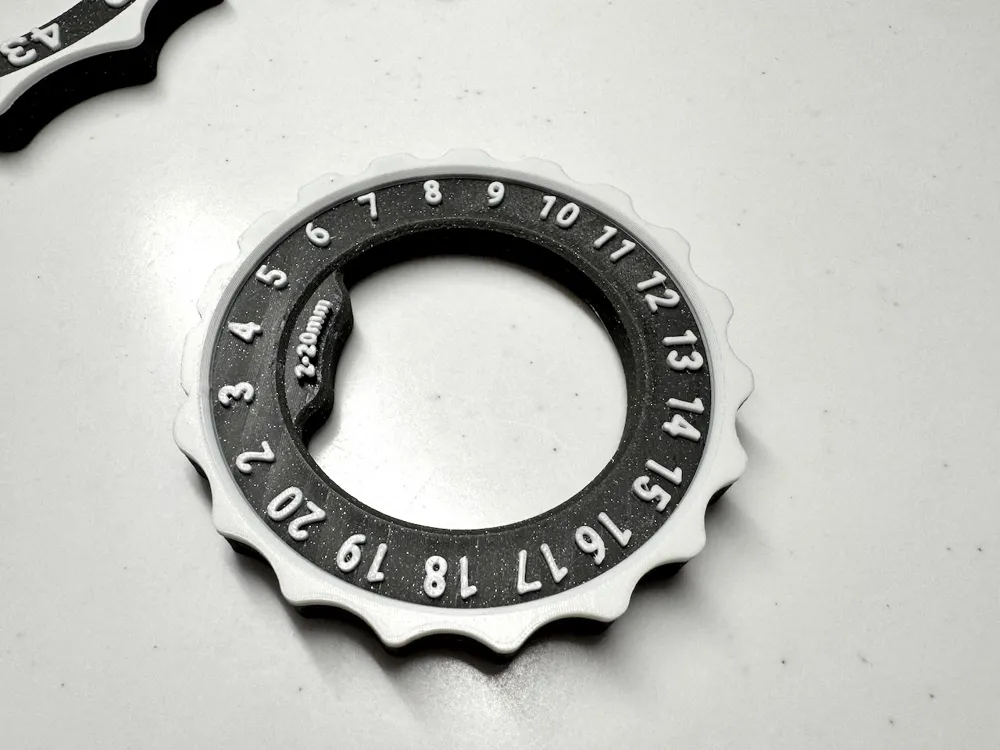

2mm to 20mm diameters (1-10mm radius)
10mm thick

The best quality is the Ironed options (not noted) but if you want to save some time, pick the No-Iron option set.
