Description

Summary

I decided to model this gimbal mount to make the Open Brushless Gimbal project more famous, because it helped me to make cheaper and lighter gimbal for my quad.

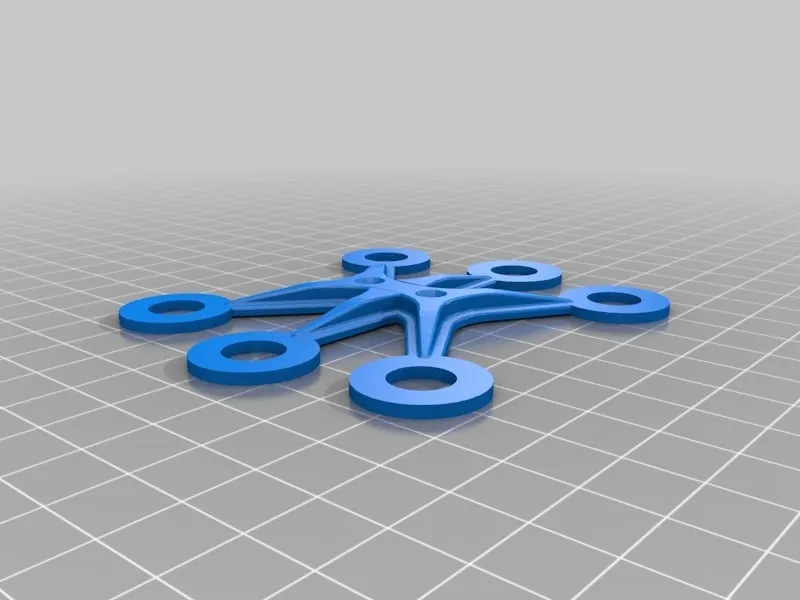

The file "mount_Walkera_X350" have the internal holes for, perhaps, the quadcopter Walkera QR 350/350 pro, anyway You are free to modify and re-upload with the holes for another quad.
As You can see i made a bad-ass version of the original one: http://www.thingiverse.com/thing:110731

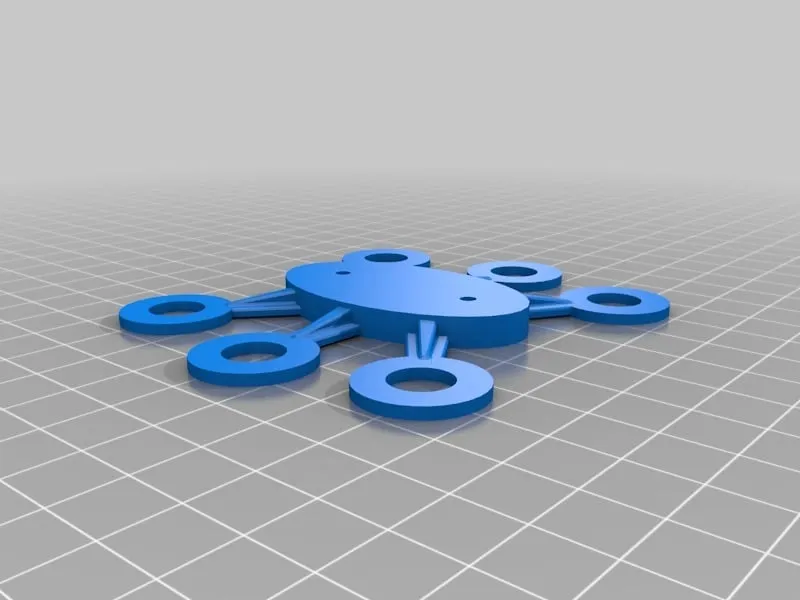

the mine, has a totally never-viewed-before 6 silicon vibration damper system which can assure more stability and less jello-effect.

UPDATE 03.06.2016:
I've uploaded another version in which you can drill the holes for the motor that you prefer.

UPDATE 04.07.2016:
Now the mounts for the dampers are more sturdy.

Print Settings

Printer Brand:

RepRap



Printer:

CoreXY

Rafts:

No



Supports:

No

Resolution:

0.2



Infill:

100%



Notes:

Print it with PLA, ABS or HIPS for a more durable product.

Slow down the speed.
