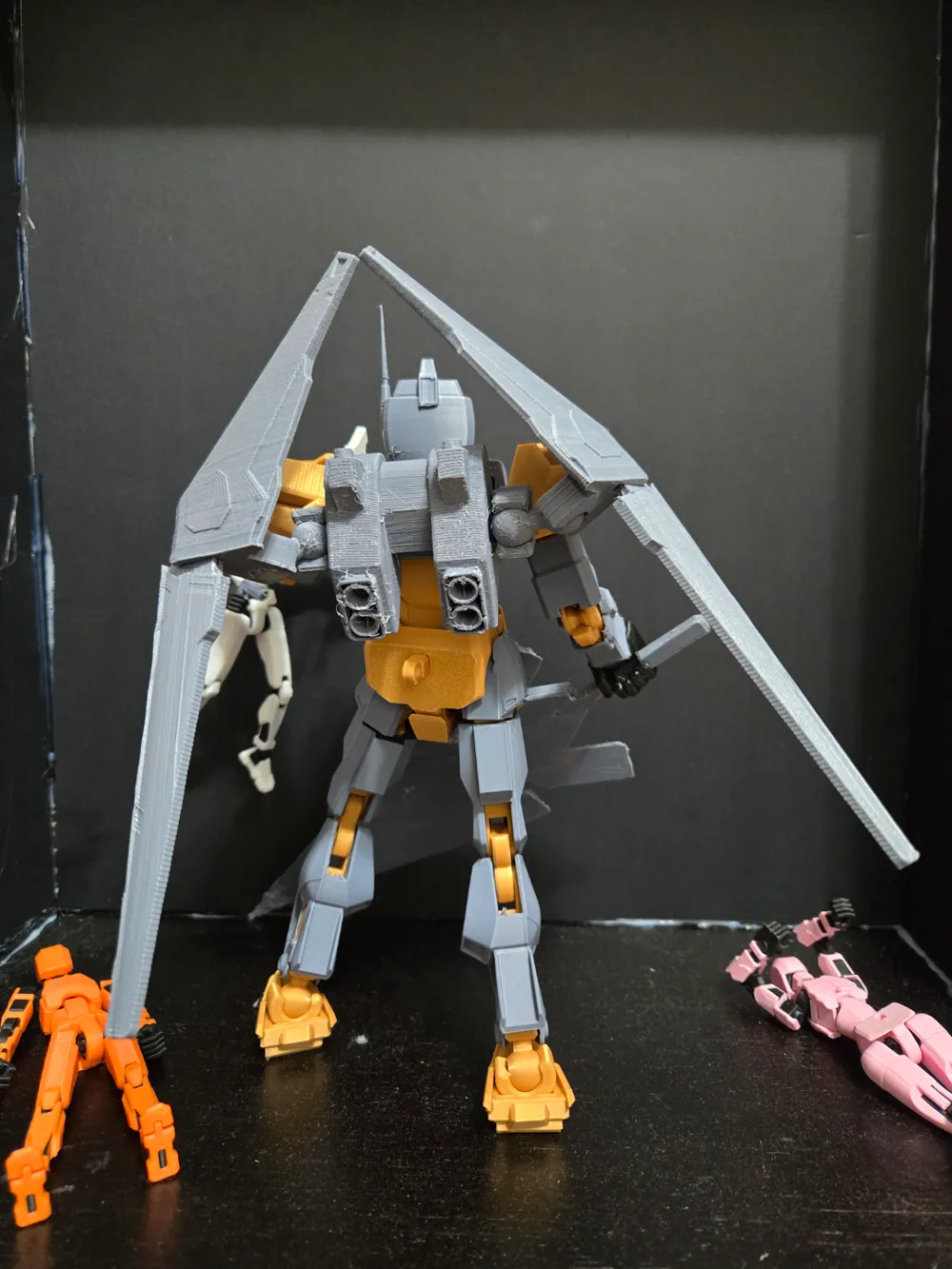

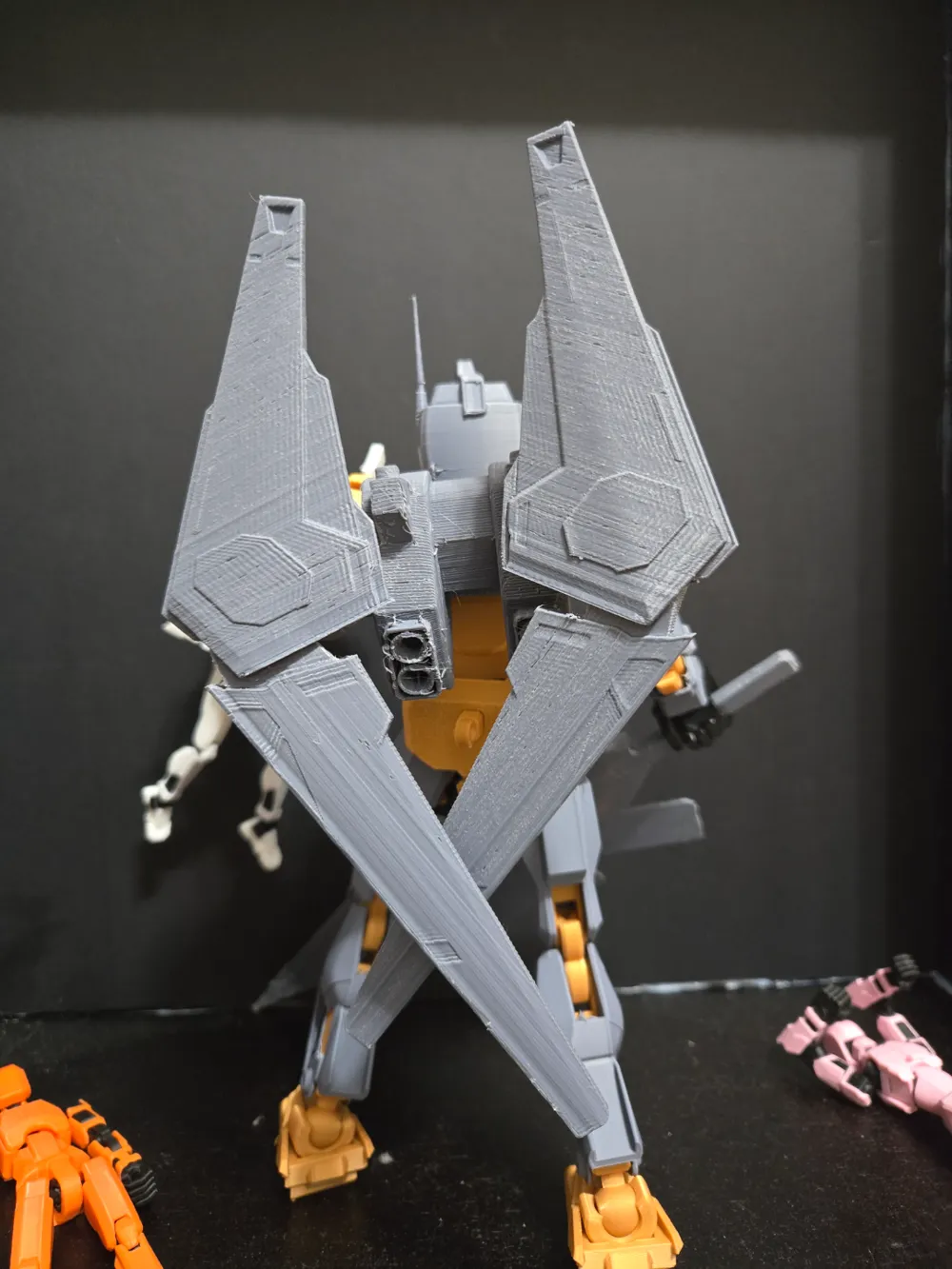

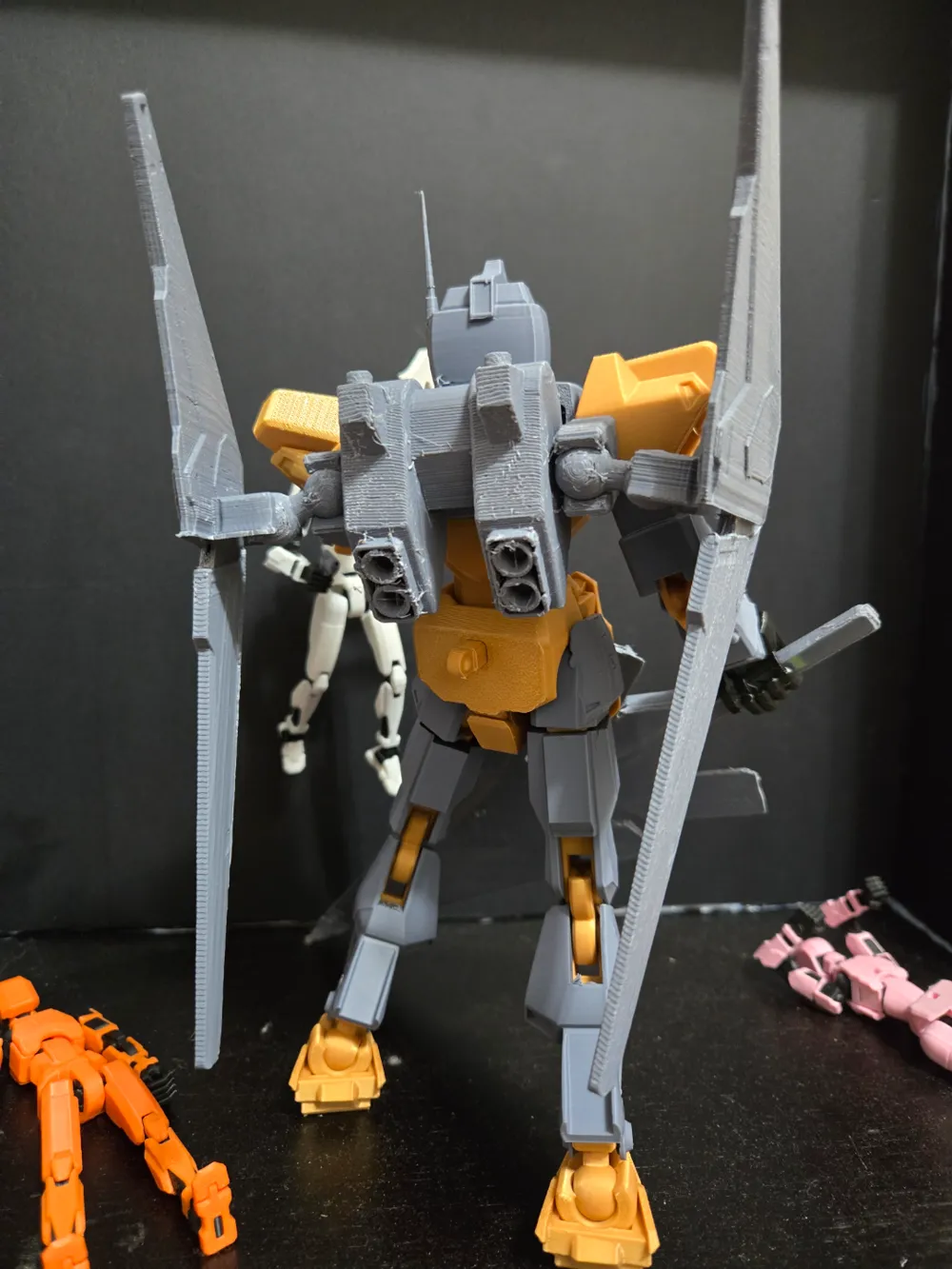

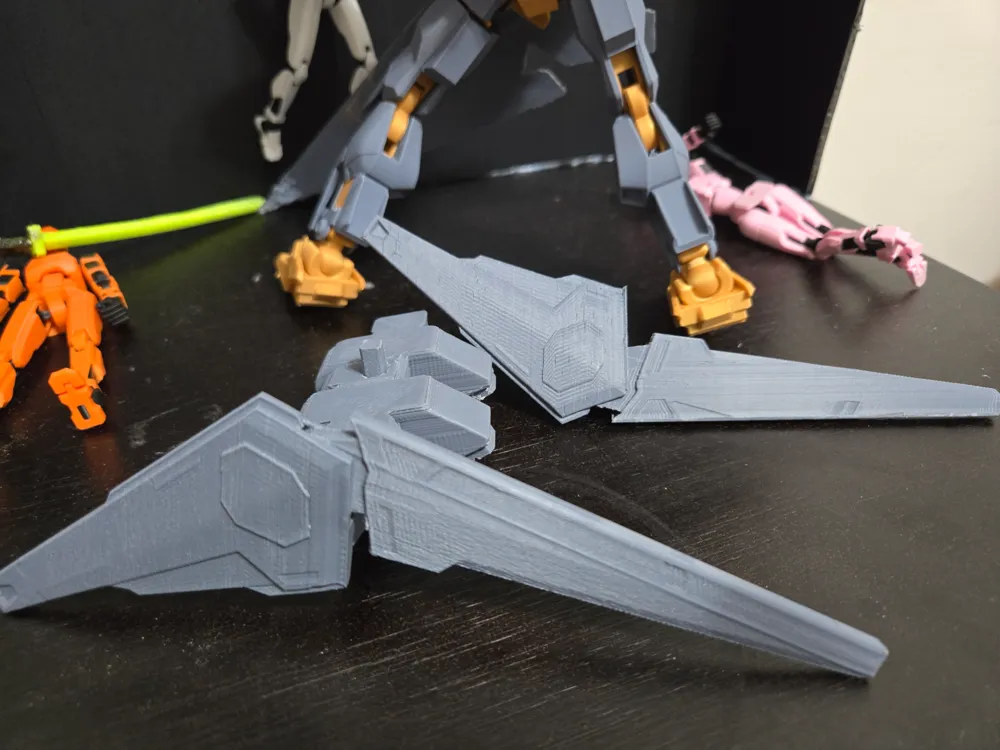

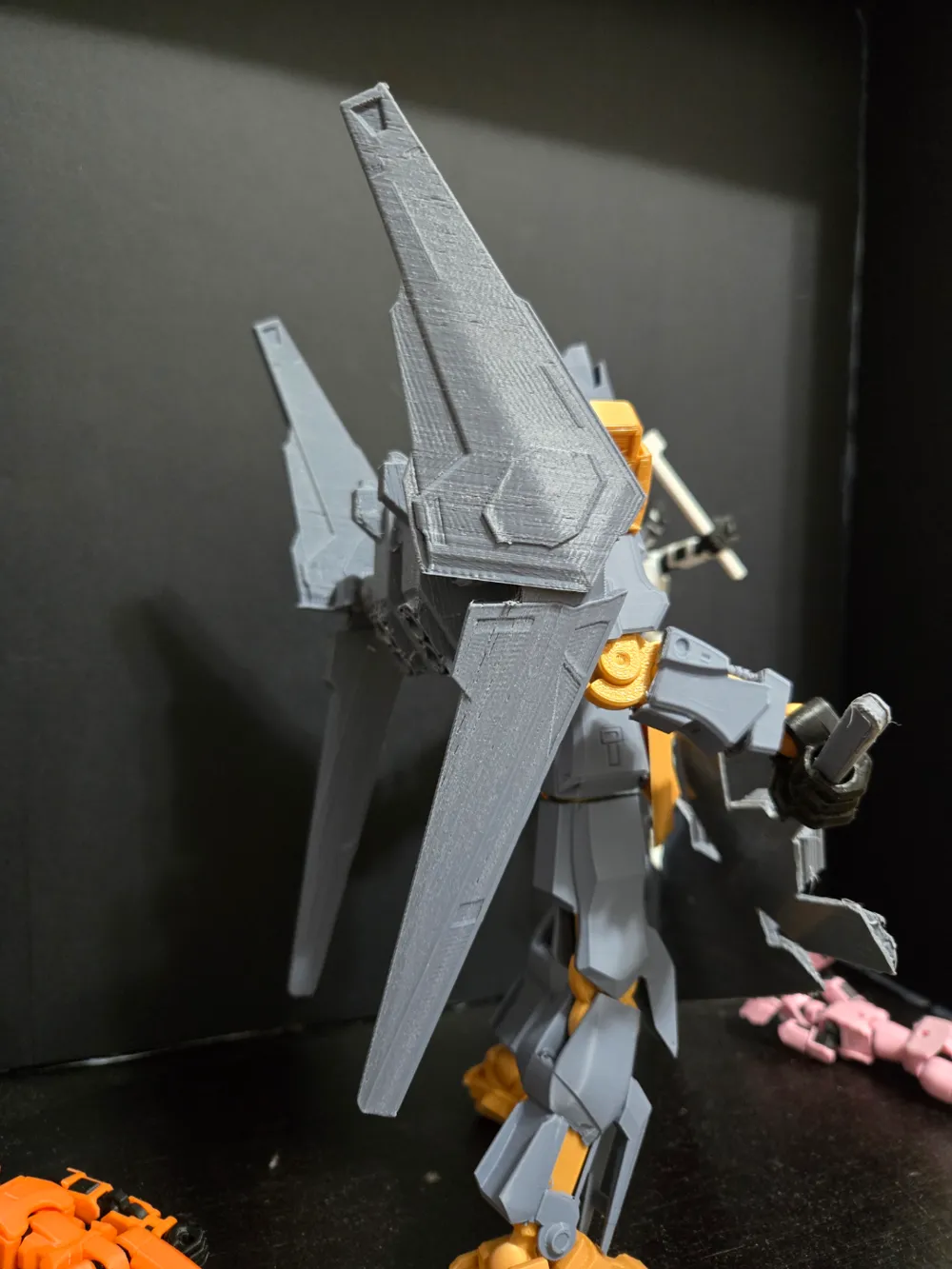

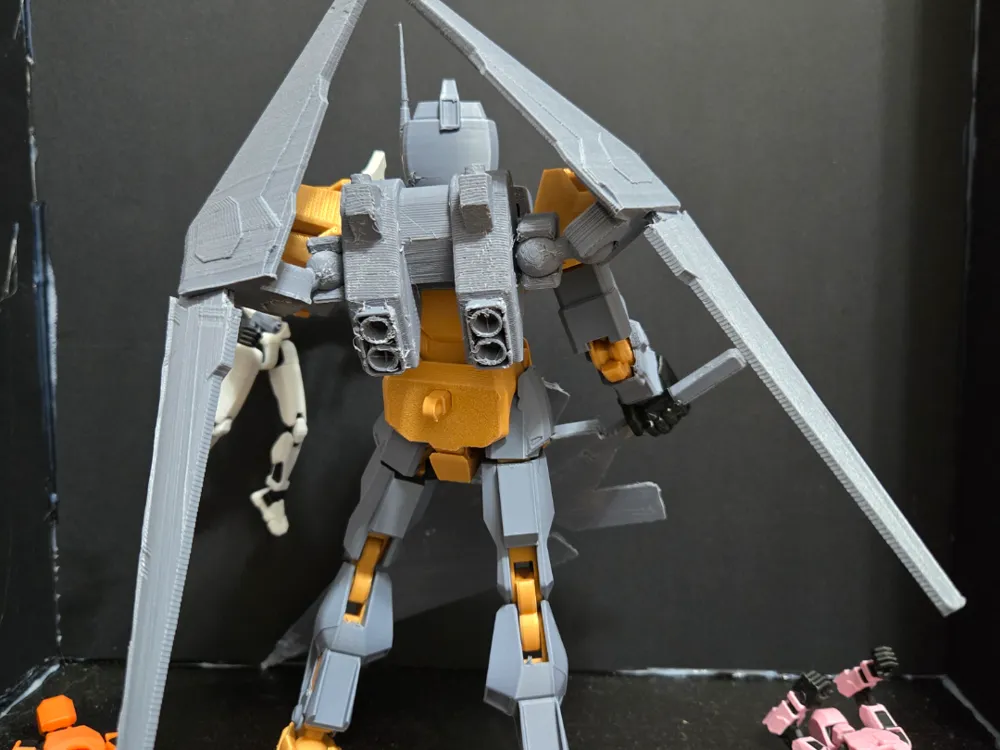

Gundam Wings for Dummy 13.
Can be attached to any dummy 13 models.

I would suggest keeping the infill as low as possible as the whole kit can get pretty heavy, especially the backpack.

Please share your feedback for any improvements and Pictures.

Thanks.

Gundam Model Link
https://makerworld.com/en/models/1072841#profileId-1063109

Gundam Sword Link

https://makerworld.com/en/models/1092539#profileId-1086264

Comment & Rating (19)

@Skizzofpv

Print Profile

0.12mm layer, 2 walls, 15% infill

very good

@user_1488543637

Boosted

Perfect, thank you! I printed for my Integrity toys doll

@CR_3DPrintmaker

Print Profile

0.12mm layer, 2 walls, 15% infill

great design and easy to print

@Mx10573

Print Profile

0.12mm layer, 2 walls, 15% infill

I had no problems one time print.

@user_3812734471

Print Profile

0.12mm layer, 2 walls, 15% infill

Parts don't fit model it was designed for

The profile uploader has replied

@user_2553332113

parts dont fit ?? can you explain ?

@user_3812734471

Replying to @user_2553332113 :

I mentioned it it my other comment, but the pack interferes with the shoulder armor of the Gundam model. I printed all parts at 150% for both models. Please advise if I've done something wrong and I will happily change my rating, but I printed the profile provided at 150% (to match the Gundam that was printed at 150%) in PETG. The print was successful, and looked great, but the socket parts that extends out to either side (even before connecting the wings) hits the shoulder armor and won't allow it to seat properly, and if you rotate the shoulder it pushes the pack off the back. I will provide photos on my next post as I dont have any on me at the moment.

@user_2553332113

Replying to @user_3812734471 :

a photo will be very helpful; I can modify the part if it is needed. I am confused because I didn't had such problem, small shoulder moment can get affected but not 100% movement. Could it be that you ae pushing the bagpack to a point that it is connected to back of the Gundam ? you have to leave some space. I don't have the printed model with me anymore, I gifted it to my friend. picture of @Skizzofpv in the comment section doesn't shows any problem.

@box_boy0

is this 200% scale?

@madco.3d

Print Profile

0.12mm layer, 2 walls, 15% infill

I had a problem with the wing joint breaking, I had to add tolerance to the holes and then I was able to attach it

Show original

@romyisek

Print Profile

0.12mm layer, 2 walls, 15% infill

good

@user_3812734471

I tried sizing it up to 150% to fit a 150% model and the back pack doesn't fit flush, as the shoulders interfere. Have I done something wrong?

@Spaceguy1985

Print Profile

0.12mm layer, 2 walls, 15% infill

works well
