Shanked bolts for Multiboard (attach 2 boards)

These are bolts compatible with multiboard. They are meant to be used to attach things to the multiboard.

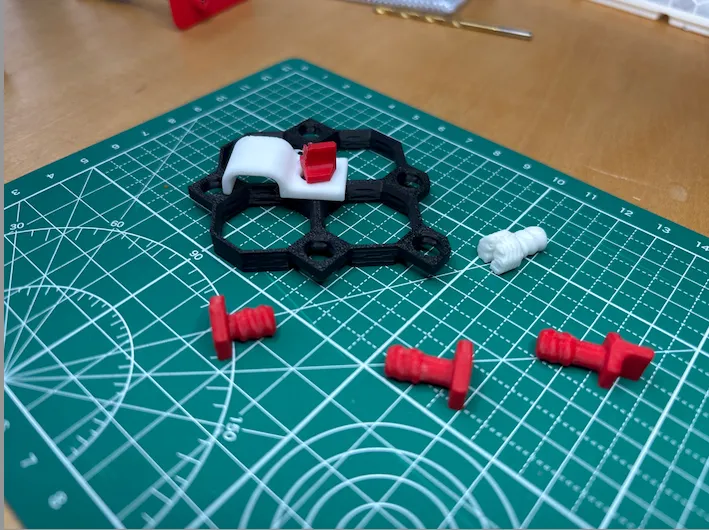

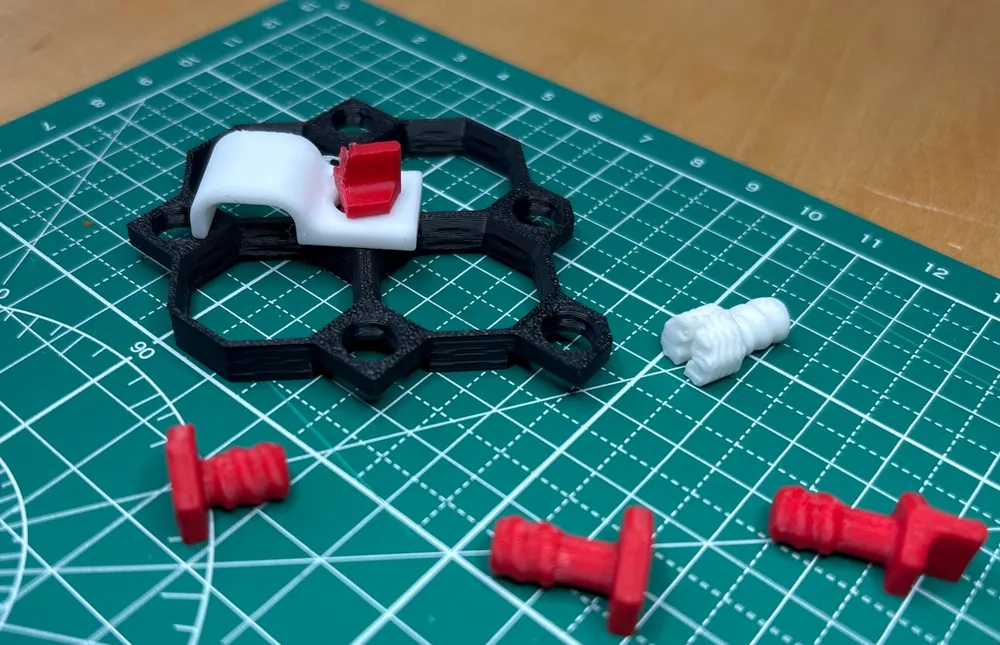

The short ones are used to attach 3mm thick parts (such as these cable holders https://makerworld.com/en/models/853444

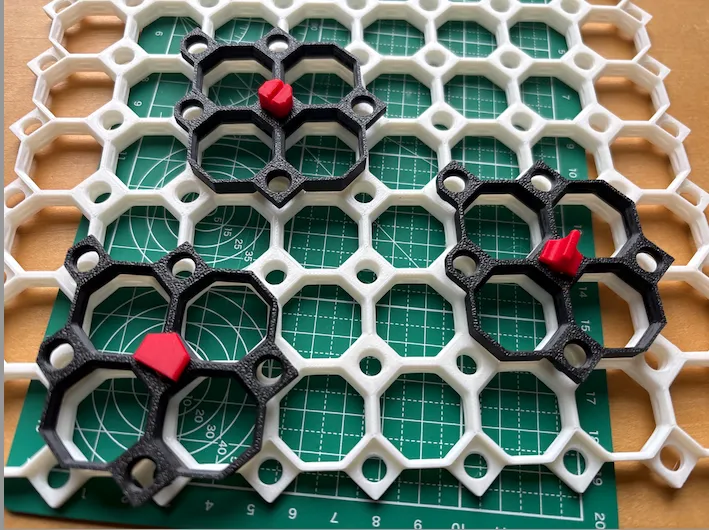

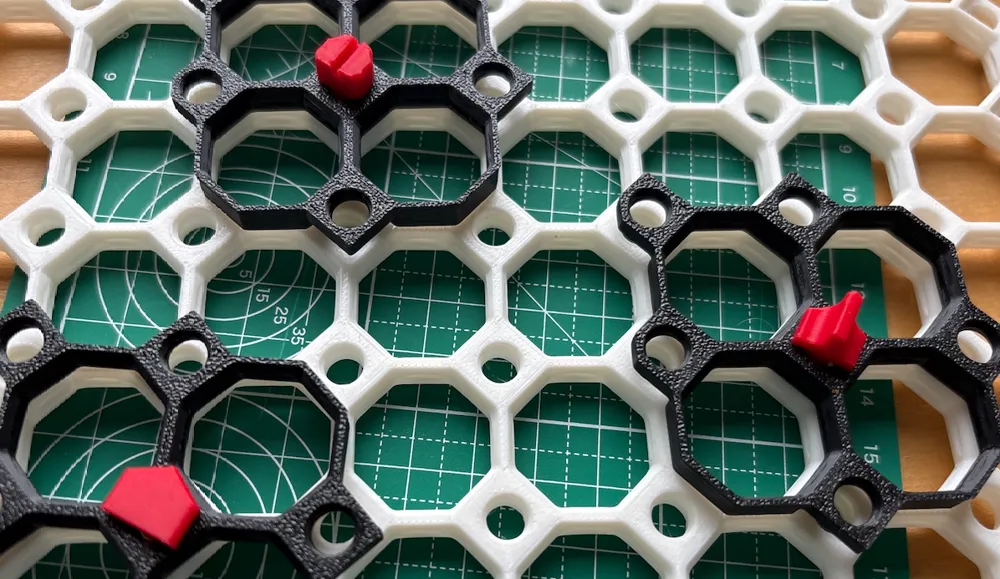

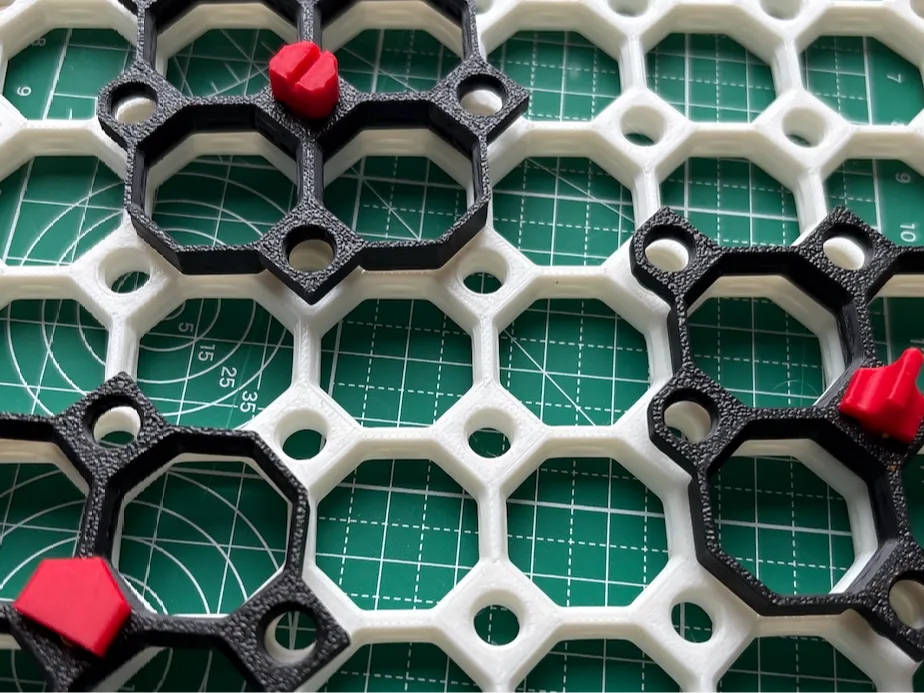

The large ones can be used to attach two multiboards together.

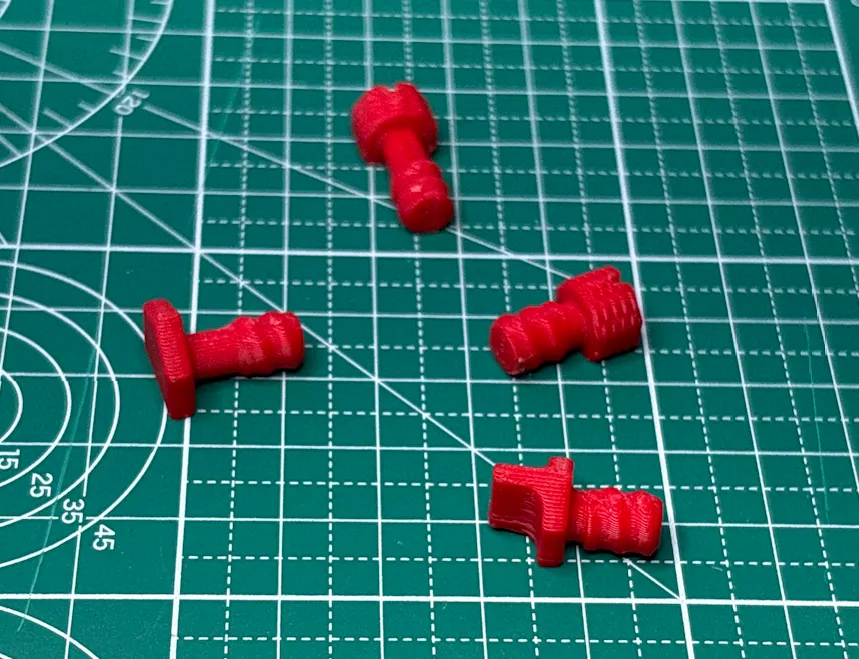

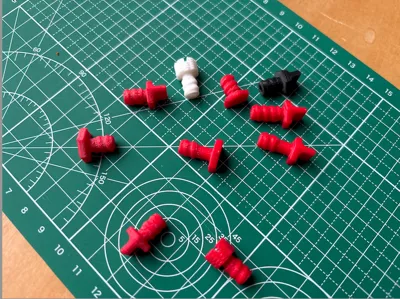

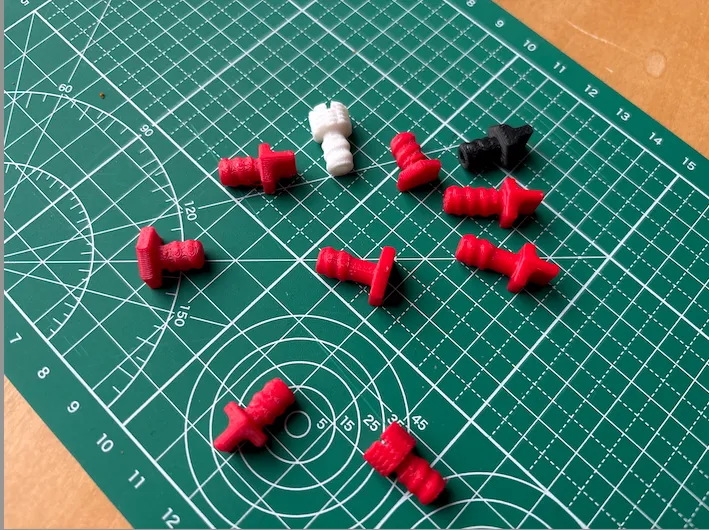

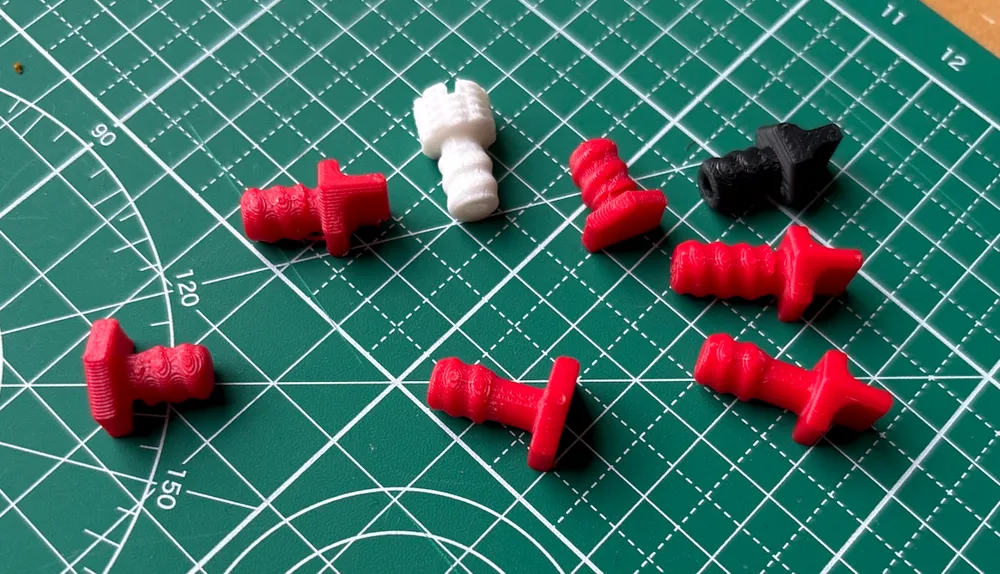

They come in 3 variants: hex head (12mm across, thumbscrew head, and knurled. Choose the one you like most.

Because they are printed horizontally they are very strong. It is likely that the thread will slip before they break. Test them for your specific application.

These bolts were created by me and are not derivative works of the official Multiboard files, and thus the Multiboard license does not apply.

Acknowledgements:

A big thank you to Mo for the original idea and his feedback to get the dimensions right (specially the clearance and the thumb head).

You can find other multiboard models designed by me at:  https://makerworld.com/en/collections/4226278
