USB Hub HDD Station

Hello everyone,

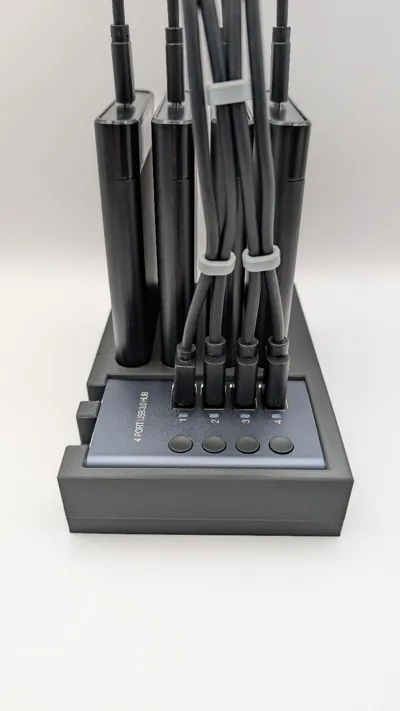

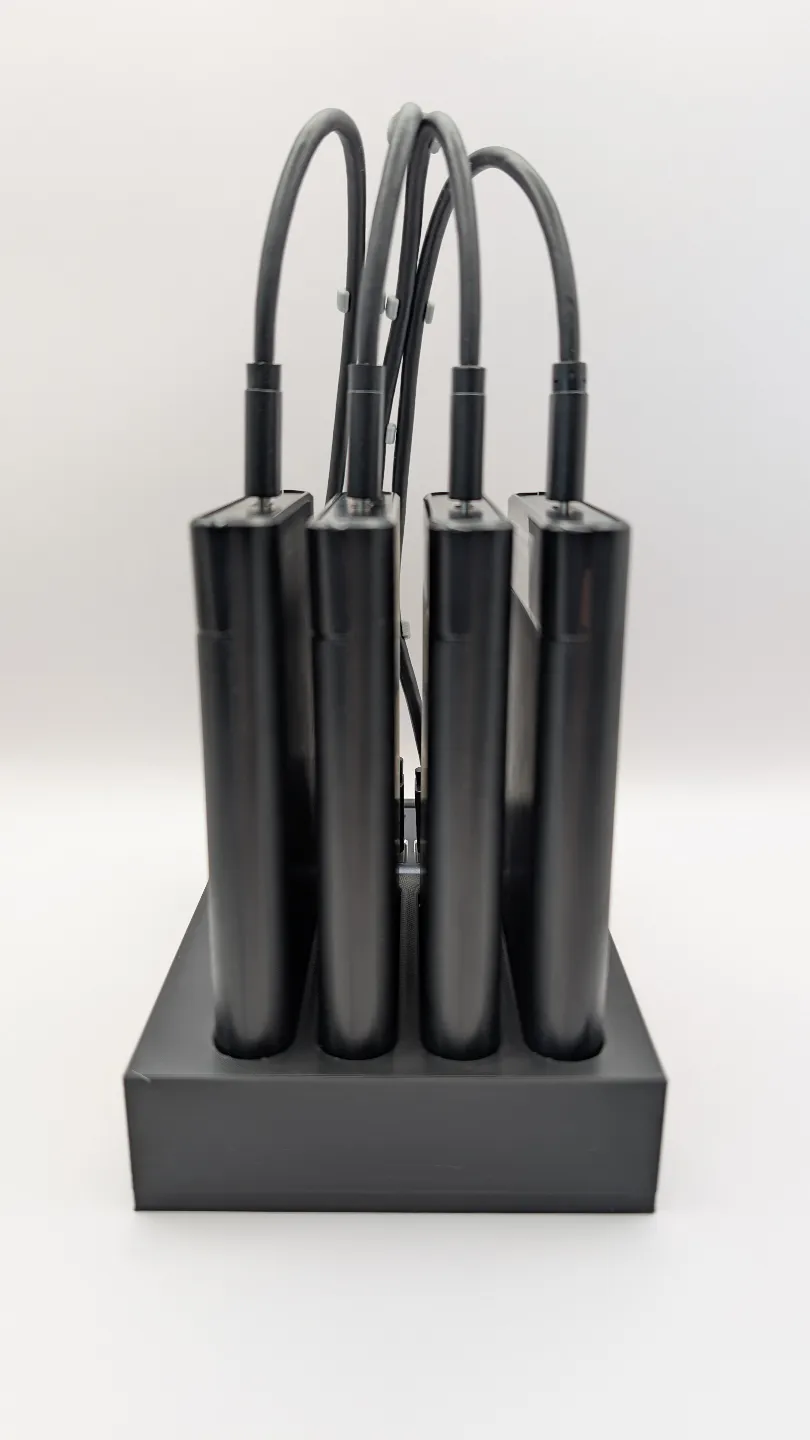

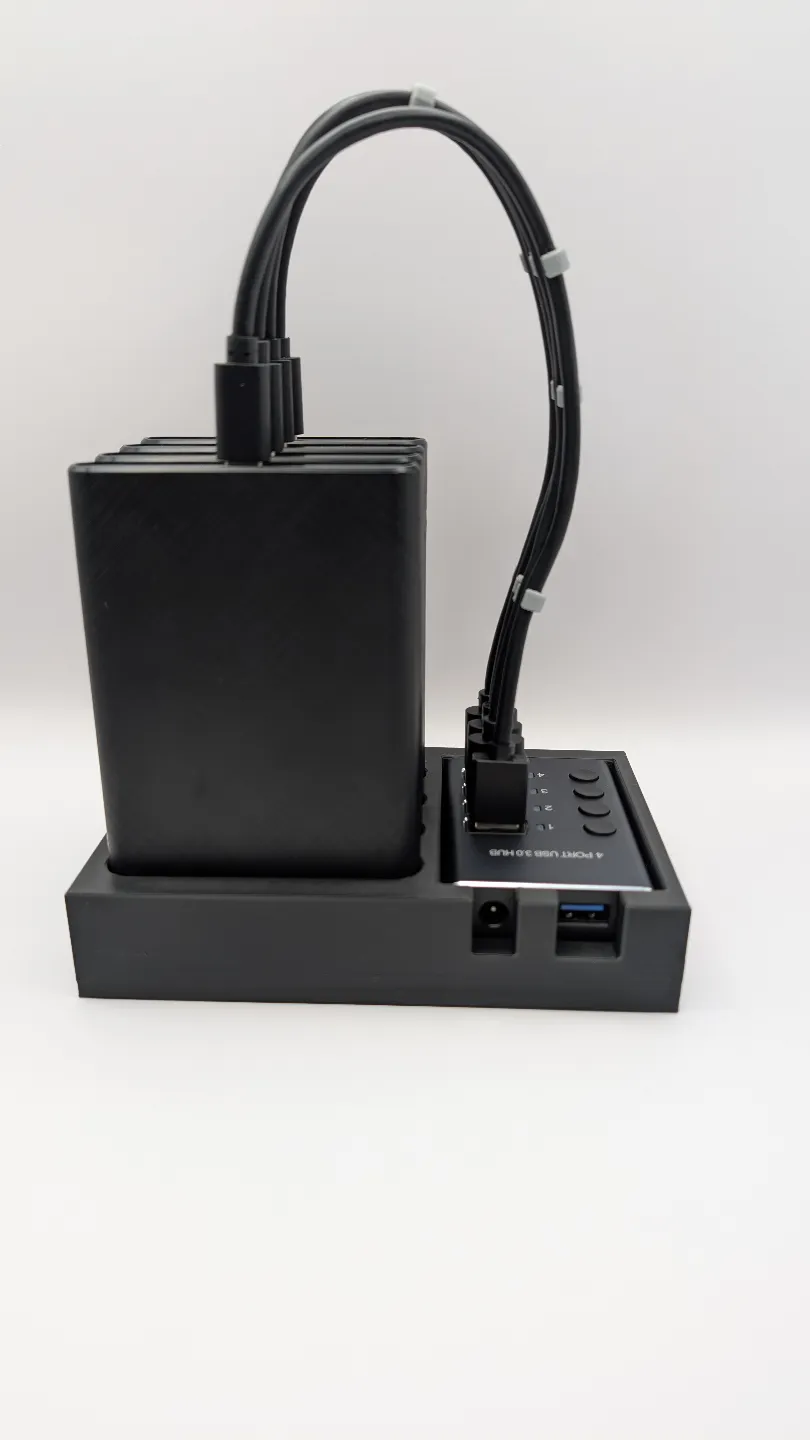

I have built a station for my external SSD hard drives, including a USB hub, for my UNRAID project.

The dimensions are 150 x 100 x 30 mm, printed with standard PLA.

Here are the Amazon links to the items used:

USB 3.0 HUB

https://www.amazon.de/dp/B0BDKFFRJZ?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

External hard drive enclosure

https://www.amazon.de/dp/B0C9T6F7QY?ref=ppx_yo2ov_dt_b_fed_asin_title

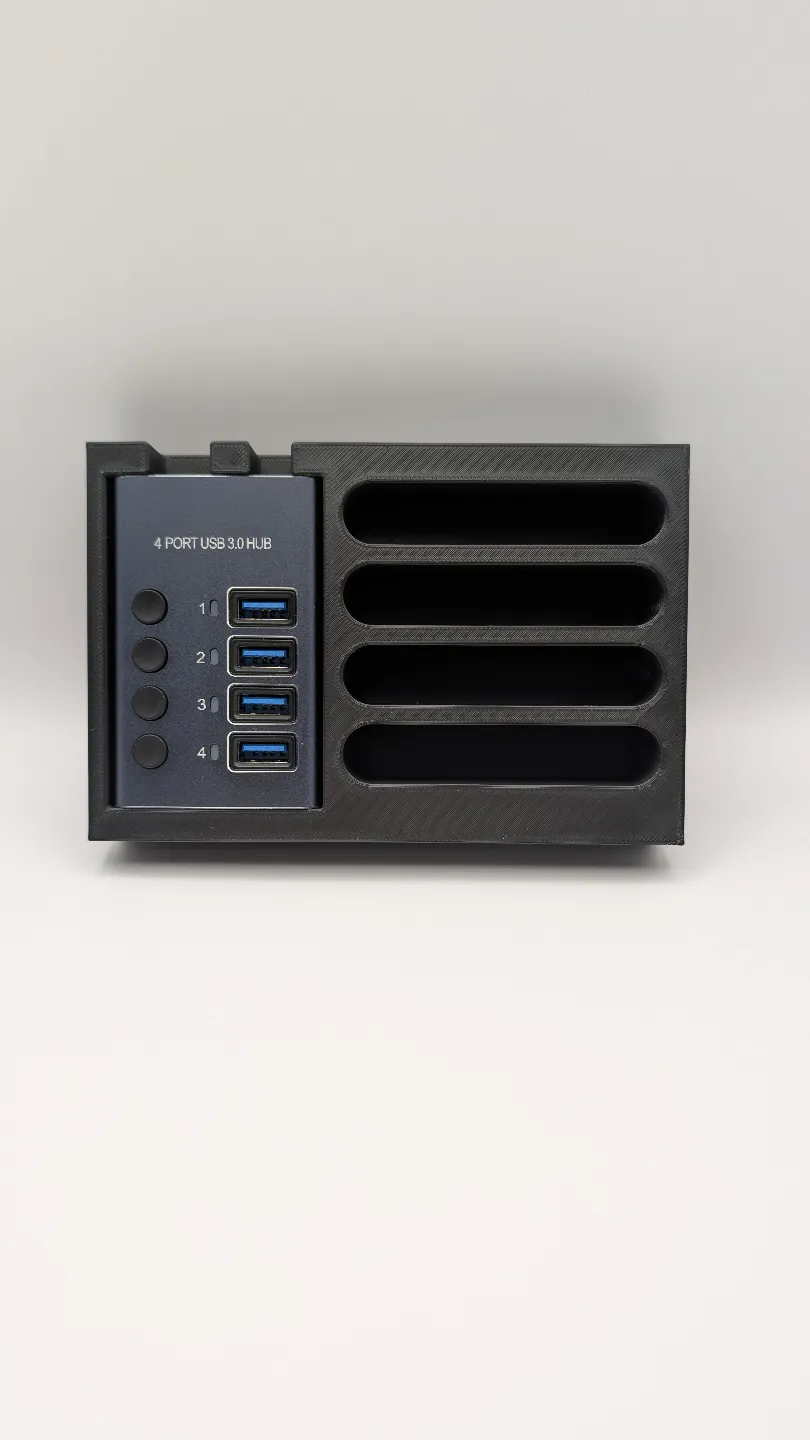

I would have liked to include images of the station without the USB hub

but I probably won't be able to remove it without causing damage…

I measured it too precisely without allowing for any clearance; there was a “pop” when inserting it, and it hasn’t moved since. ;)

But don’t worry, I have added a millimeter to the length and width of the uploaded file

to spare you that experience :)

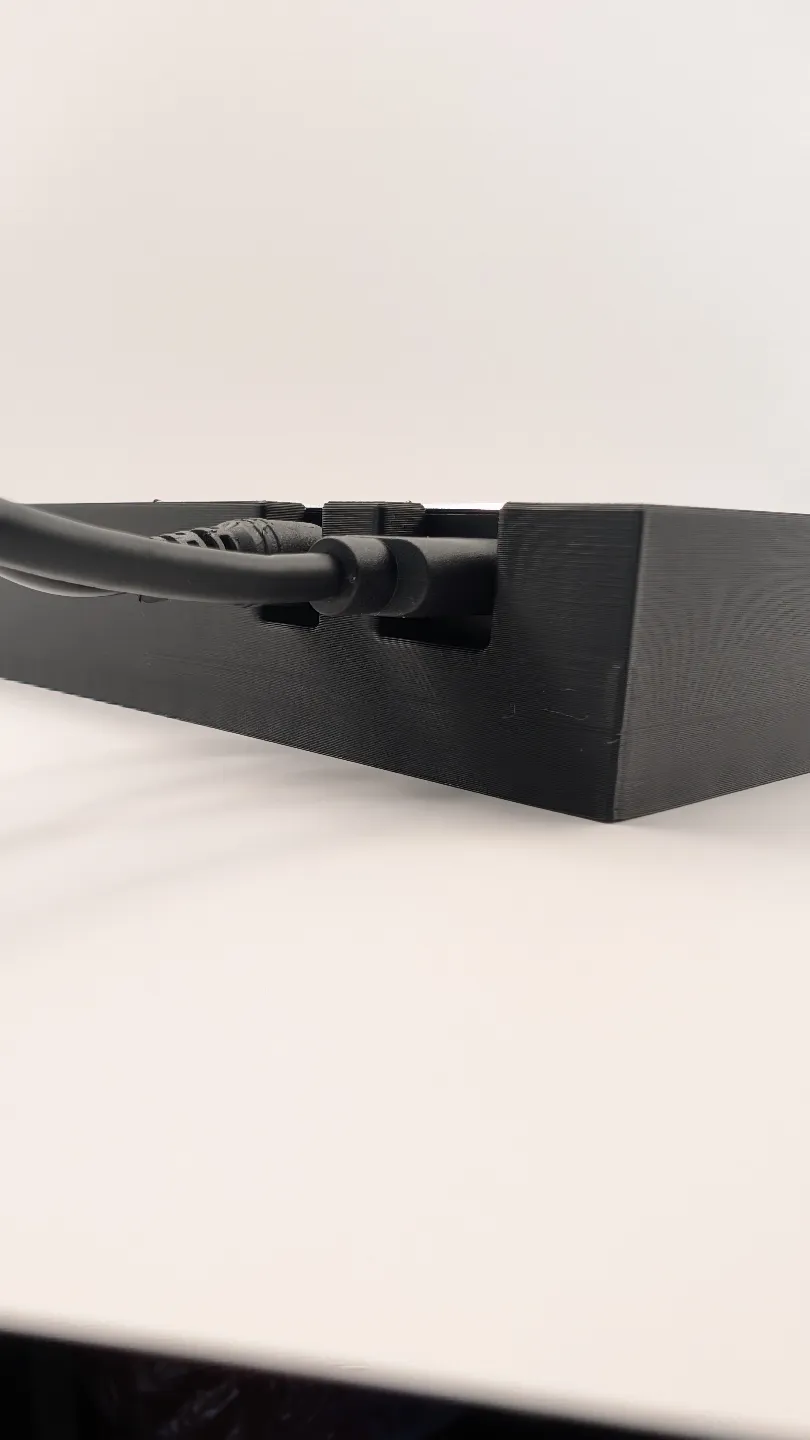

I had the cable clips lying around; here is a link to my colleague’s print.

https://makerworld.com/en/models/438261#profileId-343656
