Precision Laser Level Bracket – Vertical Mount

Precision Laser Level Bracket – Vertical Mount

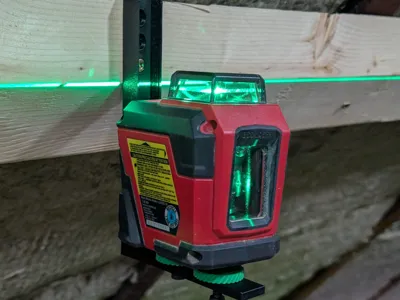

This adjustable laser level bracket allows secure mounting on vertical surfaces, offering both large positioning adjustments and fine-tune control for precision alignment. Whether you're working on framing, tiling, or construction, this mount ensures stable and accurate laser positioning.

Key Features:

✅ Large Adjustability – Multiple verticle mounting holes for coarse positioning
✅ Fine-Tune Control – Screw adjusters allow precision laser alignment
✅ Secure & Stable – Rigid design minimizes vibration and movement
✅ Universal Fit – Compatible with most standard laser levels
✅ Durable & Reliable – Designed for professional and DIY use

Ideal Applications:

✔️ Wall mounting for construction and framing
✔️ Tiling, flooring, and drywall alignment
✔️ Projects requiring precise laser positioning

Printing & Assembly Notes:

🔹 Recommend PETG, ABS, or reinforced PLA for strength
🔹 (2) Mounting screws and adjusters required (hardware not included). Adjusters are designed for #10-24 screws (common tripod mounting).

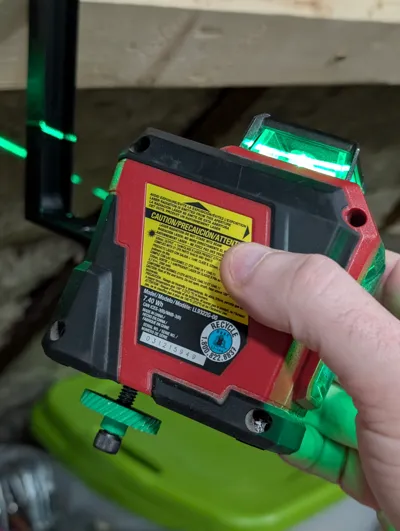

🔹 The rear mounting hole will use one adjuster and one screw. Thread the adjuster on to the screw, and then the screw into the laser level.

🔹 The front mounting hole will use an adjuster, one screw, and a “cap” adjuster. Thread the adjuster on to the screw, then the cap adjuster.
🔹 The holes and adjusters are designed so that you can easily remove the laser level from the bracket by just lifting it off so that you can adjust the height as necessary, or remove for charging if required.
