Volvo P80 M56 Linkage Arm
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
48 min
1 plate
Open in Bambu Studio
Boost
3
6
0
0
2
0
Released
Description

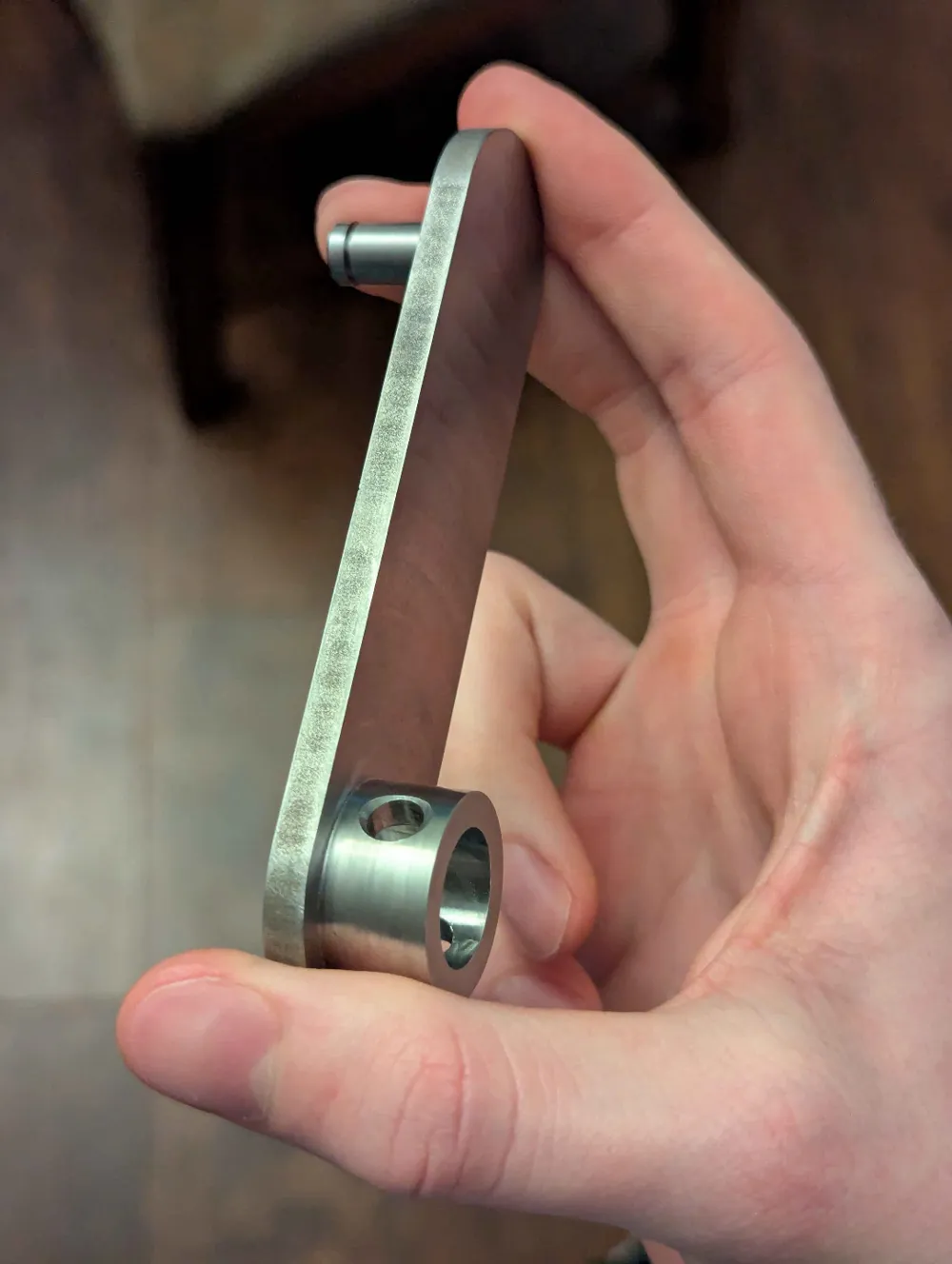

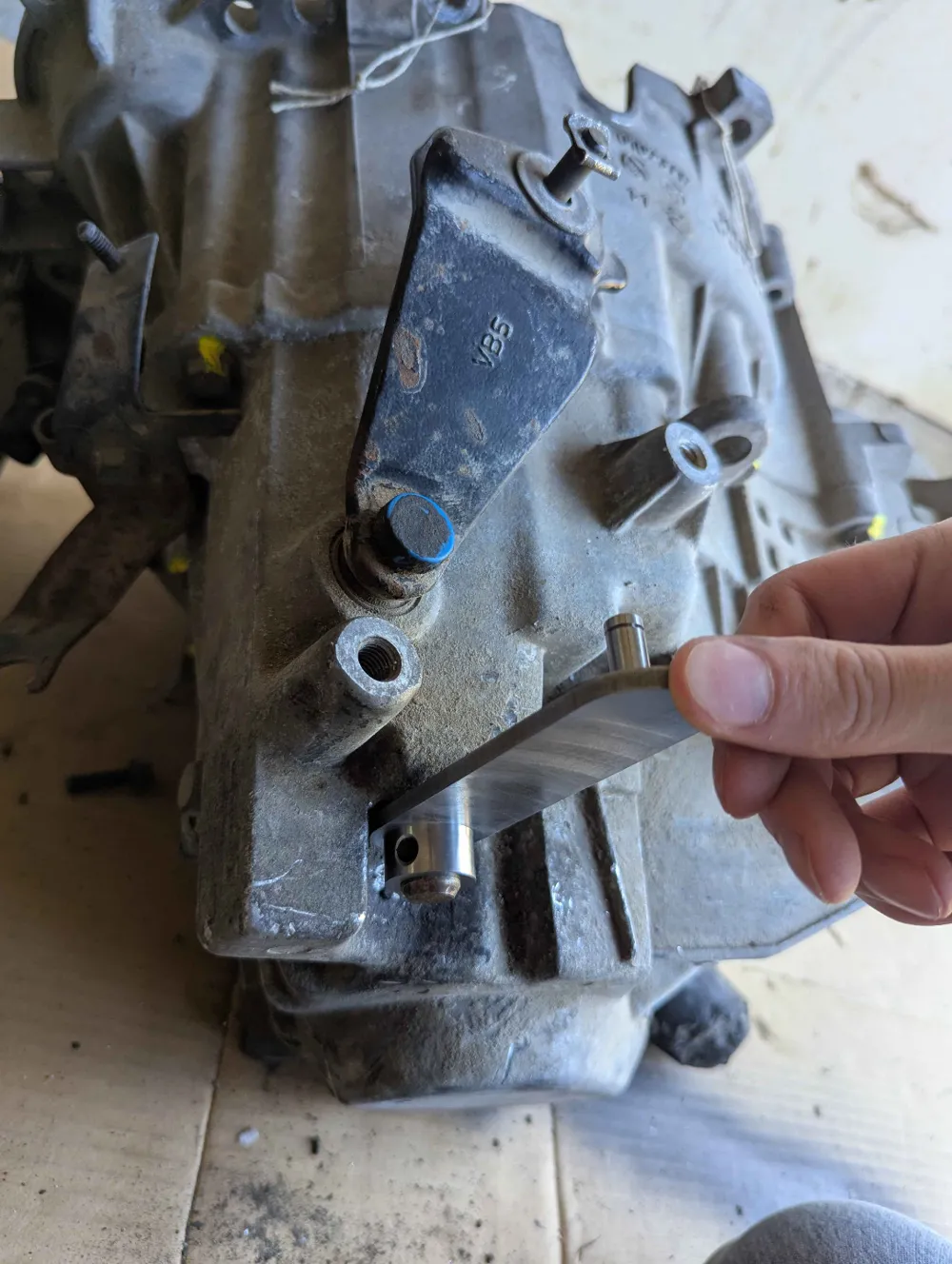

This is the intermediate lever arm linkage used on the M56L and M56H manual transmissions on P80 Volvos. You will need this part if you are performing a manual swap on your P80 and have an M56 transmission pulled from a Nedcar Volvo. The OEM part number is 6814707 and costs around $100. The original part is made of steel. I highly recommend you download the .step and .pdf files and have it CNC'd or machine it yourself. You can print this file to verify that your shifter assembly and transmission are working properly before you put it in the car.
A massive thank-you to Miniklick and Yurp on the Need For Swede discord for helping me with the dimensions!
Boost Me (for free)
If my part has helped you and your P80, consider giving me a boost!
Documentation (1)
Assembly Guide (1)
Linkage v17.pdf
