Shorter Stackable Playing Card Boxes w/ Lid

This model is a remix of: https://makerworld.com/en/models/84950#profileId-108864

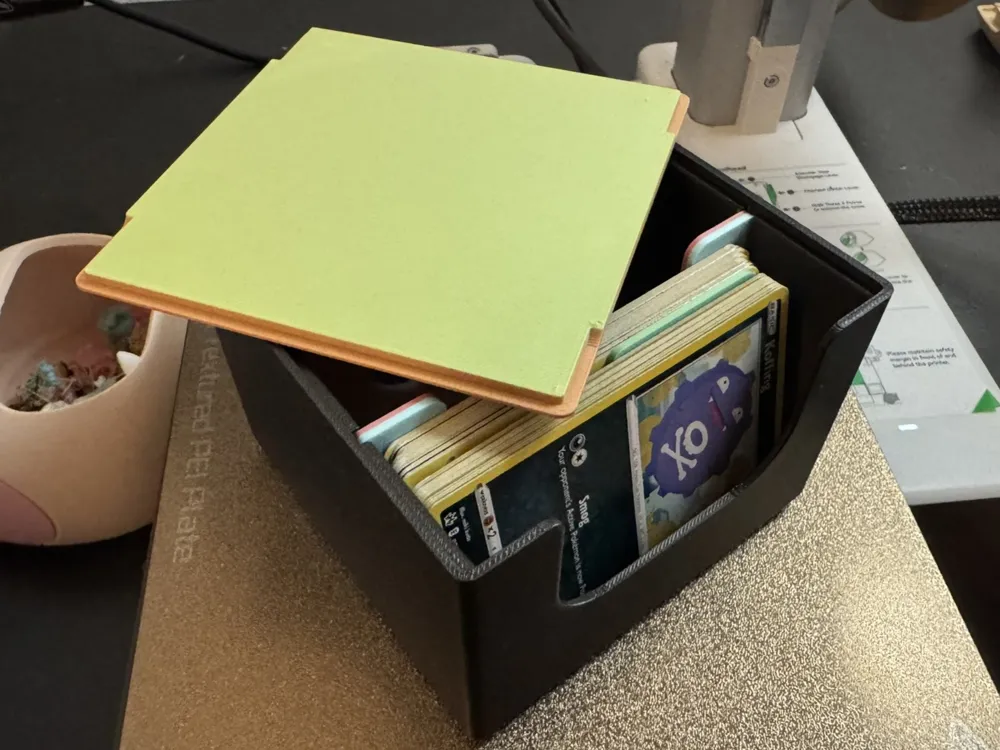

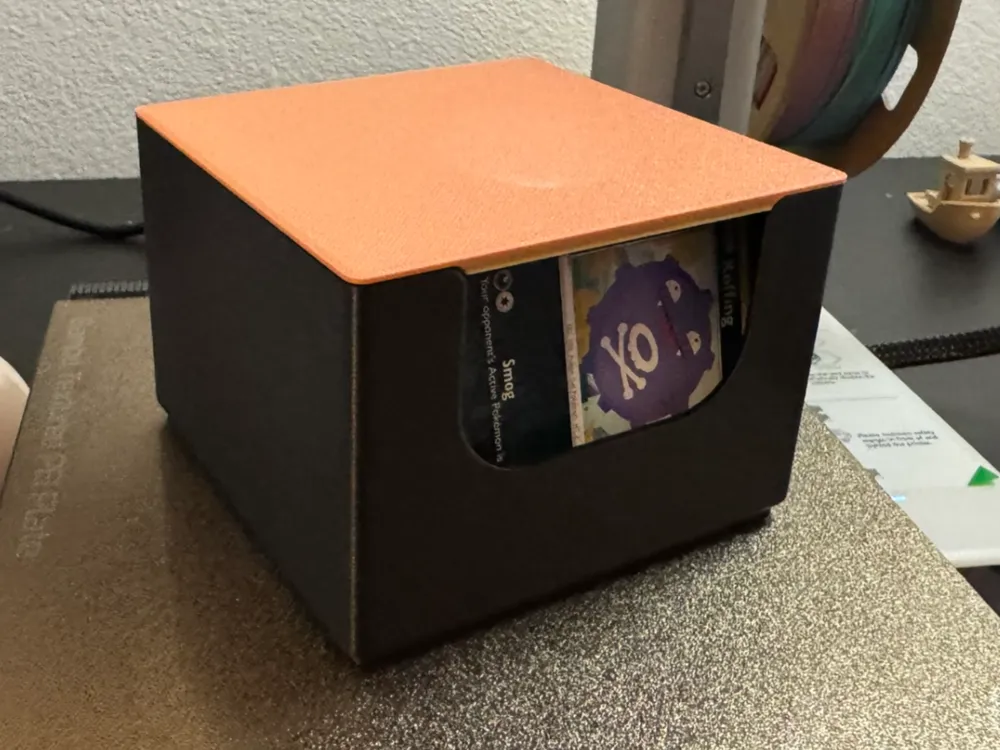

Maintains all of the features of the original, but I couldn't stack 2 of them inside one of my drawers, so made them a big shorter in order to fit. I also created a lid to fit on top to keep dust out.

Note: The lid works with the original model as well!

UPDATES:

06/30/2025: Added new print profile that contains the models from all other print profiles

02/18/2025: Added new print profile to support longer sleeves

Changes made from the original:

• Box height reduced by 10mm

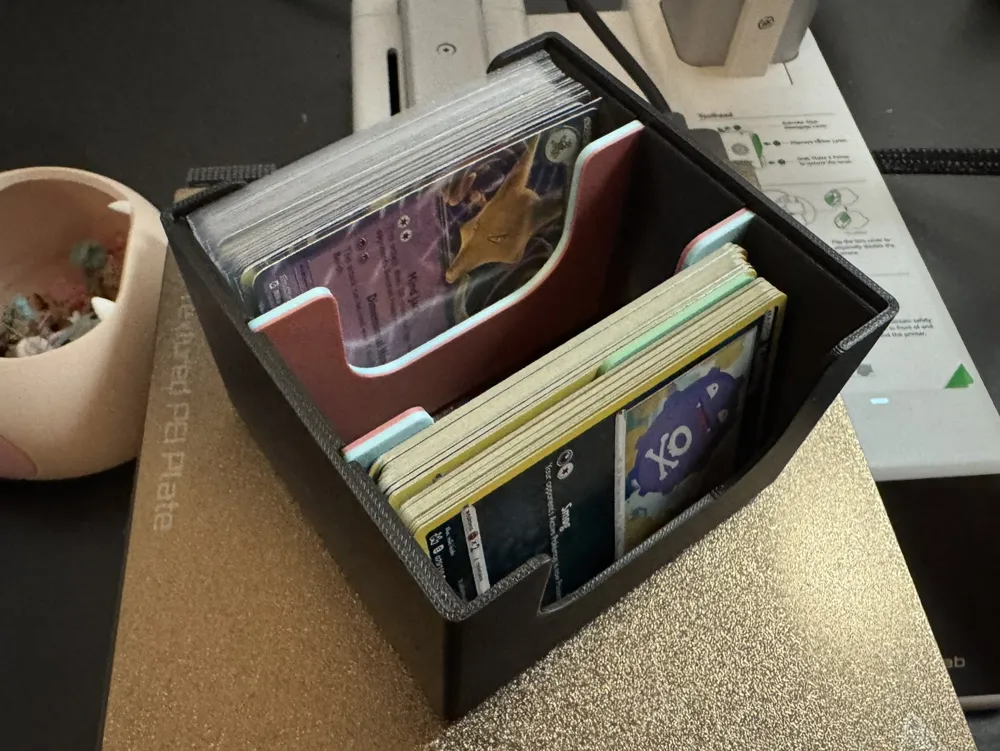

• Insert divider and tab divider height reduced by 10mm
• Added a lid for 100mm and 200mm boxes to better protect contents from dust

The print profile for the X1C includes plates that contain:

• 100mm box + lid
• 200mm box + lid
• tab divider
• insert divider

The print profile for the A1 Mini includes plates that contain:

• 100mm box
• tab divider
• insert divider
• lid

If storing sleeved cards, please double check dimensions:

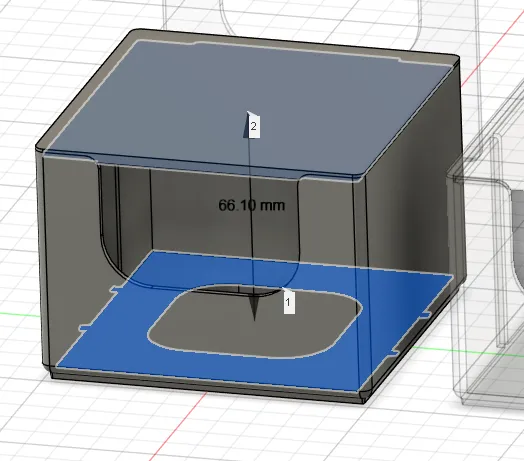

These shortened boxes hold 2.5" sleeves fine (63.5mm), but are a little too short for 2 5/8" sleeves (66.675mm). The height from the bottom of the bin to the lid is 66.10mm.

I'd recommend scaling the z height on everything a bit if you need to use wider sleeves, 2-3% should do the trick.

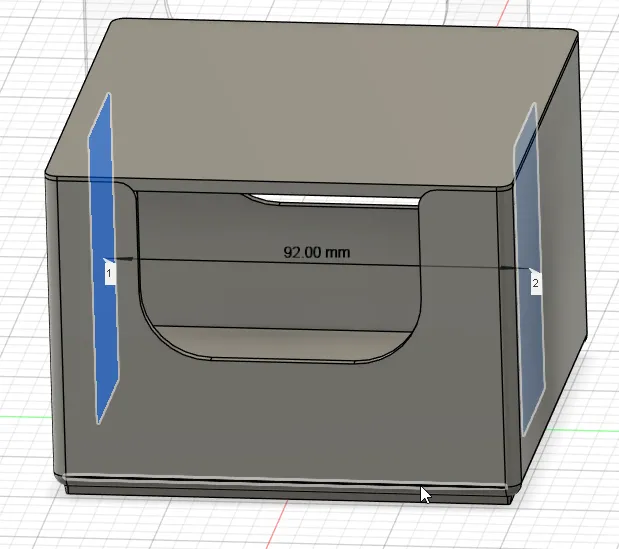

The width of the inner container is 92mm even, so if you have any sleeves that are taller than that, you'll have to scale it a bit in the x or y axis as well. I'll look to upload a slightly wider/taller version of the container later to fit the larger sleeves, as some of my sleeves run into this same issue.

UPDATE 02/18/2025:

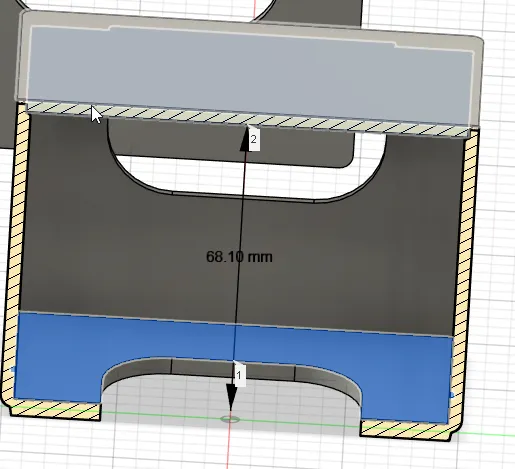

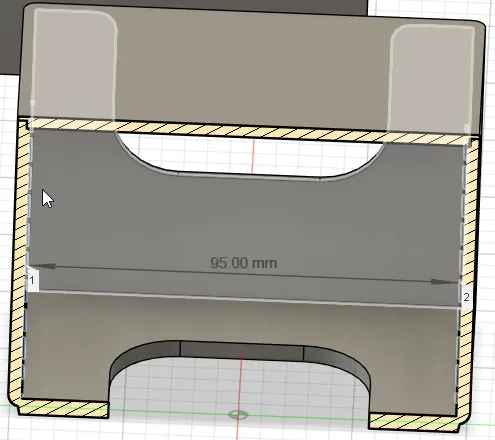

I've uploaded 2 new print profiles that contain bins that have a slightly enlarged inner compartment to fit longer sleeves. The new internal space is 95x68.1, which has been able to fit all the sleeves I own while still maintaining a slimmer profile. The profiles are labeled “Fits longer sleeves”
