5/8" Round Version: 0.2mm layer, 4 walls, 25% infill

Designer

42 min

1 plate

5.0(9)

5/8" Square Version: 0.2mm layer, 4 walls, 25% infill

Designer

48 min

1 plate

4.9(11)

5/8" WIDE squared gym hook

Designer

57 min

1 plate

4.2(5)

1" Square Version

Designer

1.5 h

1 plate

Click to see more

Open in Bambu Studio

Boost

132

545

458

381

Released

Description

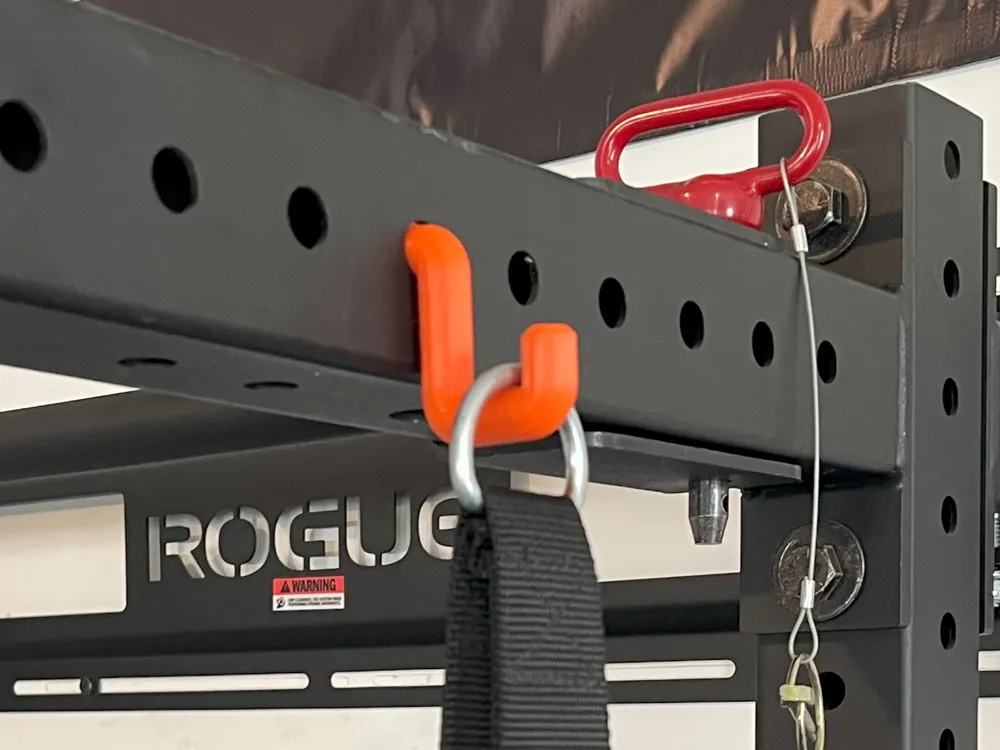

This is a utility hook that I designed for Rogue Monster Lite squat racks that can be used for all sorts of convenient storage. It is designed to fit the 5/8" holes in the 11-gauge 3x3 uprights or cross-members of the squat rack and can hold a variety of items and accessories such as:

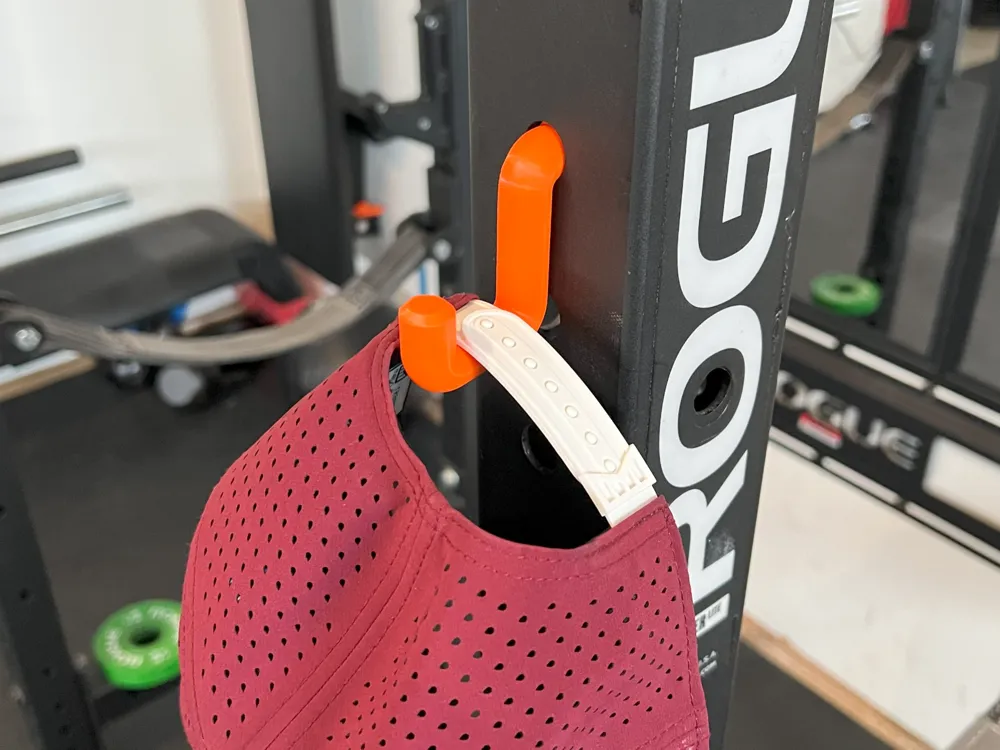

Spot for your hat

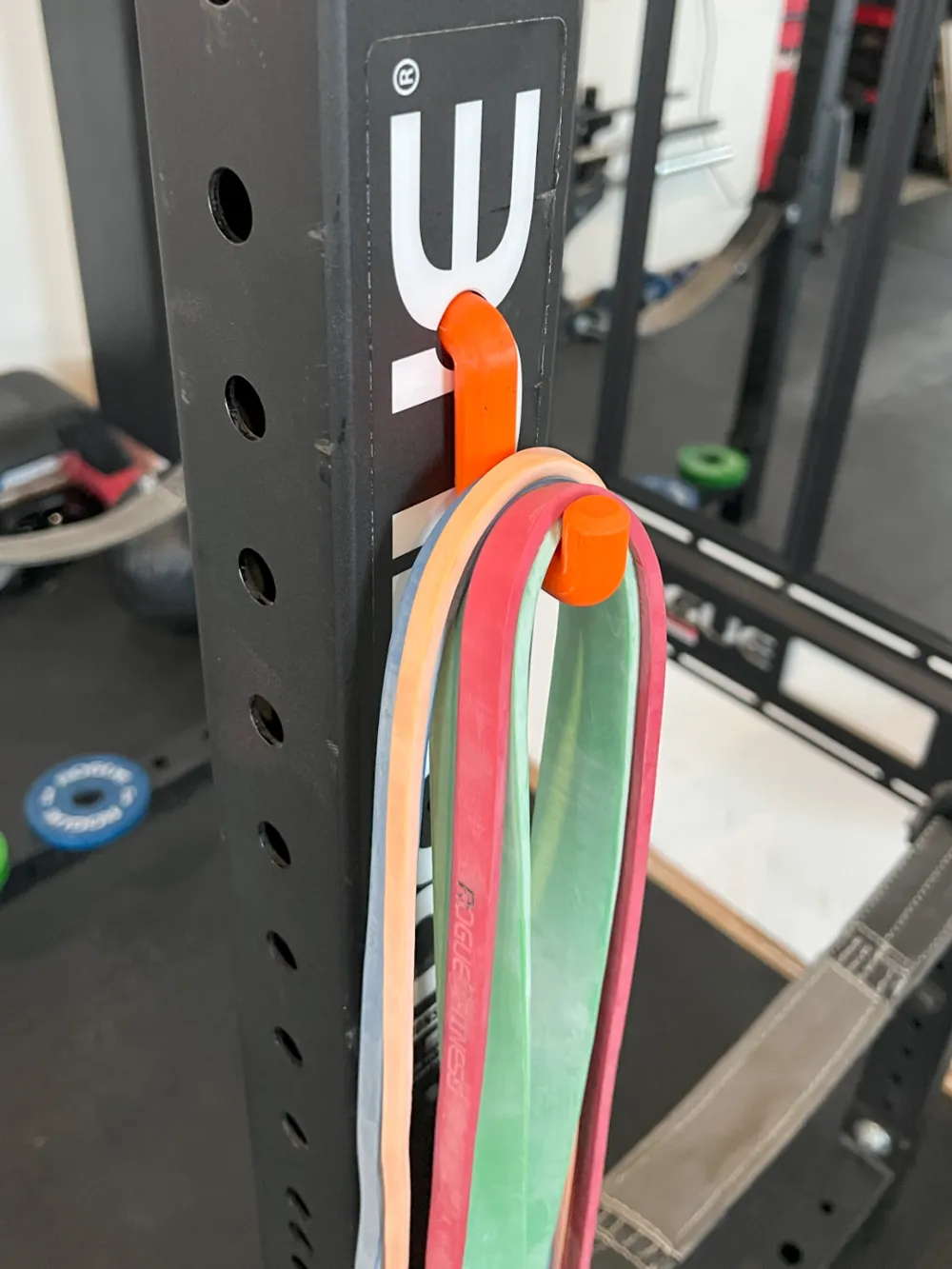

Keep bands close by

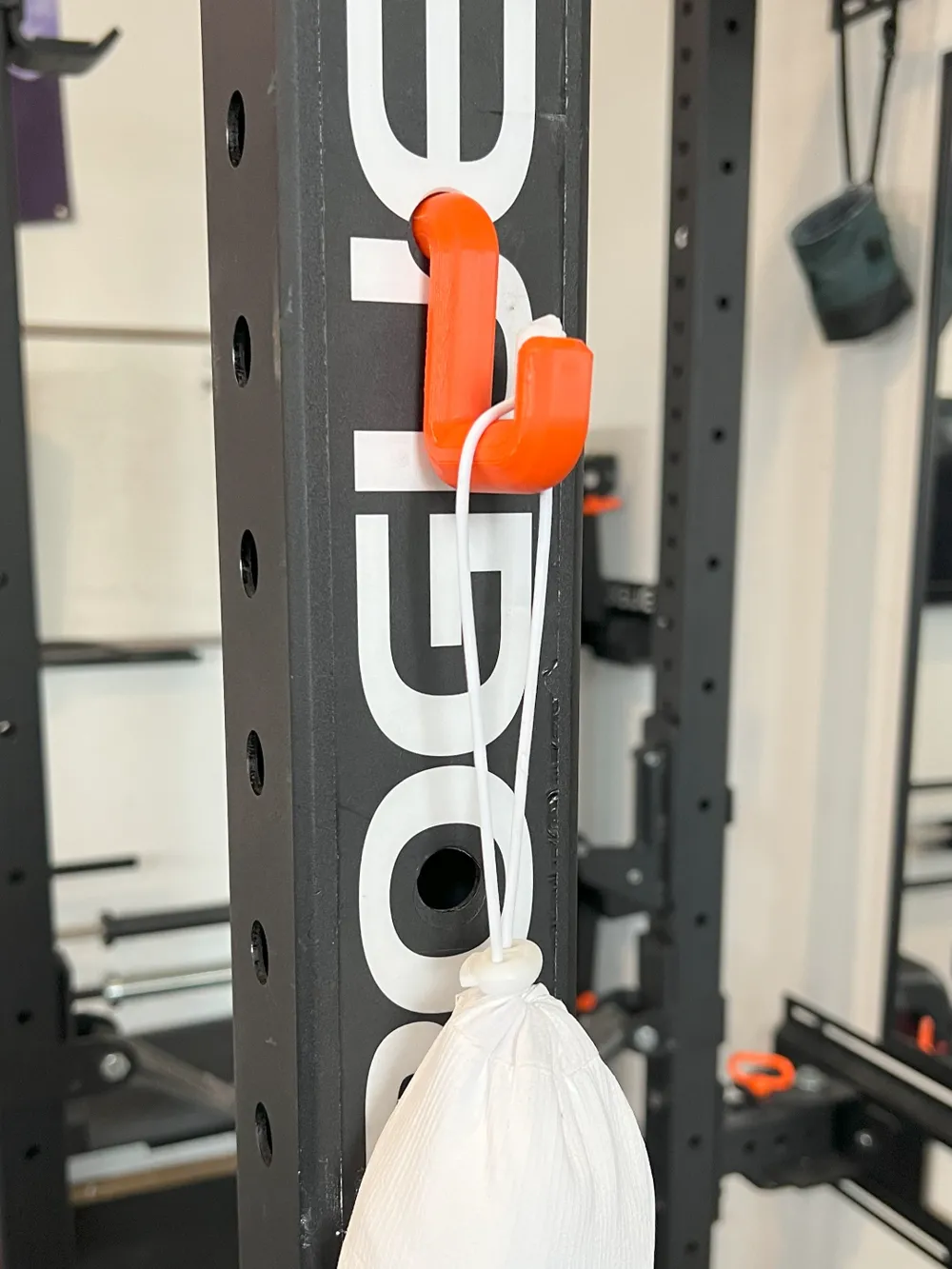

Chalk bag

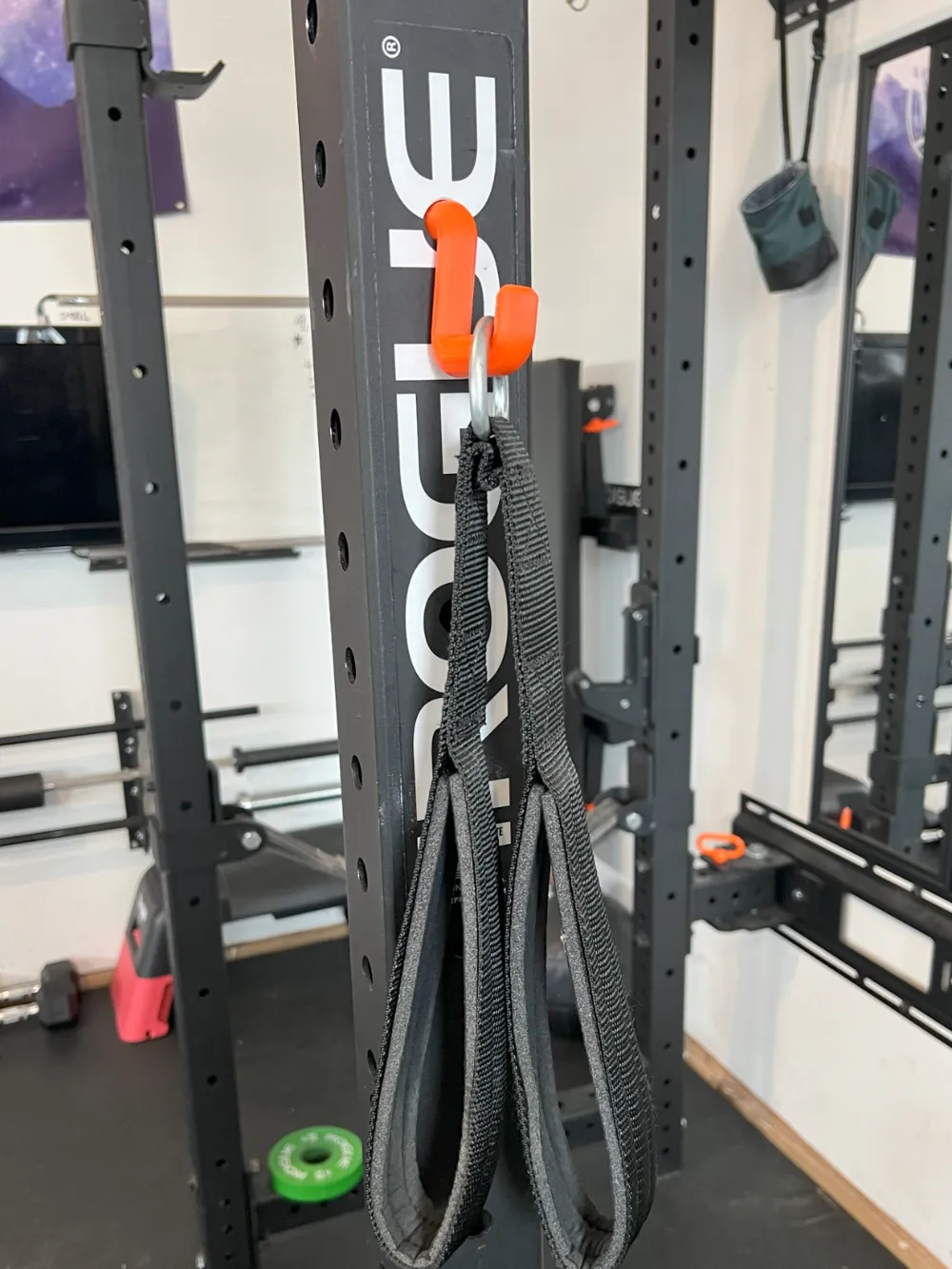

Cable machine attachments

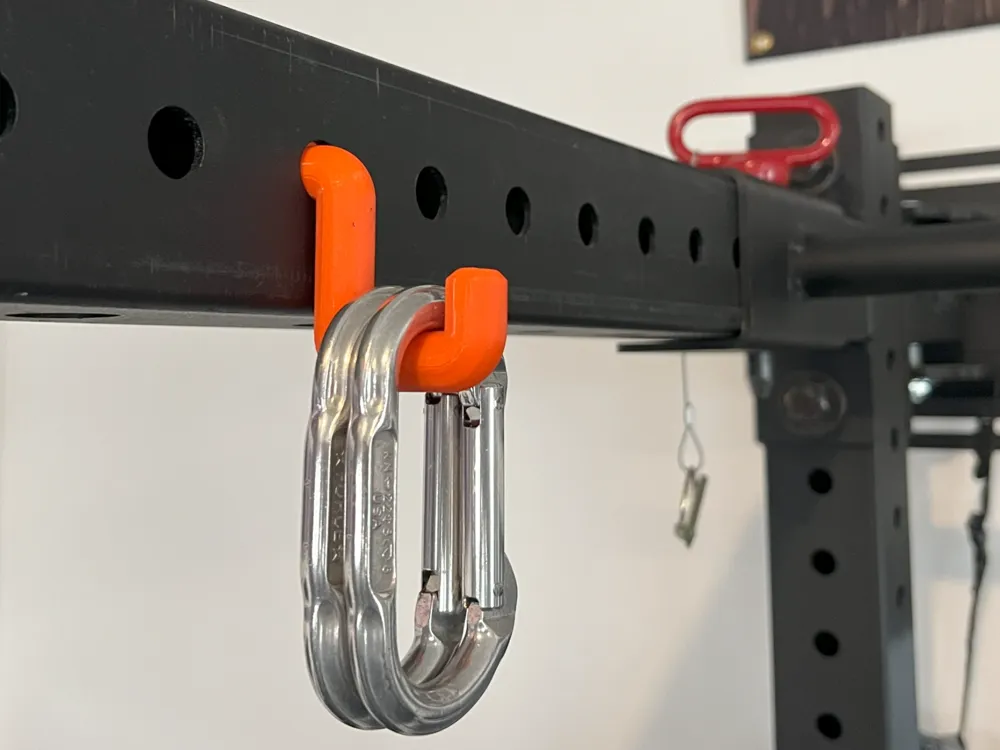

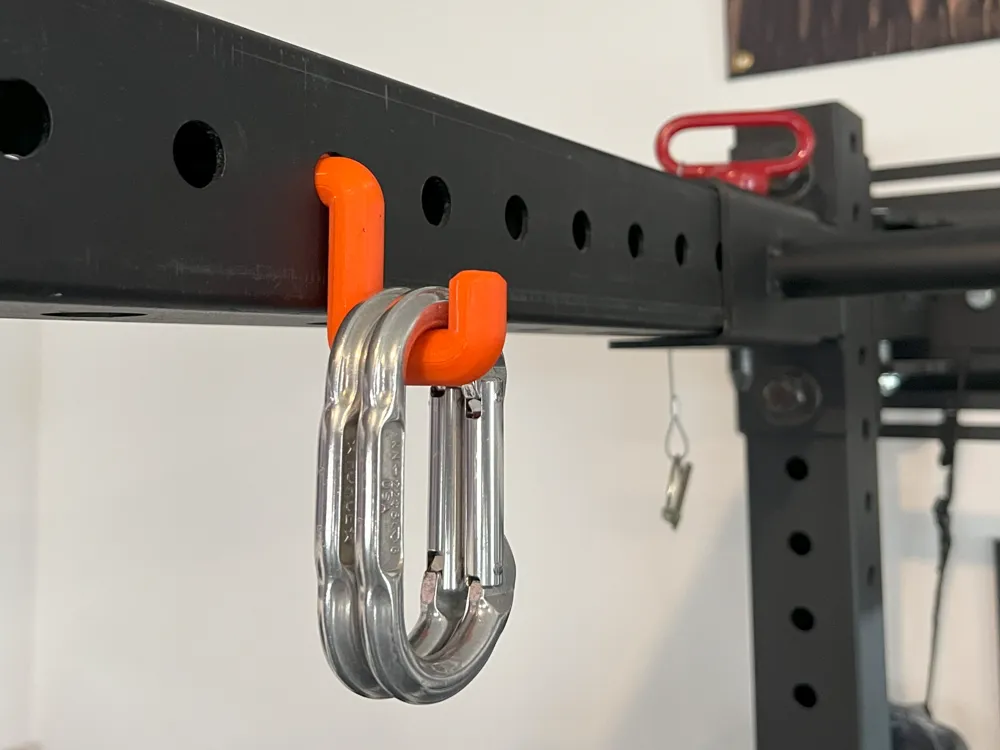

Carabiners
Skinny collars

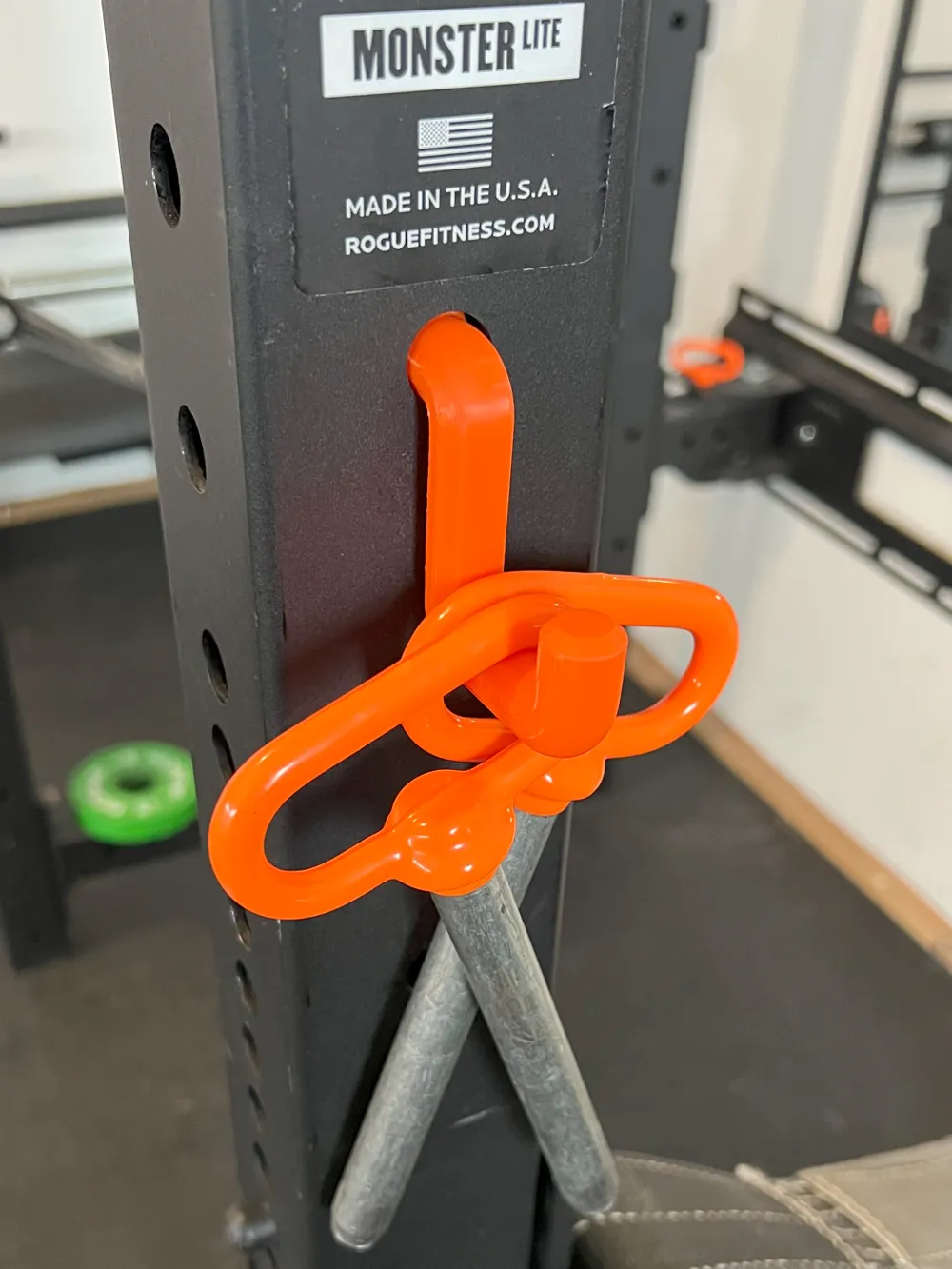

Rack pins
Much more…

I designed two different models, one that is round the entire length of the hook and another that is squared off at the hook end. I have not seen a difference in durability between the two.

I printed these with supports and cleaned them up with an exacto knife afterwards.

Comment & Rating (55)

@ArgentP1P

Boosted

Print Profile

5/8" Round Version: 0.2mm layer, 4 walls, 25% infill

Worked perfectly on my Monster Lite rig. Thanks, these are a fantastic idea.

The profile uploader has replied

@daevee

Like the blue; looks super clean. Nice!

@im6D_253532532

I printed the 1” square ones and decided I won’t be using them for two reasons: 1) the part that goes into the rack is 1”, but so is the hook itself. A 1” hook is too thick to hang many things off, it needs to be smaller in diameter. 2) The hook that goes into the rack is shaped so that it won’t easily come out, but it does swing and rattle around a lot because there’s no tension on it once installed. I found a different style that you insert and rotate 90deg and it locks in.

@rook21

any chance you can make this for 1/2” holes? thanks!

The designer has replied

@daevee

What gauge steel does your uprights use? What rack is it?

@rook21

Replying to @daevee :

funnily enough I just saw someone asked about the same one. it’s the CAP Squat Rack from Amazon

@daevee

You can try the print profile for 1/2 inch holes that I just uploaded. It is sized for 11 gauge steel uprights.

@Lvwr3nce

Boosted

is there any way you can make one to fit for a 3/8 size hole. I have a Cap squat rack and thats the size needed for the peg to fit

The designer has replied

@daevee

What gauge uprights does that rack use? I need that information to make sure the hook sits correctly.

@Lvwr3nce

Boosted

Replying to @daevee :

2x2 the description says it has 11 & 12 gauge steel tubing, but im unfamiliar with the sizing, so i dont know if its the base that is 12 guage & uprights 11 ?

(Edited)

@daevee

Replying to @Lvwr3nce :

You can try the print profile I just uploaded for 3/8th inch holes.

@usmcculp

How about ones for a 3X3 with 1" holes?

The designer has replied

@daevee

I should be able to. I'll work on it this week and do a test print.

@user_12294141

Boosted

Replying to @daevee :

Hey did you happen to make it?👀 Im pretty new so don't know how to change it myself

@daevee

Replying to @user_12294141 :

@usmcculp - I just uploaded a one-inch hole version. I did a test print, but do not have a rack with one-inch holes to do a fit test. If you want to try it out and let me know if it needs adjustment I am happy to make modification. Check the print profiles for the one labeled "One-Inch Hole Version".

(Edited)

@karajan88

Boosted

Print Profile

5/8" Square Version: 0.2mm layer, 4 walls, 25% infill

Great design and very useful. Would love to see it wider as well to hold wider objects (like two wooden rings)

The profile uploader has replied

@daevee

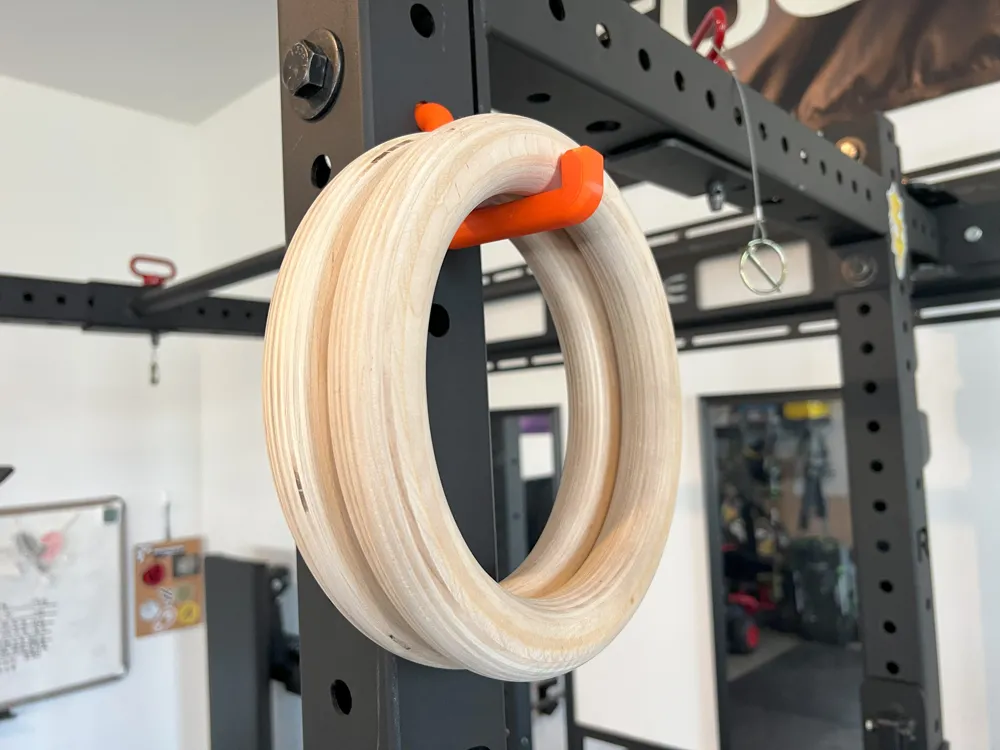

Thanks for the feedback. I added a new print profile that is wide enough to hold 2x 1.25" gymnastic rings. Let me know if that is the right size you are looking for.

(Edited)

@karajan88

Boosted

Replying to @daevee :

Brilliant! Printed it this afternoon and fits just like your picture on my own rack . Well done and thanks very much!

(Edited)

@user_2282994839

Boosted

Great design. Love the simplicity.

The designer has replied

@daevee

Awesome, glad you like it. Thanks for the boost!

@3Dprinter911

do you have hooks for the bigger holes in racks?

The designer has replied

@daevee

What size holes? I have print profiles uploaded for 1", 5/8", 1/2", and 3/8".

@user_1087601208

Print Profile

5/8" Round Version: 0.2mm layer, 4 walls, 25% infill

Printed well, unfortunately didn’t fit into the holes of my squat rack

The profile uploader has replied

@daevee

Sorry to hear that, what rack do you have or what size holes / gauge walls did not fit?

@karajan88

Boosted

Thanks again! The ring hook works great!
