Drawer Jig
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
152
530
5
1
287
174
Released
Description
Content has been automatically translated.

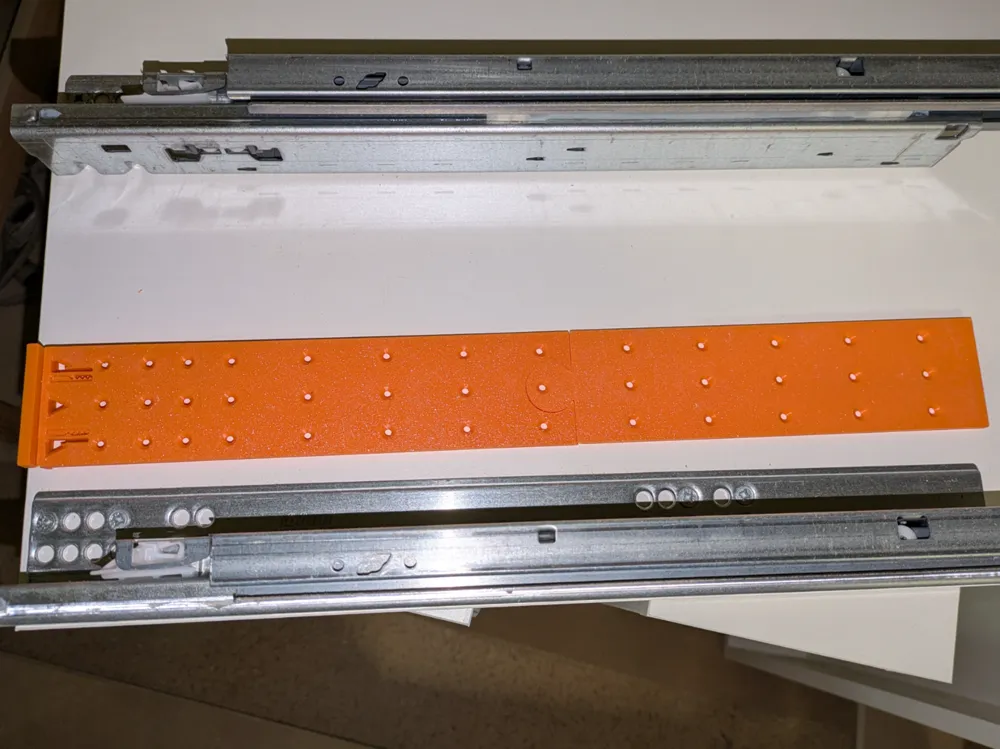

Jig for drilling Blum drawer slides, Tandem and Movento models and similar.
Holes every 32 mm after the first ones at 20 and 37.
Possibility to further recess the guide using the secondary adjustment, with 2mm offsets.
Overlapping holes are positioned 40mm from the edge, so that by resting the guide on the front of the drawer below, the holes will already be correct for the next guide without it interfering with the lower drawer.
It is possible to use only the front part or both pieces.
