Harmonic/ Strain wave drive with no backlash for Nema 17 Stepper Motor
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
4.1 h
1 plate
Open in Bambu Studio
Boost
116
218
9
9
234
51
Released
Description

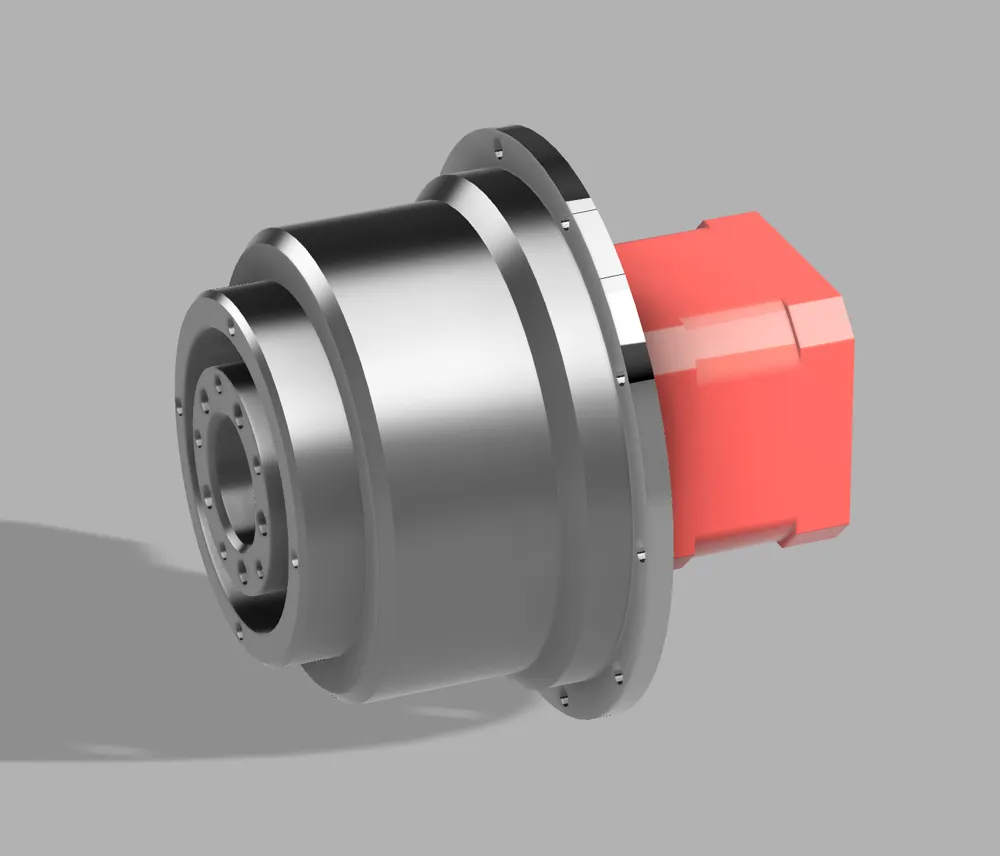

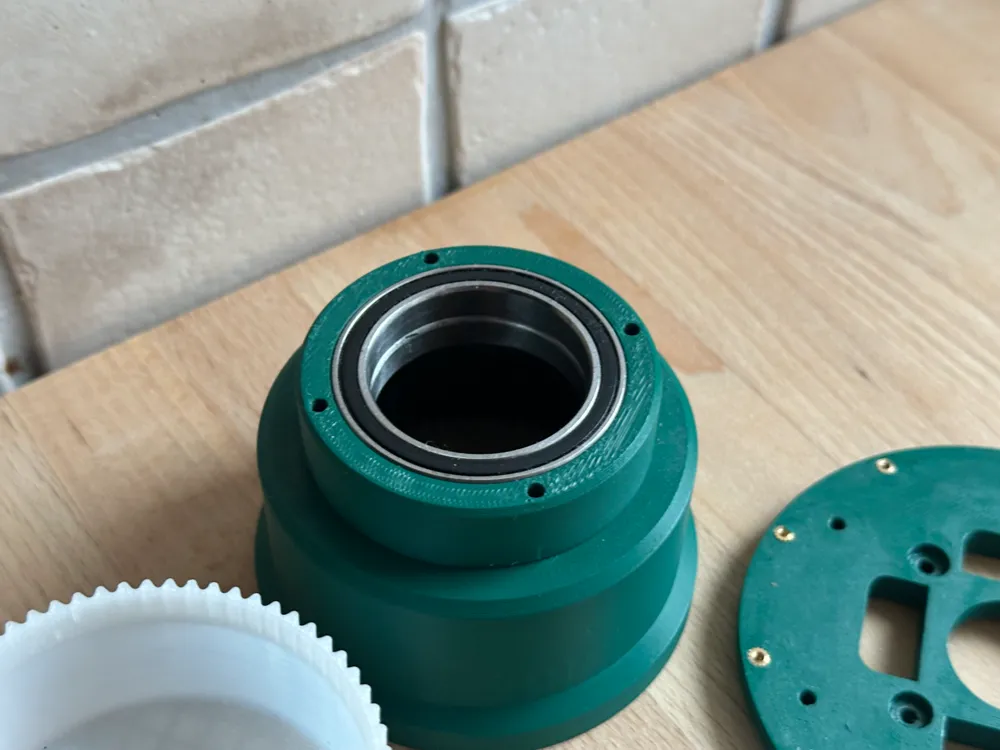

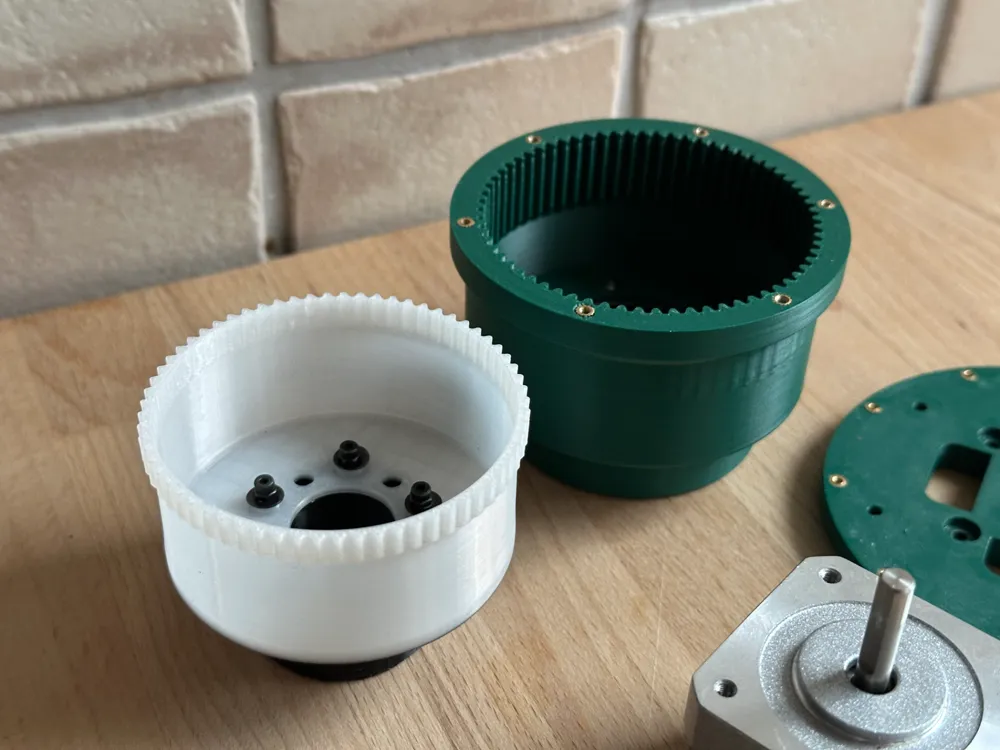

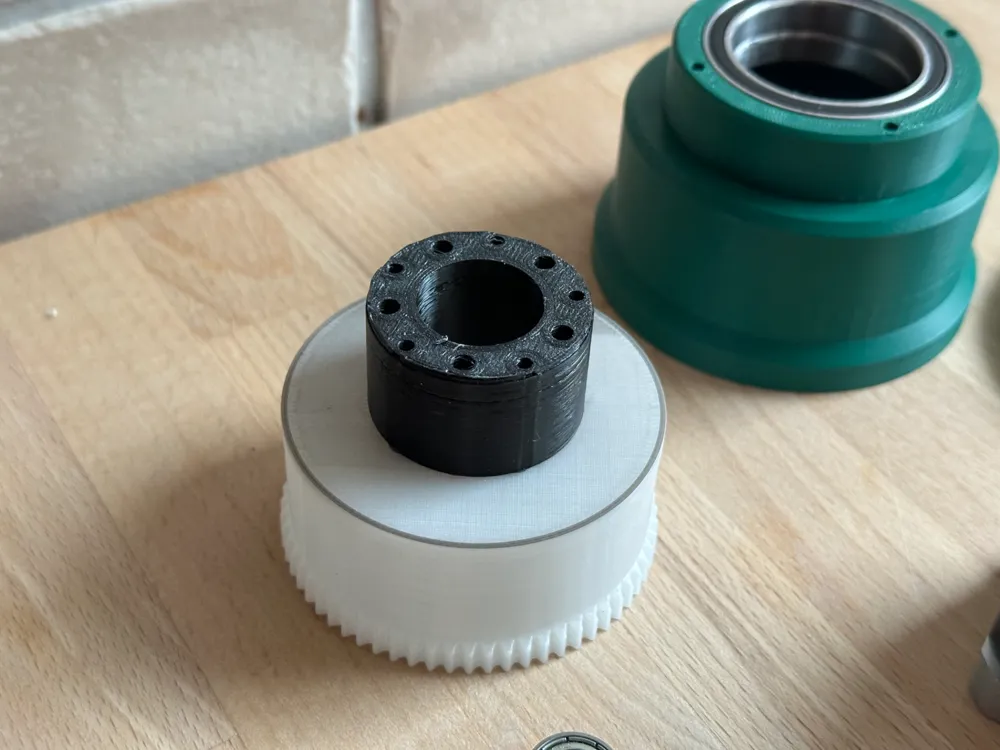

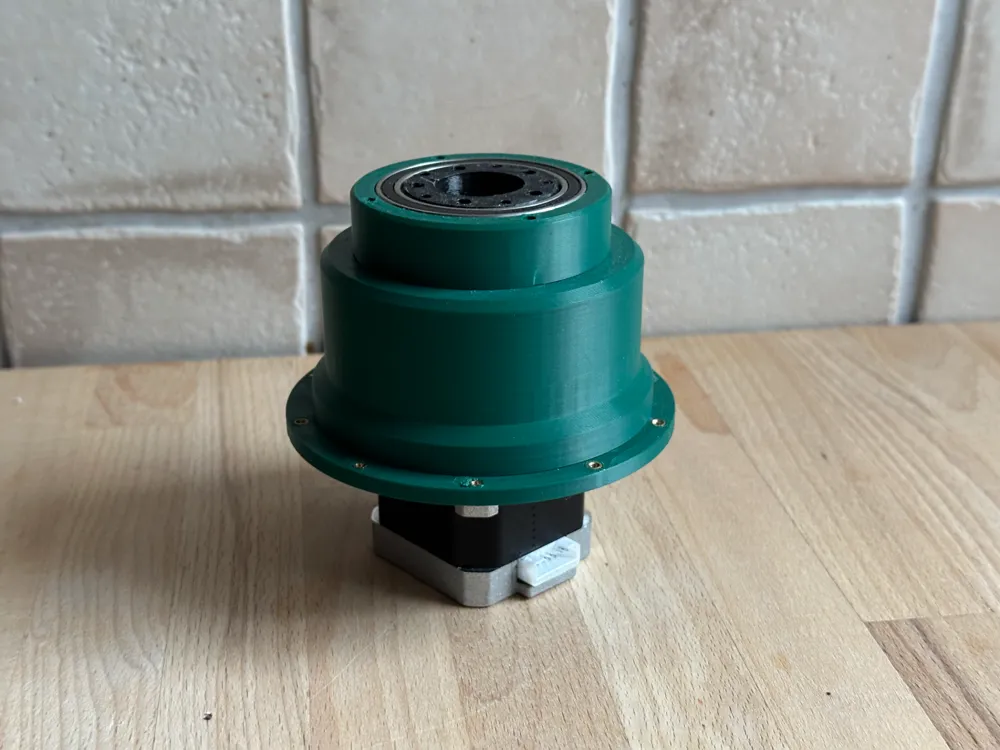

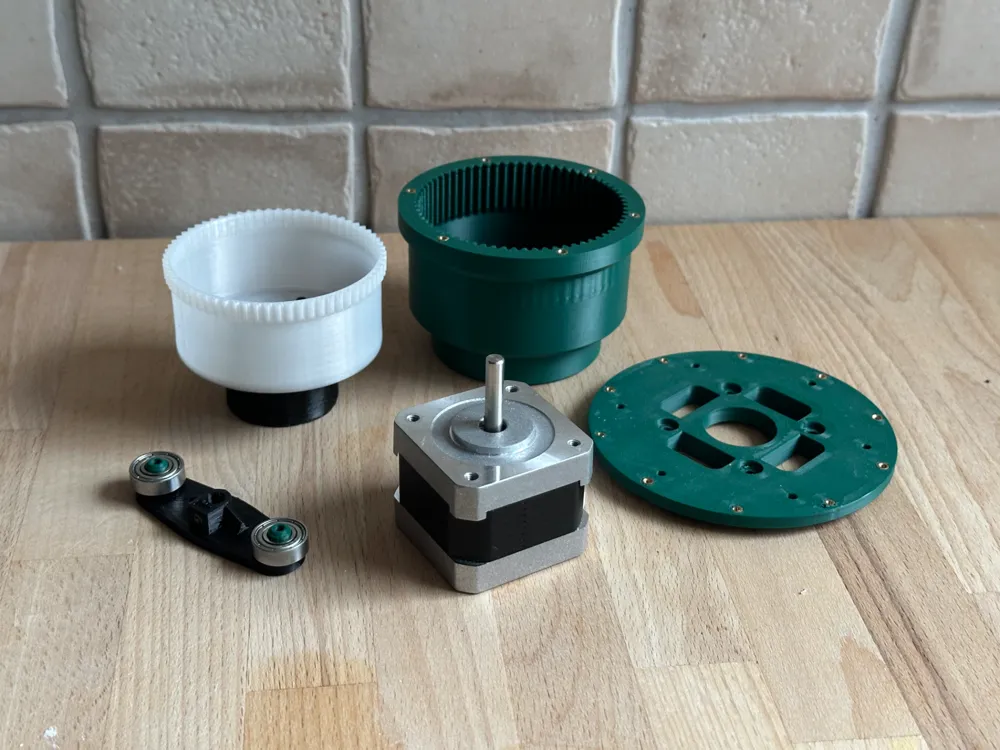

A model of a harmonic gear with a ratio of 50 to 1, built with the future harmonic astrophotography mount in mind. Most of the parts were made of ASA, the flexline was made of TPU. The entire structure is fastened with M2 screws which are held in place with threaded inserts.
Bearings:
- 2x 61807 2RS ( 6807 2RS) 2RS 35x47x7mm bearing
- 2x 625RS 5x16x5mm bearing
