AC/Fuel Line Quick Disconnect Tool 5/8" Inch Dodge
Print Profile(1)
Description

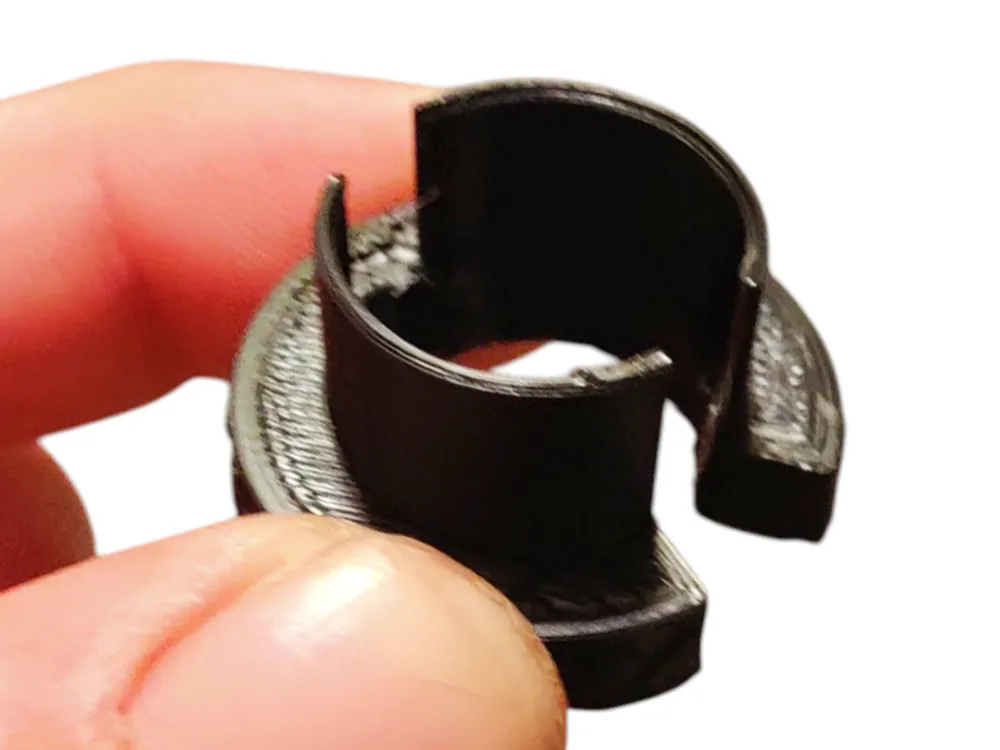

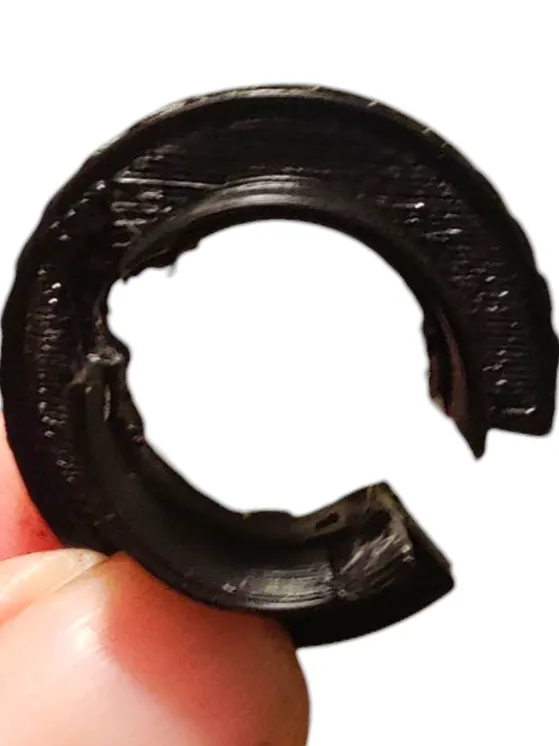

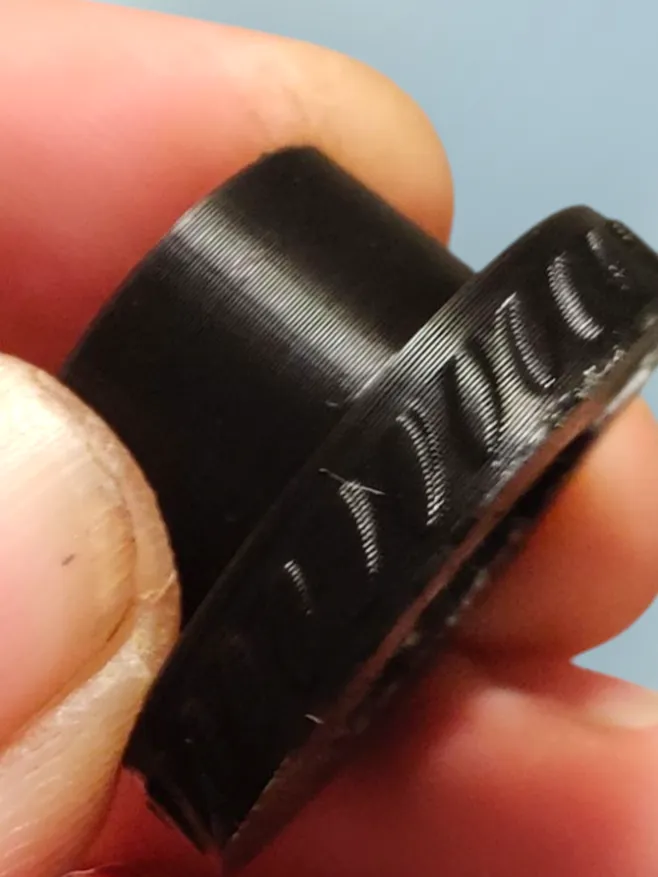

I made a simple one-time use, disposable, quick disconnect tool for AC line removal or for other quick disconnect lines such as transmission cooler lines, and fuel lines. This is a 5/8" tool, but I made it work for ¾" as well after I broke it. So, it doesn't have to be exact size to make it work, but best if it is printed to correct size for easier use of the tool. I am unsure how well it scales, but it should be fine to scale the part for different size couplers. I printed in PLA and thus disposable one time use as it will break pretty easily. I would suggest doing the same and if it works well for you and you need a more permanent tool for the job, then print in a more flexible and durable material such as nylon.
V2: Added 3% Draft to the bottom outer wall.
