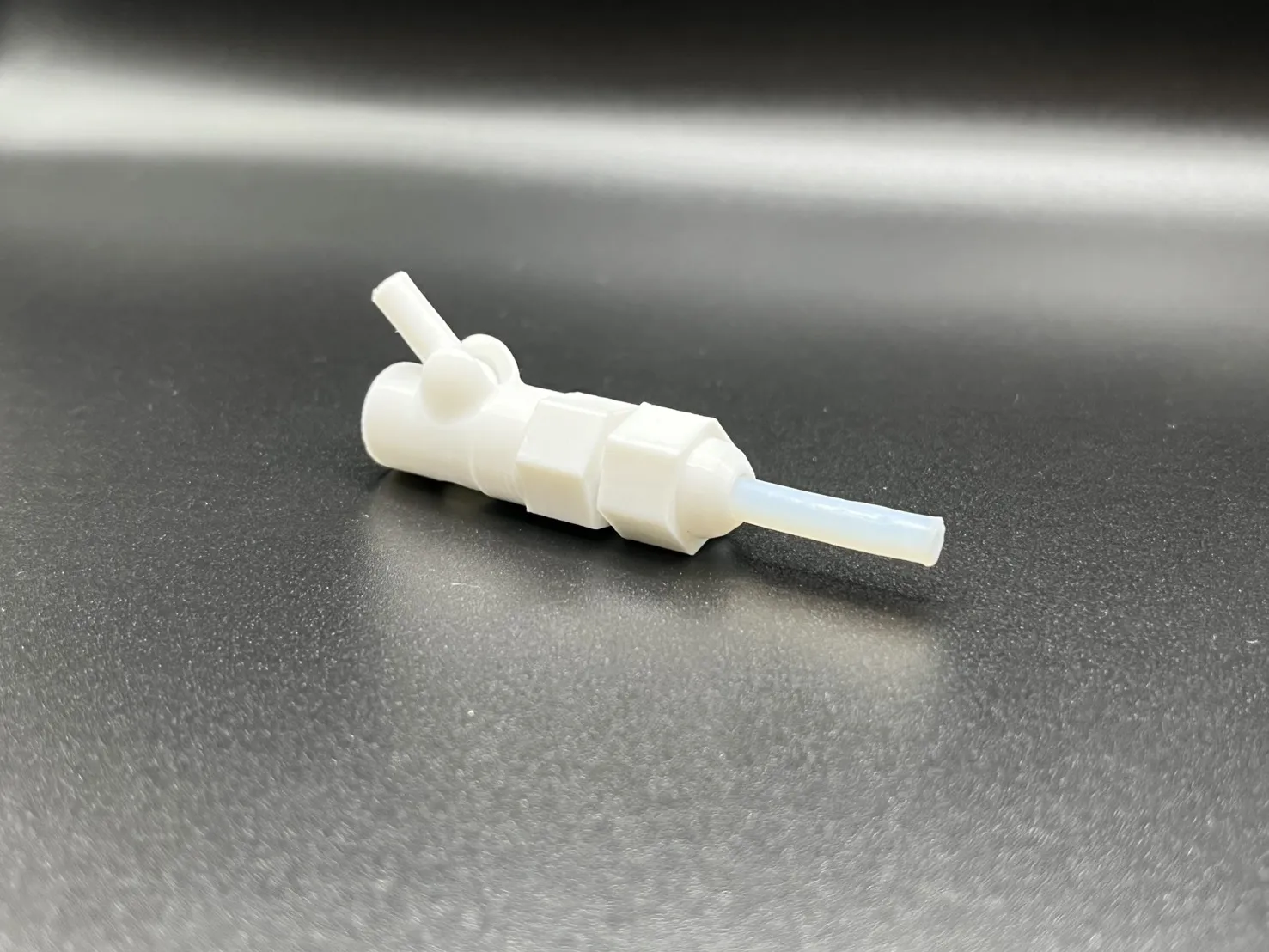

A1 PTFE Tube Connector (all verion)
Print Profile(8)
Bill of Materials
- Quick Release Pneumatic Connectors 4mm x 1: You can visit a hardware store near you to find a pneumatic quick connector with a 4mm inner diameter. After removing the front section, you can install it easily.
- PC4-M6 x 1: Please make sure to lock this part first before assembling the rest.
- PC4-M10 x 1: Please make sure to lock this part first before assembling the rest.
Description
Boost Me (for free)
If you want to support me for free, click here
! New update !
The current PC4-M10 printable solution
has turned out surprisingly well in assembly—
there’s no longer a need to visit a hardware store to buy one!
If needed, please click the green PC4-M10 link.
Special thanks to: Sdot Prints

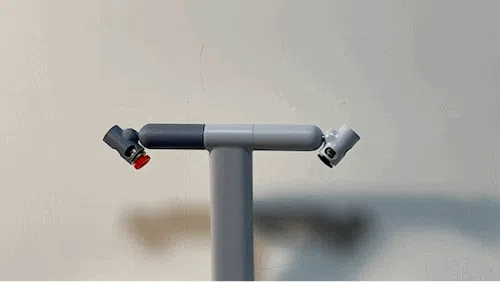

Bambu Lab Original Spool Holder Replica & Alternative Solution
- Now includes the new dimensions for the 2025 production model.
- Compatible with disassembled parts of the bidirectional quick pneumatic connector, as well as PC4-M6 and M10 quick pneumatic connectors.
- Printing parameters have been fully optimized—please do not modify, adjust, or change the orientation.

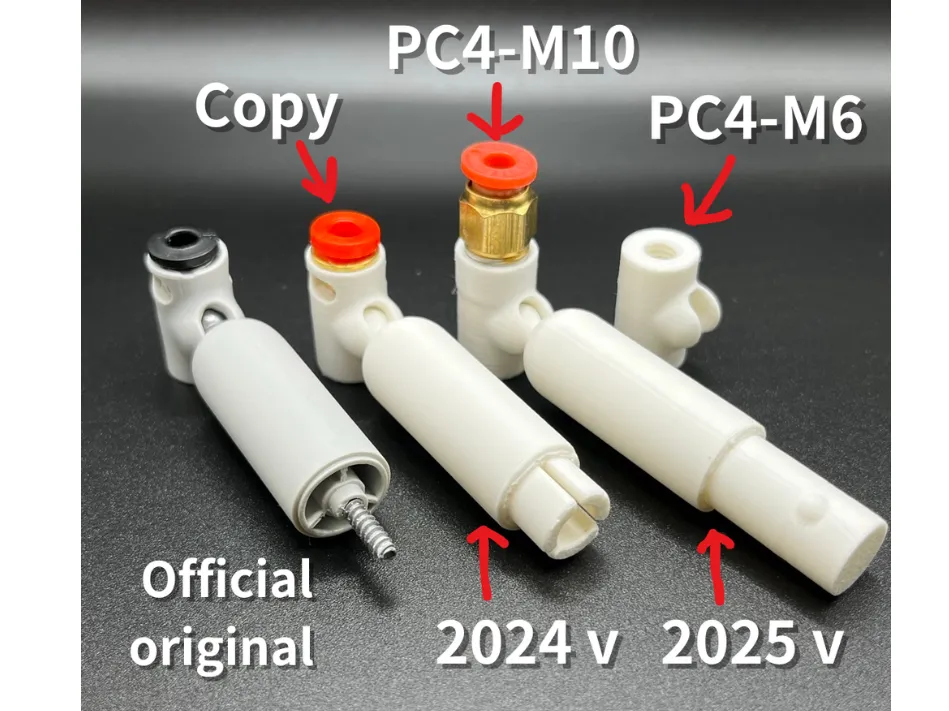

To differentiate between versions
The 2024 version has a triangular pin with a threaded center.
- The 2025 version features an updated size and connection method, which differs from the previous model.
If your spool holder has the triangular pin with a threaded center, you likely have the 2024 version. Otherwise, you may have the newer 2025 version.
Materials Guide
🧵 PLA Material Strength Ranking (From Strongest to Weakest)
| Rank | Material Type | Structural Strength Description |
|---|---|---|
1 | Carbon Fiber PLA | High rigidity and deformation resistance; ideal for precise structural parts, but brittle |
2 | Glass Fiber PLA | Great dimensional stability with a balance of rigidity and toughness |
3 | Tough PLA | Better layer adhesion and impact resistance than PLA+, offering more stability overall |
4 | PLA+ / PLA Pro / Enhanced PLA | Improved toughness and rigidity compared to basic PLA; suitable for functional prints |
5 | Basic PLA | Average rigidity and strength; easy to print but brittle with weak layer adhesion |
6 | Matte PLA | Typically slightly weaker than basic PLA due to added texture particles; focused on surface finish |
7 | Metal-Filled PLA | Brittle structure; mainly for aesthetic/display use with poor layer bonding |
8 | Wood-Filled PLA | Low strength; wood powder additives reduce toughness, suitable only for decorative parts |
9 | Glow-in-the-Dark / Fluorescent PLA | Additives reduce adhesion and structural integrity, resulting in lower strength |
10 | Conductive PLA | Mechanical strength is sacrificed for conductivity; weakest among PLA types |
Not recommended to use materials with strength lower than Basic PLA.
Special thanks to: Denmor
Parts & Assembly Guide

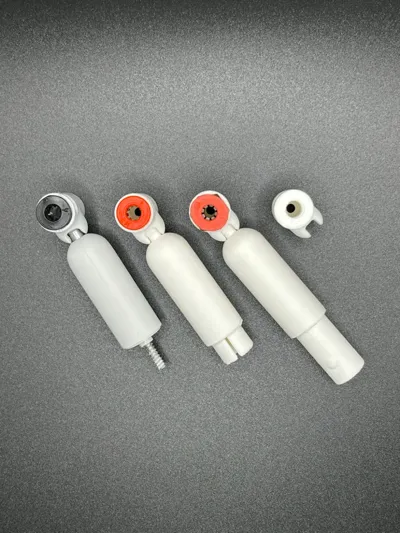

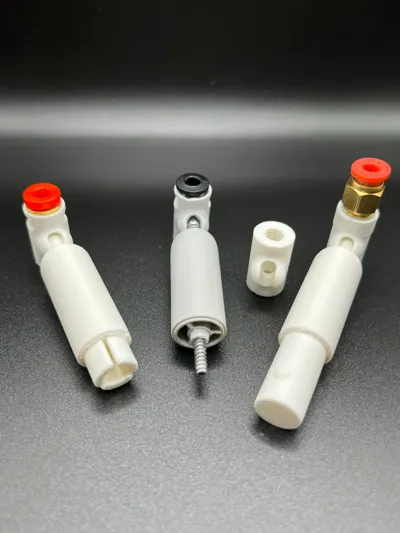

- Original Version: Compatible with bidirectional quick pneumatic connectors using ABS connections. Simply remove the ABS section to install.
- Threaded Version: Designed to fit the following types of single-direction pneumatic connectors:
- Model:
- PC4-M6
- PC4-M10
- Printable PC4-M10
- Model:
Please make sure to lock this part first before assembling the rest.
Assembly
If you have any questions please comment below or PM me
Boost Me (for free)
If you want to support me for free, click here
Upgrade:
20/03/24 :
added a material recommendation chart.
added a printable model as a replacement for the PC4-M10 pneumatic connector.
