Sparrows Practice Lock Repinning Tool with Pin Set Groove

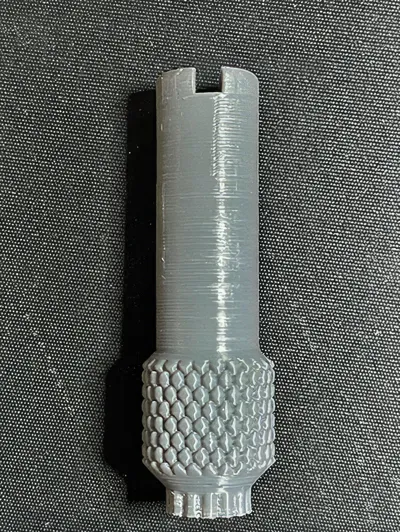

Plug follower and repining tool for a Sparrows practice lock. I remodeled it from scratch and added a chamfer to the bottom to make it print better without supports. I also added a grove to the top to help to align and reinsert the springs and pins in the top of the lock.

Included the STEP file for easier remixing

Print Settings

Rafts: No

Supports: No

Resolution: 0.2

Filament brand: FilaCube

Filament color: Grey

Filament material: PLA 2

Notes:

Sand the tube slightly after printing to allow for easier insertion into the lock body.
