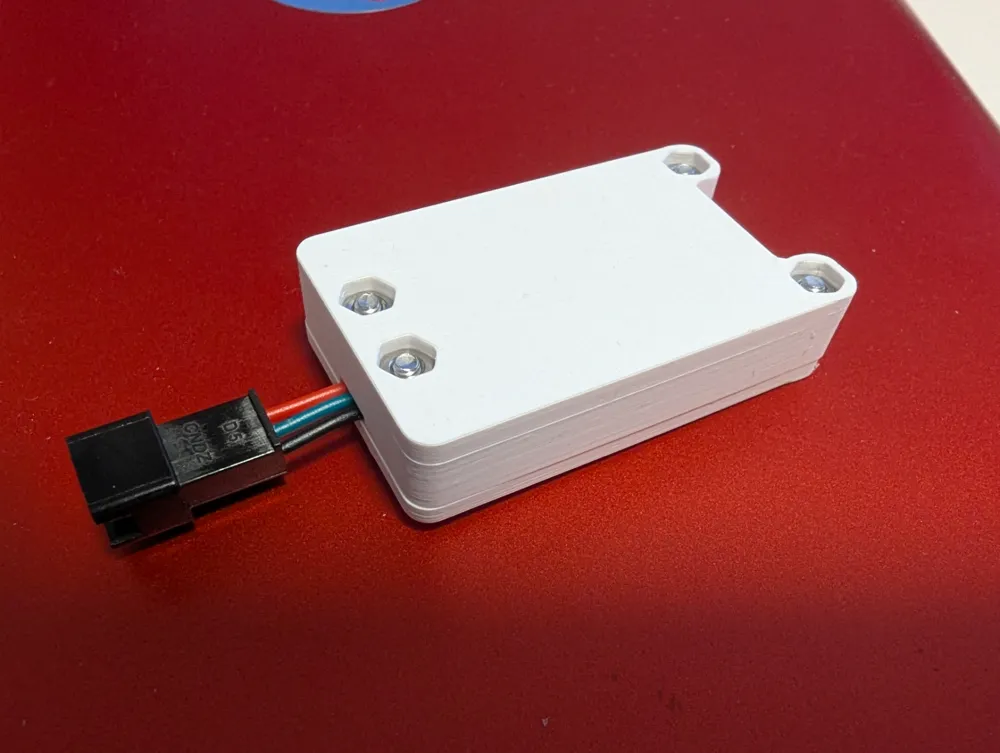

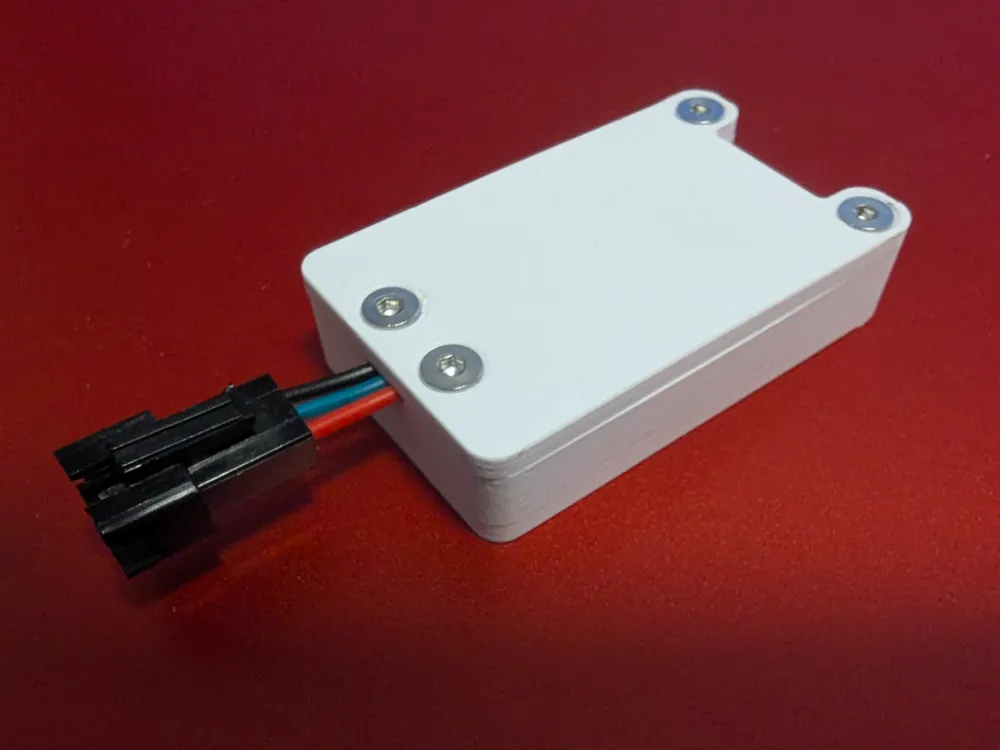

This is a box for an ESP32 mini including cable strain relief.

The groove for the cable is slightly undersized, so the cable is gently clamped when screwing the box together.

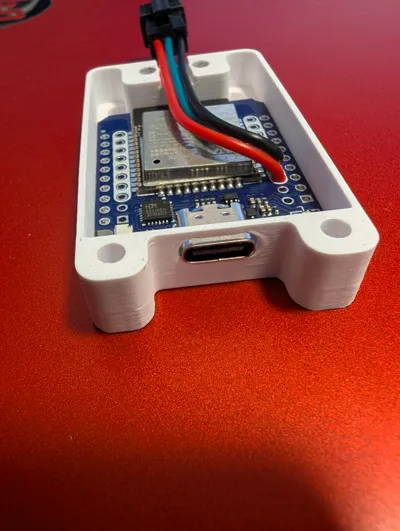

The USB-C port remains accessible.

Additionally, 4x M3 nuts and 4x M3x12 countersunk screws are required.
