AOS 7 / AOS UL7 Evo Camera Mount for Dji O4 Pro
Print Profile(1)
Description

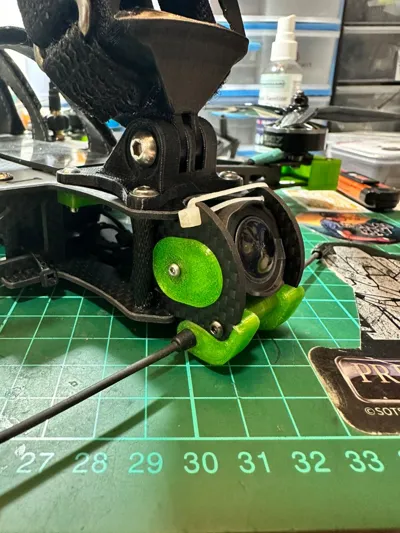

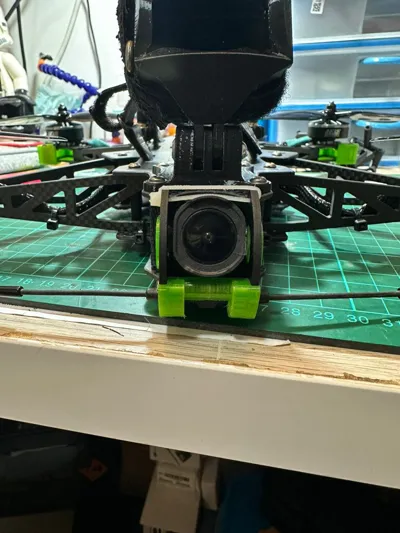

I've redesigned the camera mounting to fit the O4 Pro into older AOS UL7 Evo frames using carbon camera mounts.

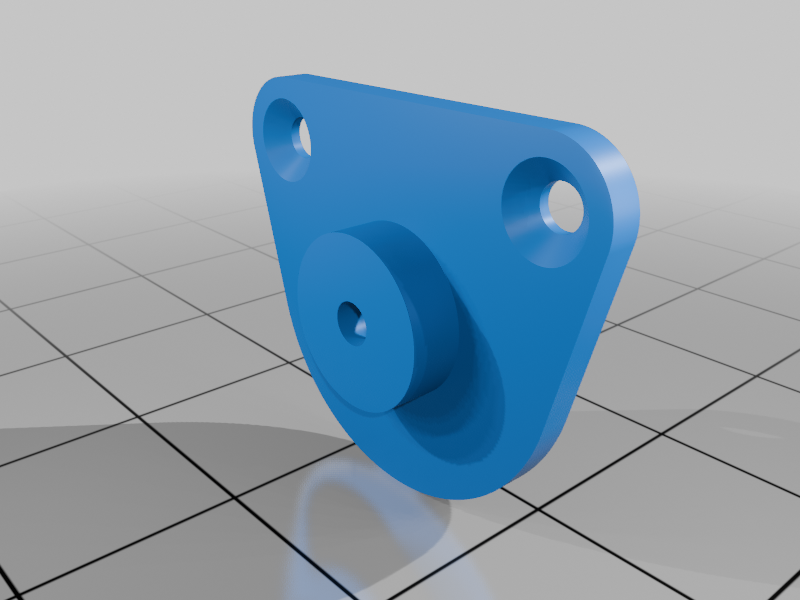

The plate screws directly into the O4 Pro cameras, but you’ll need to find suitable M2 screws to mount the camera. The screw heads must sit flush with the countersunk holes for this to work. Since it's hard to find the right screws where I am, I’ve resorted to using plastic screws and shaving down the heads to make them flush until I can find suitable screws.
For printing:
- Plate: Use PLA/PETG with at least 75% infill.
- Gummies: Print in TPU with at least 50% infill.

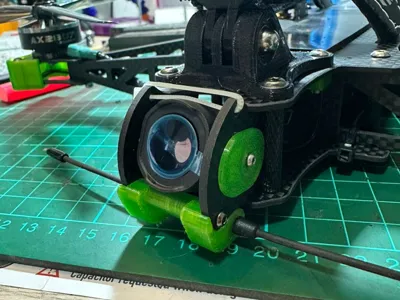

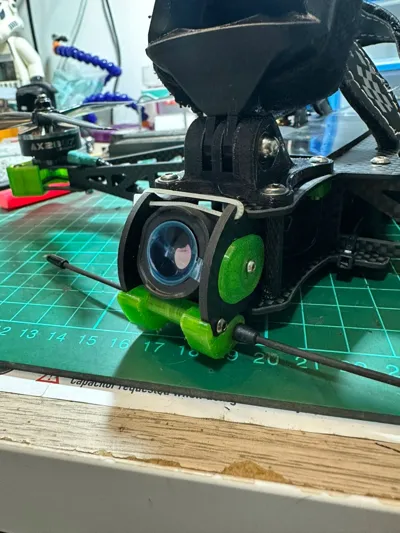

You’ll also need to remove the top standoff to fit the camera into the frame. I’ve added a cable tie for extra support, though this may be optional.
This remix is based on
