Feed dispenser powder dispenser doser
Print Profile(1)
Bill of Materials
- siehe obige Beschreibung x 1:
Description
This mechanical dispenser can be used for various powdered substances.
- Fish food
- Beverage powder (Caution: Food safety depends on the filament used!)

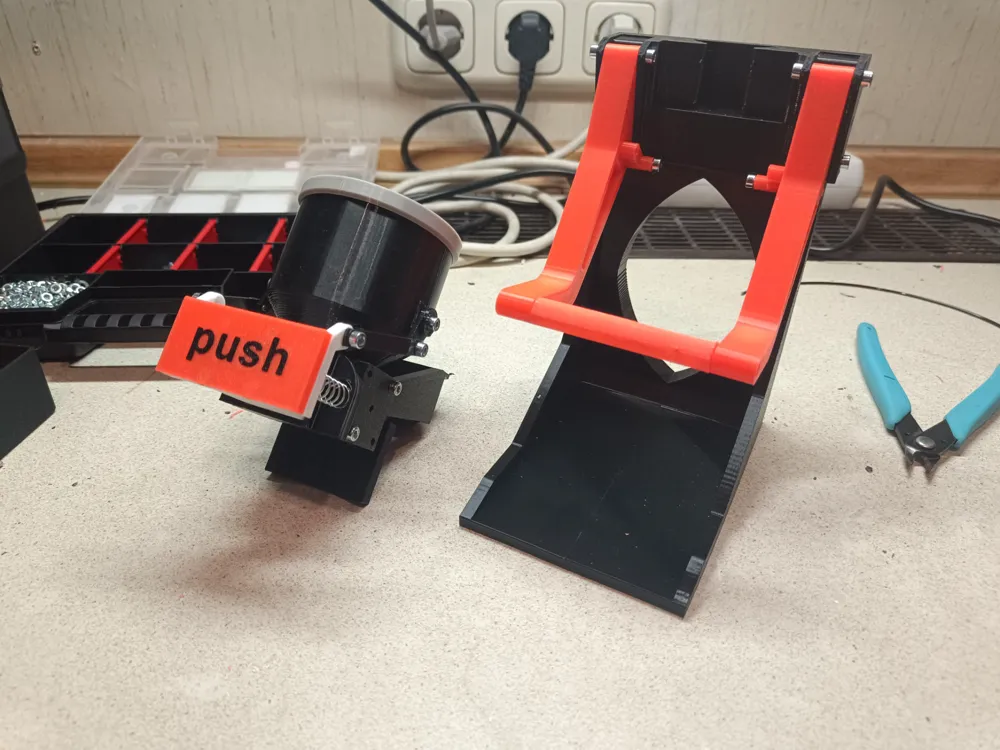

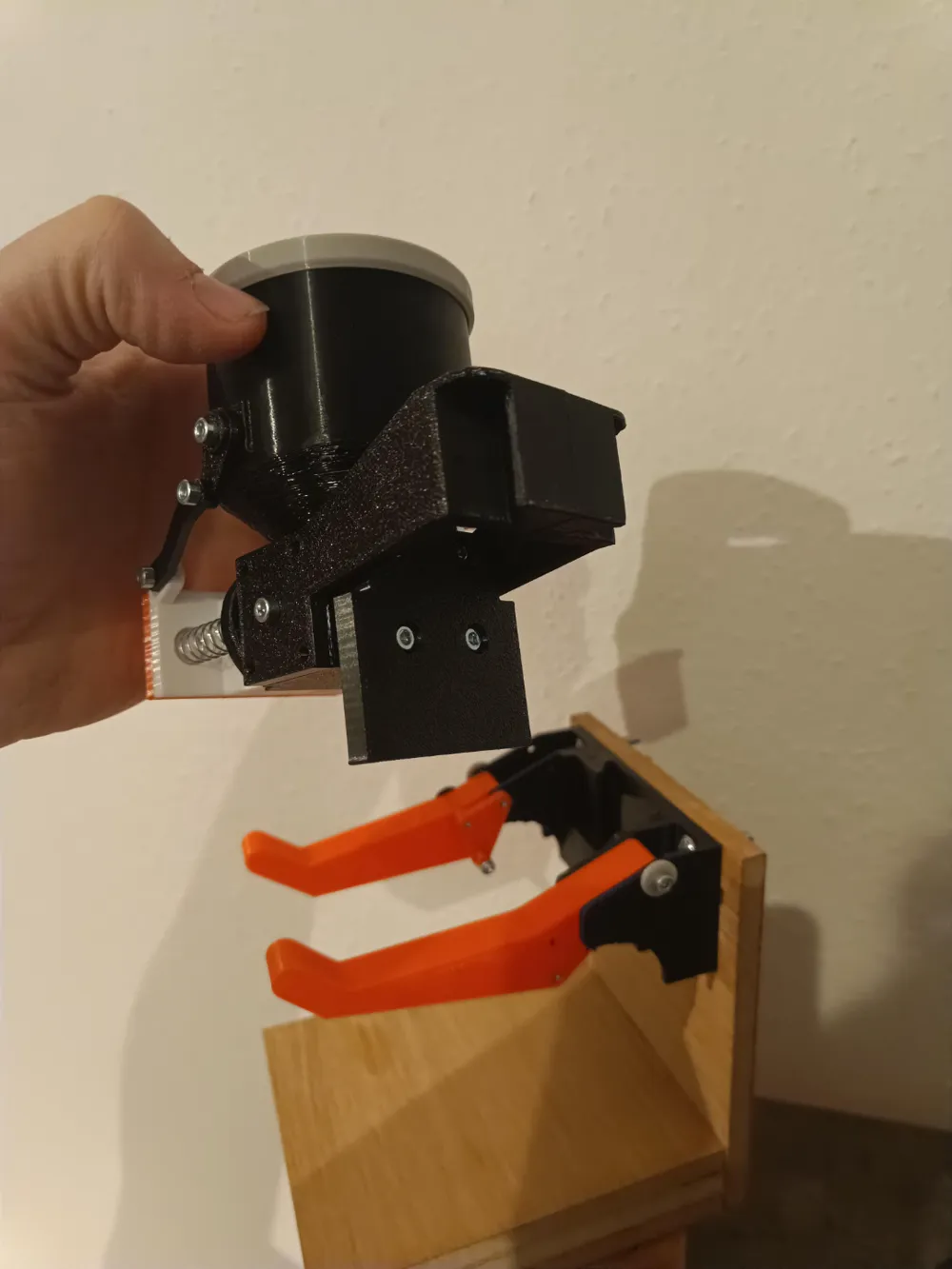

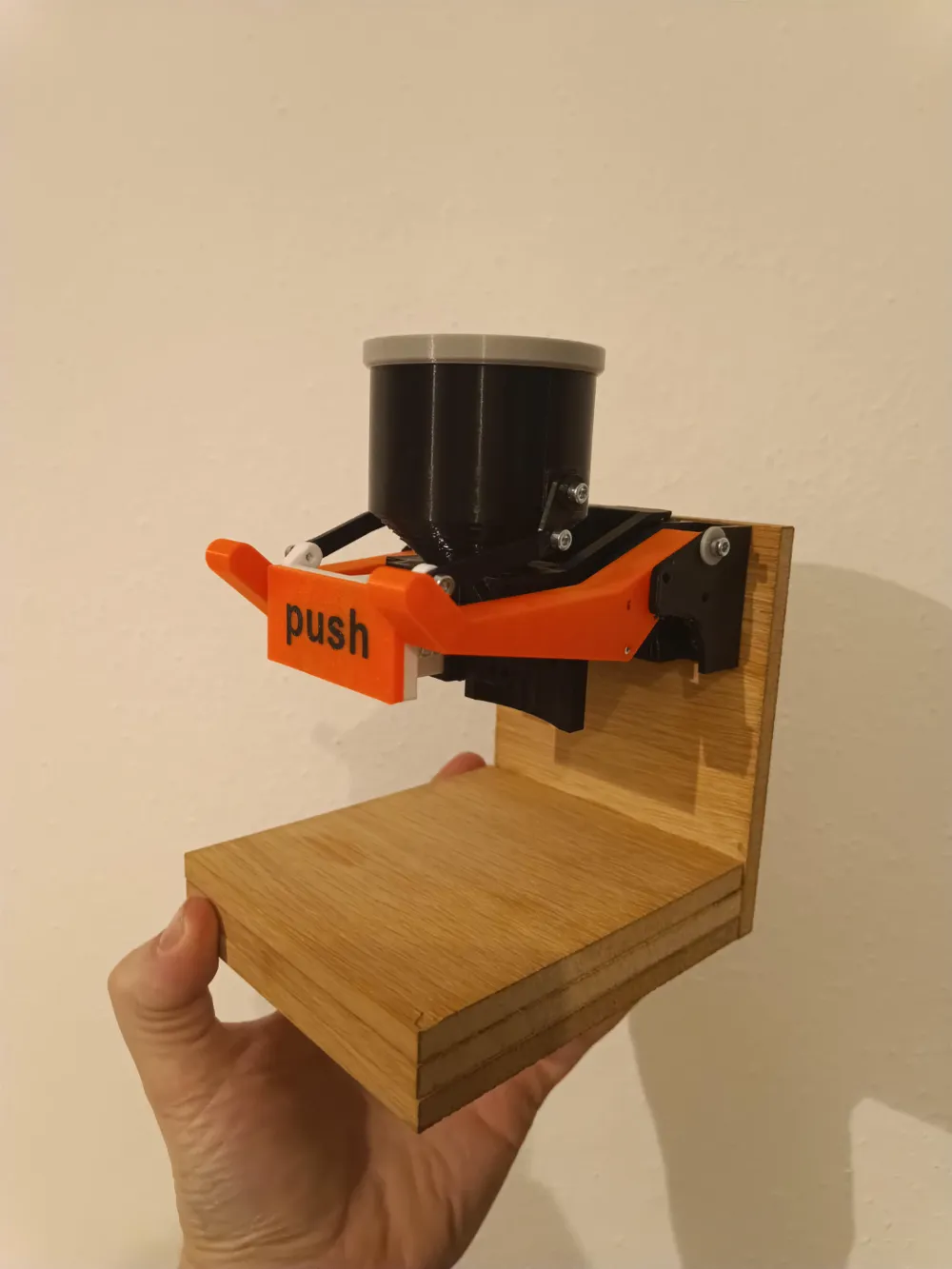

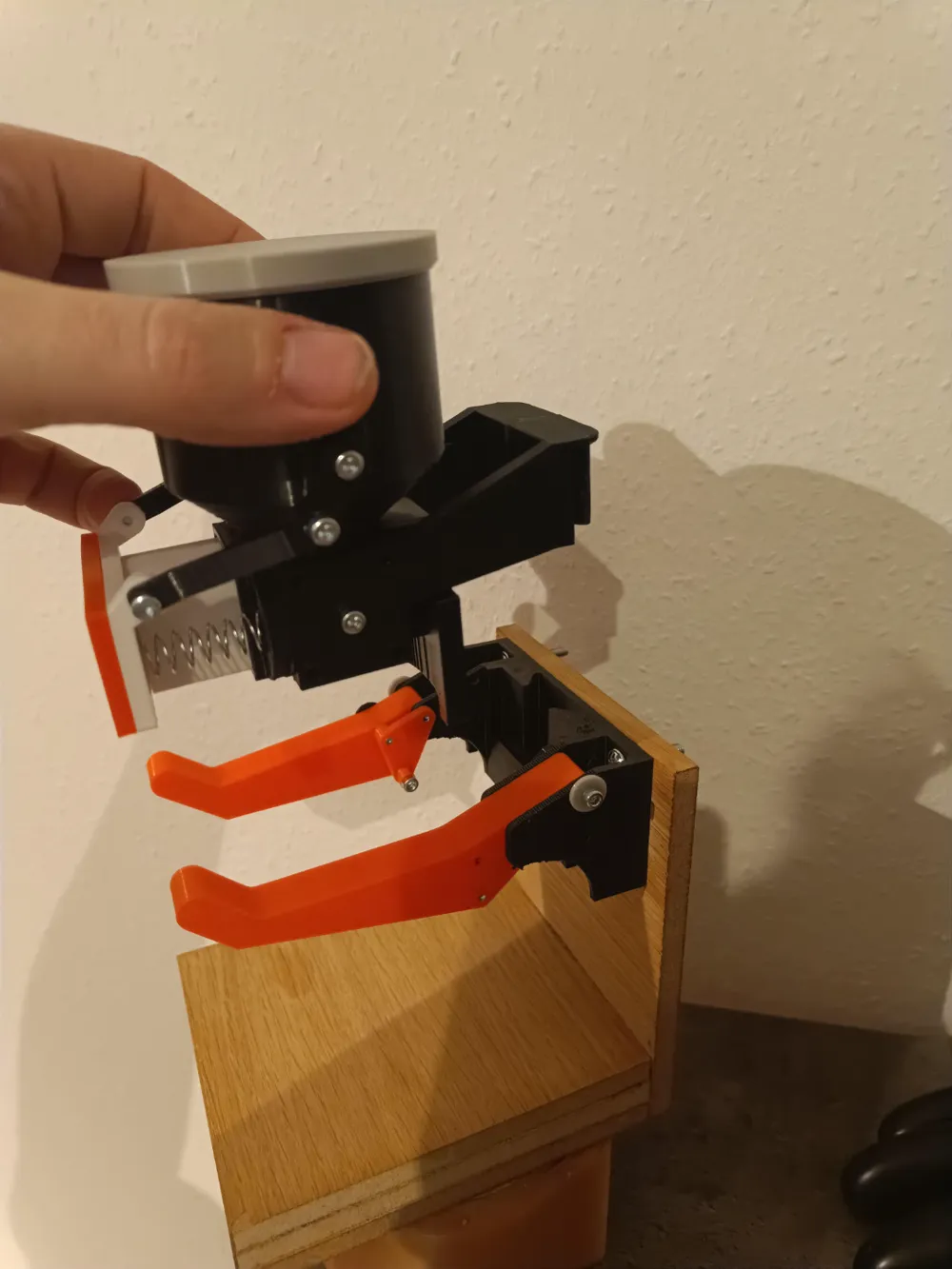

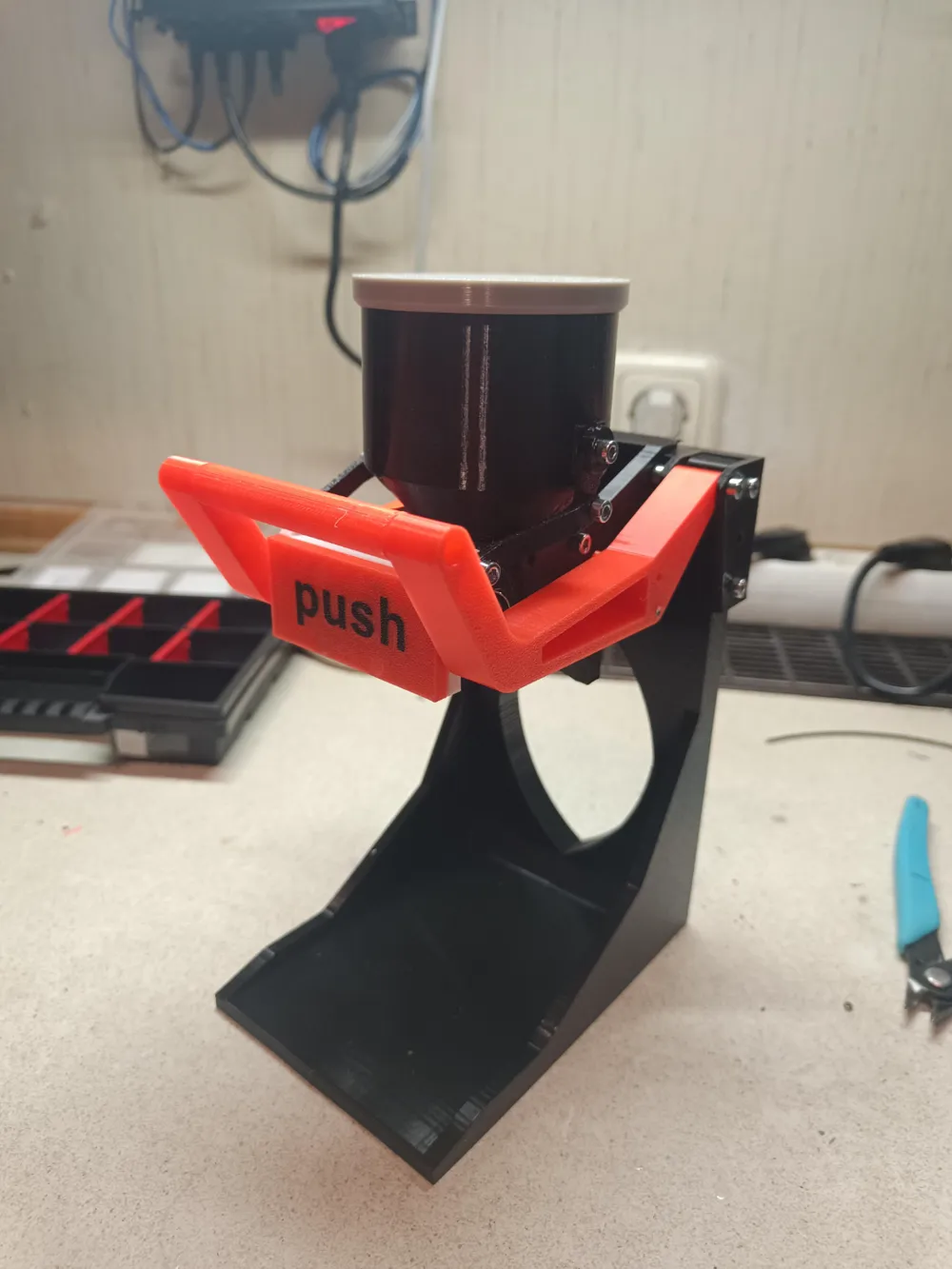

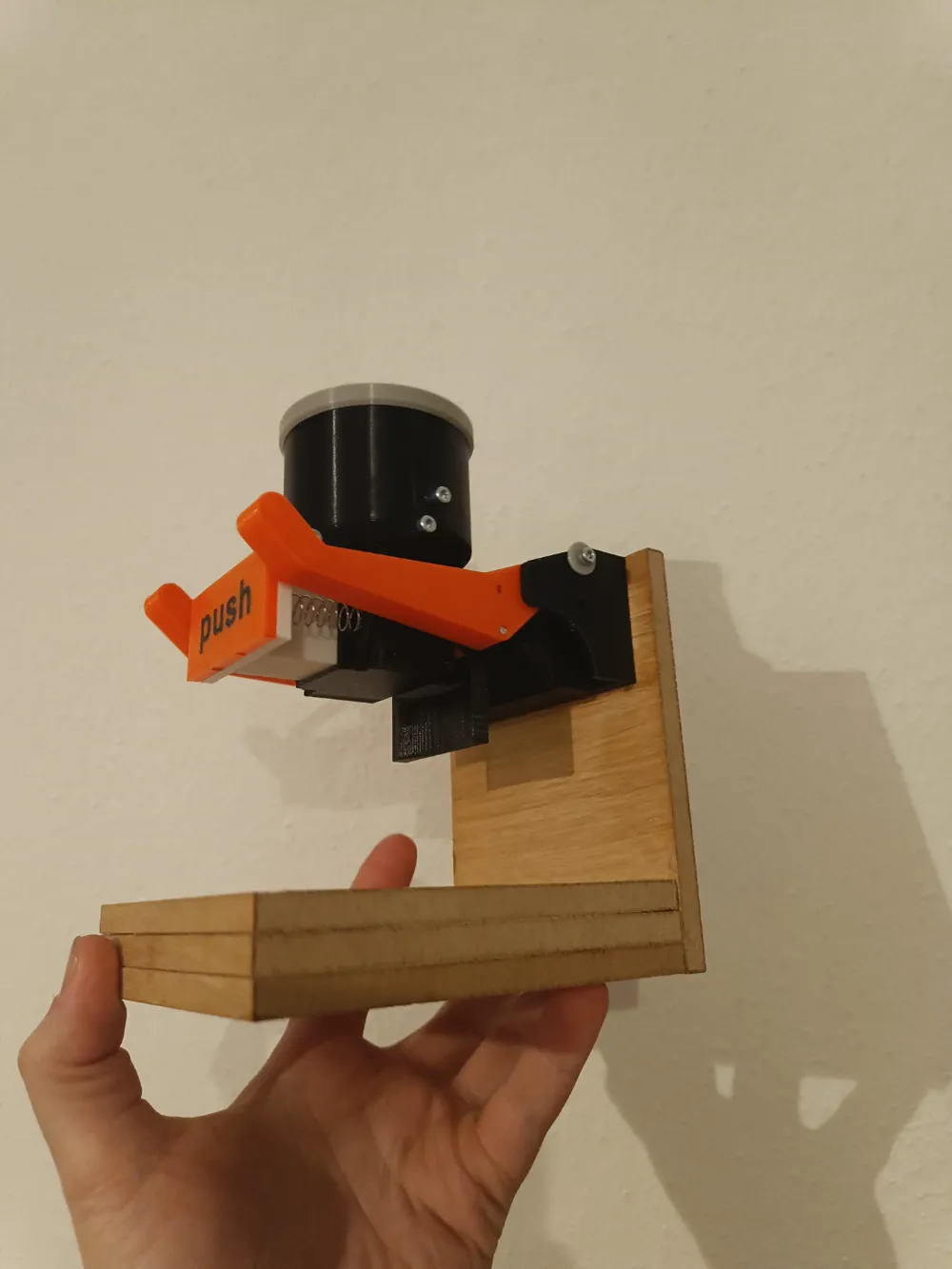

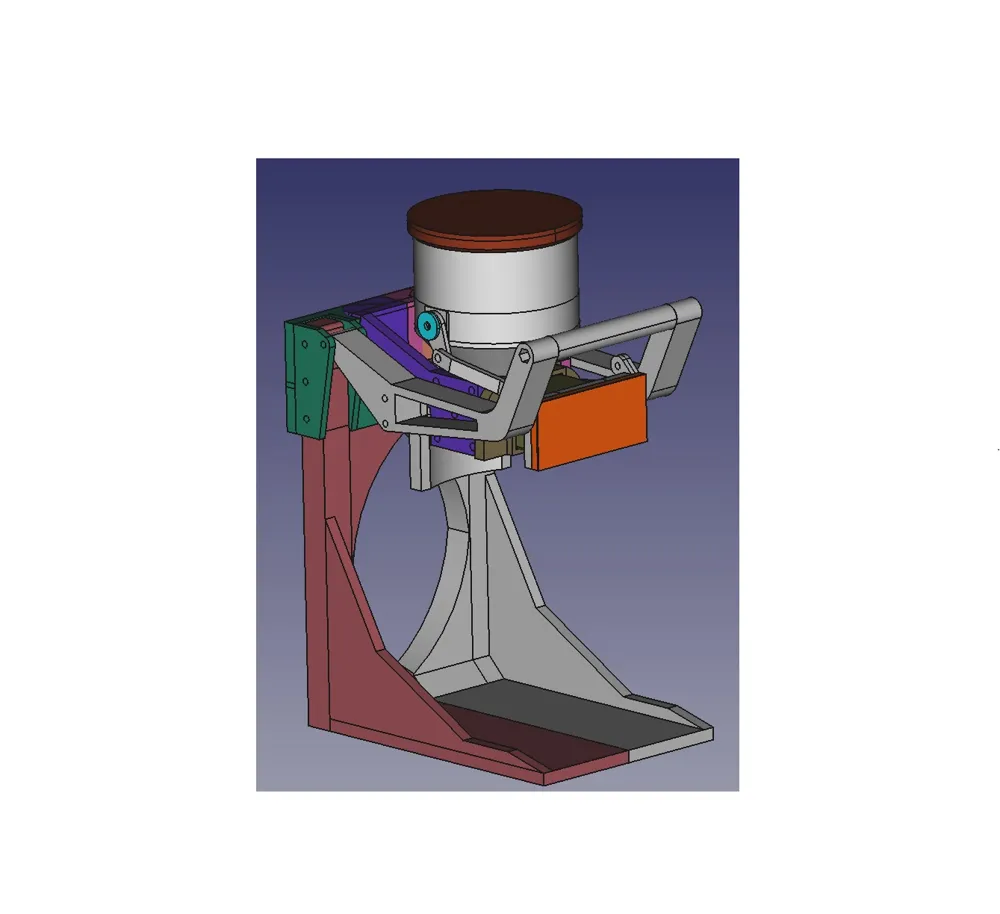

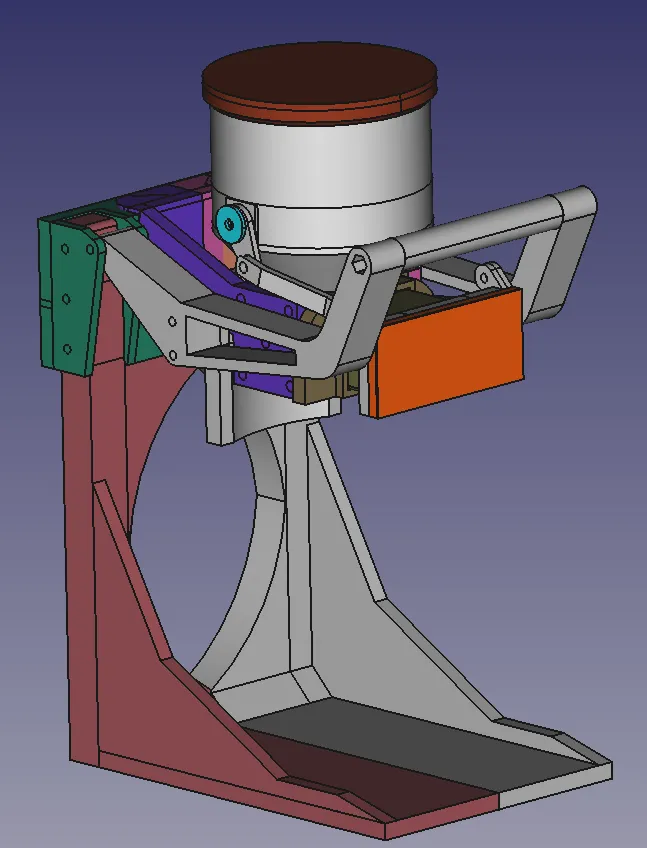

You can either screw this apparatus to the wall or mount the stand and place this part on a table.

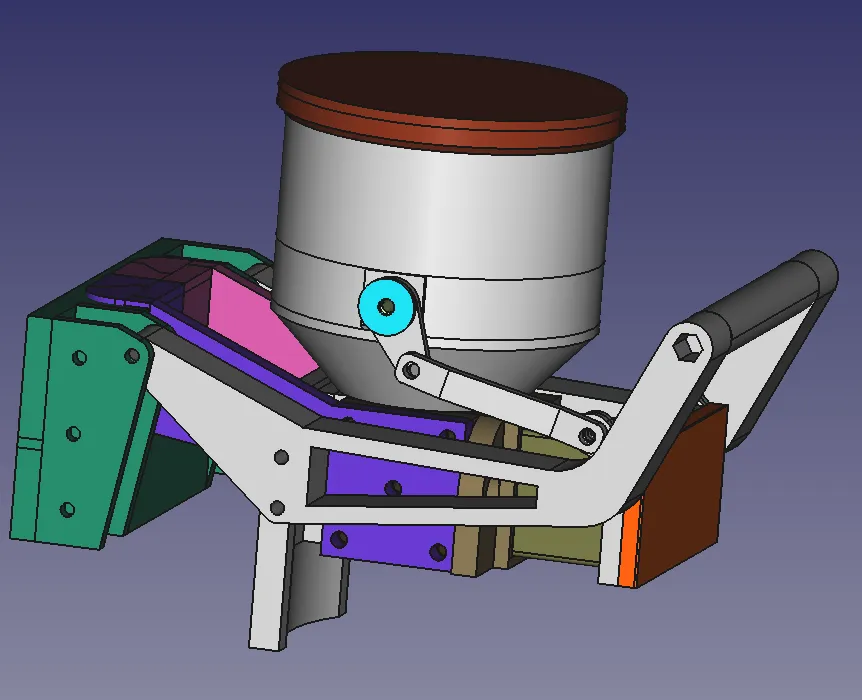

The actuating lever can be omitted for wall mounting, and a single lever on one side suffices; connecting two levers with a rod enhances convenience.
Operation is possible in three different ways

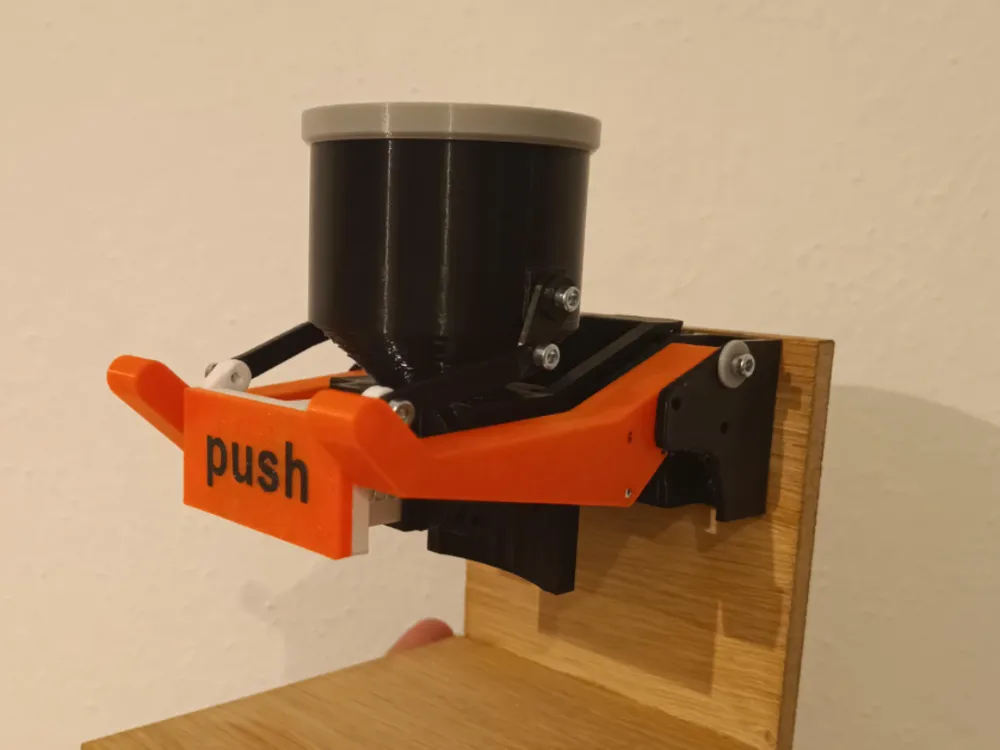

- Pressing the front plate (only recommended for wall mounting)
- Operating the “carrier” with a container (only recommended for wall mounting)

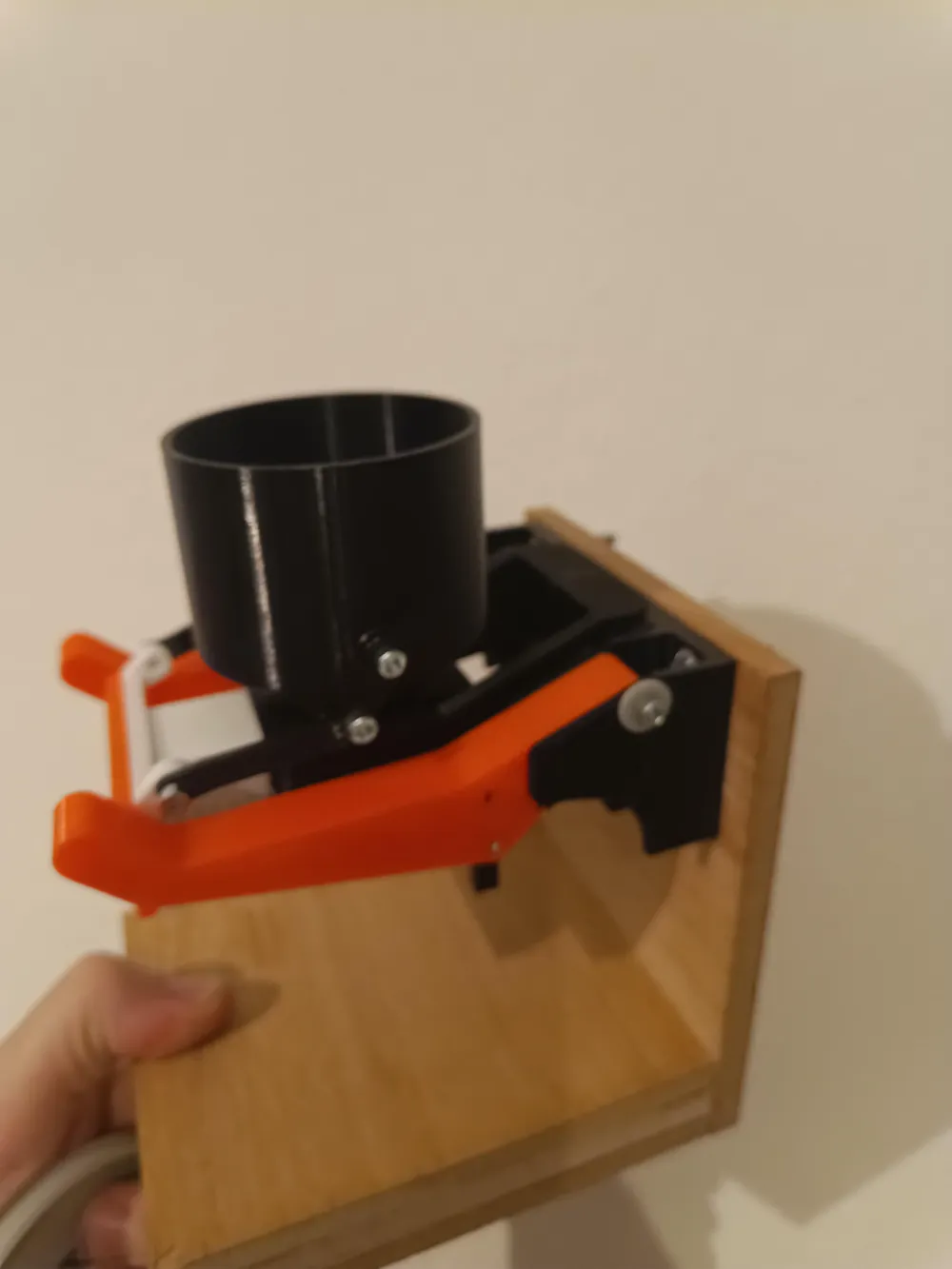

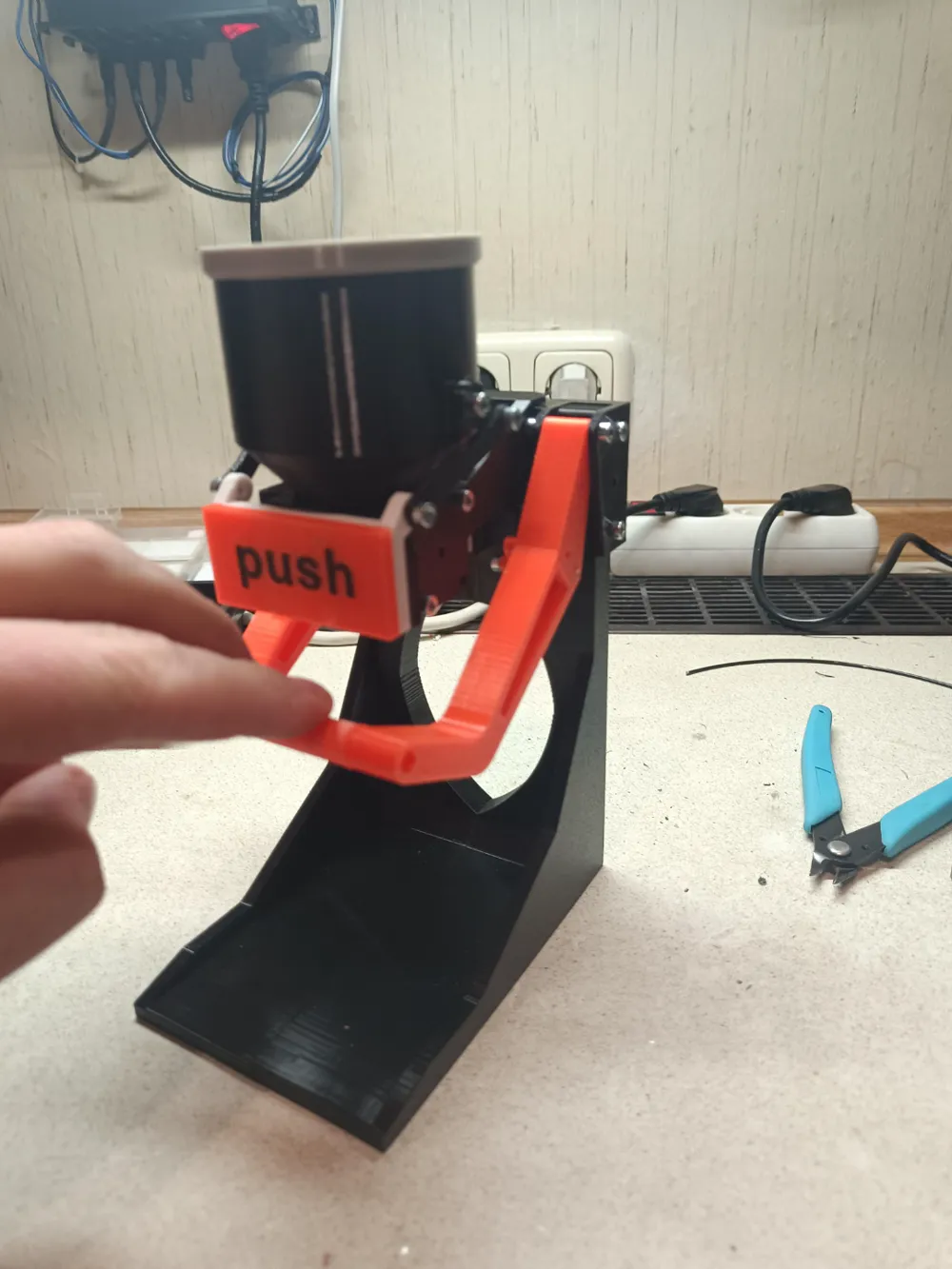

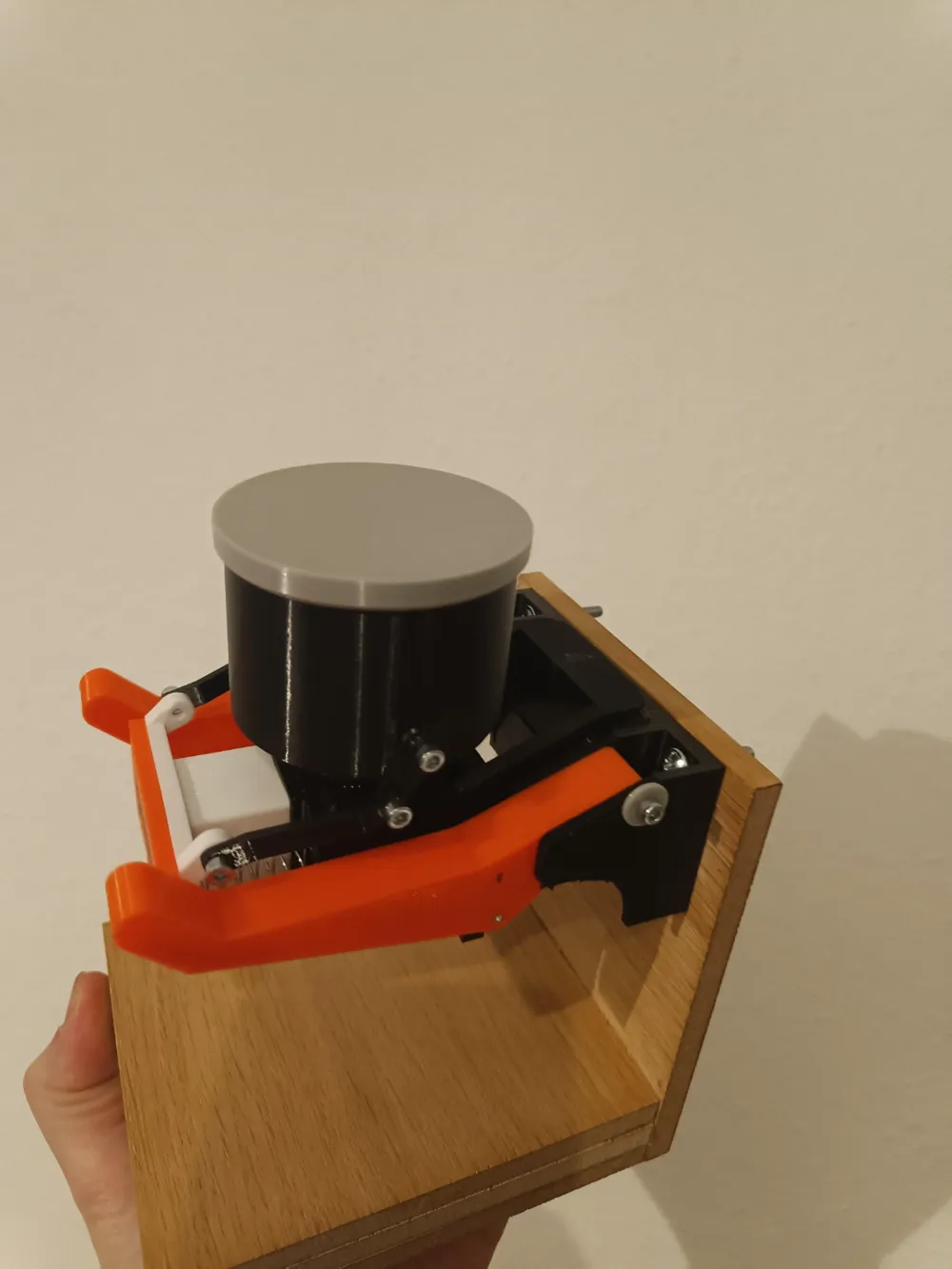

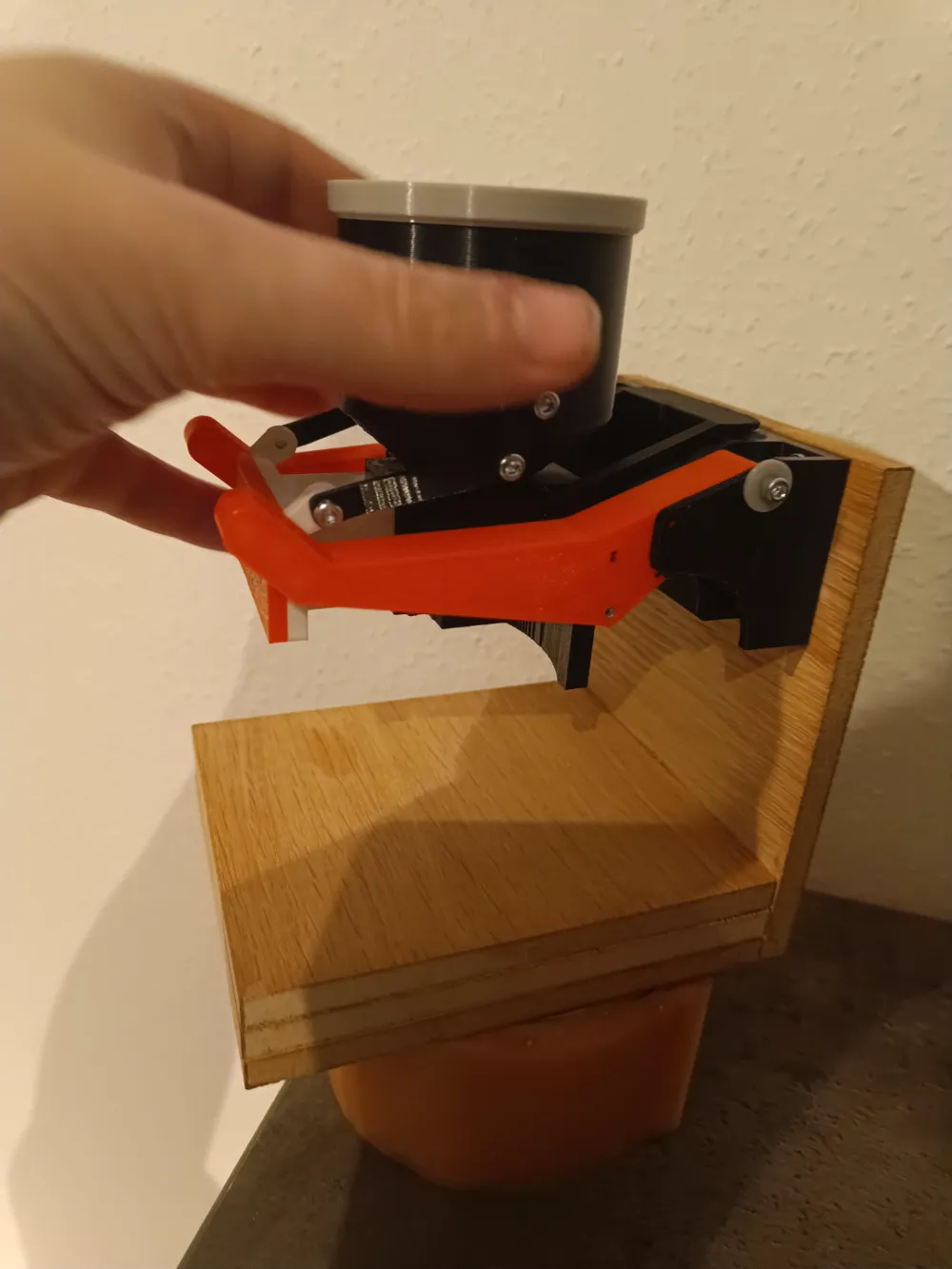

- Lever
Assembly instructions regarding screw position & length in PDF
Assembly note:
Check the carriage below the funnel for smooth movement and lightly sand if necessary (60/80 grit); depending on the application, silicone spray may also help

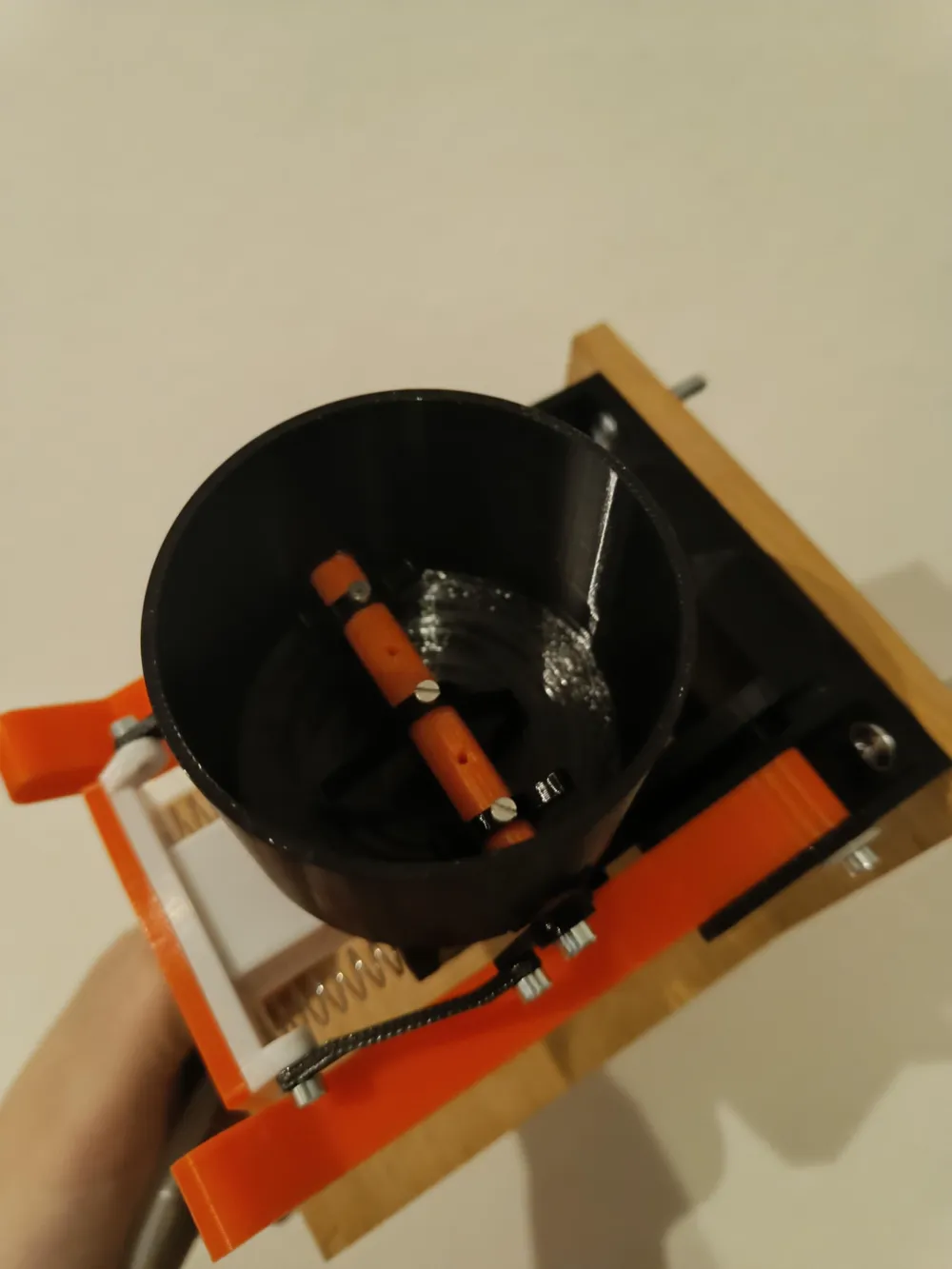

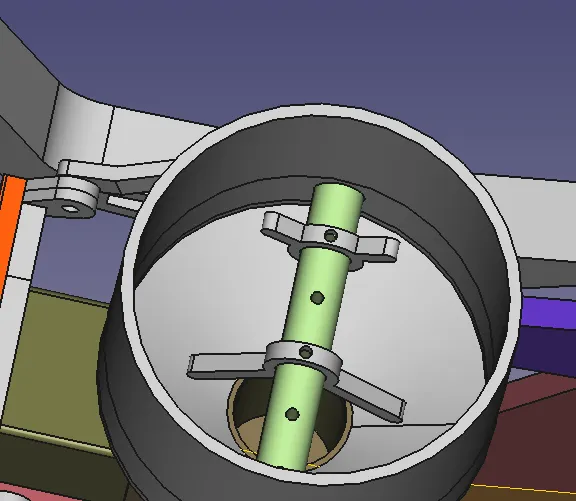

Fine-sand the inside of the funnel (depending on the print result) and seal with clear varnish or a very thin layer of 2K resin (create a smooth surface for good material discharge)
Additional parts required:
2x Spring 9mm outer diameter, 35mm long
8x Screw M3*20
2x Screw M3x25
6x Screw M3x6-8
4x Screw M4x12
4x Screw M4x8-12
2x Screw M4x10
4x Screw M3x6
5x Screw M2x5
