VS4-10 Flatbed for 1/10 RC
Print Profile(1)
Description

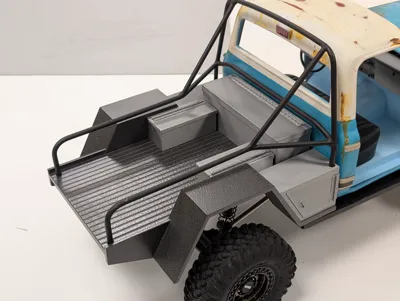

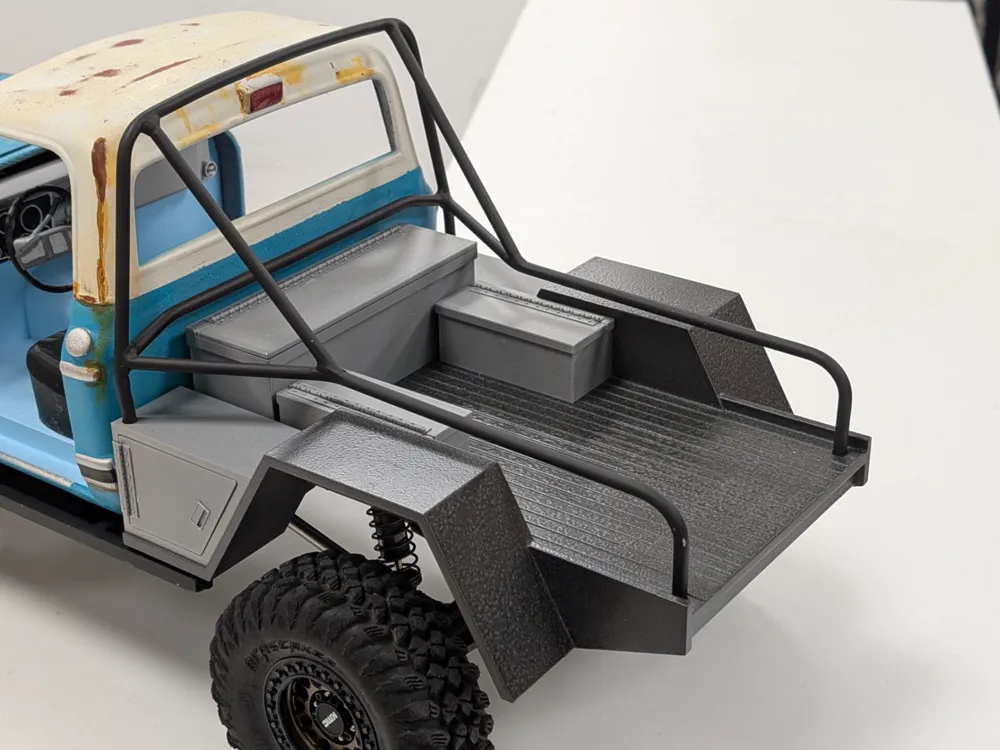

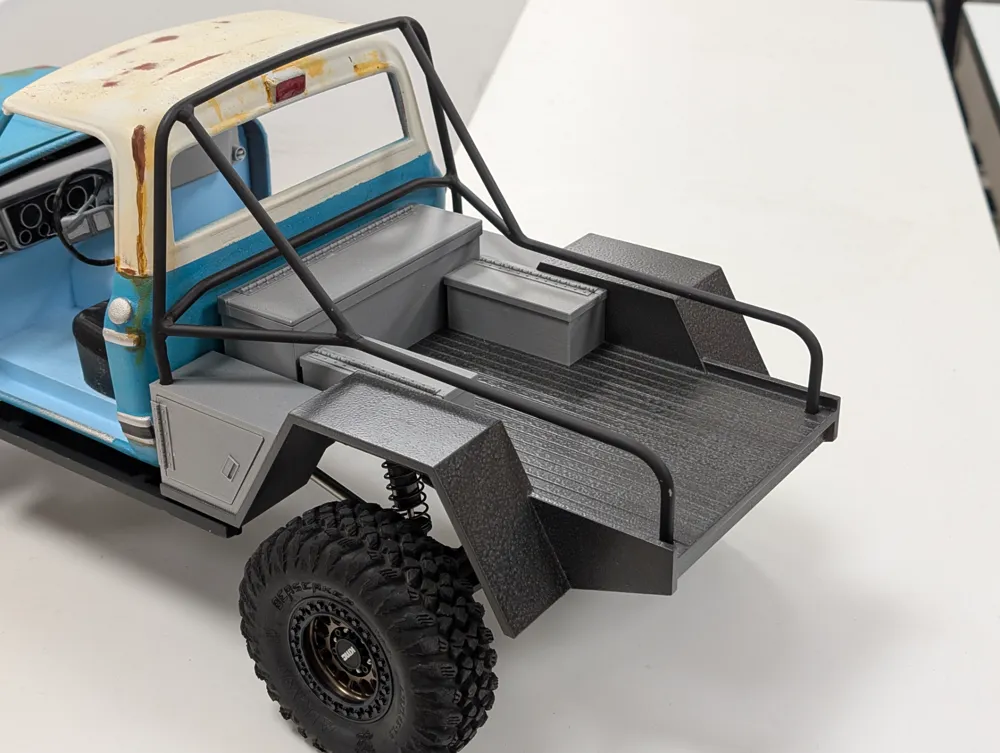

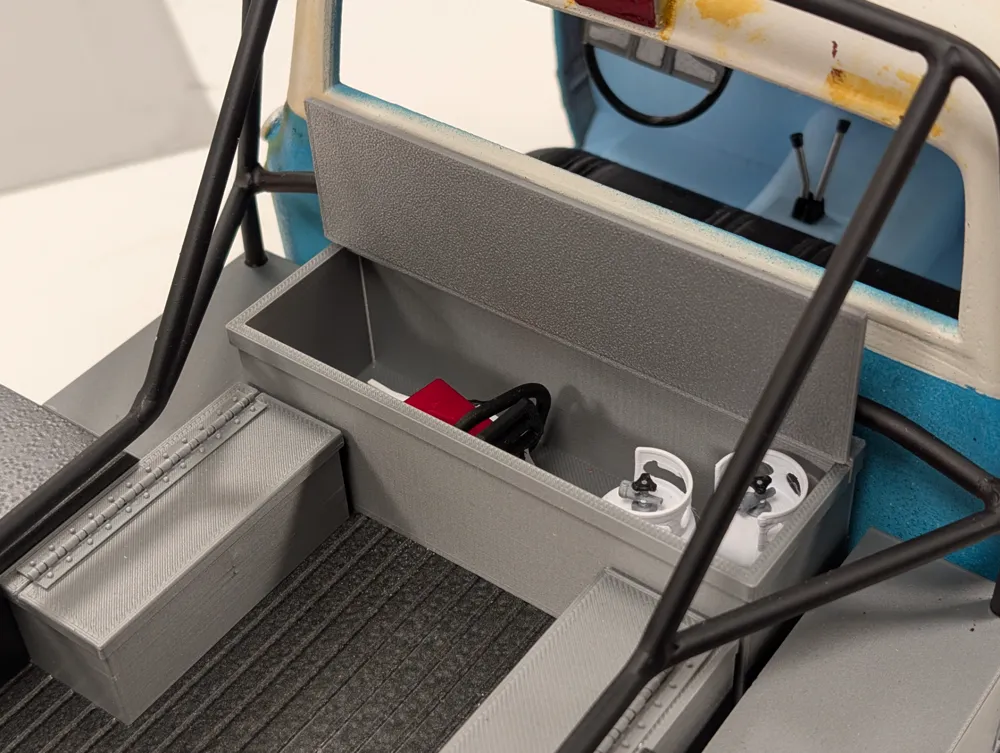

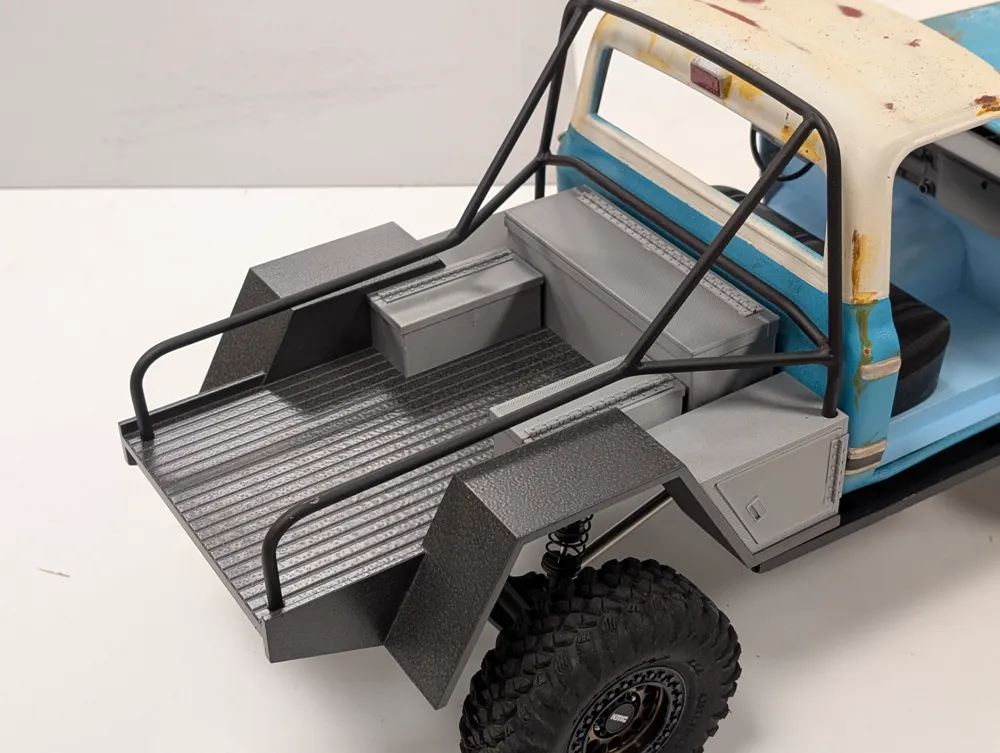

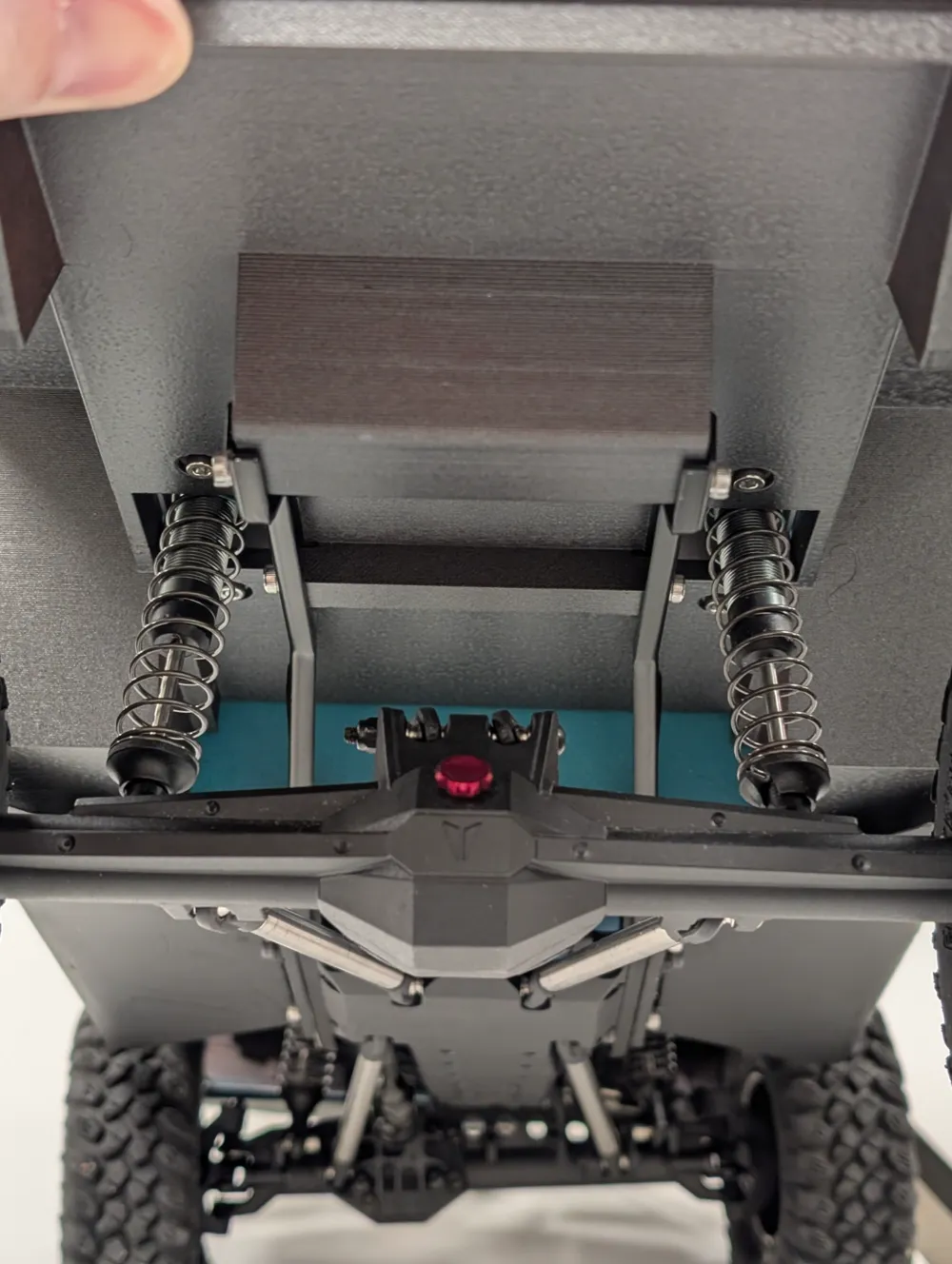

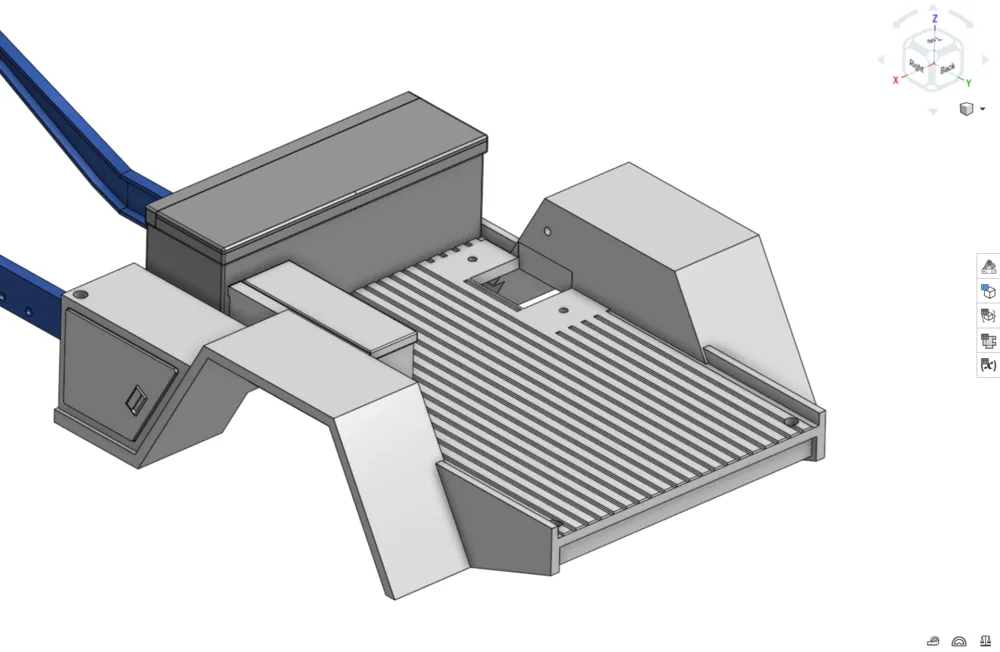

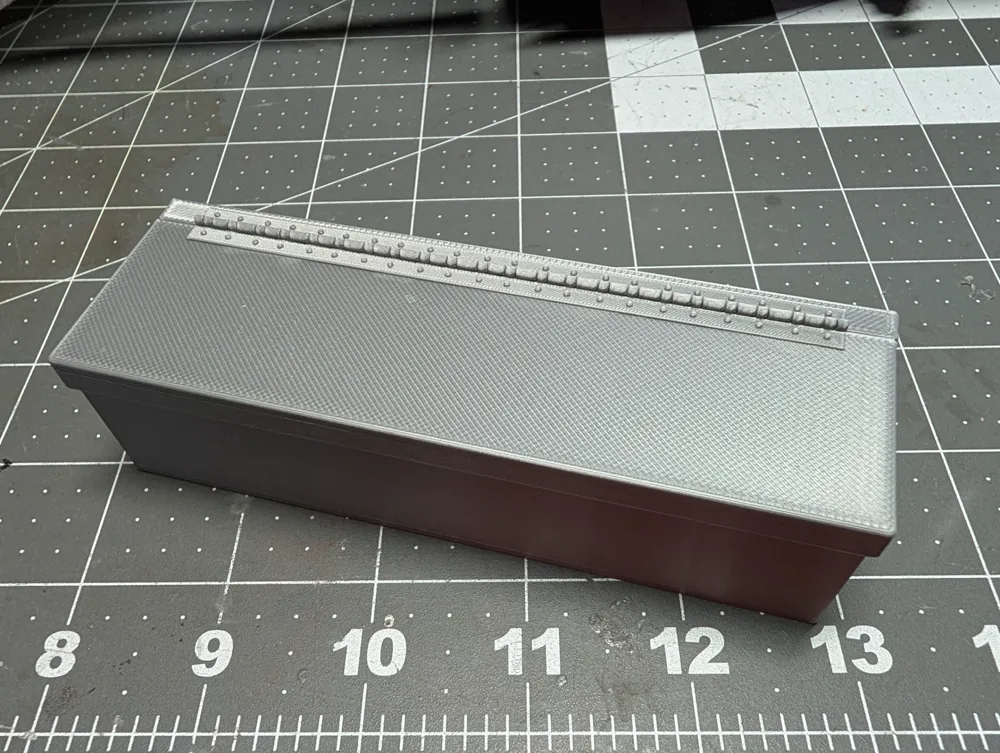

This is a flatbed or “trail bed” I designed to fit the Vanquish VS4-10 chassis. It has integrated shock mounts hidden in the toolboxes, a large toolbox across the front and side boxes in front of the fenders. The large one and side boxes can be functional with my Piano Hinge model. The model is already the correct length for the main, large box and can but cut in Bambu Slicer to fit the other boxes.

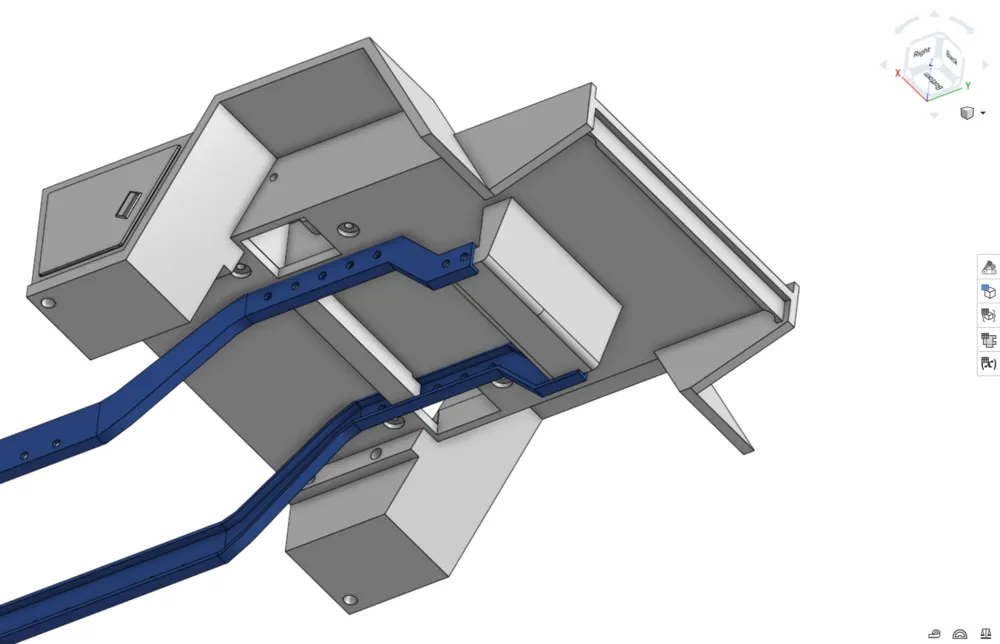

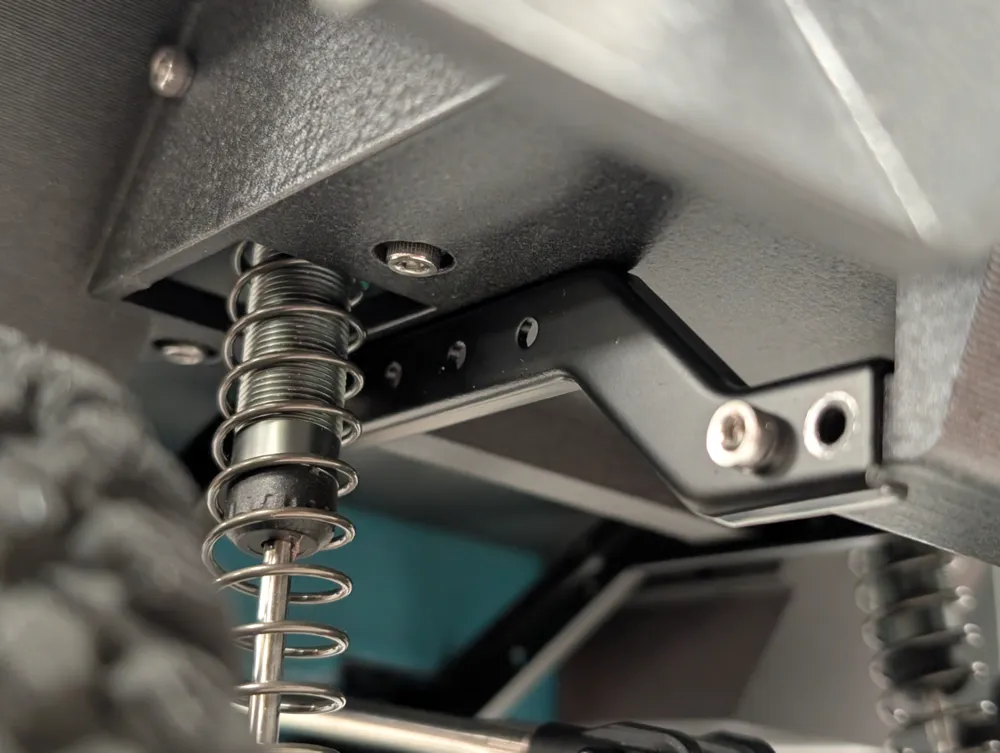

Other materials needed will be M3 screws and M3 heat inserts. Inserts are used to mount the boxes to the bed and the bed to the chassis rails. There are also spots on the side boxes for 12x6x3mm magnets to keep them shut on the trail.
I designed this to work with a 3d printed cab (not included), so I have no idea how it will fit with other bodies, but if you can adjust the cab you plan to use back and forth to correct the spacing, this will work great. The roll hoop is not included in the files. This is welded 3/16" tubing.
It's about 370g of filament including supports. I designed it to be scale and strong, not performance oriented in any way!

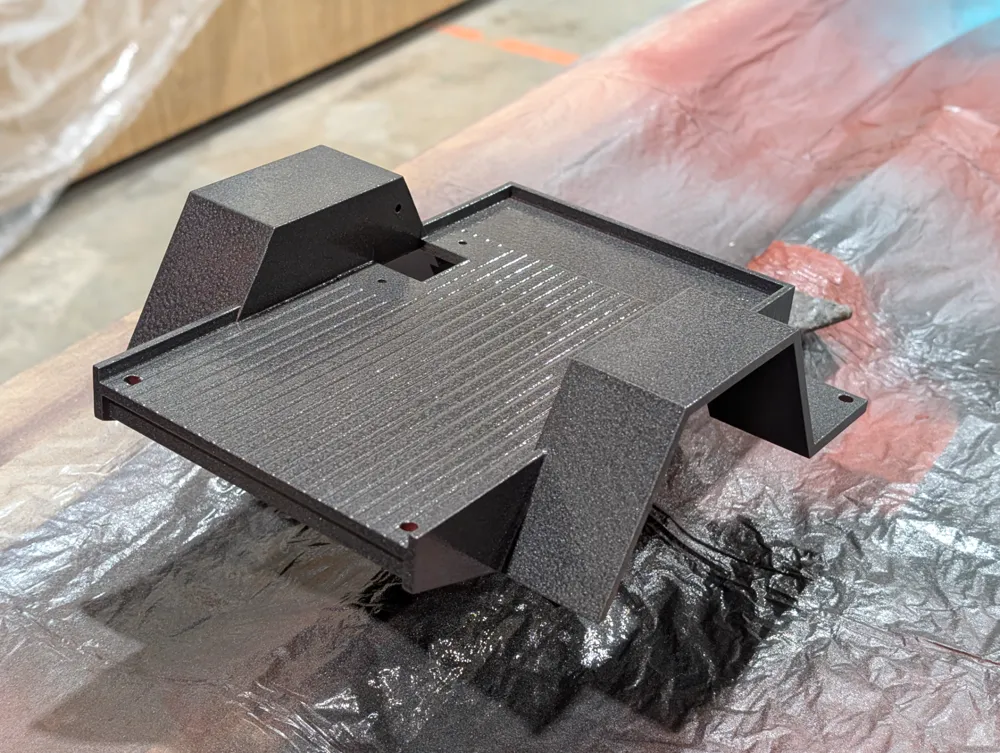

The model in the photos was printed in Bambu PLA, sanded and panted with a crinkle paint.
