Granulate Feeder with Auger
IP Report
Print Profile(1)
0.6mm nozzle, 0.3mm layer, 4 walls, 25% infill
Designer
20.2 h
4 plates
Open in Bambu Studio
Boost
40
108
2
1
132
31
Released
Bill of Materials
Bambu Filaments
Select all
List other parts
- 12V 10RPM DC Schneckengetriebemotor 90kg.cm 31mm Hohe Torsion Selbsthemmende Motor Getriebemotor x 1:
- Skateboard-Kugellager, 608ZZ x 1:
- M5 Einpressmuttern x 5:
- M5x8mm Senkkopfschrauben x 5:
Description
Content has been automatically translated.

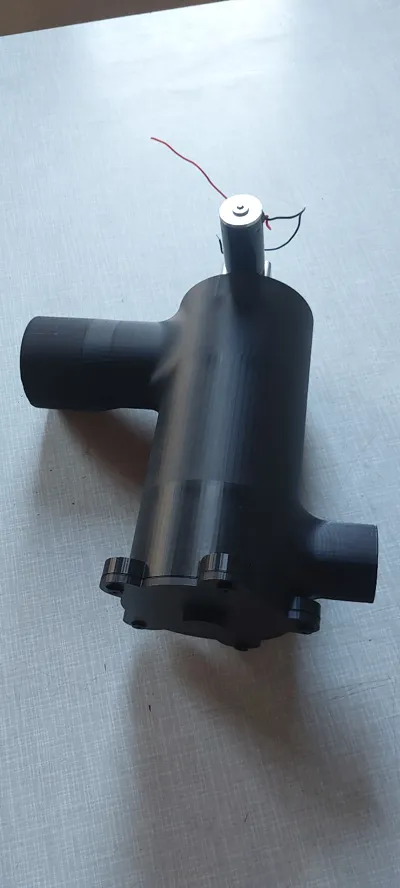

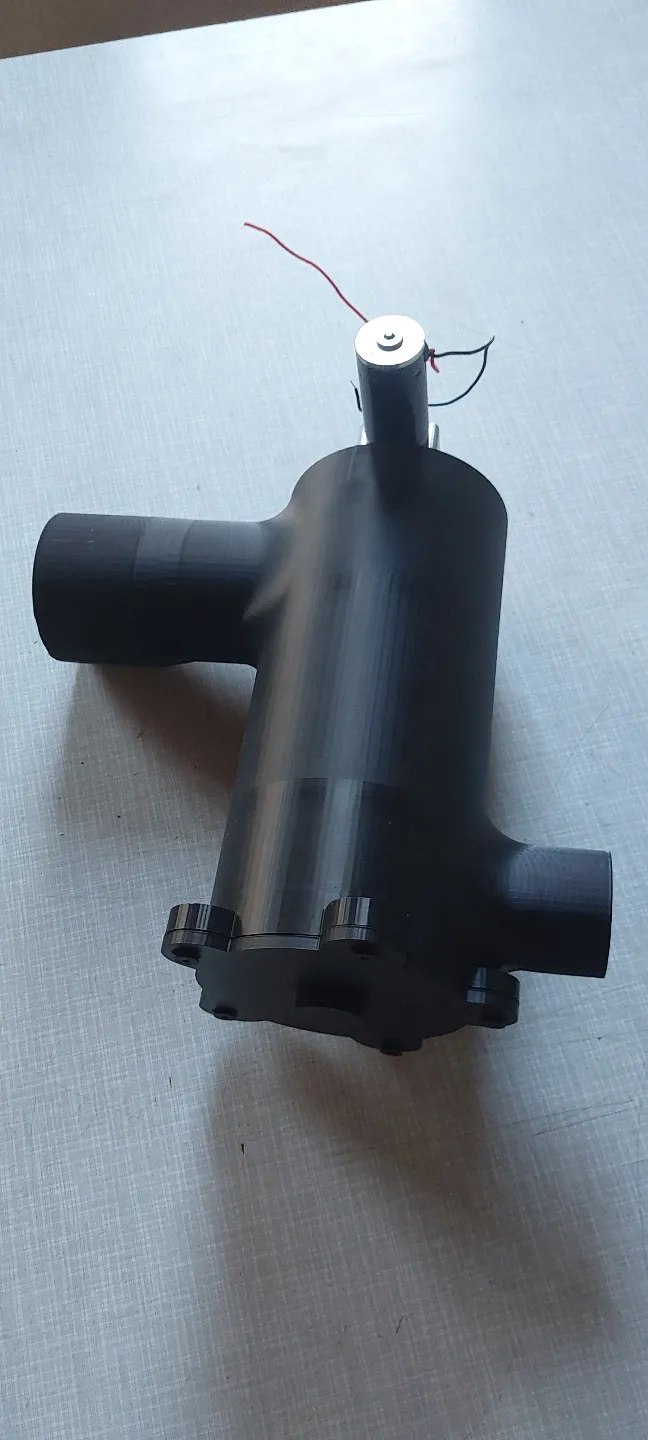

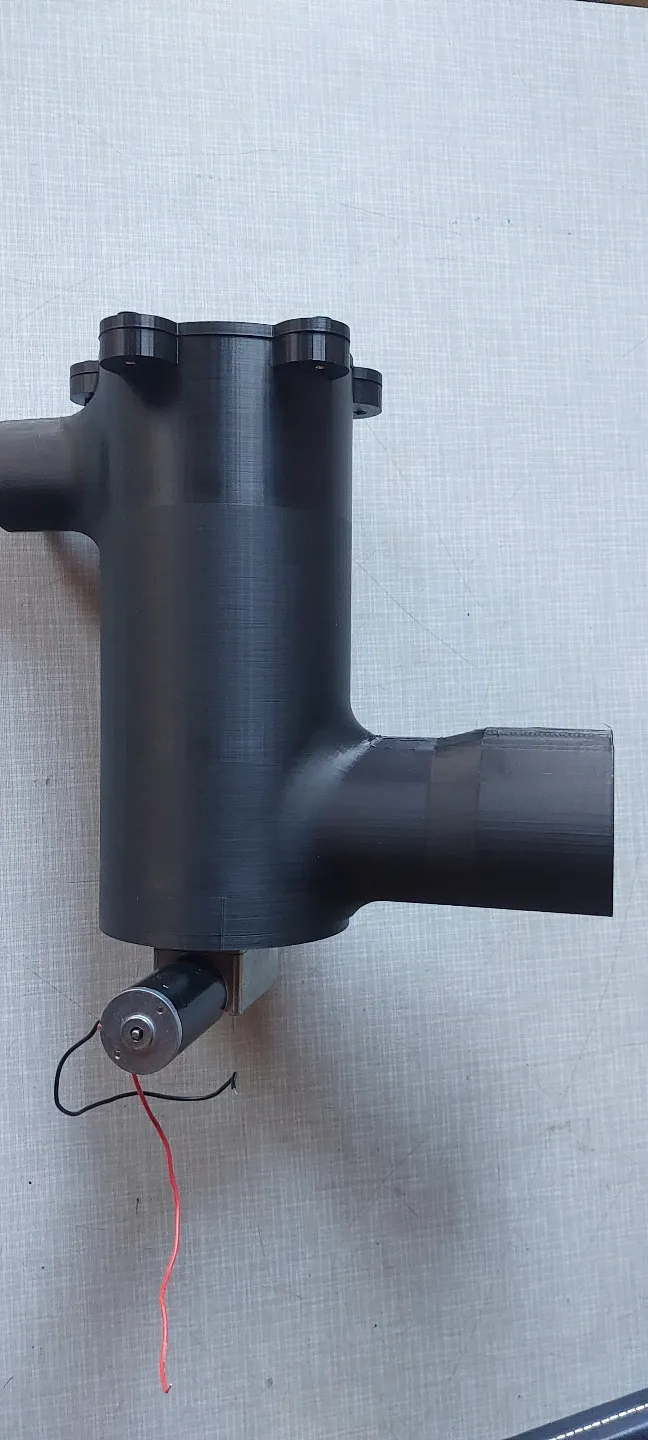

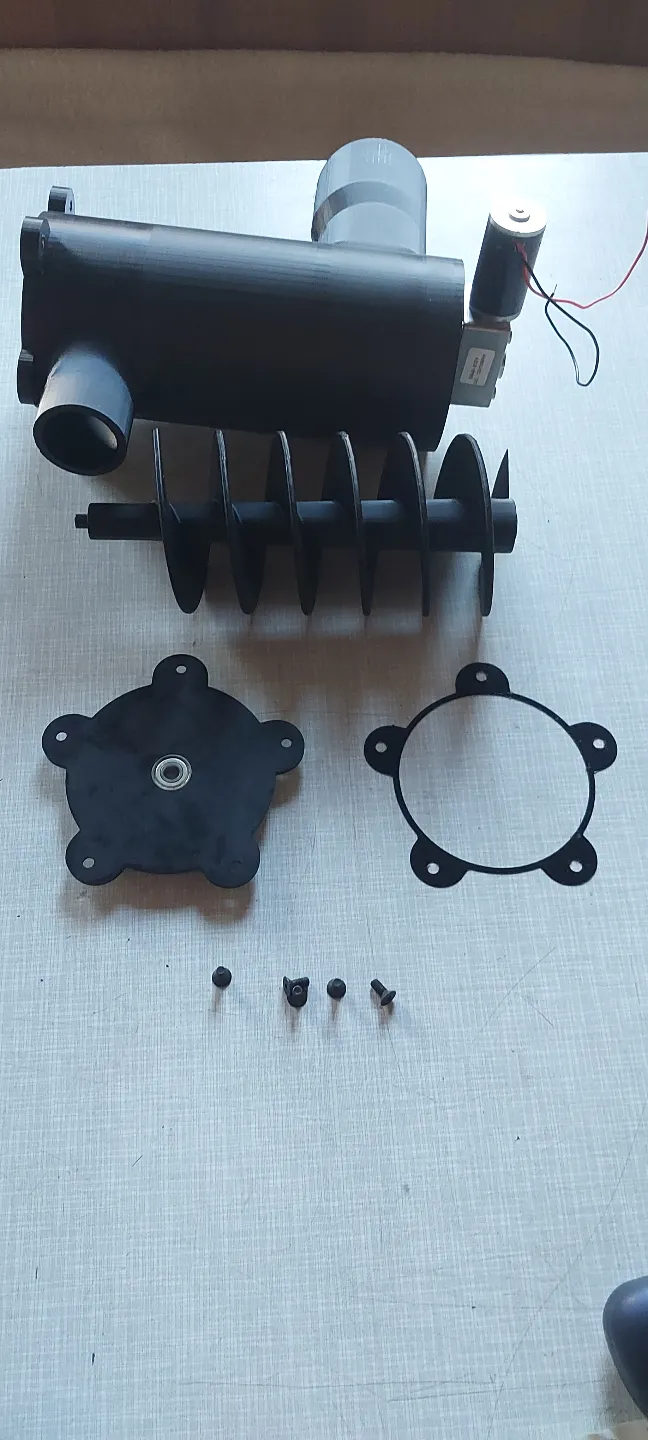

I have designed and 3D printed a feeder for granules and other pourable materials. The auger is removable and can be replaced with others. A ball bearing (608ZZ) and a motor (12V 10RPM DC worm gear motor 90kg.cm 31mm high torsion self-locking motor gear motor) are required.
For example:
https://www.amazon.de/dp/B0BGRCPVNF?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
https://www.amazon.de/dp/B08JLXN2BN?ref=ppx_yo2ov_dt_b_fed_asin_title
A hopper can be made with a HT pipe. The large connection has 75mm, the small one 50mm
