Ventilation grille Berlingo Combo Proace
Remixed by
IP Report
Print Profile(2)
0.16mm layer, 2 walls, 15% infill
Designer
15.8 h
6 plates
Bed 6 corrected, 0.16mm layer, 2 walls, 15% infill
23.1 h
6 plates
Open in Bambu Studio
Boost
204
520
42
25
287
130
Released
Description
Content has been automatically translated.

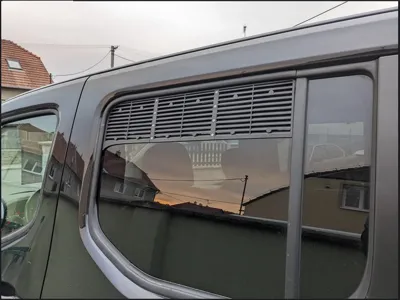

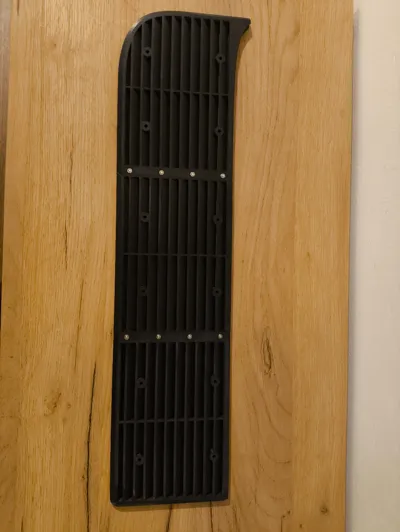

The ventilation grille comprises three parts assembled with M3 screws. An inexpensive insect screen can be purchased, cut to size, and affixed to the inside as insect protection.
Assembly requires 8 M3x10 countersunk screws and 8 M3 hex nuts.
The model also features boreholes for mounting up to three fans. The component should be printed from a material more heat-resistant than PLA.
Adjustments for supports at the screw points have been added.
I have created 6 plates, 3 for the left side and 3 mirrored for the opposite side of the vehicle.
