Airbrush Spray Booth

2025-11-25 Before you print this please take a look at my new model. It as been redone from scratch to reduce the number of part and make the assembly much simpler

https://makerworld.com/en/models/2042072-airbrush-spray-booth-v2#profileId-2203198

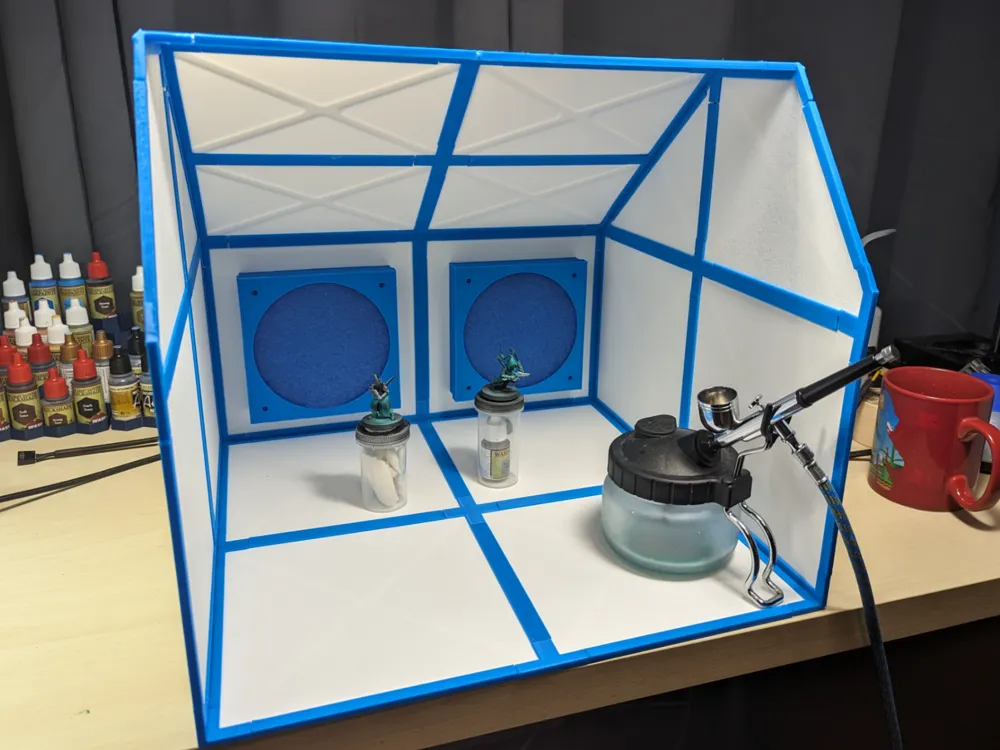

This is a paint booth for airbrush. it use 2 high 120mm high static pressure pc fan. the filter are just generic airbrush booth filter cut to size.

I used Noctua NF-F12 iPPC 3000 PWM fan that I solder to a generic 12v power supply.

For assembly I used a mix of superglue and friction welding. The boot can be assemble without if but it become to fragile when you pick it up.

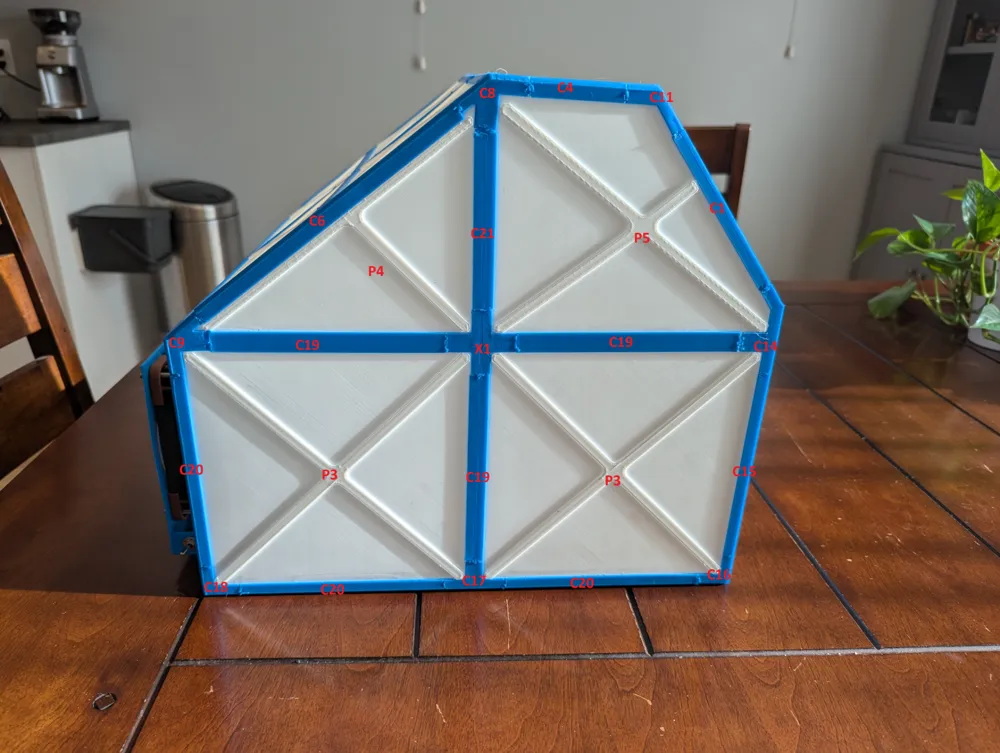

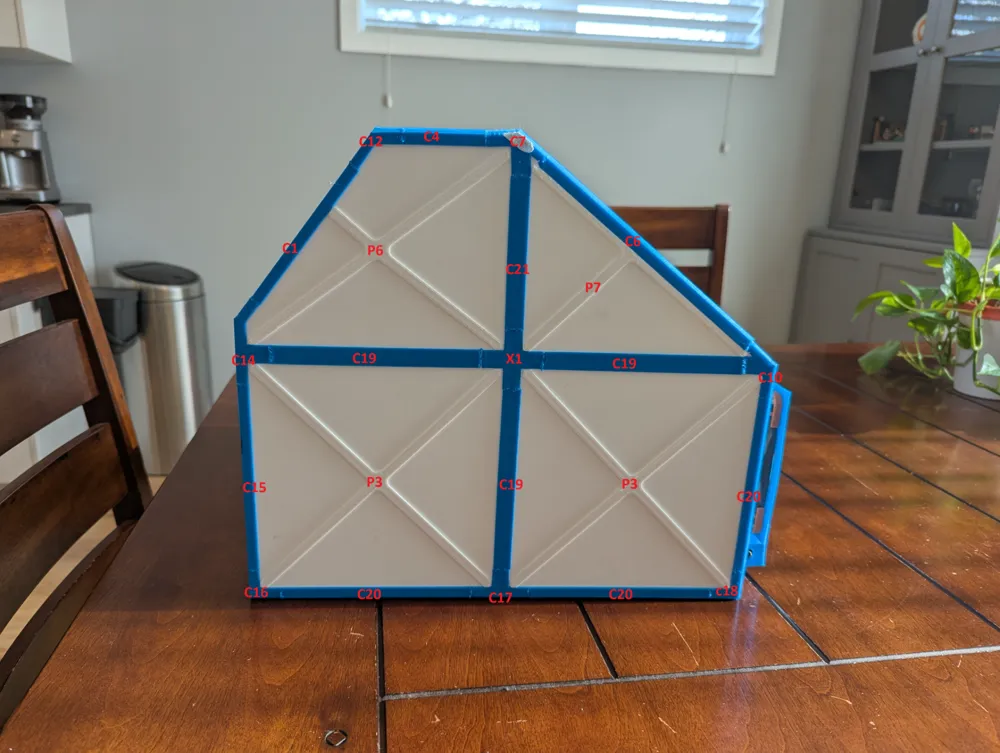

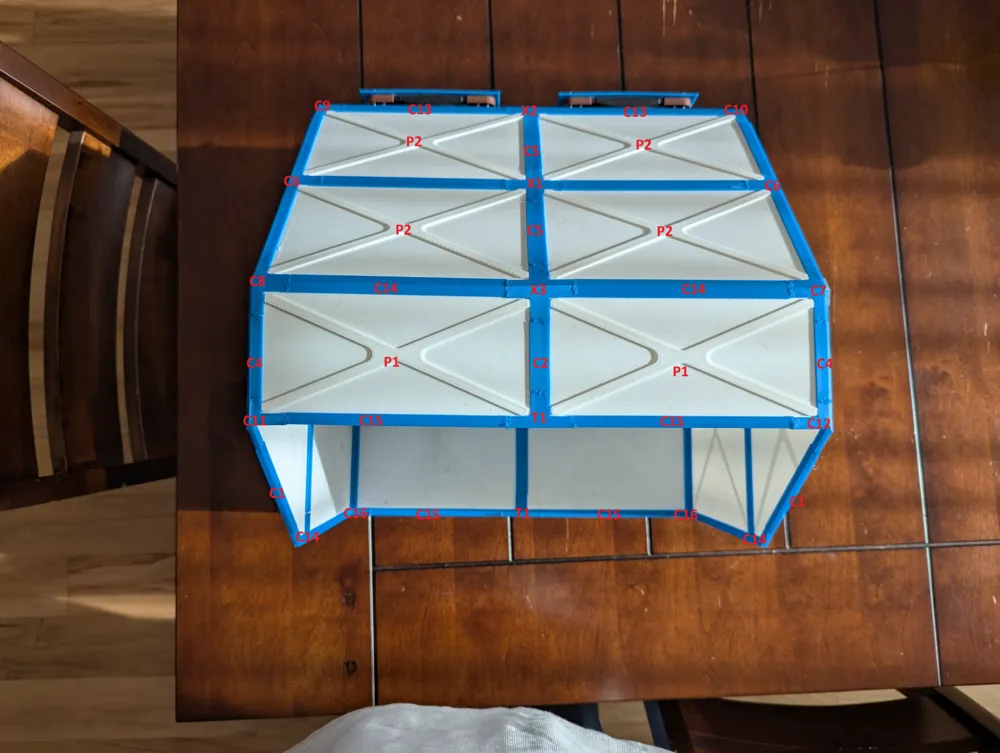

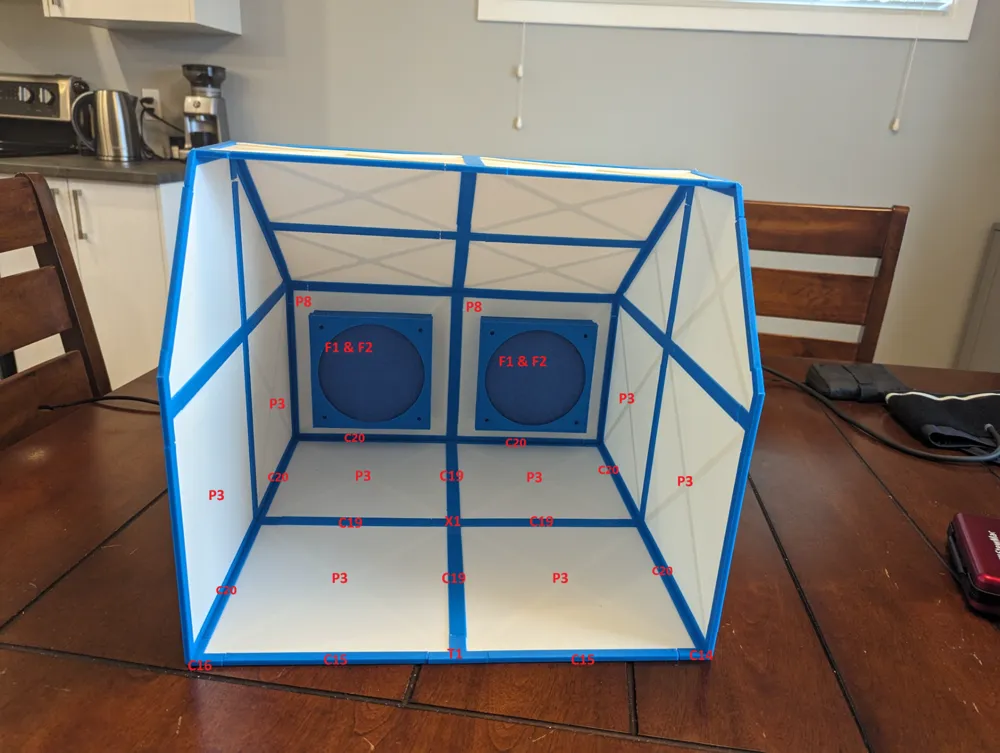

For assembly instruction please see the include image the part number are indicated on them.

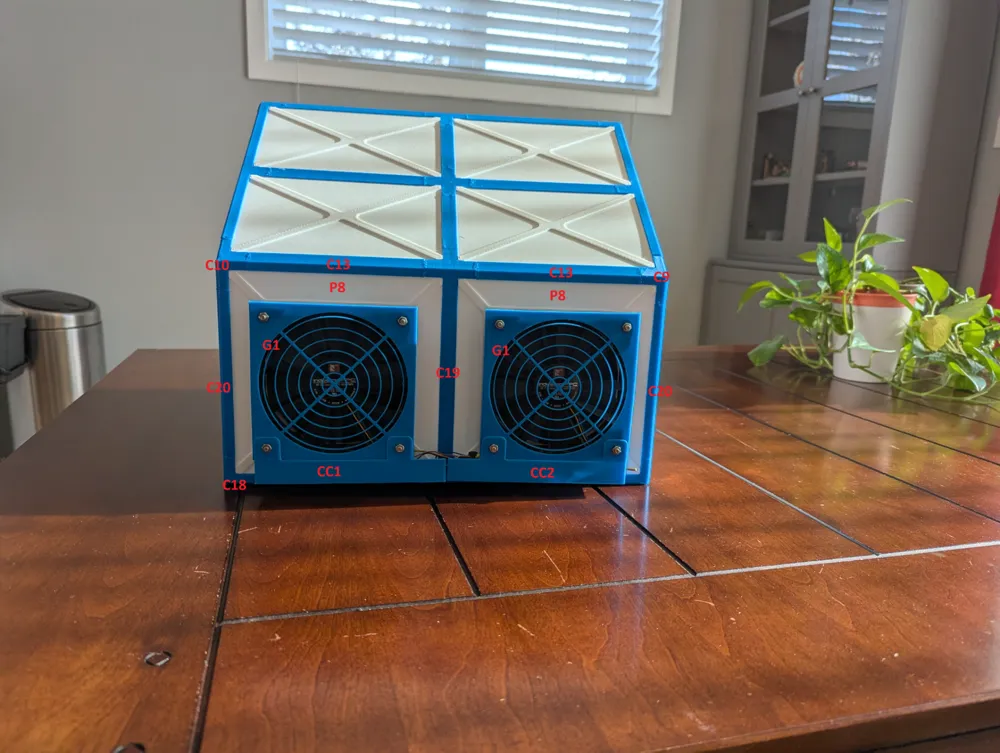

the fan assembly is held with 40mm M4 screws and nuts

The main part of the project are in the project folder.

The misc. folder is different revision of the part if you find that some angle corner piece do not fit right some of those misc. file might work for you.

BE ADVISE WHEN I MADE THE PROJECT I DID NOT USE A GOOD NAMING SCHEME AND PART OF THE NAME WHERE IN FRENCH I DID MY BEST TO RENAME THE FILE SO THEY MAKE SOME SENSE BUT SOME SLIGTH MISTAKE MIGTH BE PRESENT. This is especially thru of the corner piece as they look a lot alike. I have uploaded this project following comment on reddit even if at first I had no intention of doing so.
