Blackmagic HDMI to 3G SDI Microconverter mount

Print Profile(1)

All
A1
P1S
P1P
X1 Carbon
X1E
X1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.1 h
1 plate
5.0(6)

Open in Bambu Studio
Boost
31
128
6
7
135
100
Released

Description

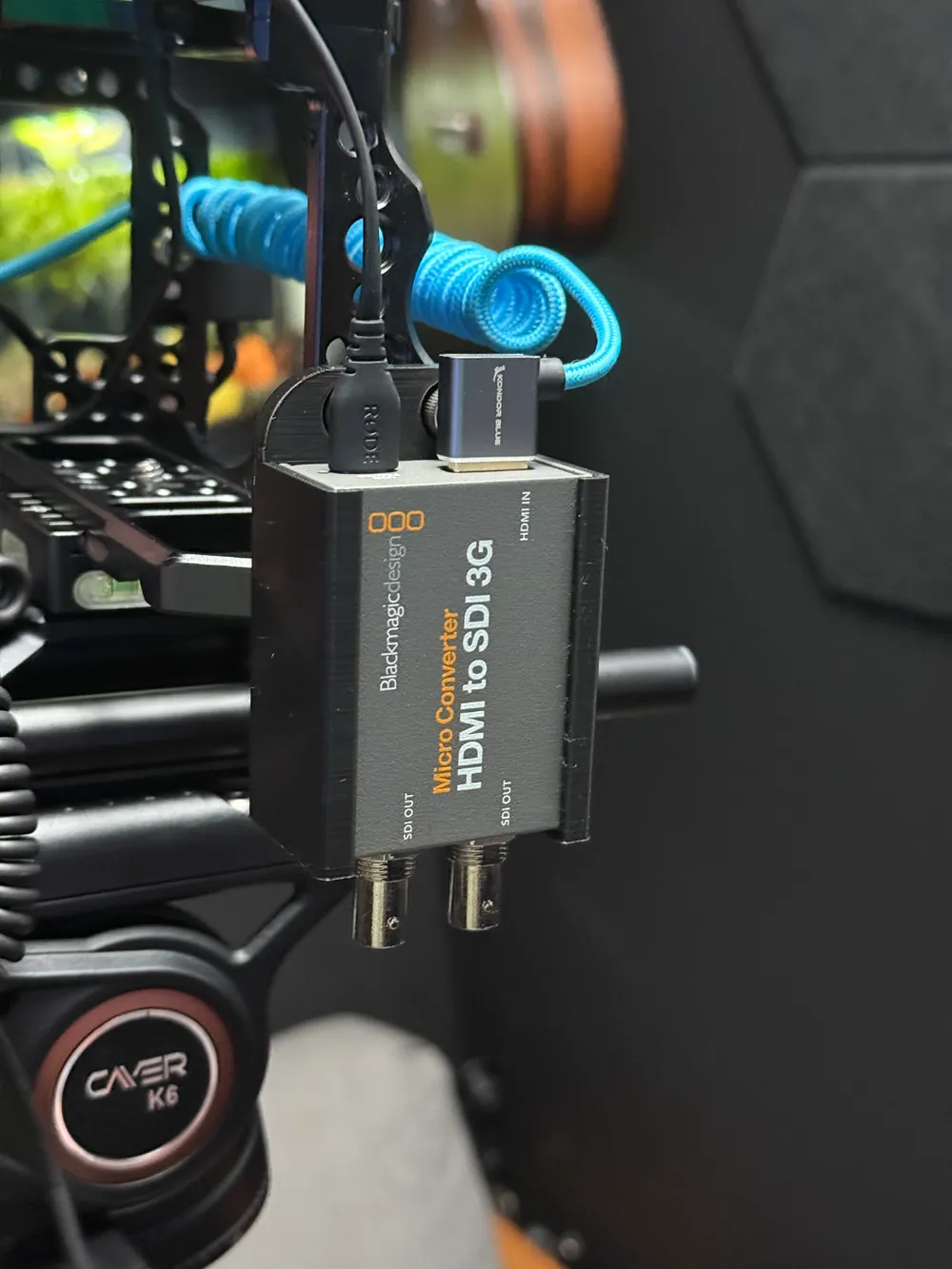

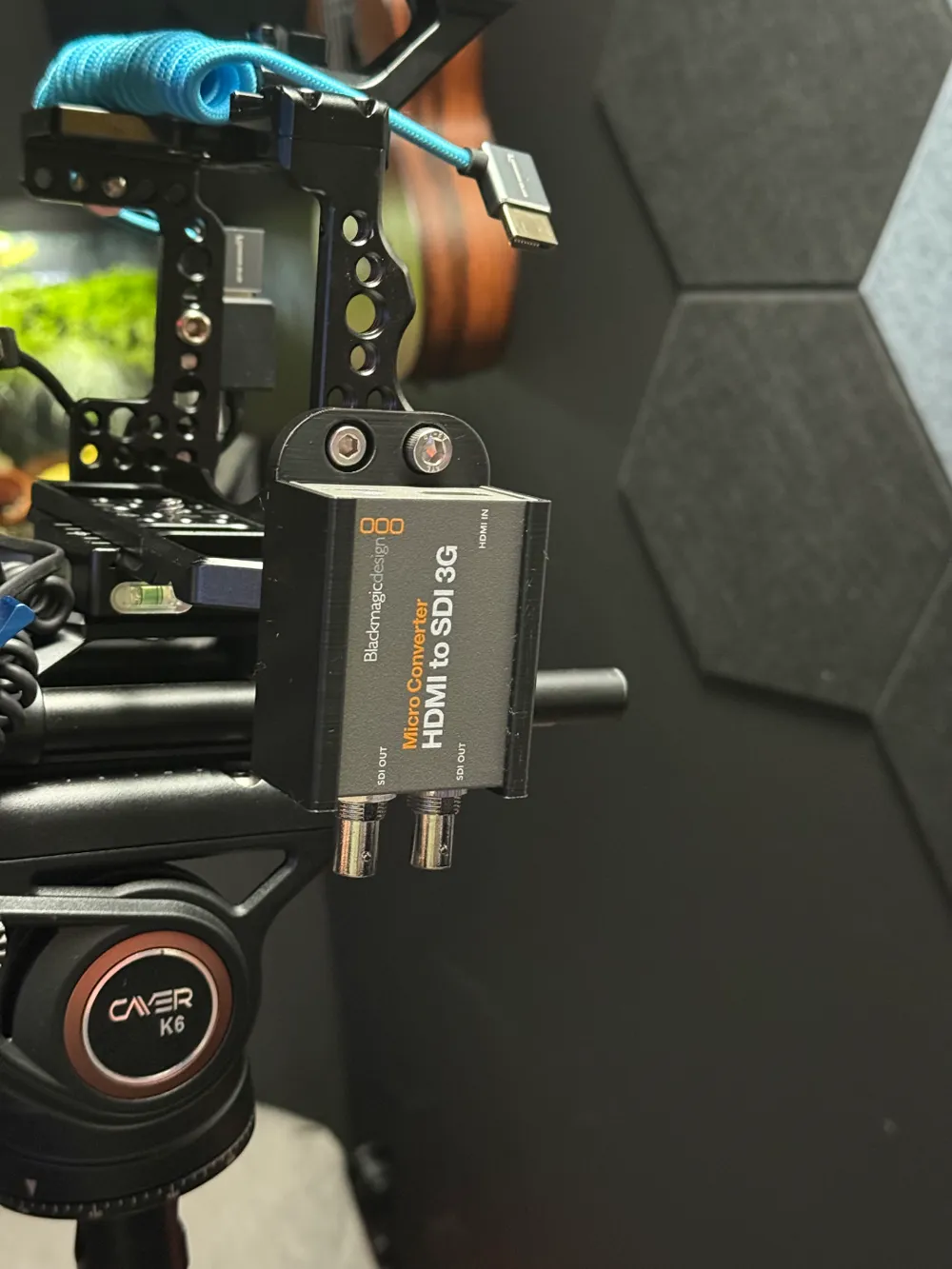

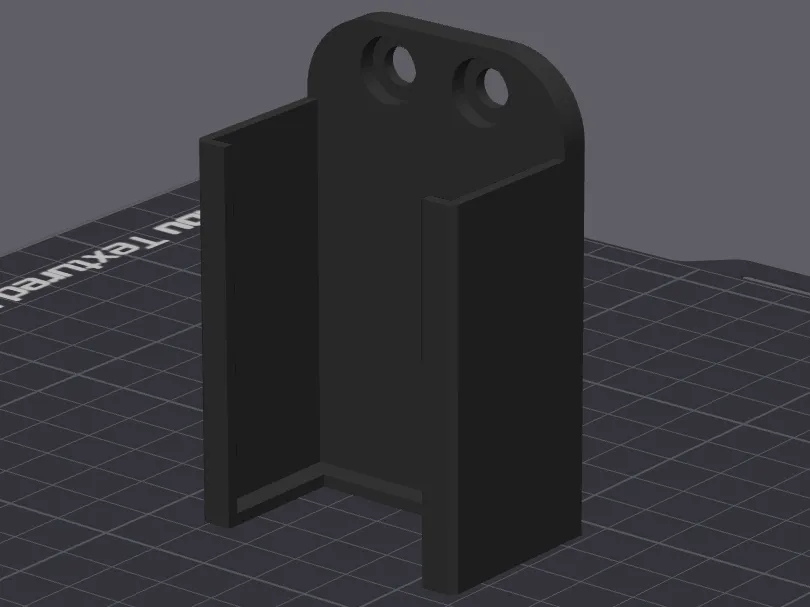

This is my first published model so any feedback is welcome! I designed this little slide-in bracket for Blackmagic's 3G SDI microconverter. I can't be the only video nerd/pro with a need to fix an sdi converter to your rig. It includes 2 recessed holes that will allow ¼ 20 screws to pass through them and mount it to a camera cage, cheese plate, etc. The holes are spaced  at the standard 18mm allowing for flexible mounting. Also, the print is solid enough in Bambu PLA basic to only need one screw. As you can see in my photos, I am using two different profile screws. If you use one with a smaller head, you can slide the converter in and out without removing any screws. If you use screws with larger heads, the converter is effectively locked into the bracket until you remove the screws. This can be especially convenient when moving the camera around a lot, adding/removing accessories to your rig, etc.
