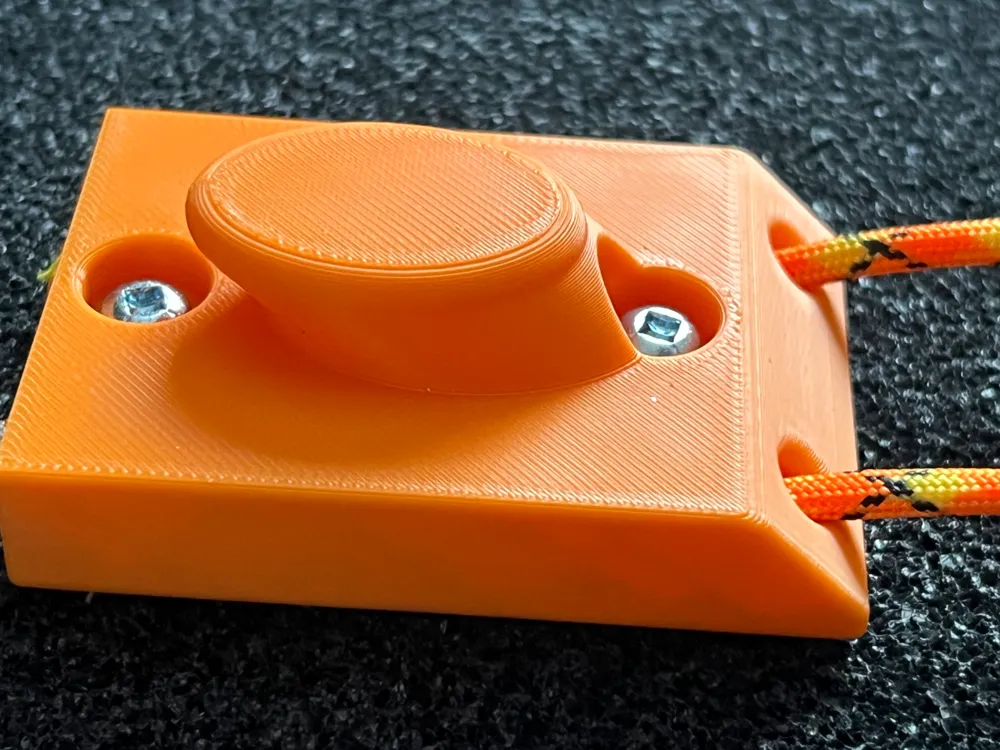

Wall mount Hanger - Holder / Storage Rope Padeye

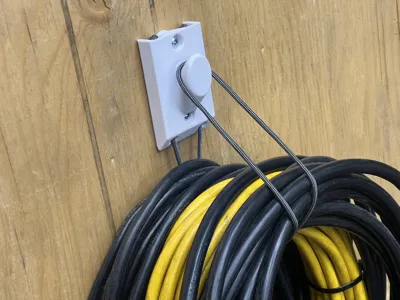

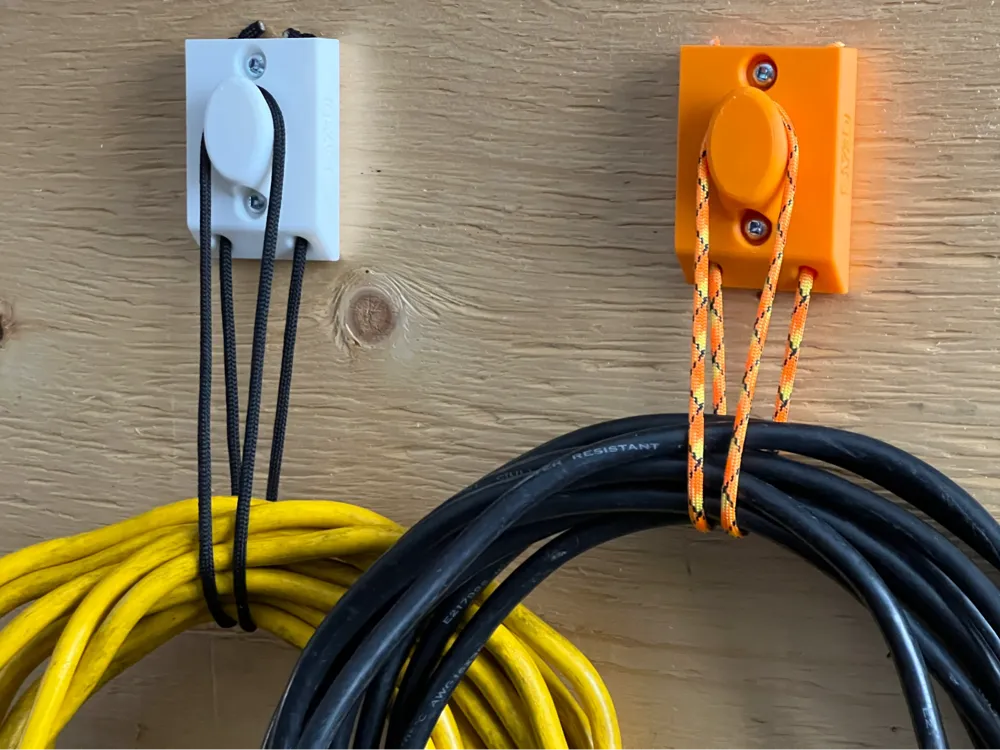

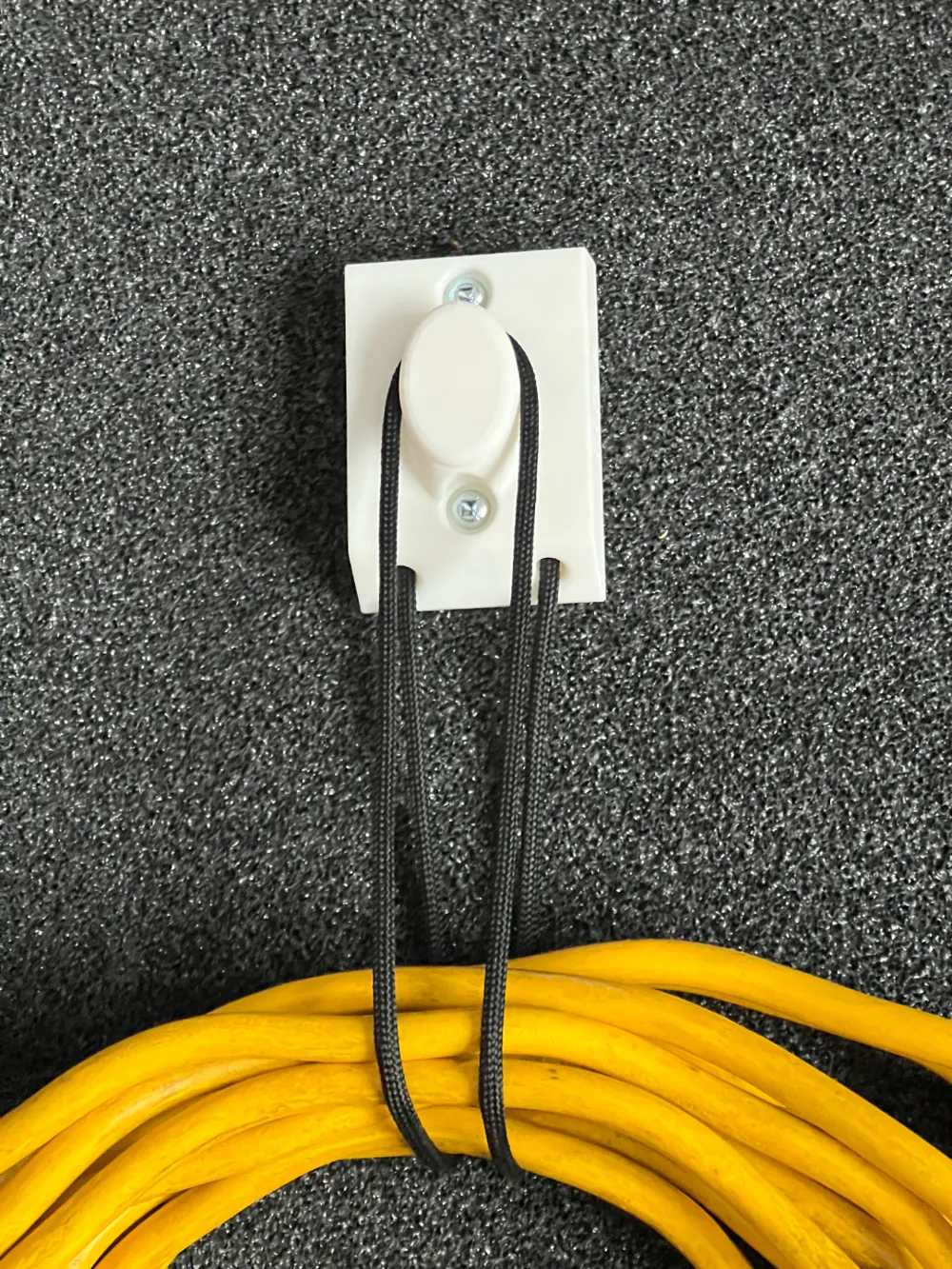

This Wall mount Pad-eye is to be surface mounted with screws to hang stuff like extension cords, ropes, hoses, SUP, paddles, etc.

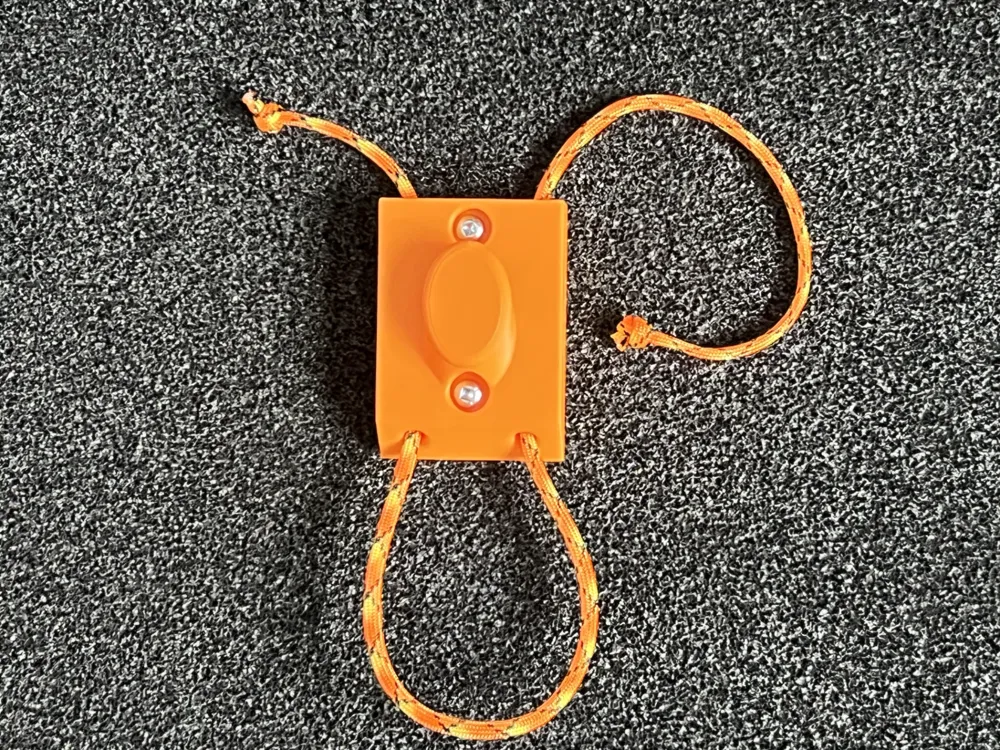

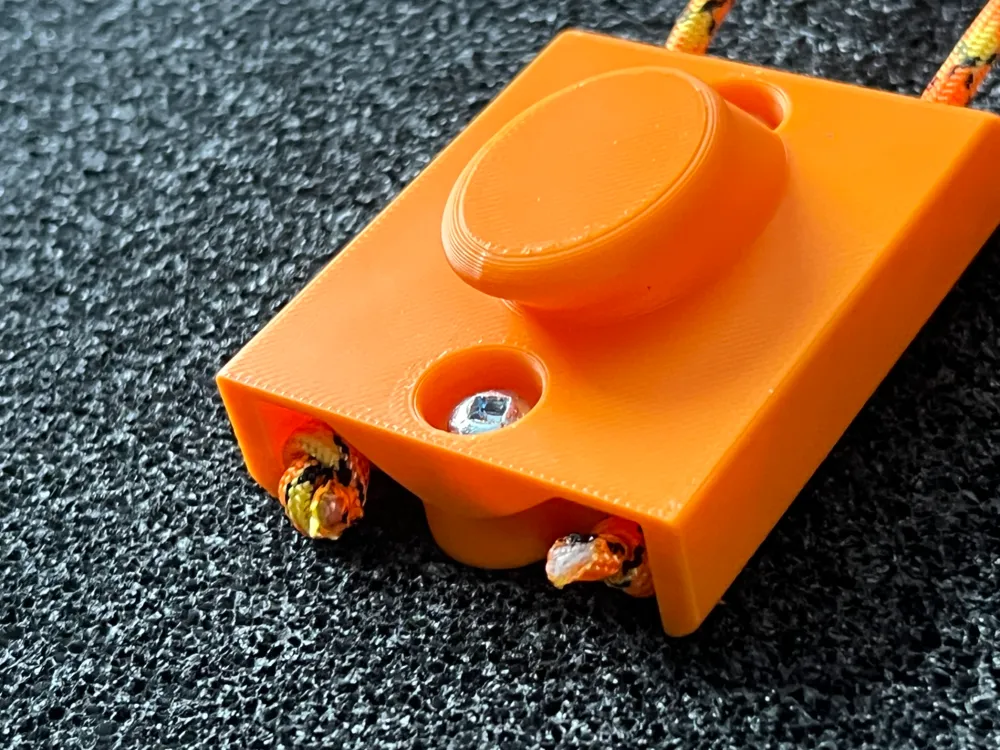

Make your loop with Paracord (Type 550 / Type-iii) and tie knots on top of the mount.

Adjust the loop to any size.  Paracord loop can adjusted even the mount is installed on the surface.

• Rope required :  ⌀4mm paracord type-iii or 550 (Rope holes are ⌀6mm).
• Mounting :  Surface mount holes are ⌀5.5mm for n°8 screws (metric equivalent is 4.17 mm). Holes are centered in the mount to allow for stud mounting. Screws shall not thread in the plastic, the screws shall pass thru the mount directly into your substrate.

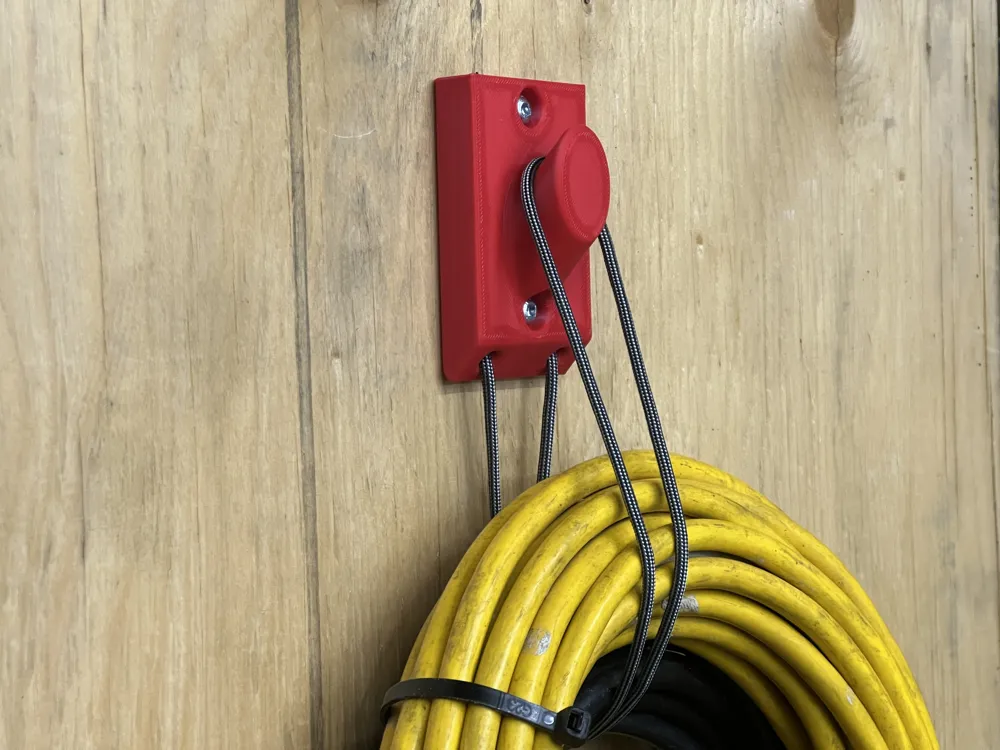

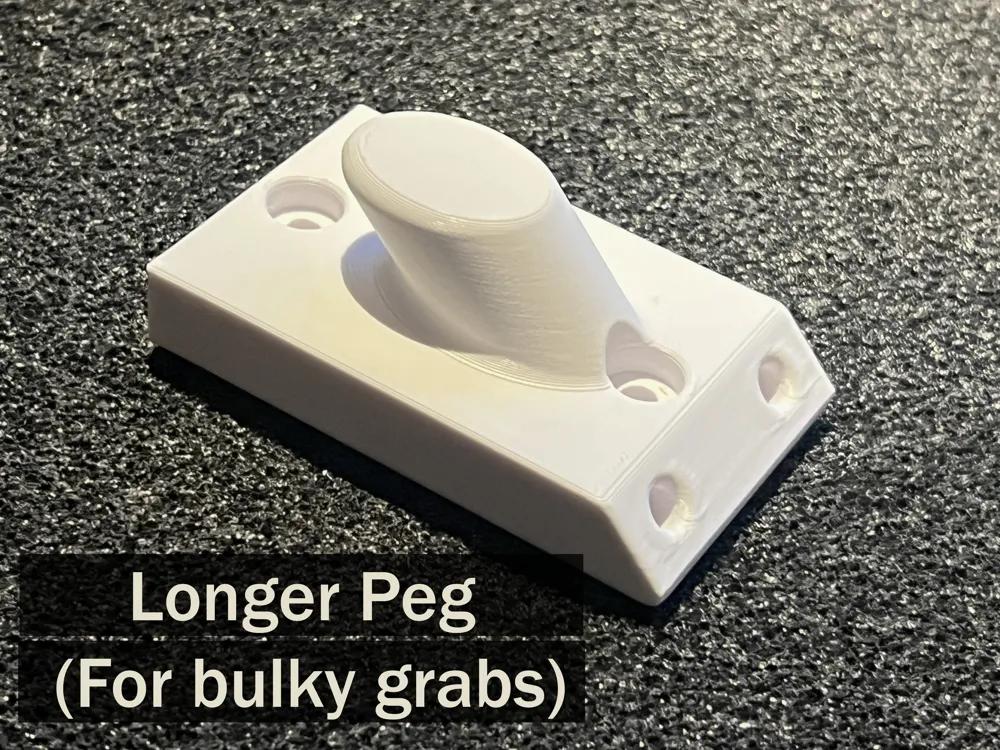

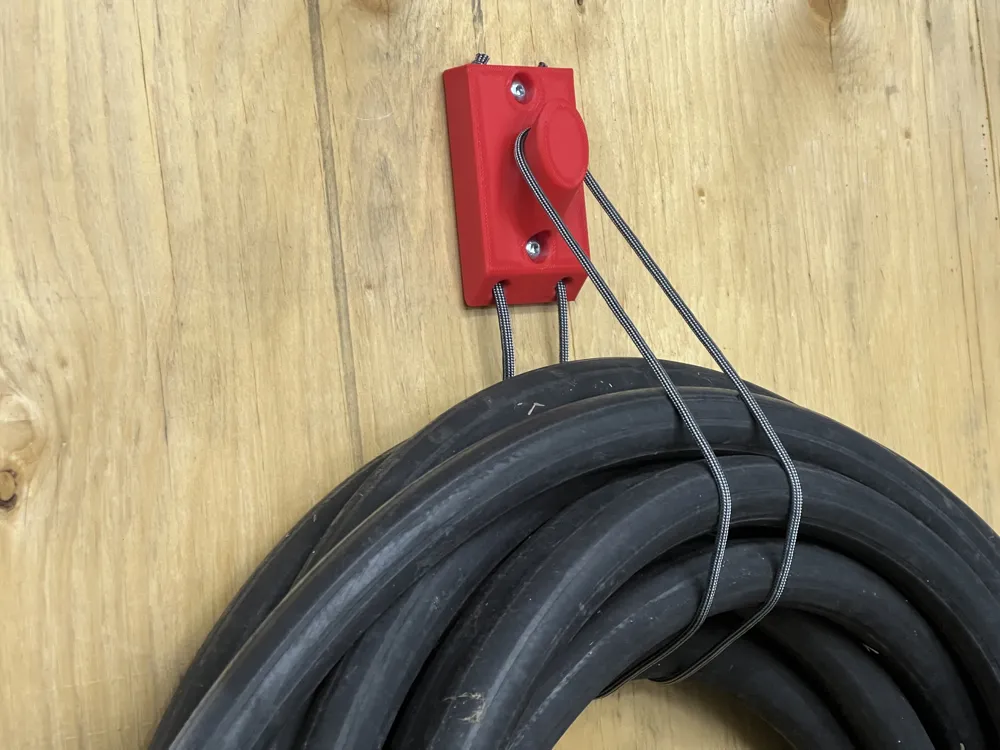

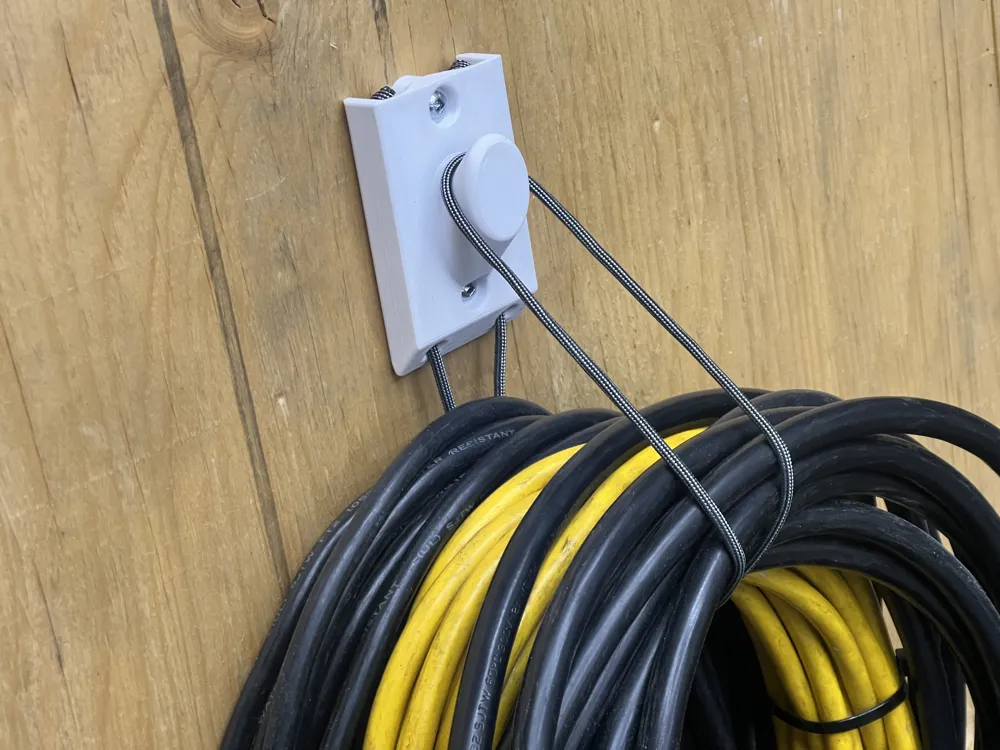

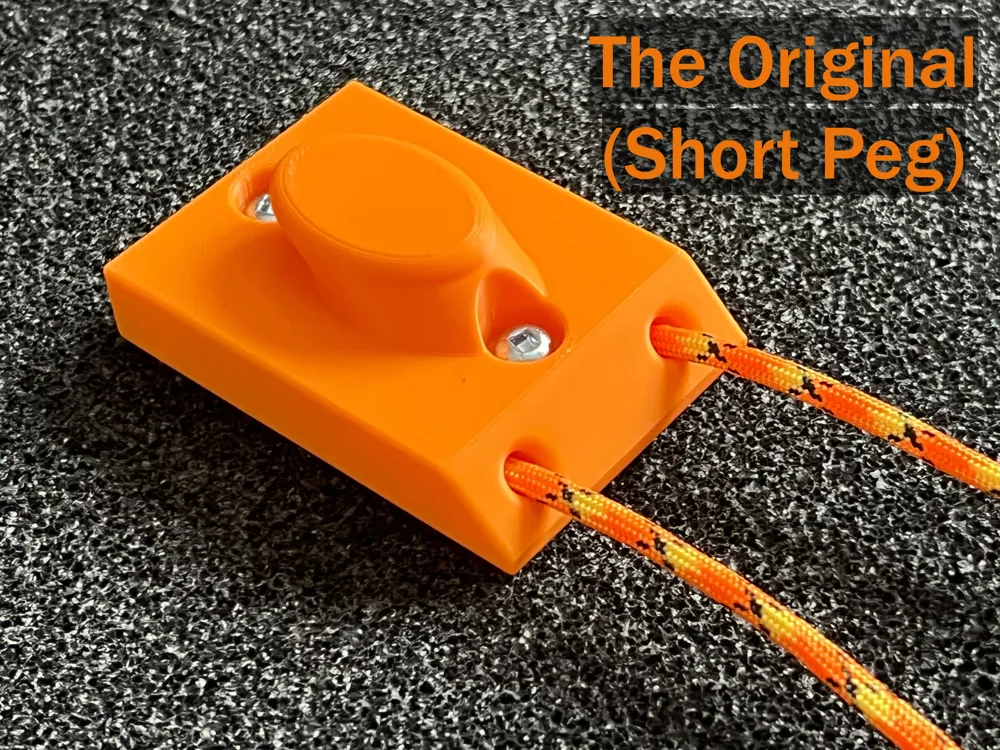

*NEW model with a longer peg * (2025-05-23) : Longer Peg Version : You can still download the “Orignal” model, but a new print profile is now available with a longer peg for the rope loop, allowing bulky and larger rolls to hang (vacuum cleaner hoses, etc.). Will also help for shorter ropes.  It's the same concept, same rope size, just a bit longer with a taller grab.  The orignal model is 71mm long and the new model is 81mm and the position of the holes are not identical due to the space occupied by the taller peg.

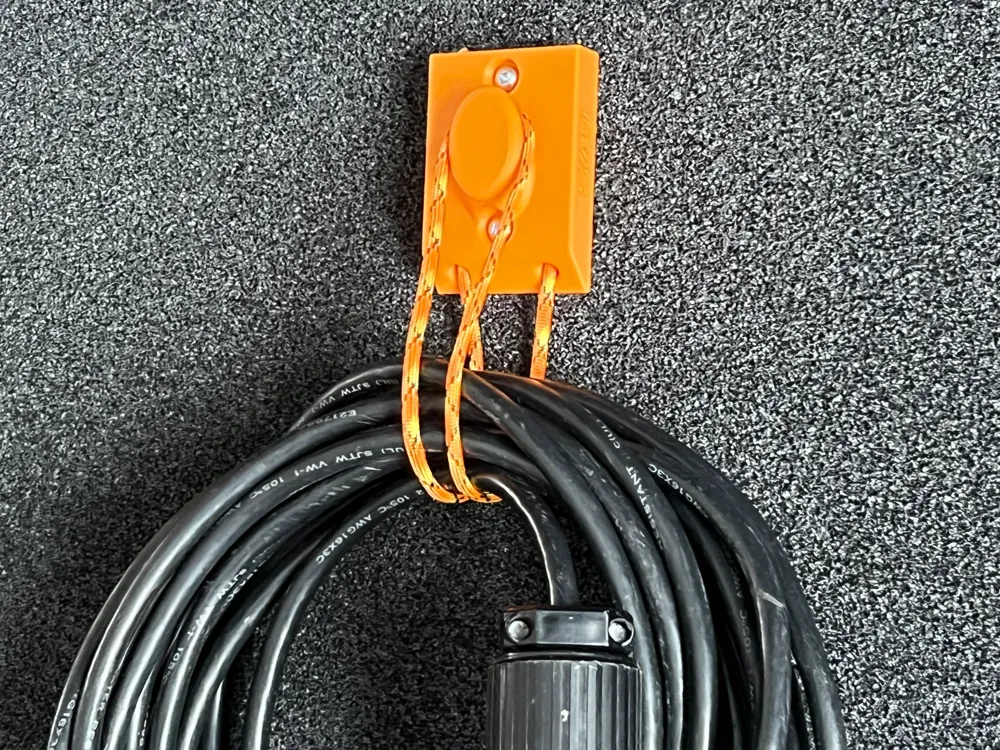

The double paracord loops helps distribute the forces and reduces the single pinch point on the object being suspended.

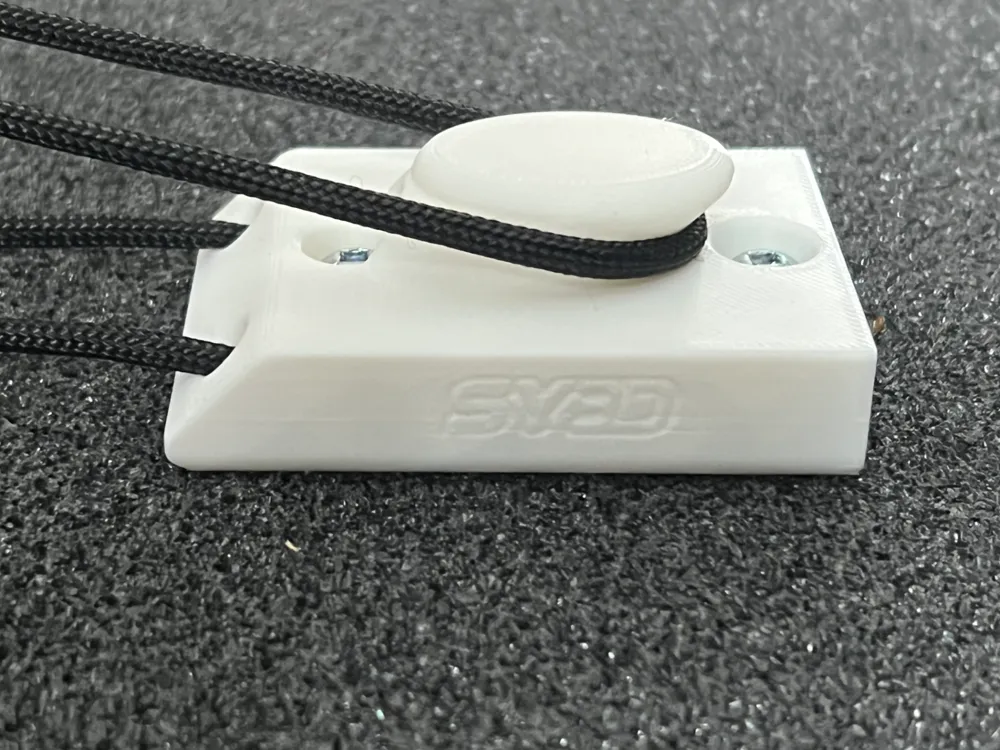

Model dimensions : 50mm wide x 70mm tall x 25mm thick. Eyelet holes are 6mm ⌀ (to ease the snaking of 4mm paracord type 550).

Printing:  No supports needed.  The print profile includes optional modifiers to add strength at the hook grab and around the screw pockets.  The rope tubes will sag a little during printing, but this should not be problematic for paracord fishing in the tubes.

Licence and terms of use :

When you download the files, you understand and agree that this content is licensed under a Standard Digital File License.

You can :

(✔) Personal use : Download the digital file(s) for free and print 3D parts from the digital file(s) for your own use.

You cannot :

(X) Sell parts : manufactured from the digital file(s) or any derivative of the digital file(s), no matter how the parts are made, how many parts are made.  This also prohibits you from selling parts made from the Digital file(s) on sites such as eBay, Etsy, FB marketplace or any other location.

(X) Share the digital file(s) or resell them.

Liability disclaimer and use:

By downloading the digital file(s) and making a 3D printed derivative object from it, you agree that you're doing it at your own risk and understand the limitations of 3D printed parts.  The digital files have no specific force or design rating including hanging, loading, holding or supporting capacity. The digital file(s) are not a product and the design do not give any express or implied warranty that, any product made from the digital file(s), will work or perform in a certain way.
