Monitor Light 24 inches
Print Profile(1)
Bill of Materials
Description

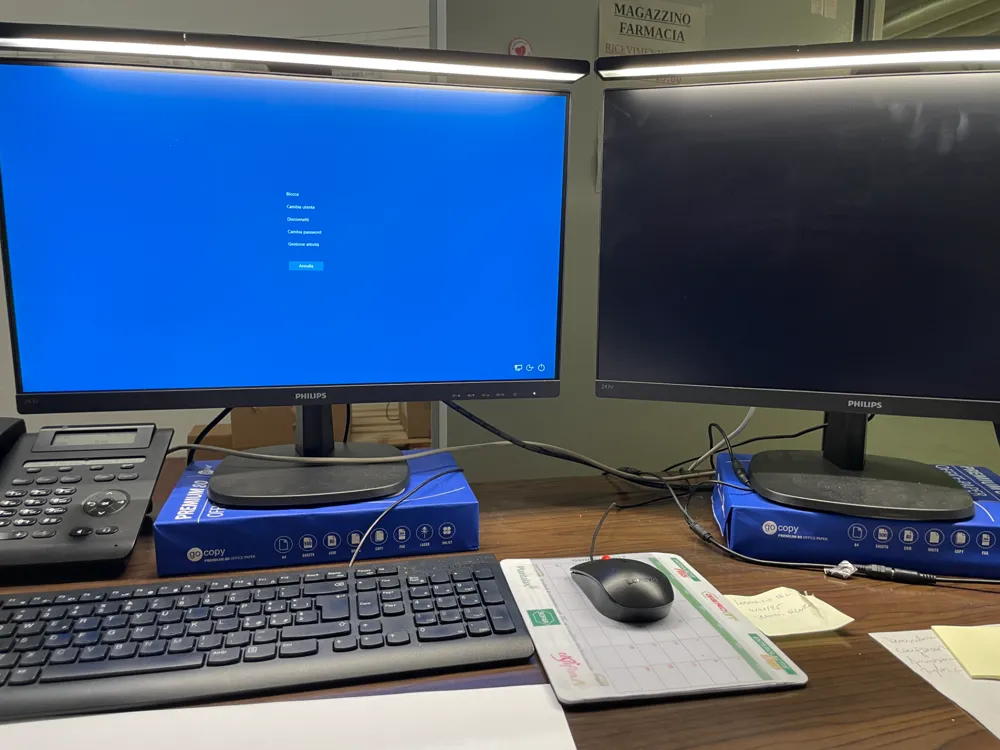

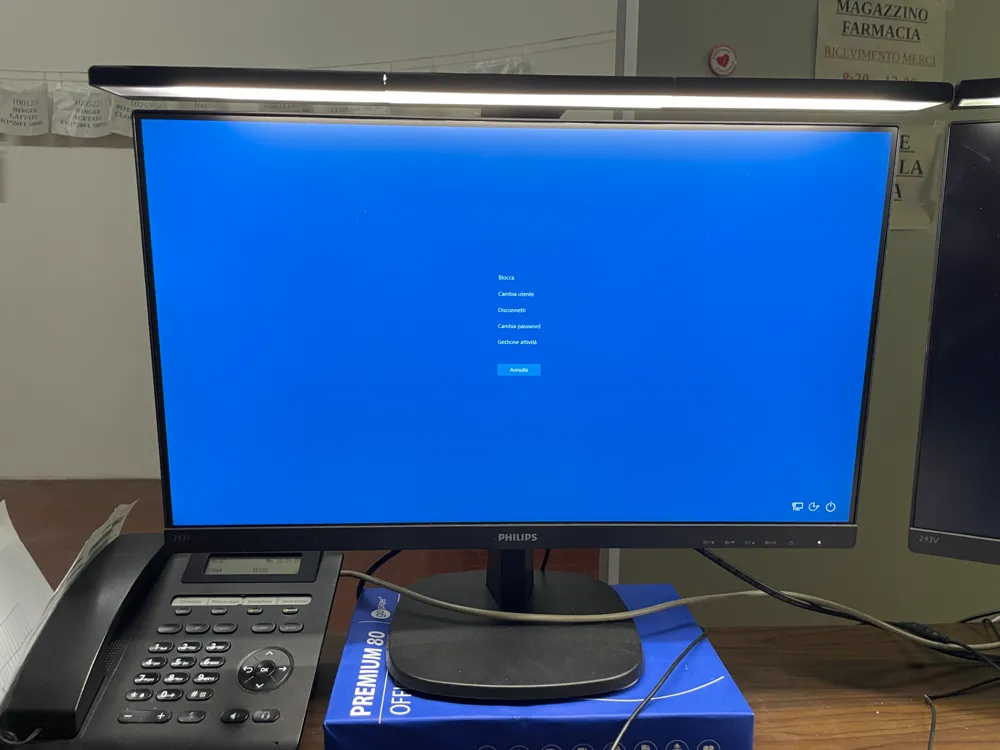

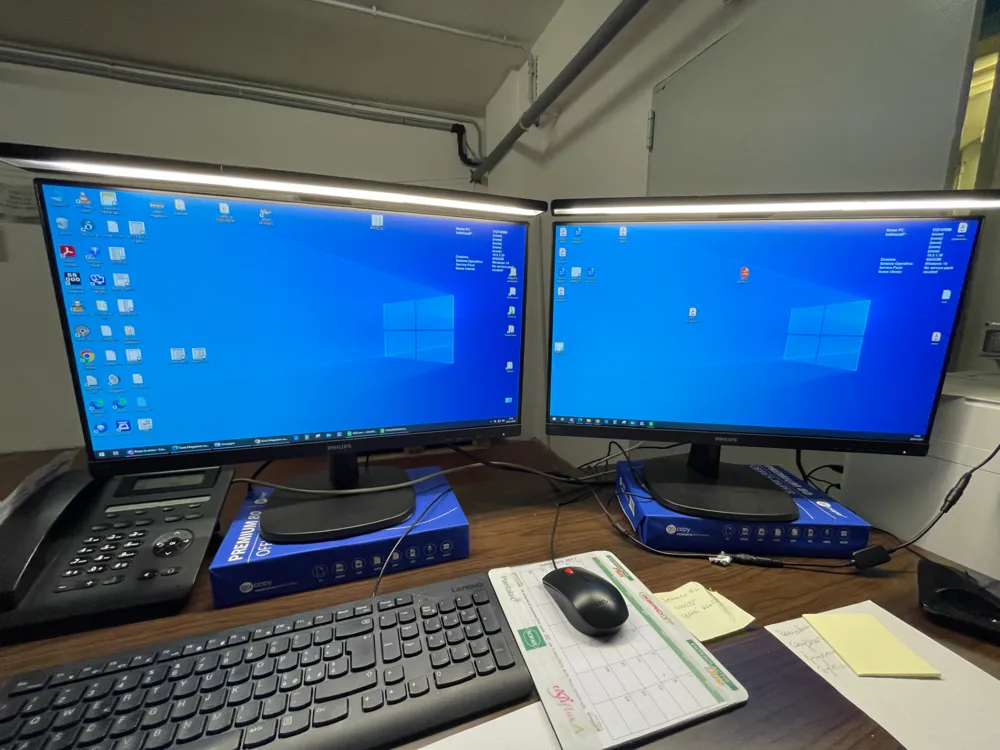

In my office, I didn't have enough light to illuminate my 2 monitors, so I thought: 'I have a 3D printer, instead of buying them, I'll make them myself!

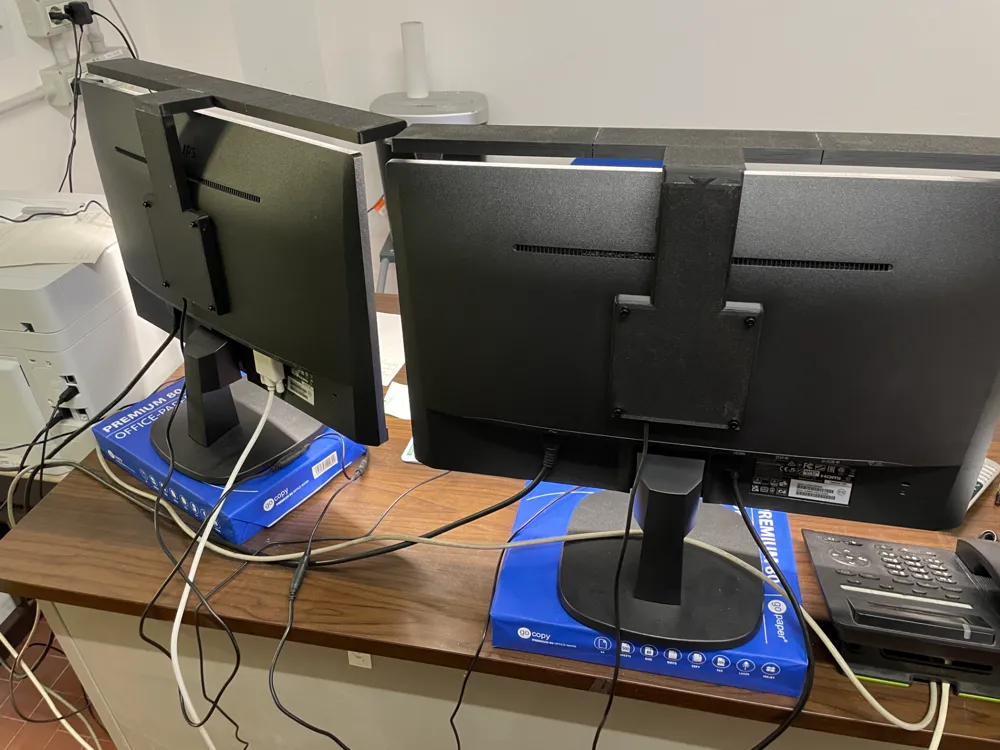

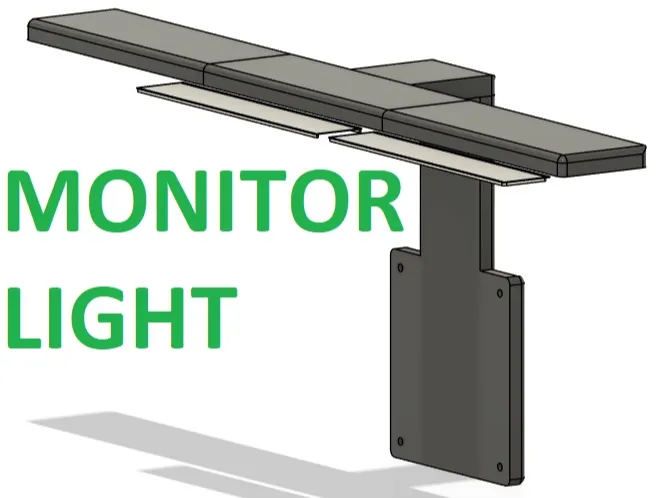

This support is mountable on 24-inch monitors, which have screws at the back for wall mounting with a distance of 10 cm between them (not the diagonal).
It can hold 2 LED strips of 45 cm, and if you are skilled and precise in assembly, it can hold 3, but I can't guarantee that.
The electronic components I used are:
1- LED power supply/transformer from 220V to 24V (always check the power consumption based on the strip and the number of LEDs you plan to use)
2- 24V dimmable switch with connectors
3- 24V cable with a connectors: I cut the male connector and I used to pass through the support)
4- 24V natural light COB LED strip (which I already had at home from a previous project)
(Optional) 5- 2-way splitter 24v (since I had 2 monitors, this was necessary)
6- Strip Led connectors
Obviously, if you have old components from other projects at home, you can freely use those (you'll spend less and recycle old stuff)."
I’m adding a PDF with the assembly instructions, it’s very easy if I was able to do it! =)
I Hope you find it usefull!
