Car Door Speaker Water Shield/baffle
Print Profile(1)
Description
Replaced stock speakers in doors of my car due to what I assume is corrosion from water leaking into the window seal. I realized that I'd need a way to at least reduce the amount of water hitting the new speakers so I designed this shield to cover the back of the speaker inside the door. Tested under a tap, all the edges are sloped towards the back so no water can come in contact with the speaker.

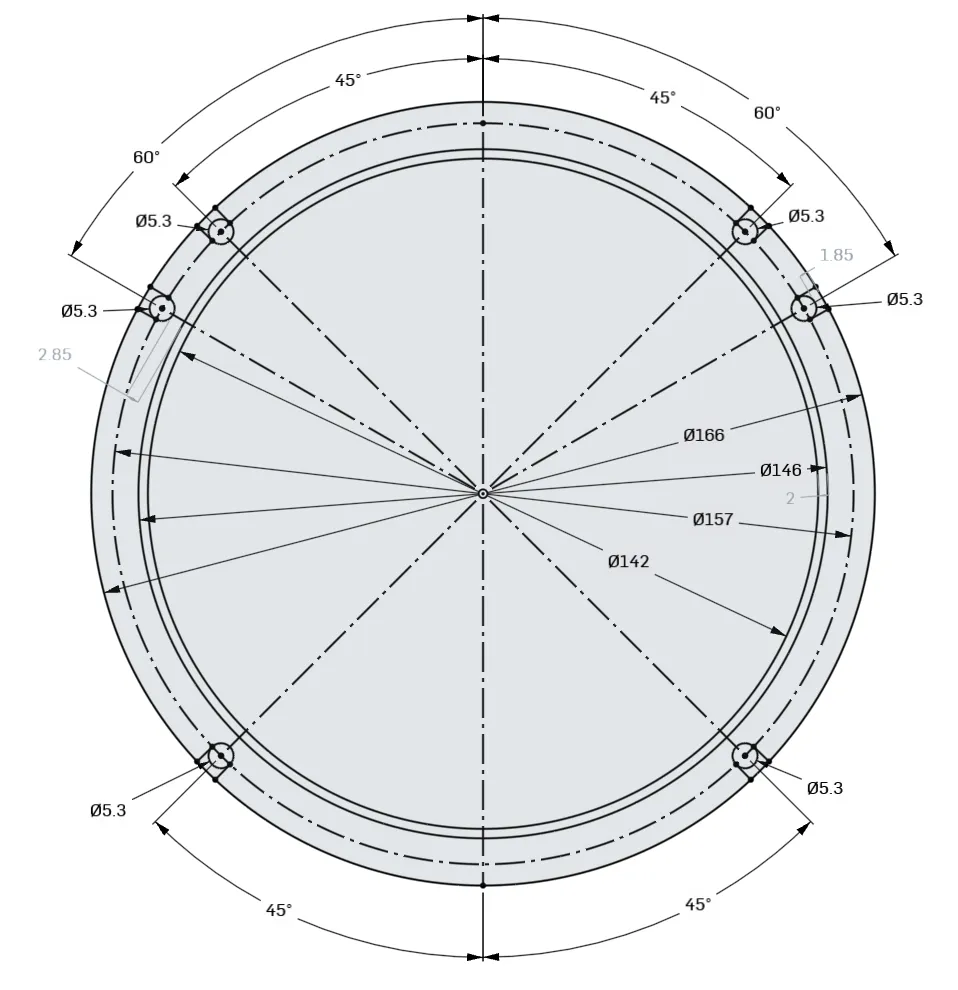

I have included my sketch so hopefully you can get it to work if you don't have exactly the same setup but as far as I know, this kind of speaker is fairly standard.
Speaker Dimensions:
6.5 inch / 16cm diameter
46.3cm deep (from back of mounting plate)

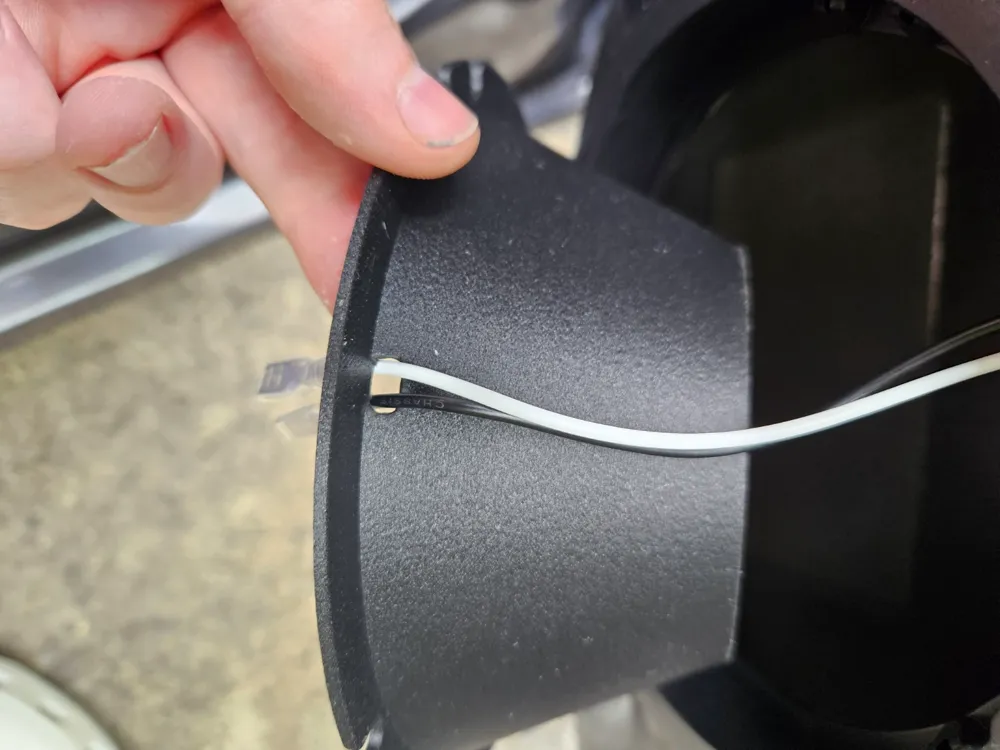

Passthrough hole: 8 x 4mm
Standard mounting screws (4mm) included with speakers.
I required this to be printed from PAHT-CF due to internal temperatures exceeding 90C. If you don't need to be protected for this level of heat, PETG will work fine.

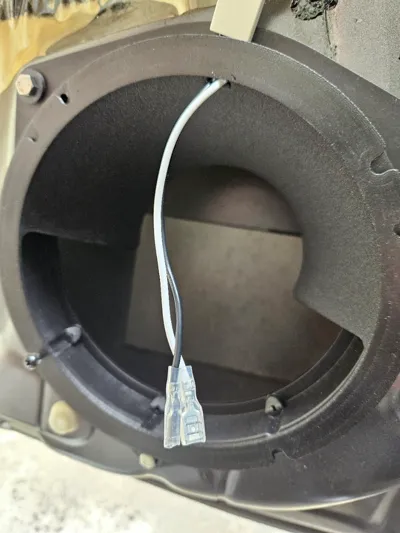

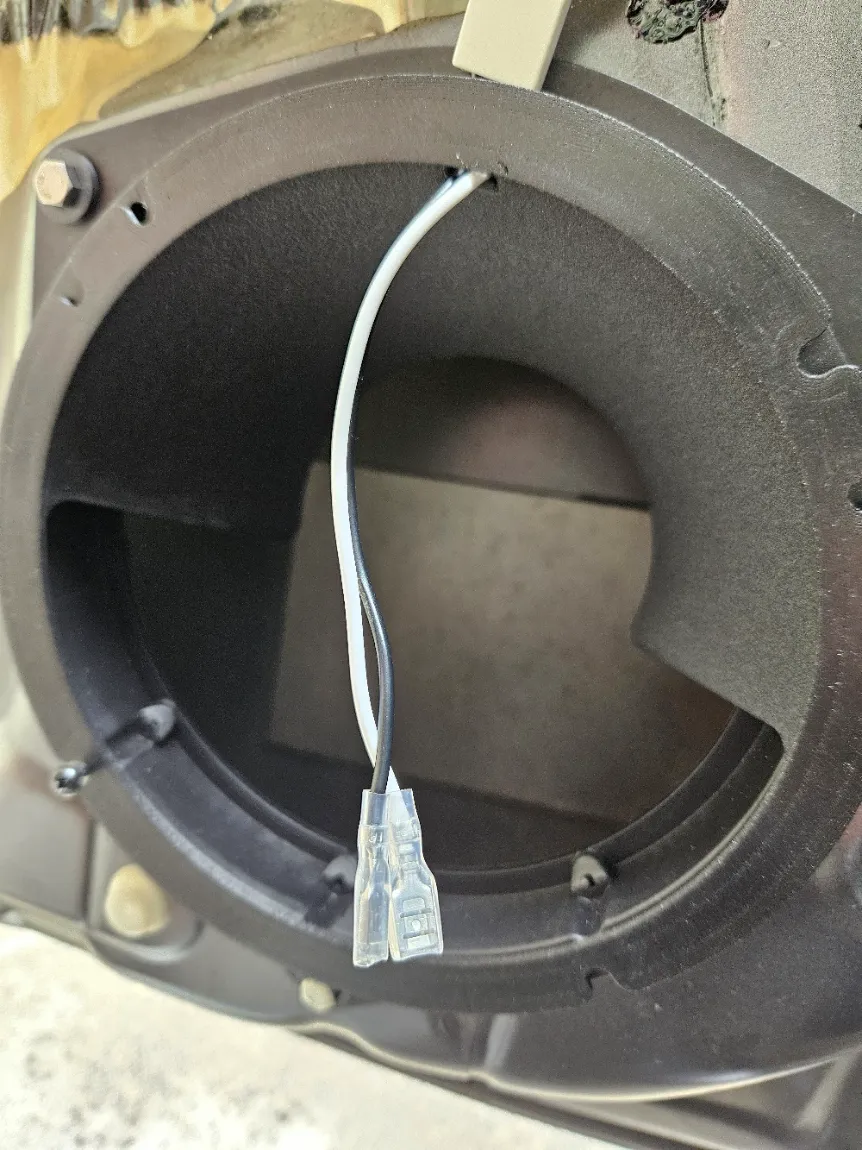

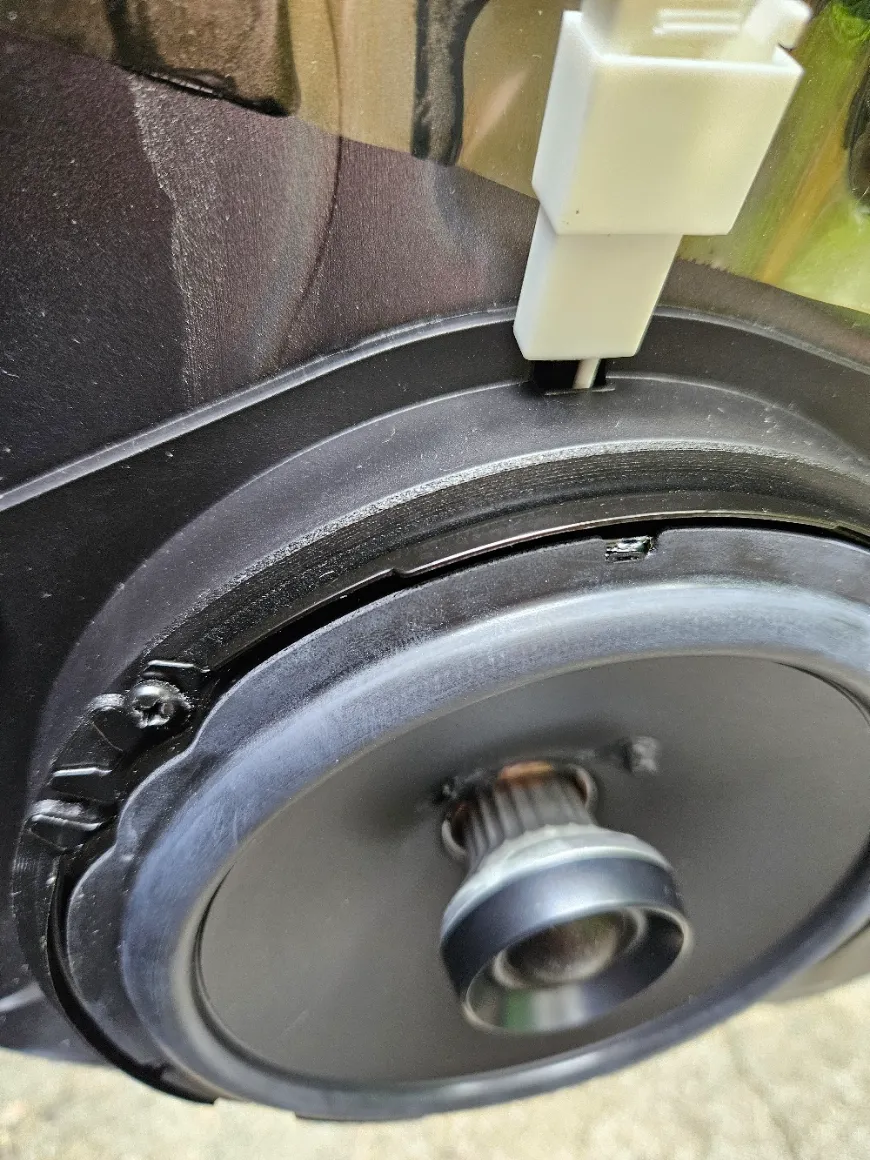

Shield is designed to be sandwiched between car door/speaker mounting bracket and the speaker.

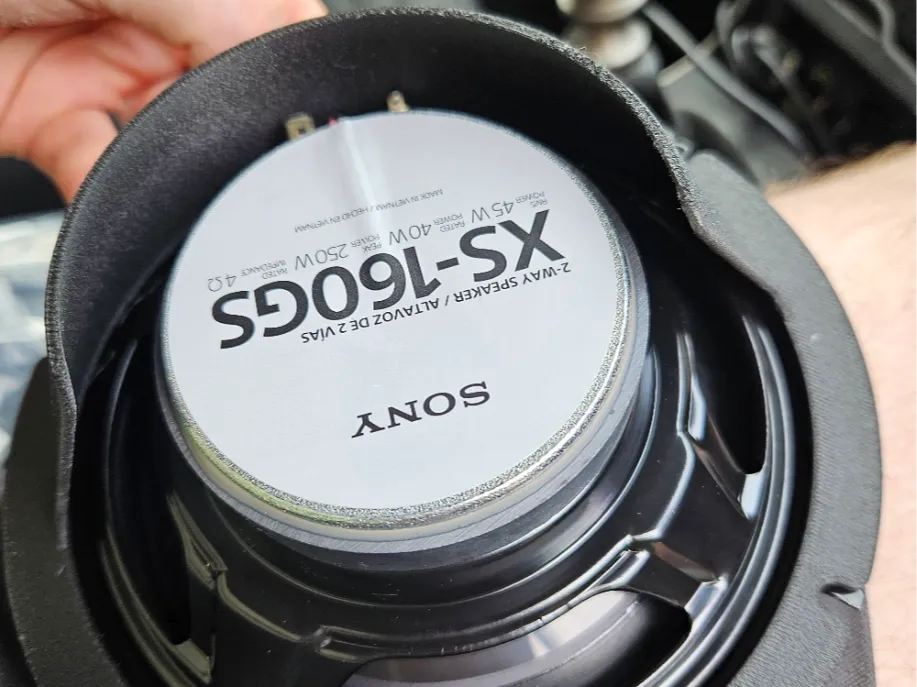

Speaker pictured: Sony XS-160GS
Car installed: Toyota Corolla 2007 ZRE152R
