Thin Rip Jig
Print Profile(1)
Bill of Materials
- M6HeaxagonScrew x 3: 40mm
- M6Washer x 9:
- M6ScrewNut x 3:
- Bearing608RS x 1:
Description

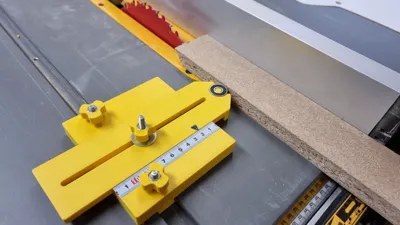

A very useful jig for repetitive work on your table saw!
These kind of tools are usually very expensive but for this print u only need one print and a few add ons.
T-Slot Nut is for common nuts like my DeWalt - if additonal Slot-Nuts are needed please reach out to me!
I printed it in PETG. but i think it should work in PLA as well.
Additional Parts needed:
3x M6 Hexagon Screw 40mm
3x M6 Screw Nut
9x M6 Washer (or something similar to ensure distance between jig and handles)
1x bearing 608 RS
1x self-adhesive measurement tape
instructions:
Assembling should be self explained, but if help is needed i will add instructions.
happy printing :)
P.S.: please be safe using this tool! safety is always and should always be your first priority! i designed it, but i wont be charged for any abuse using this jig!
