Sky Team Upgrade Working Leds

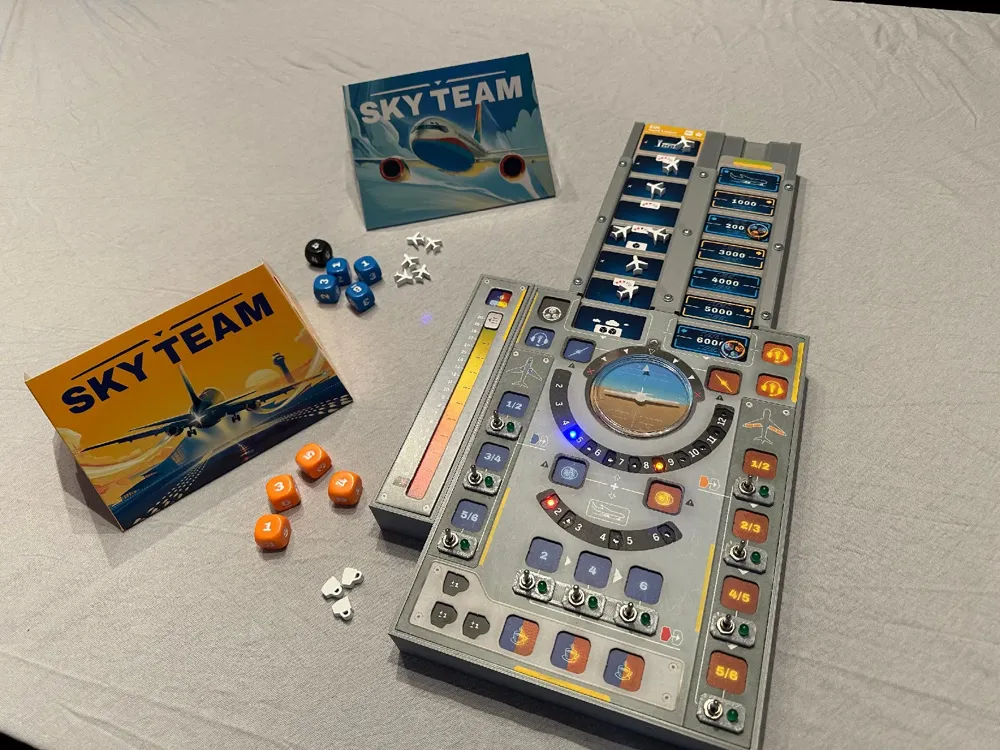

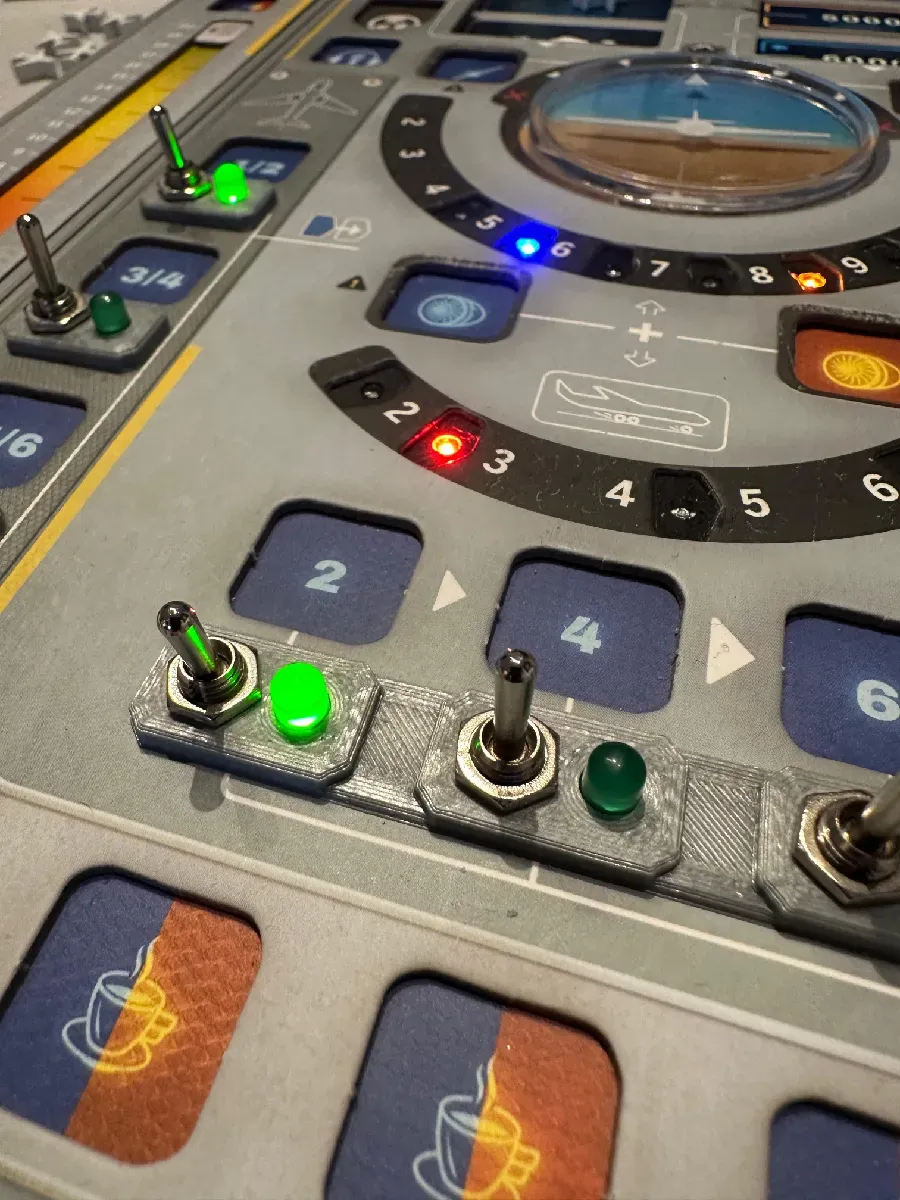

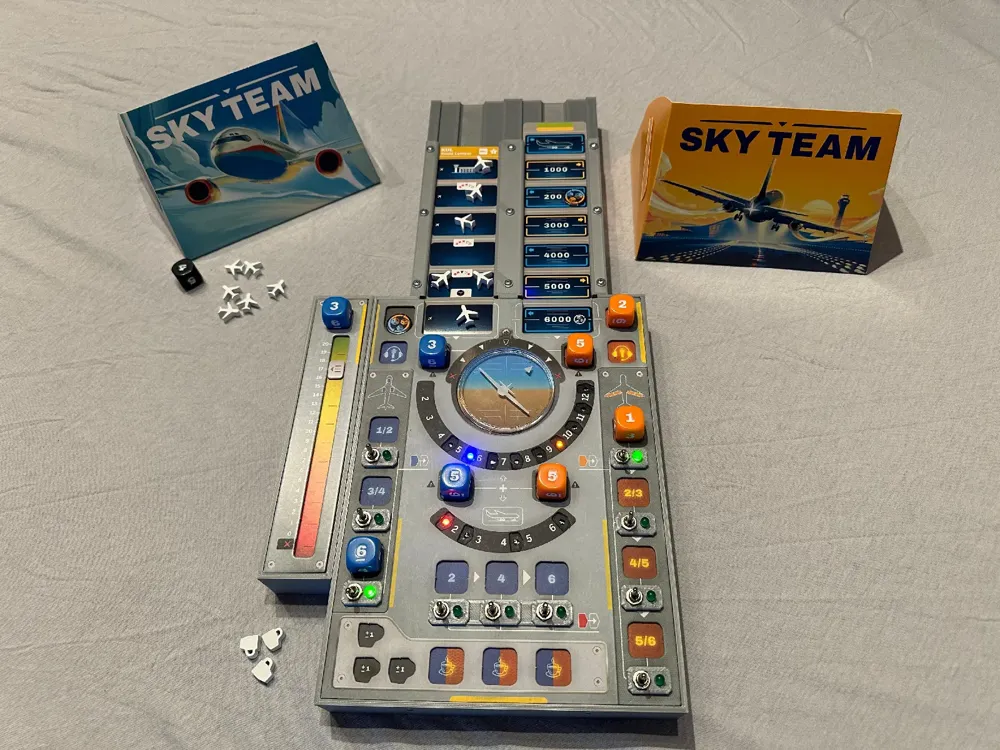

I love the game Sky Team and played it a lot, but activating the cardboard switches did not feel very satisfying. My design features real switches with status LEDs and automated LEDs for the landing gear, landing flaps and brakes. All additional modules (e.g. fuel, ice brakes) are held in place with magnets.

This project includes all model files for printing, a BOM, the code for the Arduino Nano microcontrollers and a few tips and pictures on how to build it. My design was made with the German version of the game. I am not sure, if there are production differences between language versions, which might not fit with this project.

It does not include a full wiring diagram as I am no electronics expert. If you read the code for the Arduinos, you will know how to wire it. I suggest to test everything on a breadboard before assembling.

Note: With this design you will have to permanently alter the cardboard game (e.g. drilling holes into it). Once doing this you cant play the game without the 3D printed additions.

BOM:
- 3x Arduino Nano
- 14x Mini On/Off toggle switches
- 14x LEDs green (5mm)
- 4x LEDs blue (flathead 3mm)
- 5x LEDs orange (flathead 3mm)
- 9x LEDs red (flathead 3mm)
- Resistors for the LEDs
- Cables
- 1x Battery pack for 3x AA batteries (approx. 68mm x 47mm x 18 mm)
- 2x PCB 3,8 "x3.5 " (optional)
- Heat shrink tubing
- Wago clamps (optional)
- 20x magnets (4mm x 2mm)
- 12x M3x5x3 threaded (heat) insert
- 17x M3 buttonhead screw (6mm)
- 4x M3 cylinder screw (8mm)
- 4x M3 cylinder screw (12mm)
- Double sided tape
- Superglue
- Solder
- Filament (silver/gray and black)

Edit:

Fixed a typo for the battery pack specification. A battery pack for 3xAA batteries is needed!
