Description

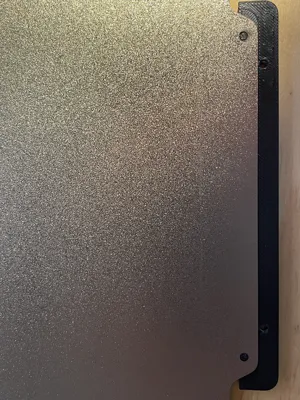

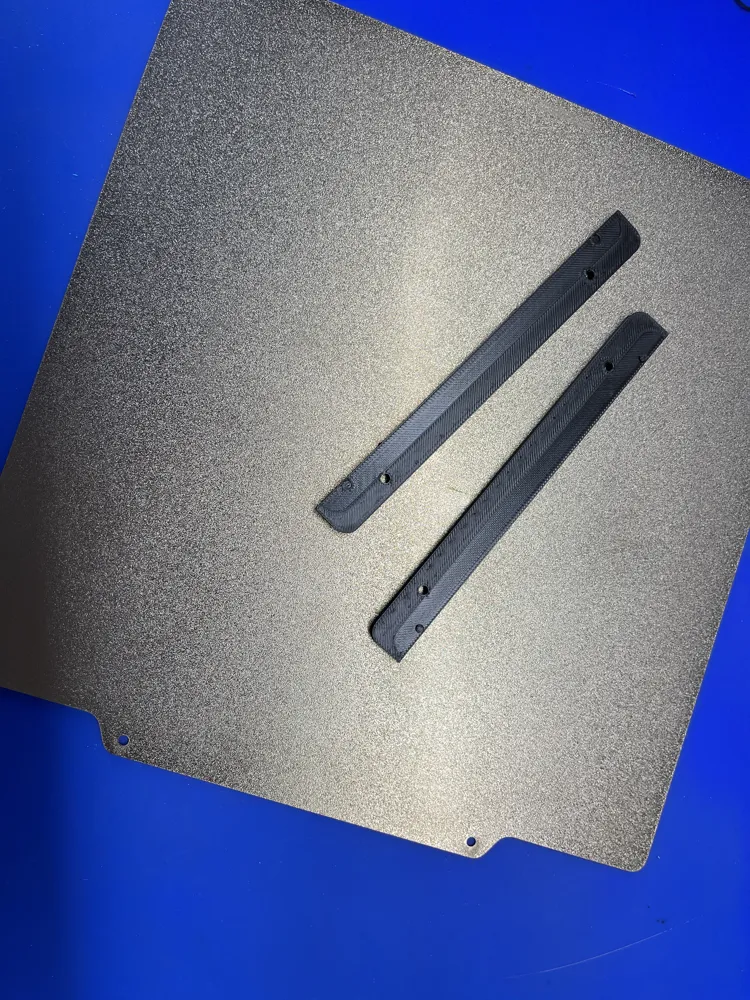

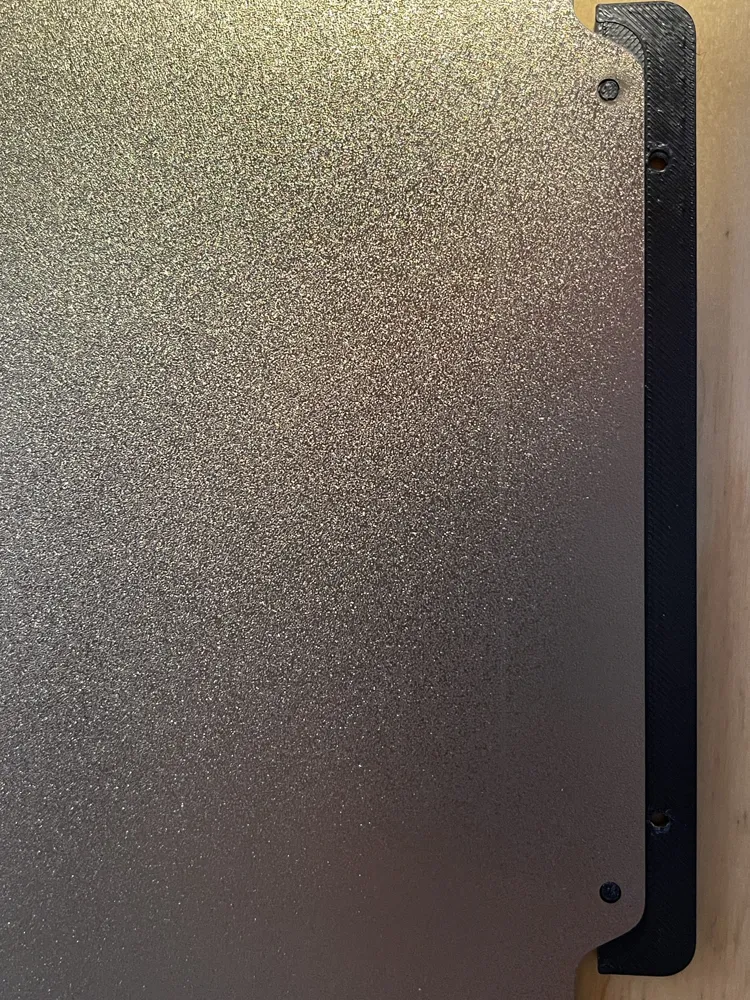

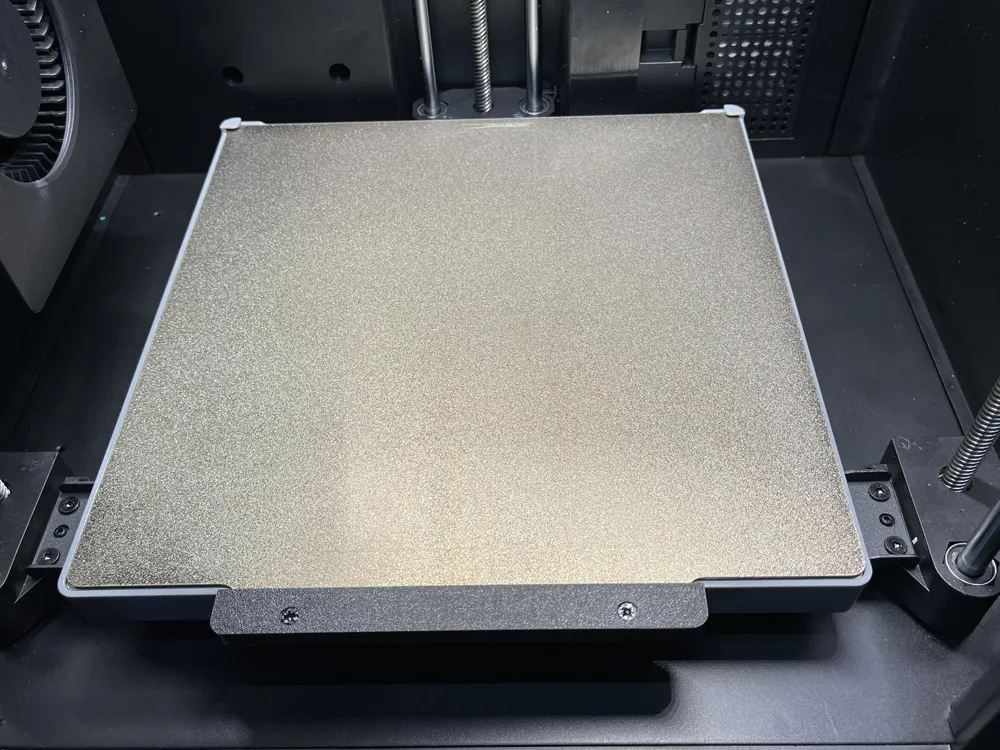

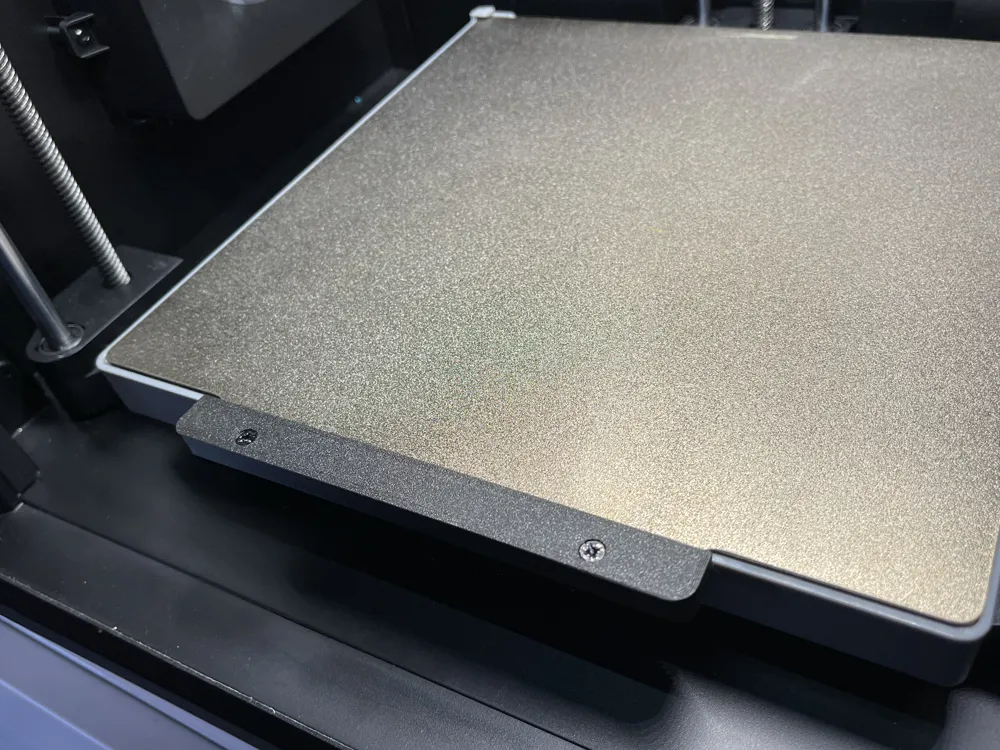

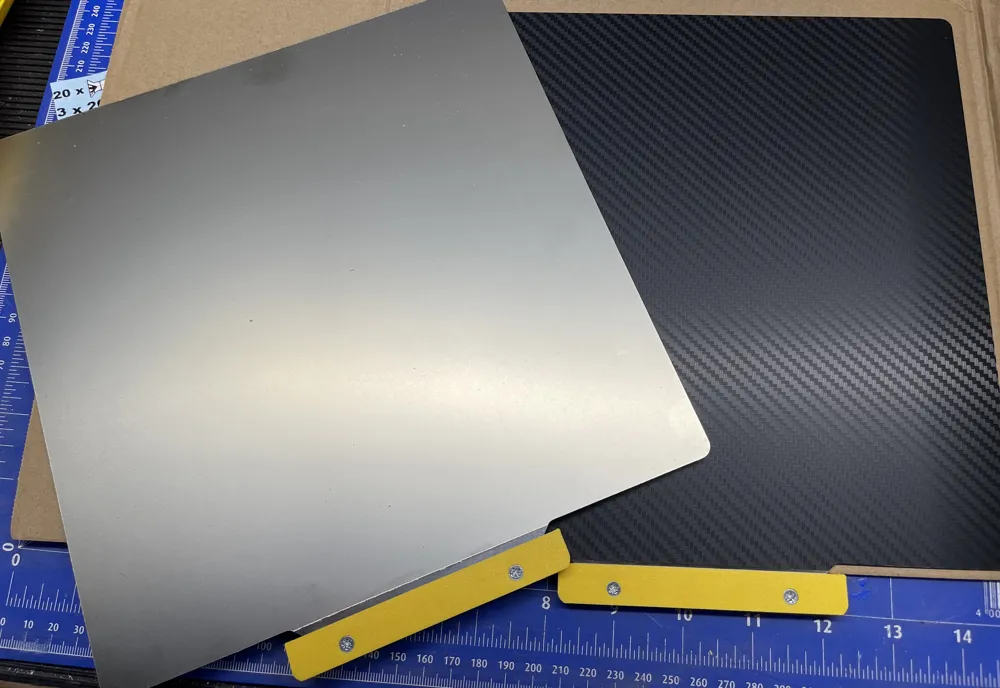

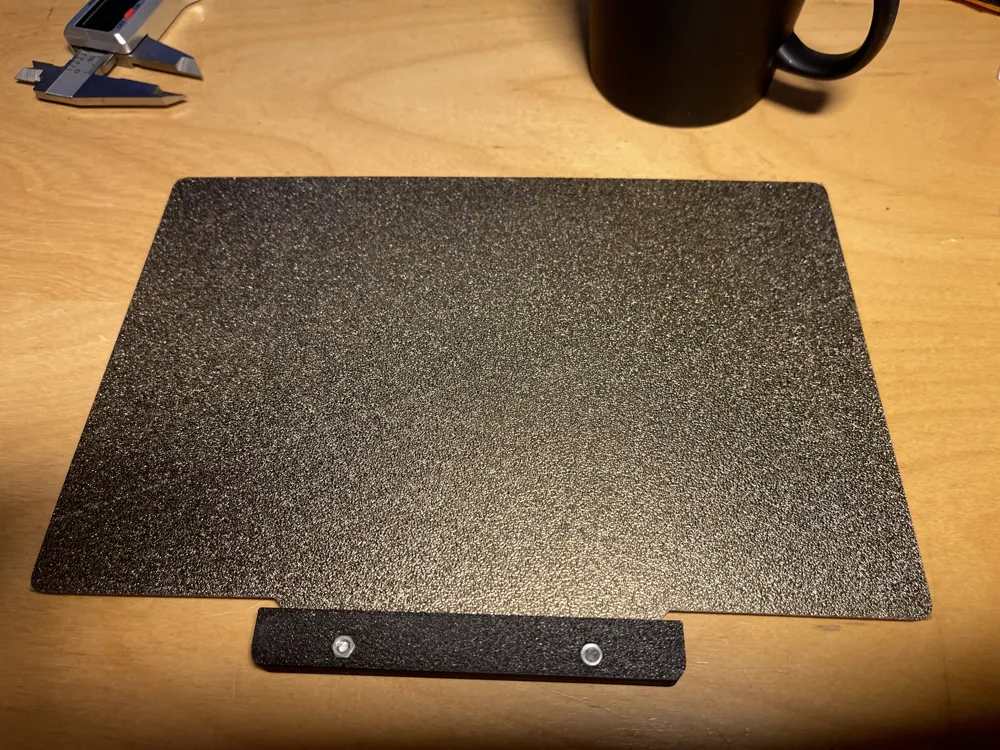

Get a grip on your build plate with this handle...

Print in ABS, PETG or other higher temp. filaments.

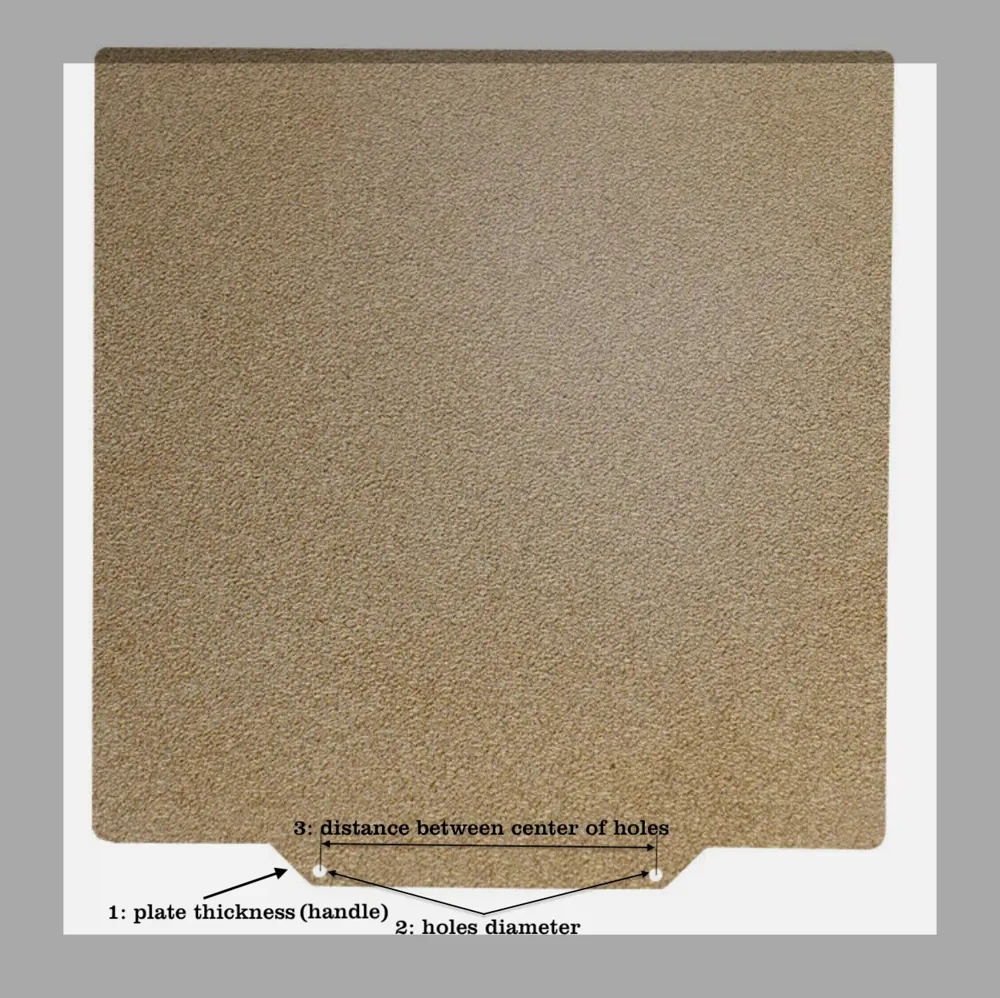

Sizes in mm:

plate thickness - holes size - distance between centers of holes.

.4-2-80

.4-3-90

.4-4-100

.4-3-115

.45-3-80

.5-2.4-117.5

.5-3.5-100

.5-3.5-100 Large

.5-3.5-100 Large v2

.6-2-77

.6-3-96 (Works on Flashforge 5M plates)

.6-3-115

.75-3-90

1.0-5.5-95

You will need 2 x M3 nuts and 2 x 6mm screws.

Need a different size? leave a comment.

Boost Me (for free)

If you like this model, rate, like, and boost.

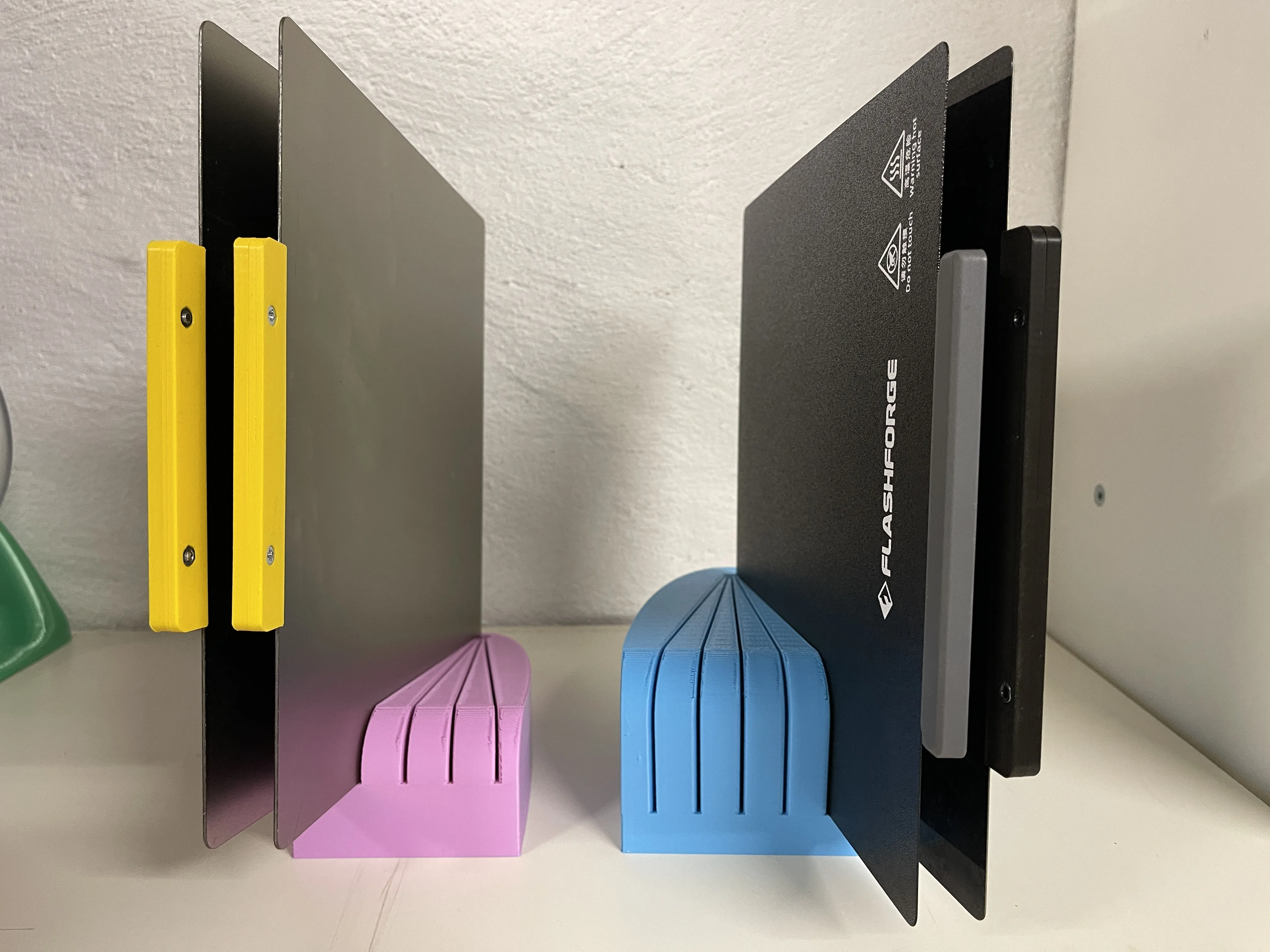

Also check out this awesome build plate stand:

If you enjoy my designs, help keep the creativity flowing! ☕ Support me at buymeacoffee.com/3dthing

Comment & Rating (40)

@Big_Tasty_0830

plate thickness: 0.5 mm hole diameter: 2.40 mm distance between holes: 117.50 mm is what i need for mine @3Dthing

(Edited)

The designer has replied

@3Dthing

Hi, I uploaded your requested size: .5-2.4-117.5. Try it out and let me know how it went. ✨

@Big_Tasty_0830

Replying to @3Dthing :

thank you so much! ill try it then let you know

@Big_Tasty_0830

Replying to @3Dthing :

i can't find the new file for the new one u made

@user_1004328312

can you make this for the flash forge 5m pro but make it extended? theres plenty of room between the handle and the door but they give you this lil piece of plastic to hold haha. if i didnt suck at cad i would design one myself but theres to many buttons on that stuff for me.

The designer has replied

@3Dthing

You can download the stl file for .6-3-96, which works on the ff 5m build plate, and remix it to your liking in tinkercad, free and super easy to master. Have a try at it, and share your remix 💥

@user_1004328312

Replying to @3Dthing :

thanks google helped me on how to edit the file, was a little triky not being able to size it. i had to cut the one wall in just the right place then scale that section then reasembe it. by the looks of the layers it might have killed the structrual entegrity as there wasnt much room. but its printing now. i added my own twist to it as well to rep my buisness.

@user_1004328312

Replying to @user_1004328312 :

if need be i can add the stl file for others, ill report back on if it holds up, the curved edge has me concerned were the added part connects, its basically 2 outside walls worth of material. sorry this was my first edit ever, and im still dialing in my printer too. owned it a week now ha.

@user_3839938905

I have an old small printer, and could use one of these in .4-4-45 size.

The designer has replied

@3Dthing

Uploaded for you. Try it out and let me know How it goes.

@user_3839938905

That fit perfectly...thank you!

@3Dthing

Replying to @user_3839938905 :

You are very welcome. That build plate is the smallest I've seen!

(Edited)

@user_198008387

What size should I print out for the ai mini?

The designer has replied

@3Dthing

If you have the original A1 Mini build plate then this grip is not suitable for it. This grip is suitable for build plates with 2 small holes like in the photos of the model.

@Narnius

Replying to @3Dthing :

And where can one obtain these perforated printing plates? Specifying potential suppliers would be most helpful

Show original

@3Dthing

Replying to @Narnius :

You can find them on amazon and aliexpress.

@user_730222689

are there any sizes for the phantom lightbeam h1h plate from aazon it has larger spaced holes

The designer has replied

@3Dthing

Hi! Yes it has large space between the 2 notches which would require a different design. I don't have that plate and it would require providing a drawing with precise measurements..

@user_2411143560

I just purchased a numakers icegrip build plate for my AD5X. It is .85-2-78. I tried your .6-2-77 and it just barely wasn't wide enough. I tried the .4-2-80 and it was wider than needed. So I'm wondering if you can make a .85-2-78. I'm new to the 3D printing and have no editing skills yet. Thanks for the help.

The designer has replied

@3Dthing

Hi! yw. I have uploaded your requested size .85-2-78. Try it out!

(Edited)

@user_2874129130

I own a P2S does that work

The designer has replied

Show original

@3Dthing

No, this is not for Bambu build plates.

@devopshelian

Hi, how did you drill the holes inside the plate ?

The designer has replied

@3Dthing

The plates come with the holes already there.

@Lekkerbrokki

Print Profile

0.2mm layer, 3 walls, 15% infill

The profile uploader has replied

@3Dthing

Super! thanks amllion for your perfect rating ⚡️

@user_198008387

Which filament should I use for the A1 mini

The designer has replied

Show original

@3Dthing

Best to use ABS or PETG so it does not deform or melt when heated
