XT60 Connector Cover
IP Report
Print Profile(1)
0.28mm layer, 2 walls, 15% infill
Designer
26 min
1 plate
Open in Bambu Studio
Boost
150
316
12
5
376
186
Released
Description

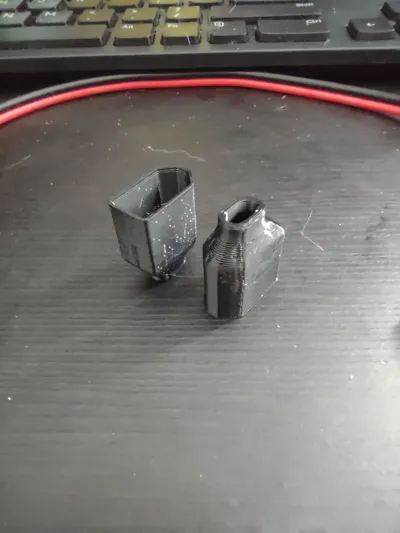

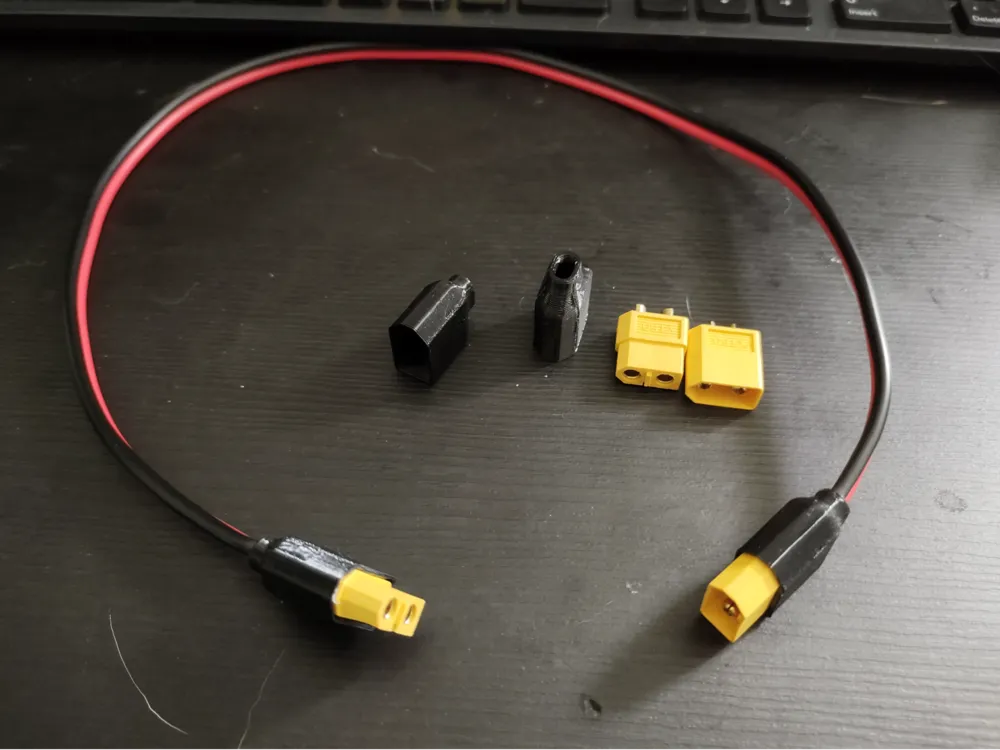

Simple XT60 connector cover for 2-core 1.5mm² cable, so I don't have to faff about with heat shrink. No supports necessary when printed sitting on cable end, but make sure you've got decent bed adhesion. No hardware needed. Glue connector in place, or alternatively fiddle with X-Y hole compensation to get a friction fit. FreeCAD source file included.
License
This user content is licensed under a
Creative Commons Public Domain
