Description

The fusion file is added to the files if you want to change/remix anything.



Boost Me (for free)

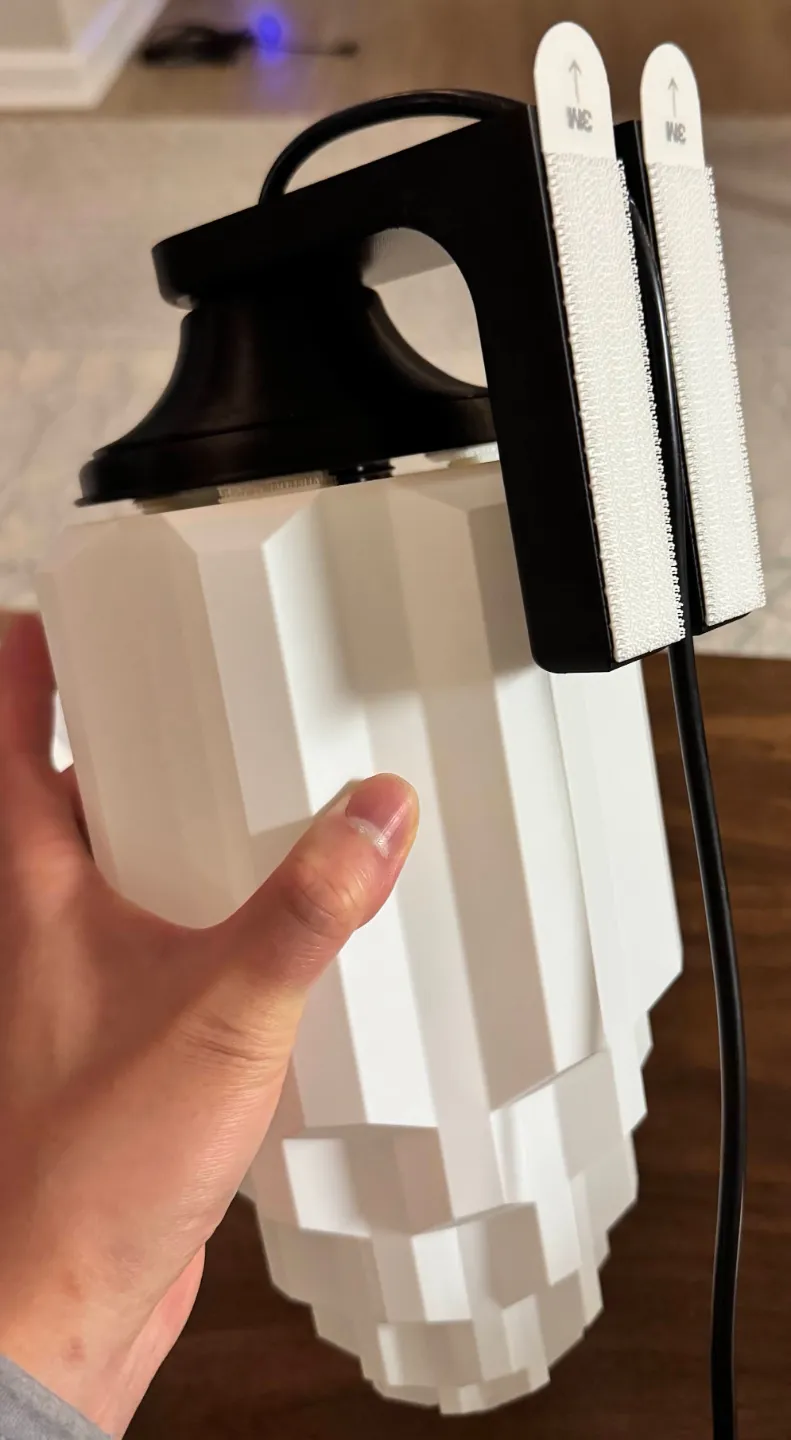

How I remixed the original model:

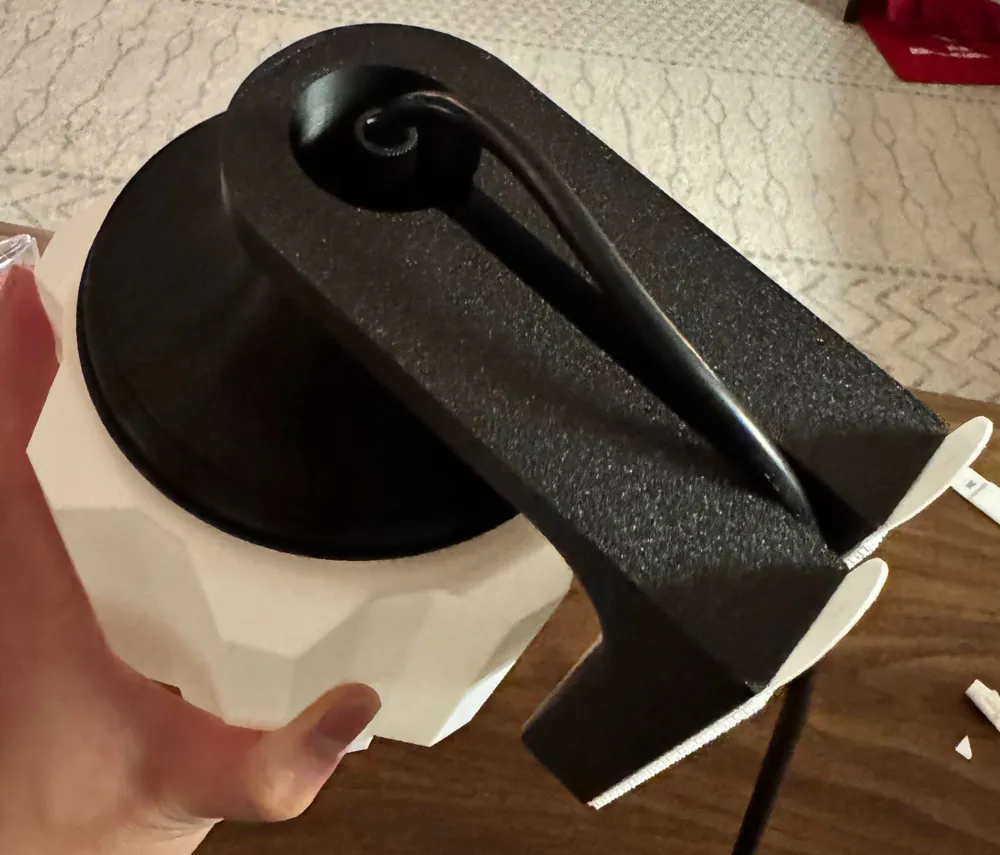

  1. changed the base to be wall mount with command strips: https://www.amazon.com/dp/B0B3SR5M71?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

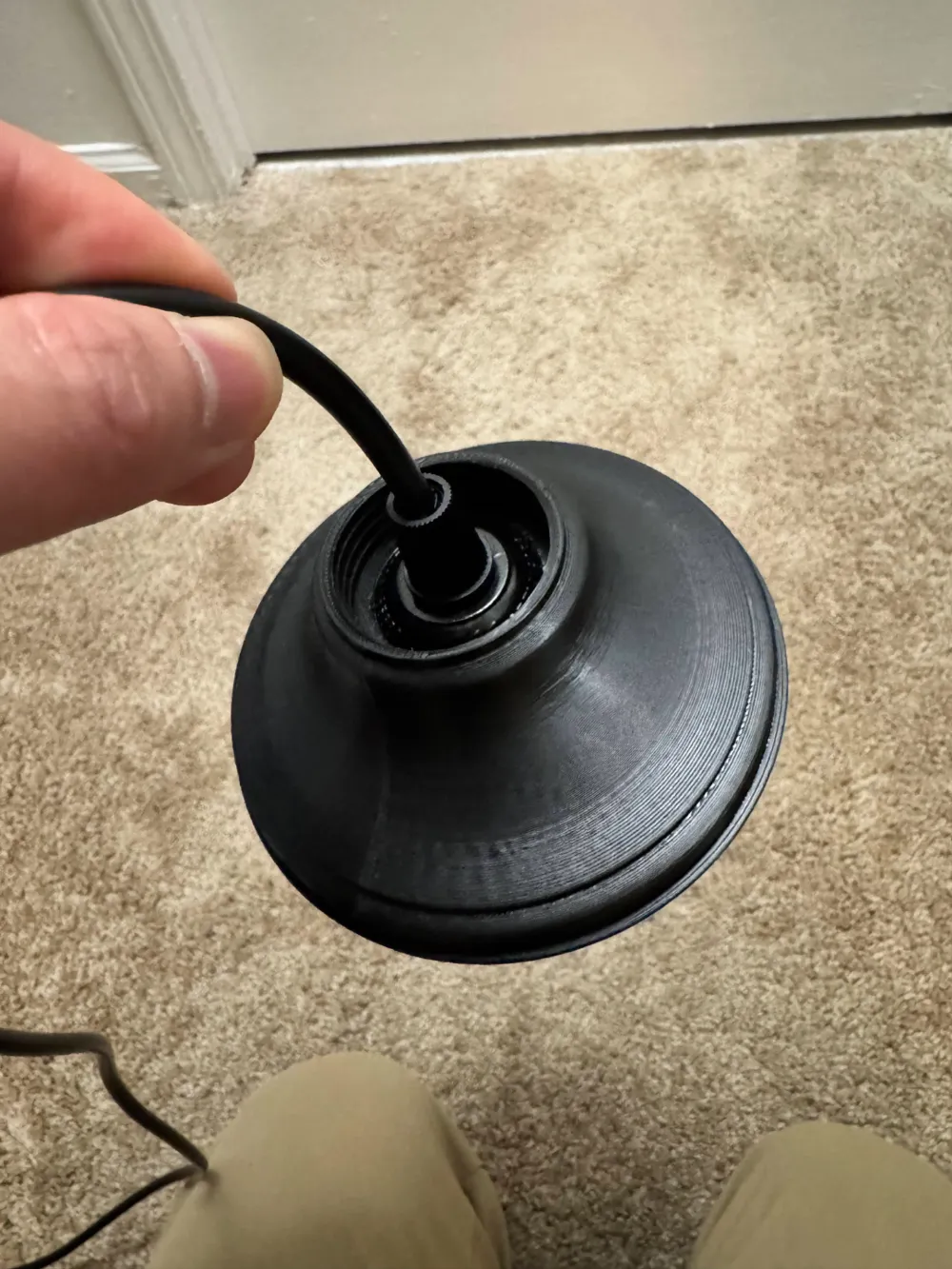

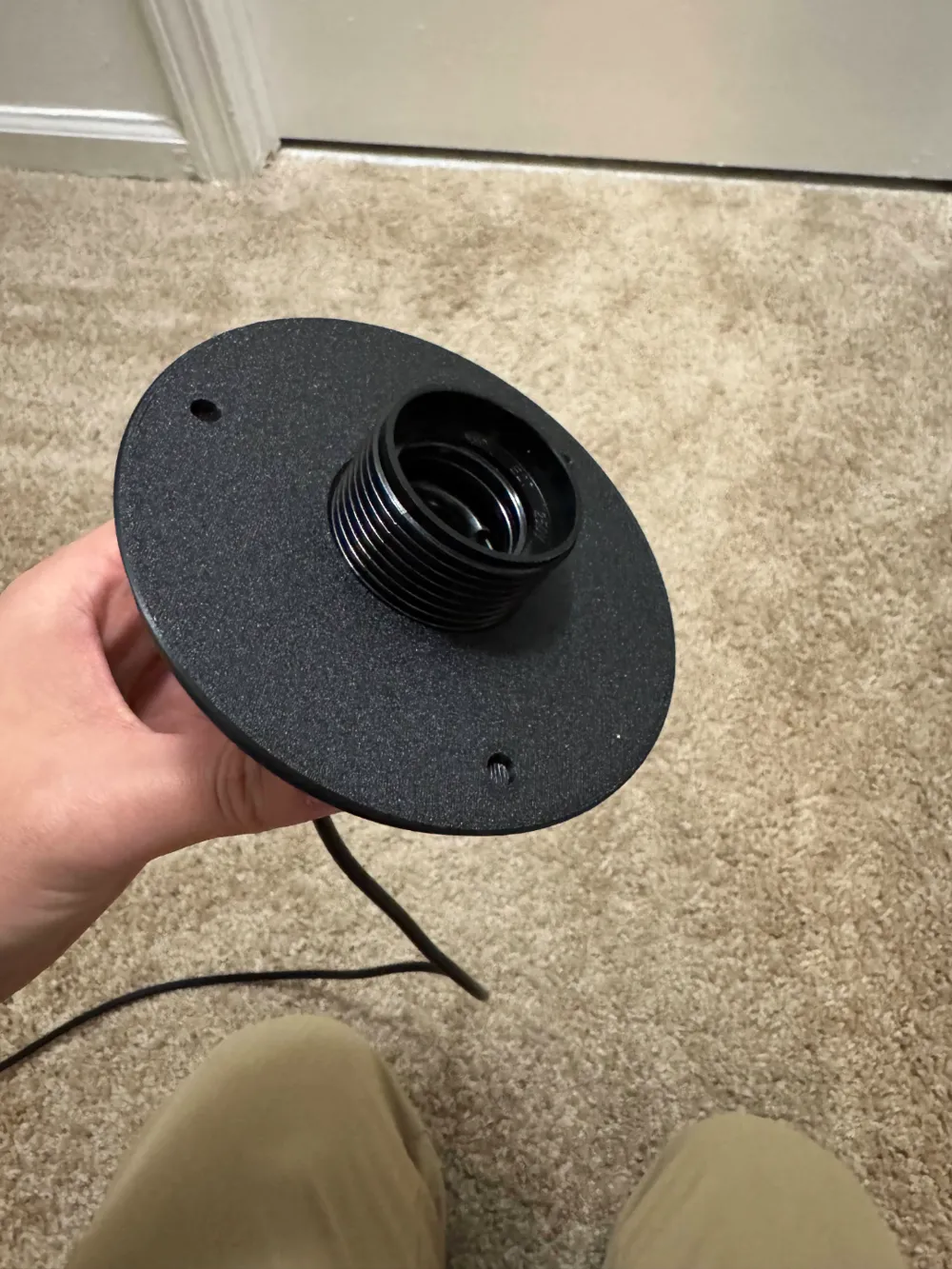

  2. changed the base thread to be compatible with the socket I got from Amazon: https://www.amazon.com/dp/B08DXL1DZ3?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1



Printing:

  1. when printing the lamp shade in vase model make sure to add bottom thickness of around 3mm to create the holes for glueing in the magnets. I used Bambu basic PLA white. Use 0.6mm outer wall width
  2. I used 0.16mm and the threads fit pretty well

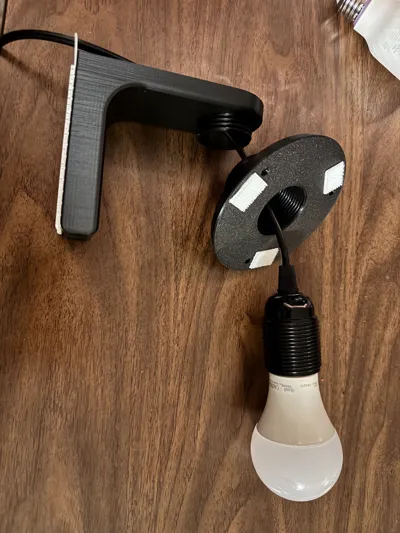

Parts needed:

  1. command strip velcro XL: https://www.amazon.com/dp/B0B3SR5M71?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
  2. E26/27 socket: https://www.amazon.com/dp/B08DXL1DZ3?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
  3. E26/E27 LED light of your choice
