Description

Boost Me (for free)

More Cases Like This – Boost for Free!

Features:

Buttons and camera protector colors are fully customizable.
Supports PLA, PETG, and TPU printing (showcase model printed in PLA).
Use Arachne wall generator with a 0.4mm nozzle to prevent gaps in fine details (<0.45mm).
Physically tested with an iPhone prototype for a precise fit.
Camera button area is fragile—install carefully.
PLA/PETG cases may break when removing the phone—tear open from the camera button area if needed.

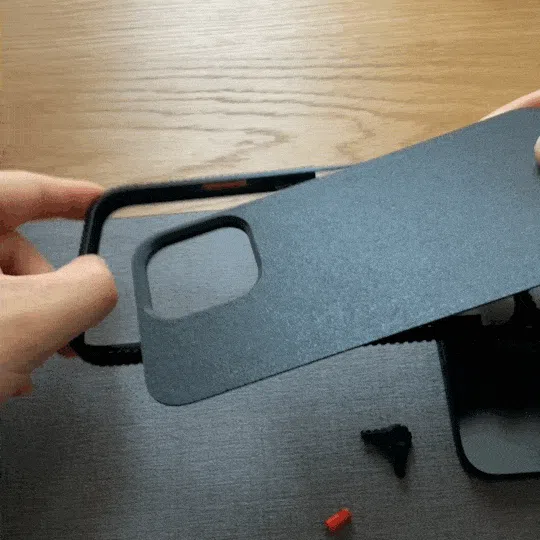

The installation for the V3 is different from what is shown in the video. Please refer to the following installation instructions.
Due to material shrinkage, the buttons may fit too tightly depending on the filament used. If this happens, try carefully sanding the top edge of the button hole with a small file to remove any leftover support material, or scale the button’s X axis to around 98% (as shown below) before printing for a better fit.
Do not remove the outer skirt on the button — it’s designed to prevent the button from falling out.

Updates:

Widened the top layer edges for better durability

Other Cases

Zigzag Case	Customizable Backplate Case	Experimental
16 Pro Max	16 Pro Max	Zigzag Case Airpods2
16 Pro		Black Dragon 16 Pro Max
16 Plus		Zigzag Case Lite 15 Pro Max
16		legos-compatible Backplate 16 Pro Max
15 Pro Max
15 Pro
15 Plus
15
14 Pro Max
14 Pro
14 Plus
14
13 Pro Max
13 Pro
13 Plus
13
12 Pro Max
12 Pro
12
12 Mini

Membership

Subscribe to get commercial license.

Join

For More Designs: Instagram.

Design Insights & Project Updates: printzag.com.

Comment & Rating (178)

@Leaked.3D

Boosted

Cool piece I printed all parts with esun TPU 95A using temperature-dependent color change A version with a smooth brim would be nice 😊

The designer has replied

Show original

@Printzag

The case is fantastic! I love that color

Show original

@infinate

Print Profile

V2_Magsafe_TPU

Other Issues: The way the buttons set in the case is kind of a pain in the butt and the camera cover piece has the same issue. Once you get it on your phone its cool, but definitely could use a little work on the buttons and the camera protection

The profile uploader has replied

@Printzag

Thanks for your feedback! I’ll see what I can do.

@infinate

Replying to @Printzag :

Check out https://makerworld.com/en/models/153149-iphone-15-pro-max-tpu-case-with-magsafe#profileId-188877 these buttons are really good, and the camera piece locks in from the inside.

@Printzag

Replying to @infinate :

Thanks for sharing! I’ve already updated the camera bumper to assemble from the inside starting with the iPhone 16 Pro. I’ll get around to updating the 16 Pro Max!

@user_1114978582

Print Profile

V3_PLA (Magsafe Version Included)

Given that this is my first print using TPU and PLA inserts, both SUNLU brand, I researched online for optimal settings for this material. The object turned out nearly perfect except for the section that remains suspended above the empty eyelet, I'm unsure why (advice welcome). Removing the supports is somewhat cumbersome, but I believe this is due to the complexity of the internal design. Excellent idea nonetheless

The profile uploader has replied

Show original

@Printzag

Thank you very much for your feedback! If you are printing in TPU, I recommend trying the V3_TPU model – it has been specifically optimized for this material and is better suited for TPU printing

Show original

@user_1114978582

Replying to @Printzag :

Done, significantly better

(Edited)

Show original

@fatfuckery

Printed this in black 95A TPU with red PLA+ for the buttons and the camera bumper and it looks pretty slick! The bumps around the sides not only look great, but they make the case easy to grip AND act like a bumper to protect the phone if it is dropped - really smart design. My only concern is the thin long string over the Camera Control button, which when printed in TPU is just too flimsy. I wish the entire top lip of the case was just one loop wider and one layer taller to thicken that little string a little and grab on to the phone a bit more securely. Still, great case!

(Edited)

The designer has replied

@Printzag

Thanks for your feedback! Really appreciate it. I’ll try updating the design based on your suggestions!

@SukuribaFPV

Print Profile

V3_PLA (Magsafe Version Included)

the model is great and works perfectly, (I tried no supports and despite random strings that seem to have no origin, it came out good) I didn’t add the buttons because I have a Pro… not a pro max, and I can’t read…

@stevecary

Boosted

Print Profile

V3_TPU (Magsafe Version Included)

Very nice in Desert Tan PTCG and Black TPU for AMS top layers. I had to resize it to 101% and make it taller by .1mm to make it fit the 16 pro max. Thanks!

@user_904859764

Print Profile

V3_TPU (Magsafe Version Included)

this is much better Thank you 🙏🏼 good job

@Burninator

printed great. used carbon fiber plate, pla + and tpu 90a.

@Dimmu_Ogir

Print Profile

Textured_Button_V1

good

@Printopia.sy

Print Profile

Flat_PLA

perfect
