Now bringing to MakerWorld this Cooler Master MasterBox NR200P-Inspired Raspberry Pi Case!

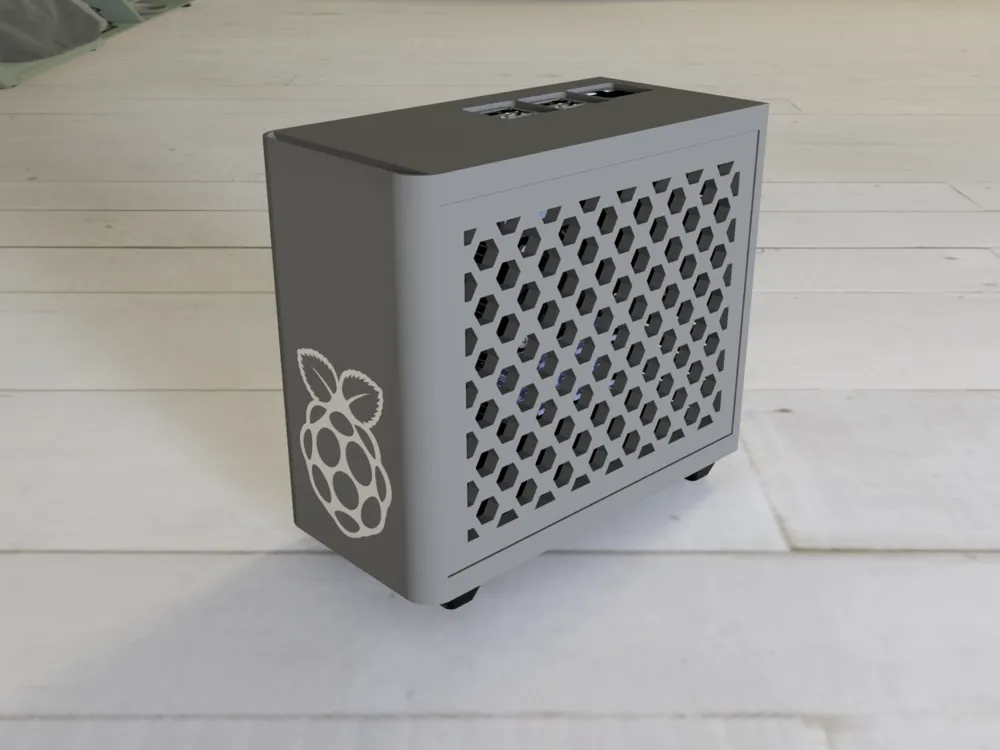

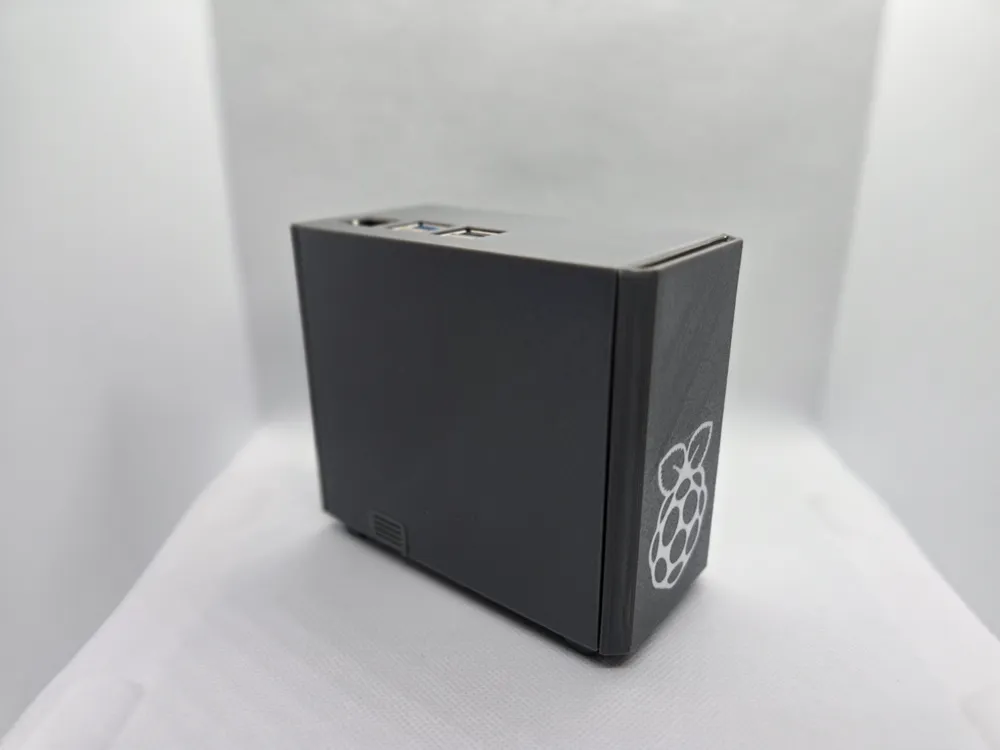

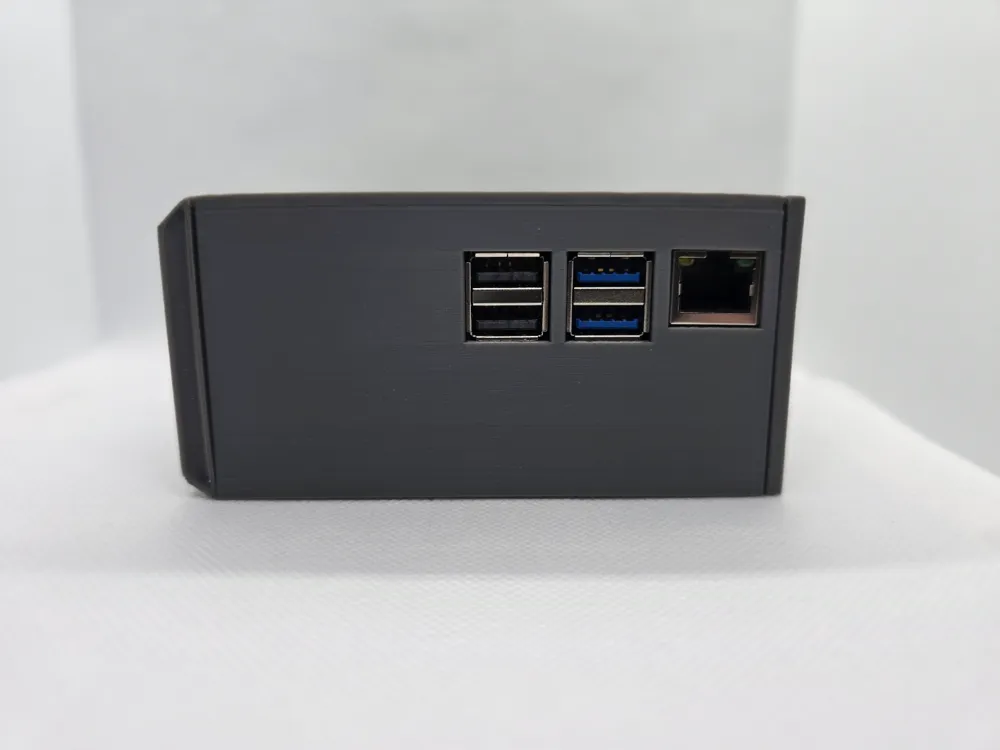

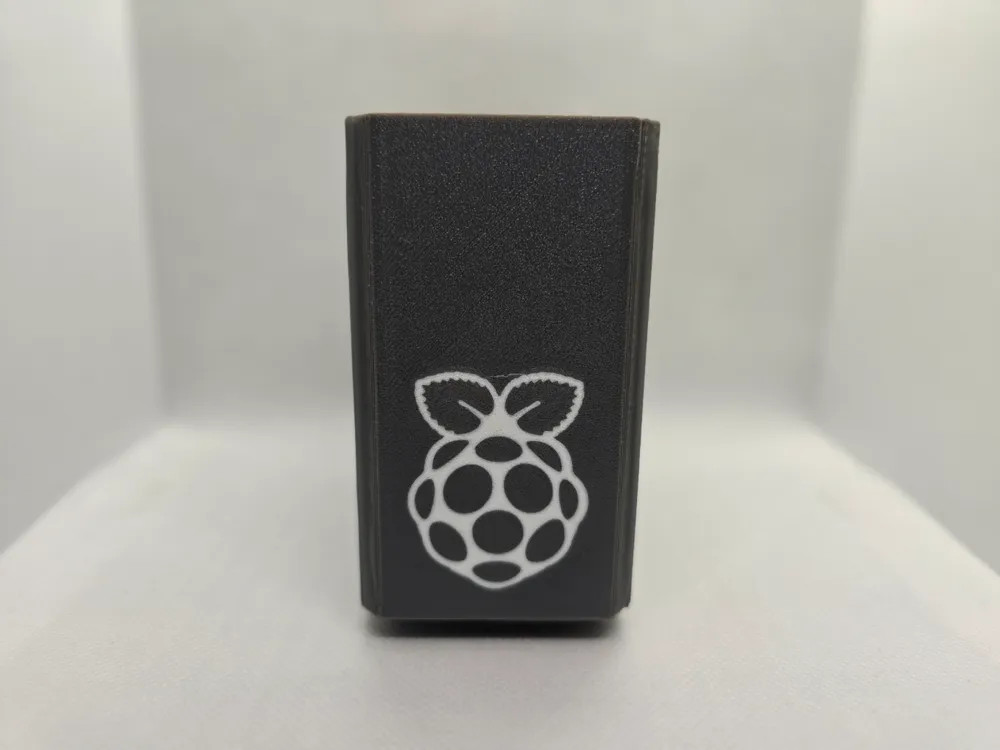

This Raspberry Pi case draws inspiration from the Master NR200P mini-ITX Case and is compatible with Raspberry Pi models 3, 4, and 5! It has enough clearance to use an active air cooler, M.2 Board, and more! Each print profile differs from the Pi model you are using. Whether you prefer to print it all in one color or use the AMS for multi-color prints, you'll find all the necessary options.

I also listed all the recommended filaments for this case. These filaments closely match the colors of the ones released by Cooler Master!
Happy Printing!

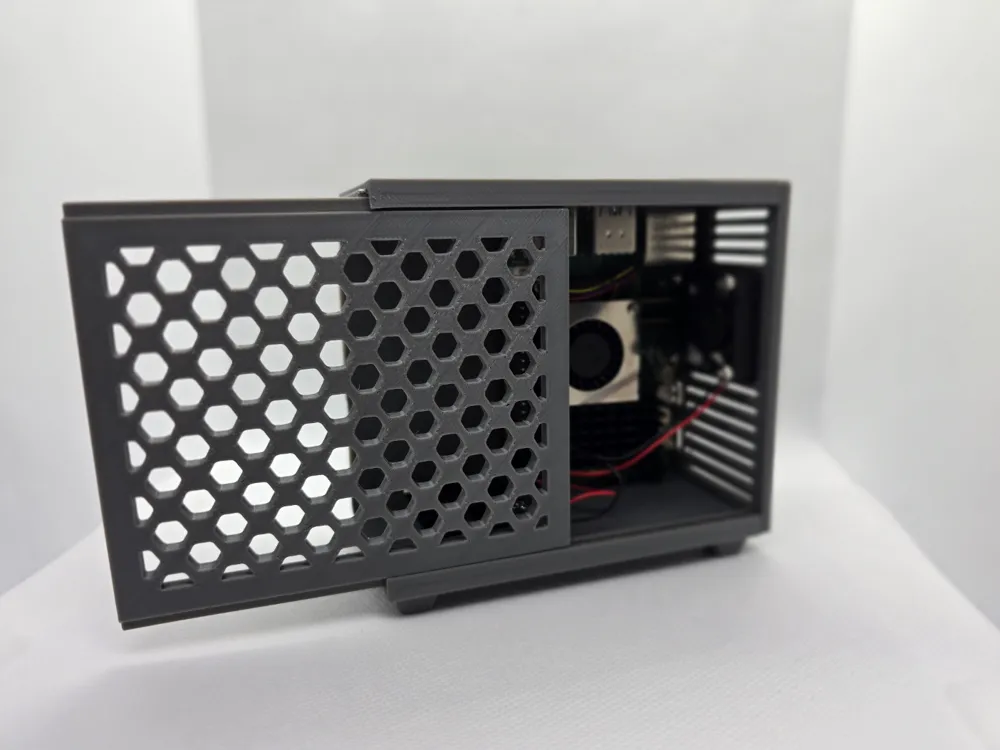

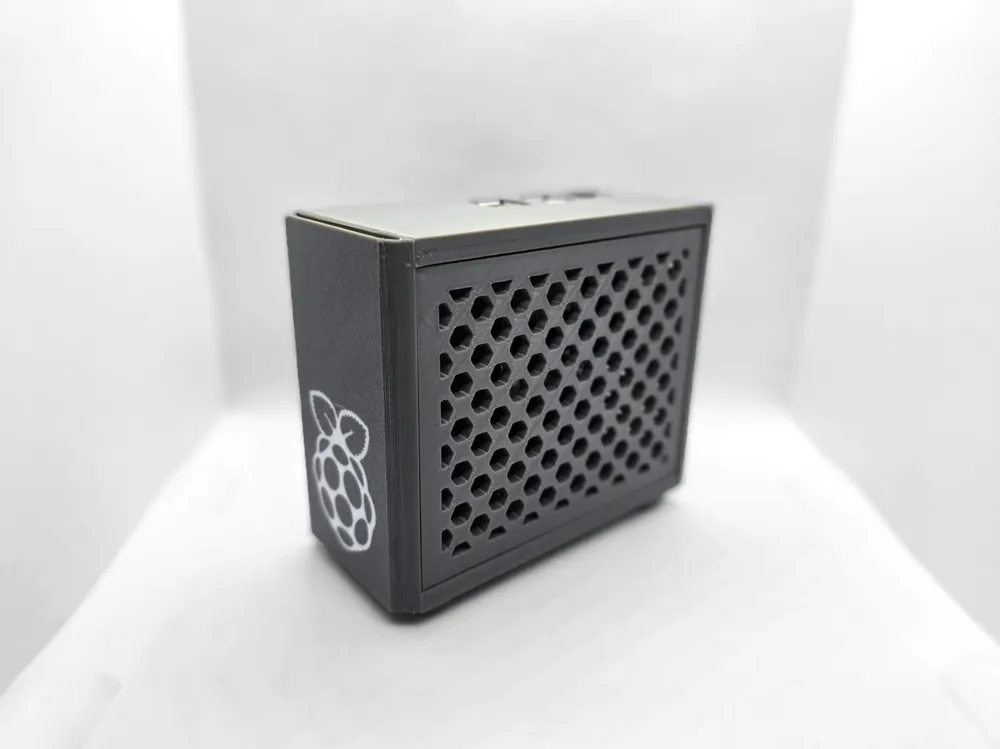

Each Pi profile comes with the Honeycomb side panel, I also included a 4th and 5th profile that has an optional clear side panel that needs to printed with Transparent/Clear Filament (PETG or PLA) and a Mold that needs to be printed with TPU to use with clear resin.

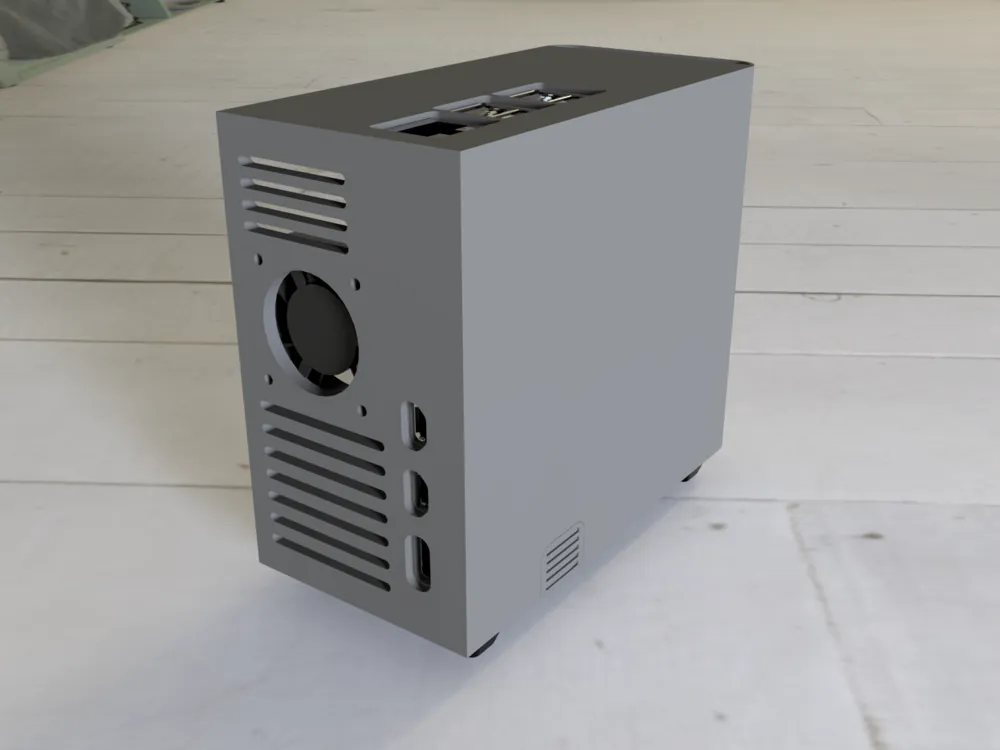

For the fans, I used Qty 2 -3007 fans from Aliexpress, these come with the hardware required to install them, if yours did not come with hardware, I suggest using some M2.5x10 and nuts to secure it.

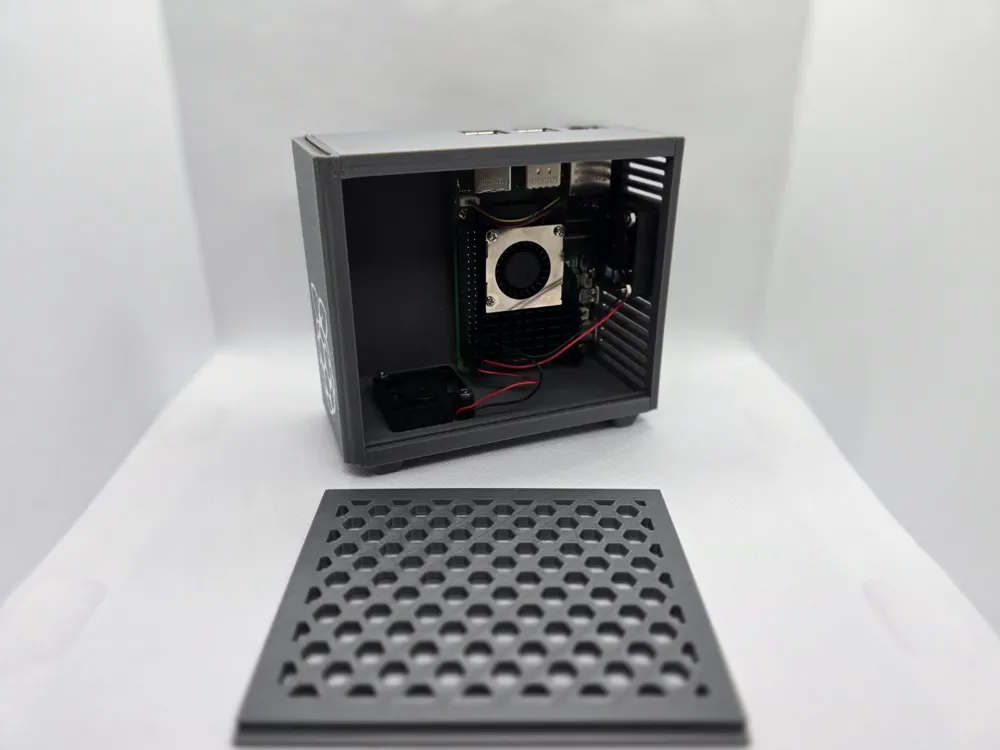

To mount the Pi into the housing, you can either use a couple of M2.5X4X4 heat-inserts along with M2.5x5 screws, or use the screws directly into the plastic housing.
