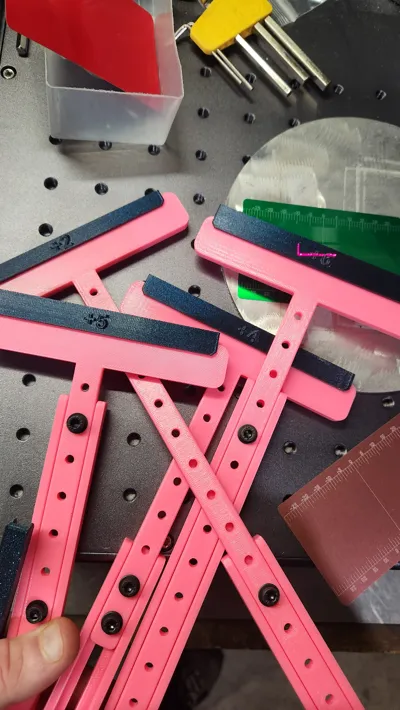

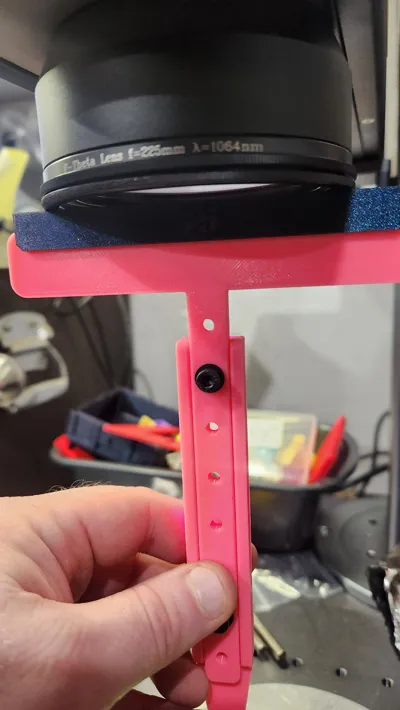

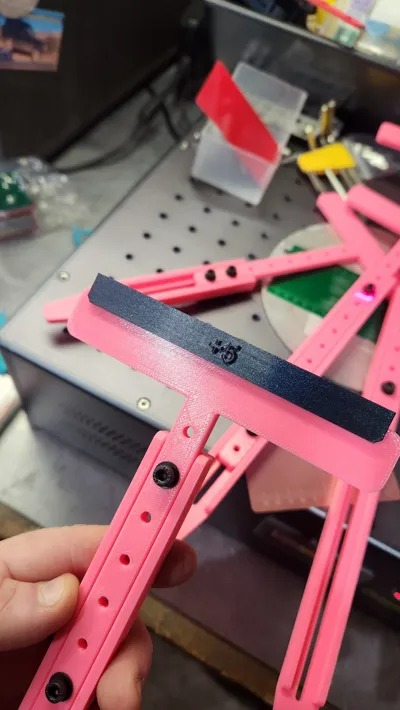

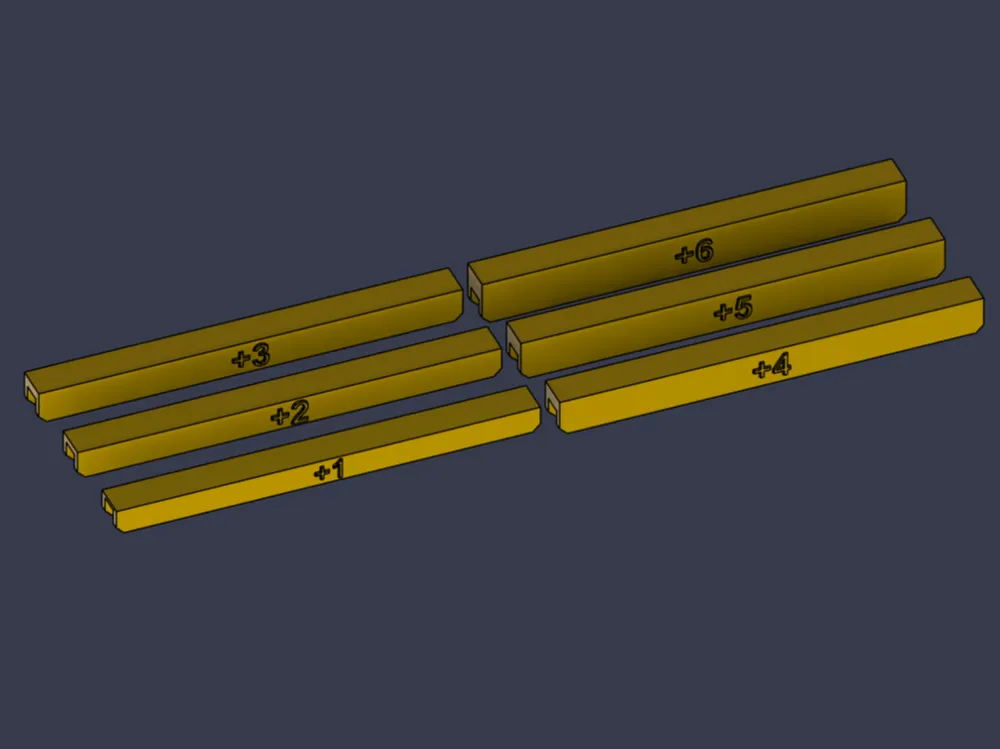

Very simple model to get a consistent de-focus with your galvo laser with Jay Mac's focus stick (below)

https://makerworld.com/en/models/137543#profileId-149668

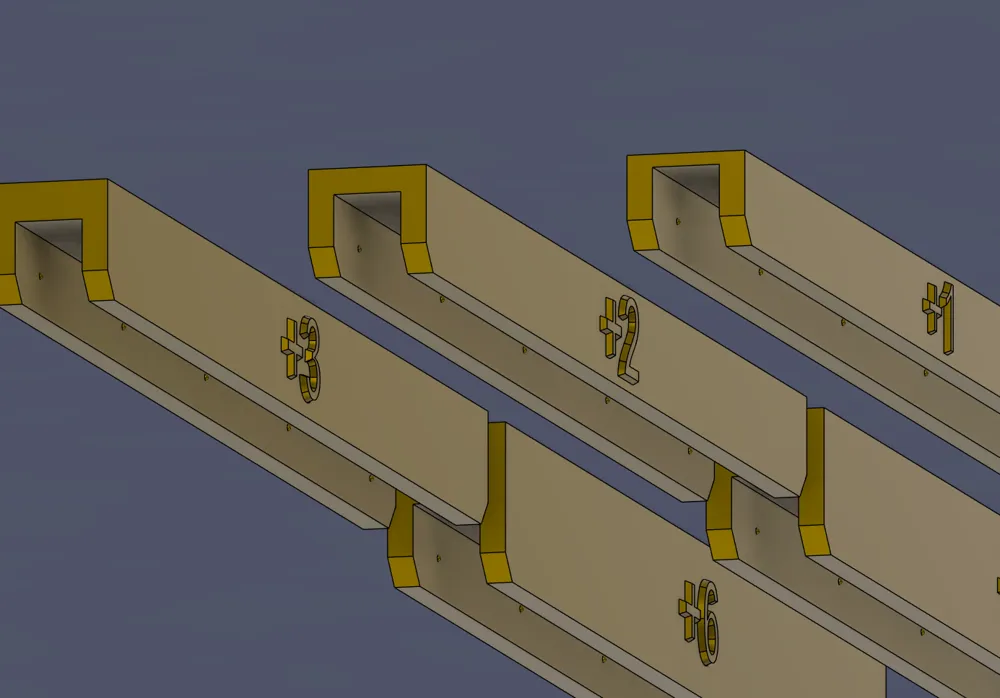

Model has 10 small bumps on the inside to securely hold it in place on the focal stick. Either push it on from the top, or slide it on from the side and it shouldn't fall off until you purposely take it off.

I printed the focal sticks and de-focus shims in PETG and it's working fine. Have not tried other materials

Aug 25 2025: Added print profile for 7-12mm

If you need a different size, let me know!
