Canon Lens cap holder for 30mm/35mm strap
Print Profile(2)
Description

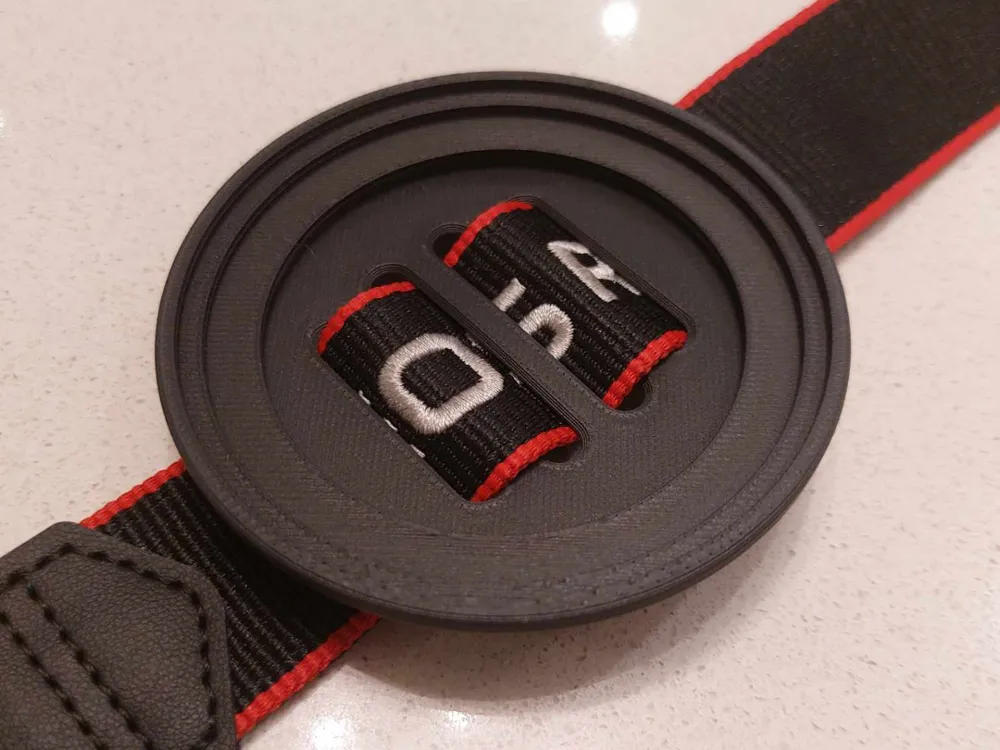

Lens cap holder to fit canon EOS R and (some) EOS D series straps. Accepts 55mm, 67mm and 72mm lens caps. Includes ridges for the grips to hold.
First print profile is for EOS R series 30mm straps.
Second print profile is for EOS D series 35mm straps.

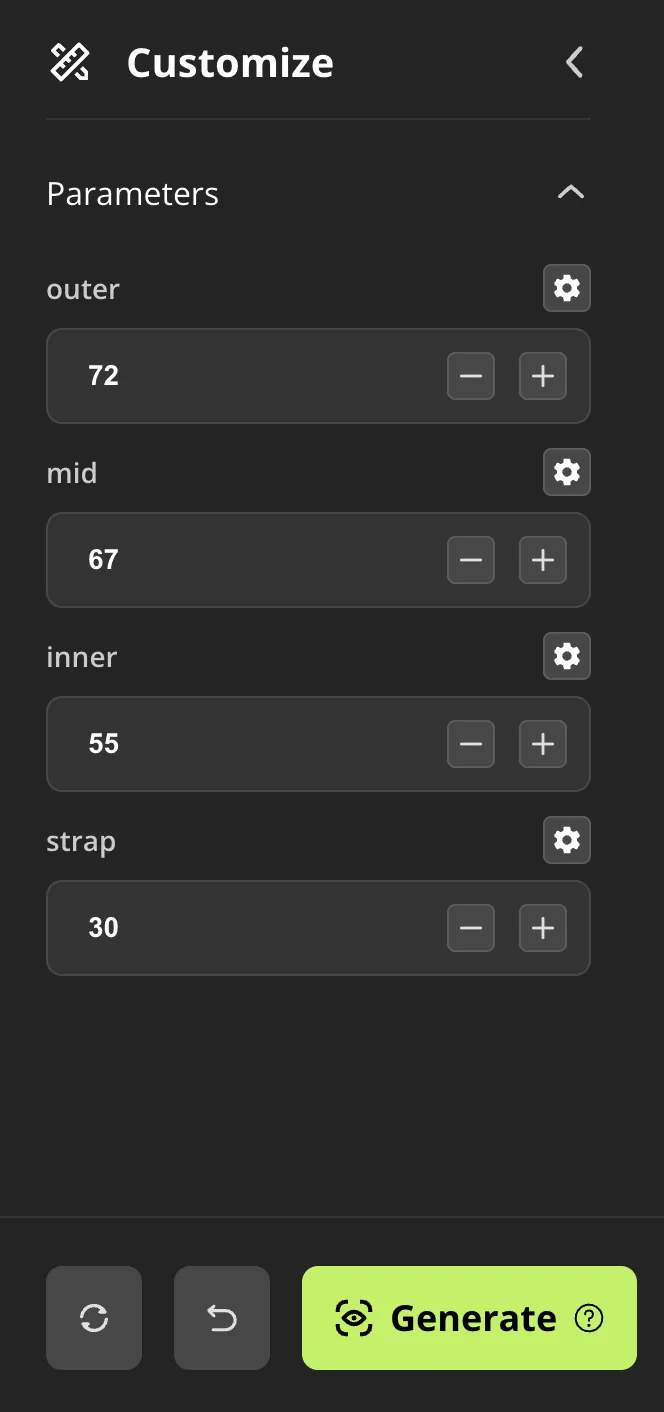

Fusion file added. The strap size and lens sizes are settable via parameters. Config from within Maker World is now possible:
Or download the .f3d file and edit in Fusion:
Note that if the inner size is lower than 47mm the spacing between the strap holes is reduced. Be careful when you install.
