AI 360 to Hikvision Wall Corner Adapter Spacer

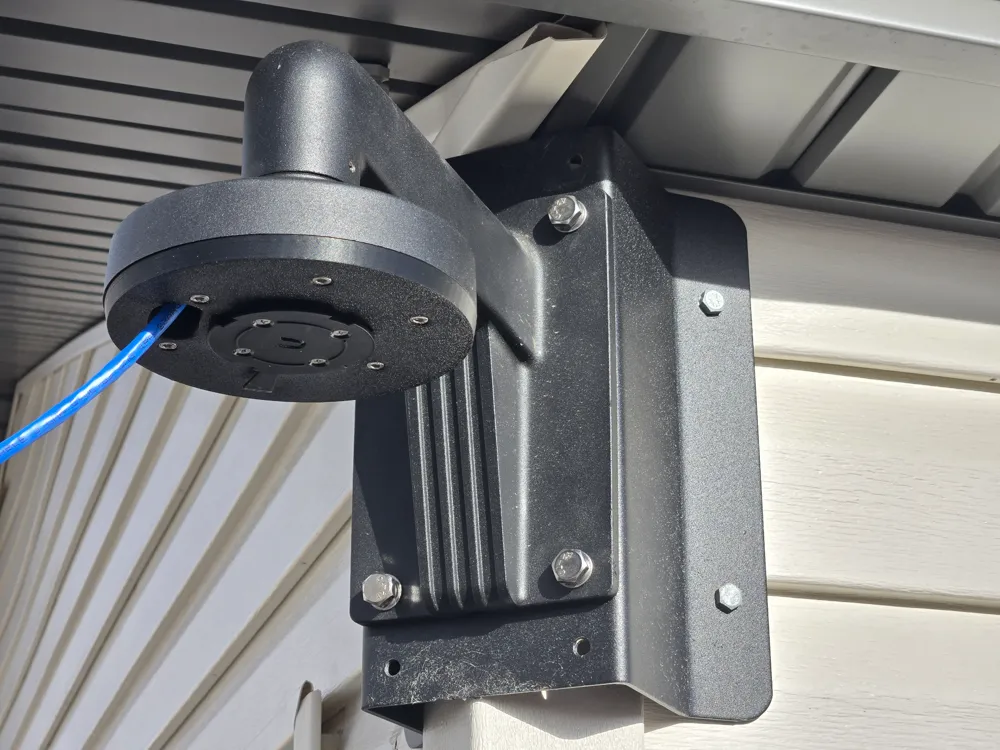

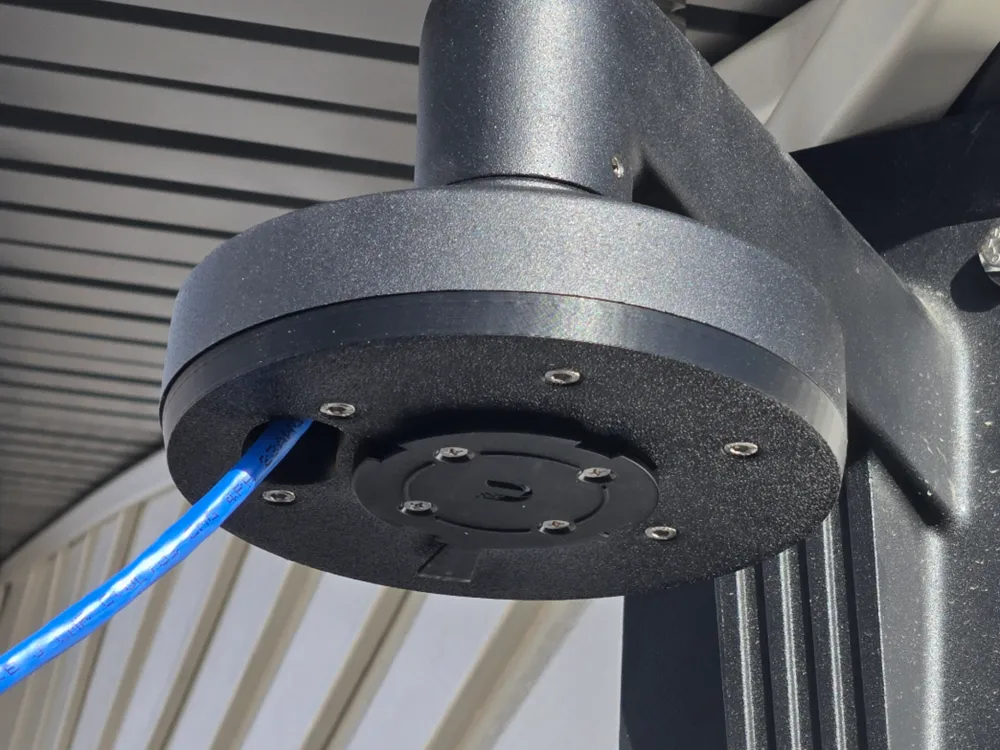

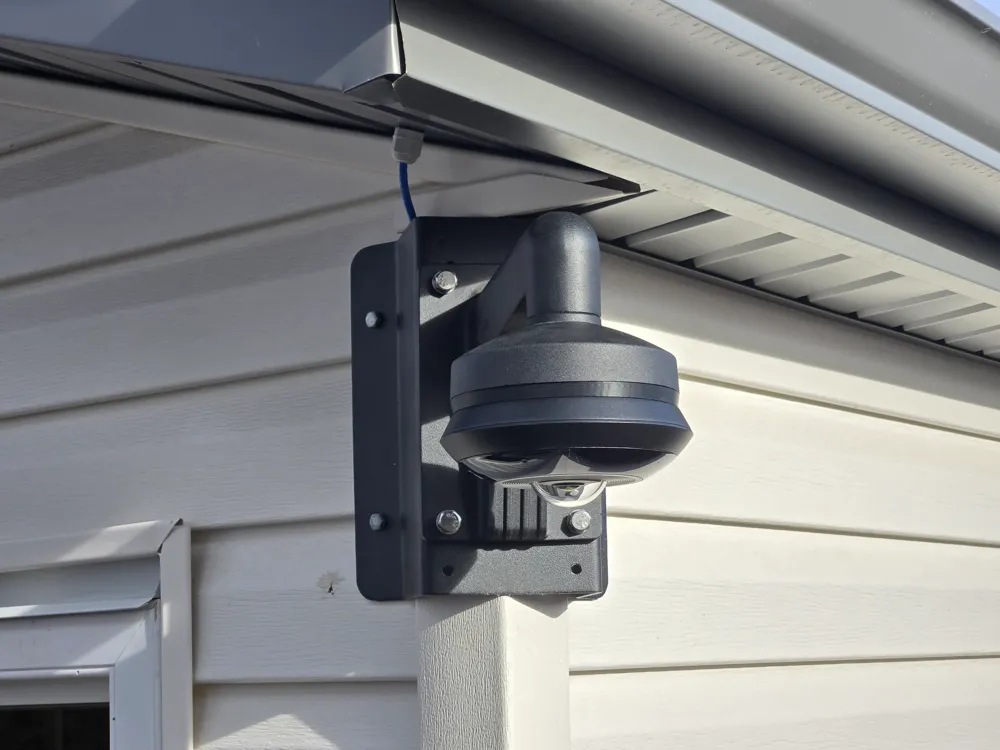

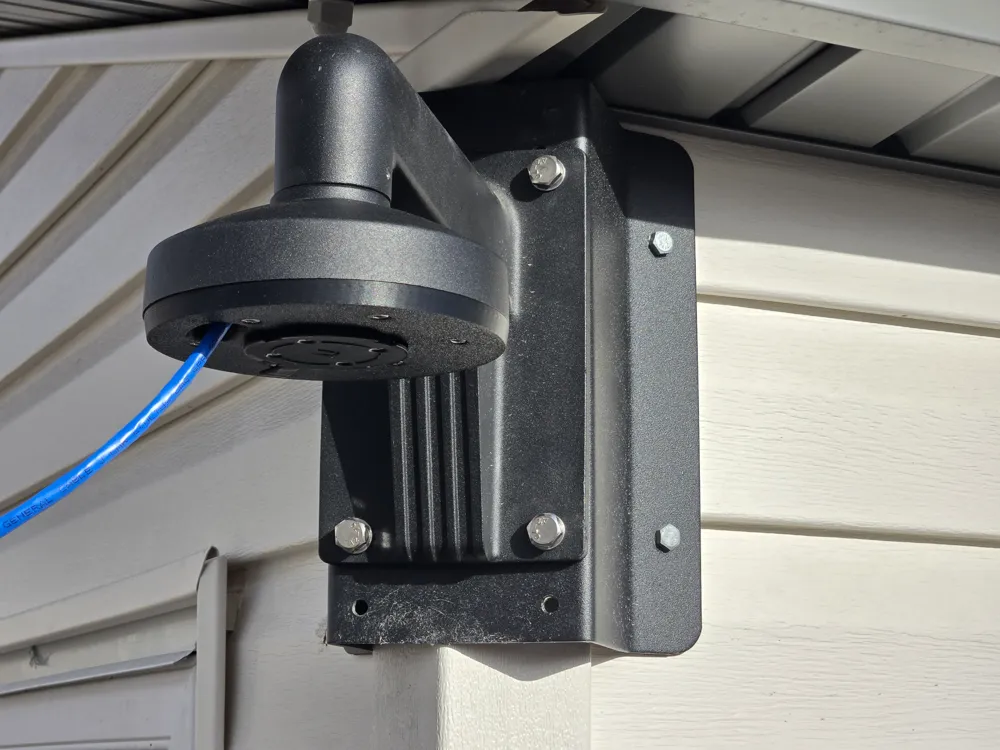

The Ubiquiti AI 360 camera excels at wide area coverage, and this spacer lets you use inexpensive Hikvision corner brackets and dome mounts to effectively mount your UVC-AI-360 camera on exterior 90 degree corner walls.

I recommend the following brackets:

1. Hikvision Corner Mount Bracket CMP
2. WMS WML PC130T DS-1273ZJ-130-TRL Wall Mount Bracket

You will need some short M4 socket head bolts to mount this spacer onto the arm, and you'll need to remove the existing cover plate/adapter on the mount arm.

DO NOT OVER TIGHTEN THE M4 BOLTS! They just need to be snug. If you over-tighten the bolts you will flex the spacer and it will make installing the camera impossible as you won't be able to rotate the camera and lock it in place!
