OpenRack – A Modular Server Rack System

Find all components of the OpenRack family here:

OpenRack – Collection
1U – Base System   |   2U – Base System
1U – Blank Insert*   |   2U – Blank Insert*
2U – Rackfinity Insert*

*use this models to remix and build your own inserts!

If you value my work and would like to continue supporting me, you could buy me a coffee!

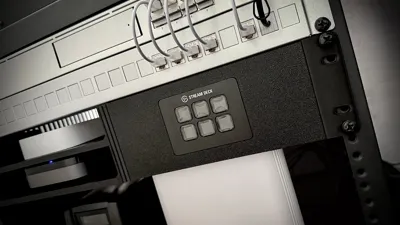

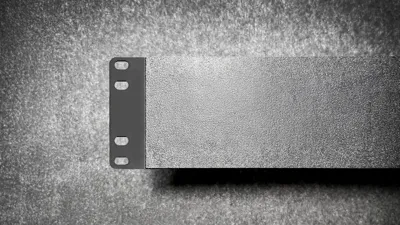

This is OpenRack 2U, the newest member of the family. A fully modular and openly server rack system in both 10 and 19 inch sizes, fully compatible with all OpenRack 1U inserts. The idea is that everyone can put together their own rack in the way that suits them best. I provide the basis, a few pre-modeled inserts and the empty module to create your own creation as a remix. The basic idea behind the system is the community and all the ideas you create. Your own creations and adaptations are therefore welcome and highly encouraged!

You can find all the custom community inserts here:

https://makerworld.com/en/collections/4688160-openrack-collection

You can find the blank inserts here:

https://makerworld.com/en/models/1054175

The basic key points:

• 10 inch 2U size rack system with 2 normal insert & 1 double insert slot
• 19 inch 2U size rack system with 4 normal insert & 2 double insert slots

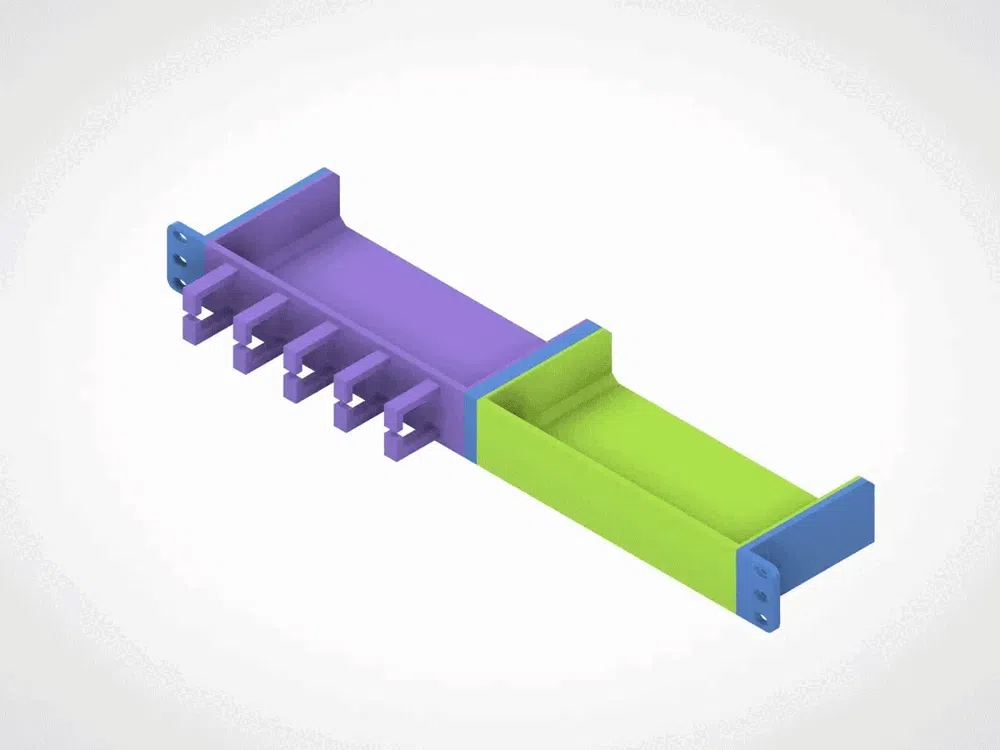

• modular insert system for easily push-in and pull-out
• some pre-modeled 1U and 2U inserts available at launch
• 2 blank inserts for customization: https://makerworld.com/en/models/1054175

The following configurations are available:

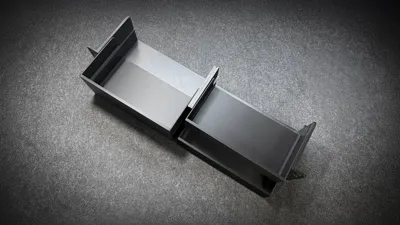

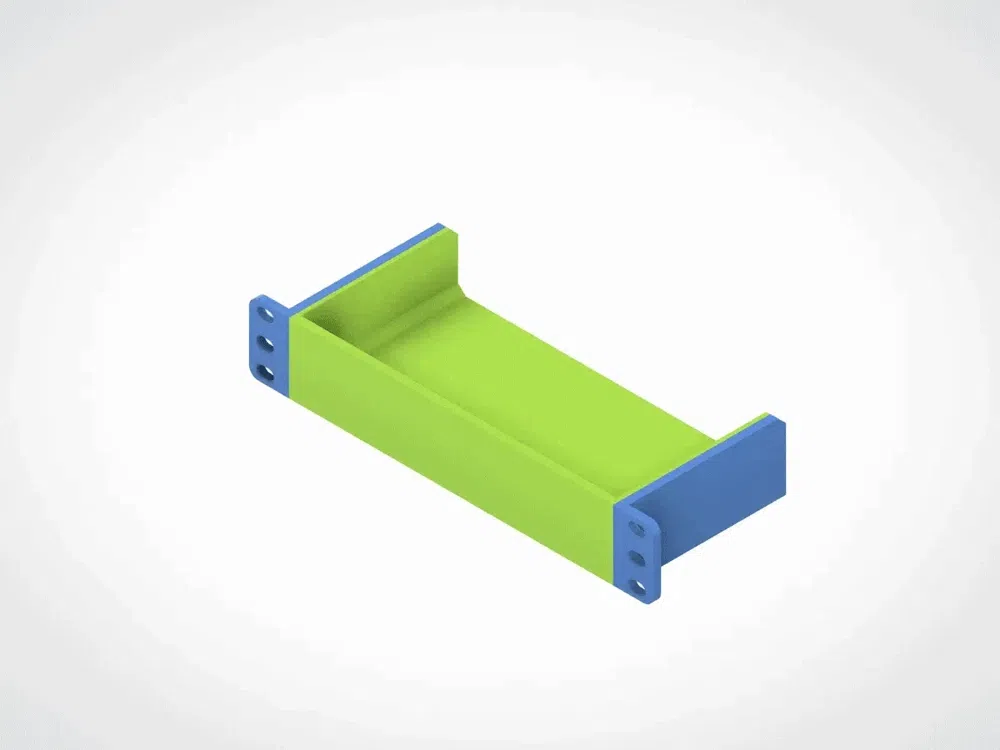

The inserts are uniformly designed and go into the right and left slots of the base. STL files for base and all inserts are provided. The base is designed and provided with a PLA Basic profile. Depending on the application, I would print the trays in a more heat-resistant material such as PETG or ABS.
