Paper Cutter
Print Profile(4)
Bill of Materials
Description

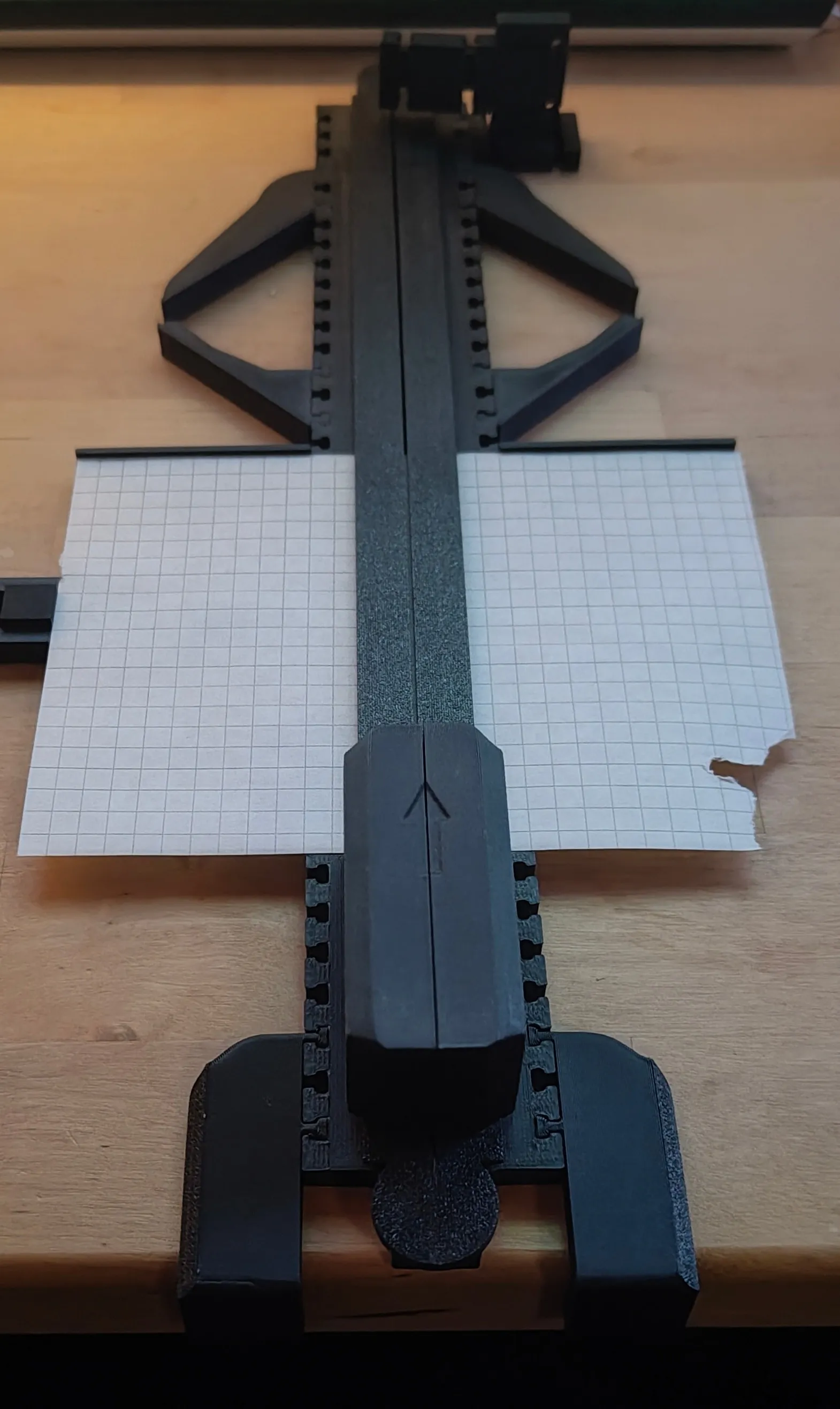

Max cutting width is 30cm so an A4 paper should be able to fit length wise but will require to cut ones from both directions.

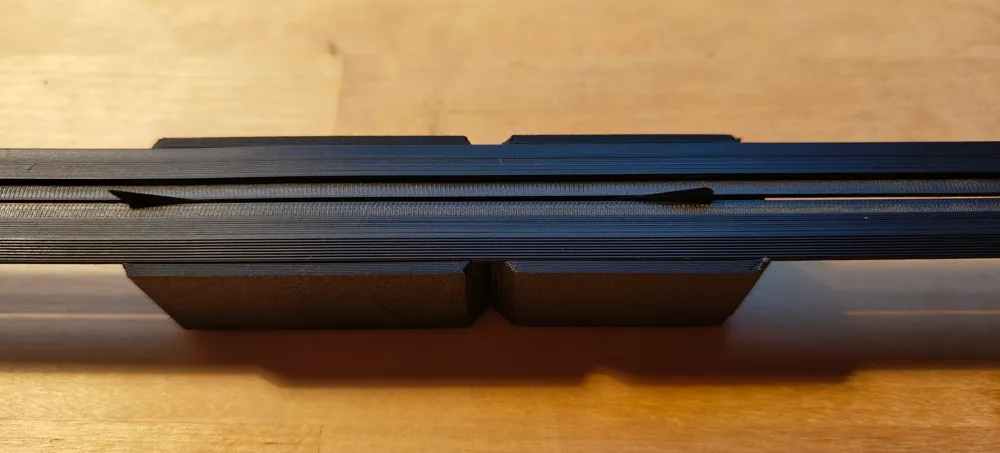

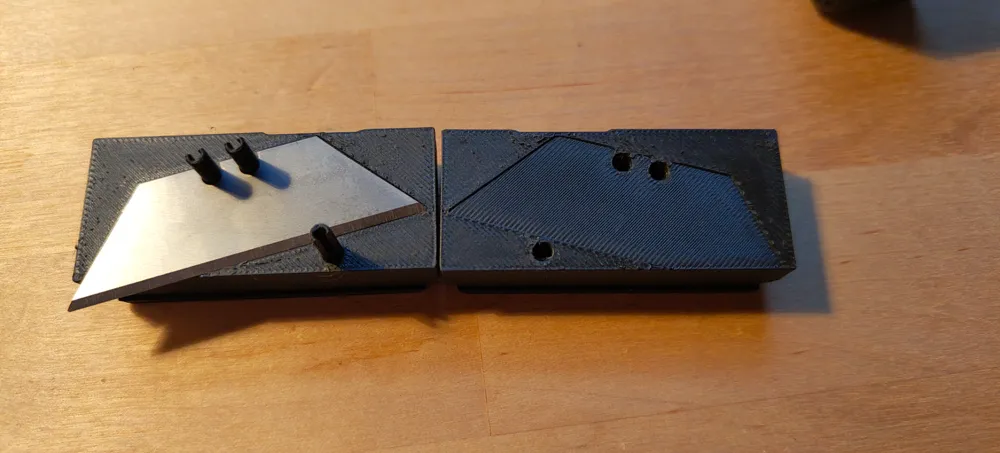

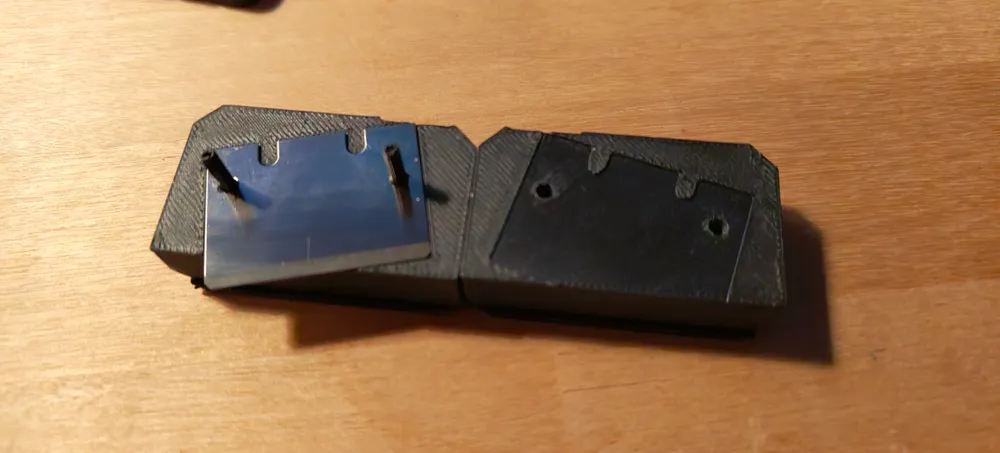

Recommendation is to print the blade holder first it takes less filament and if you need to change the shrinkage percentage you don't need to reprint everything.

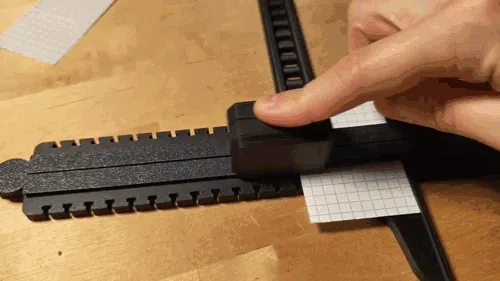

First step in the spacer guide is 3cm and holes are placed with 5mm increments so the stopper can be placed to cut 2,5cm to 19cm.

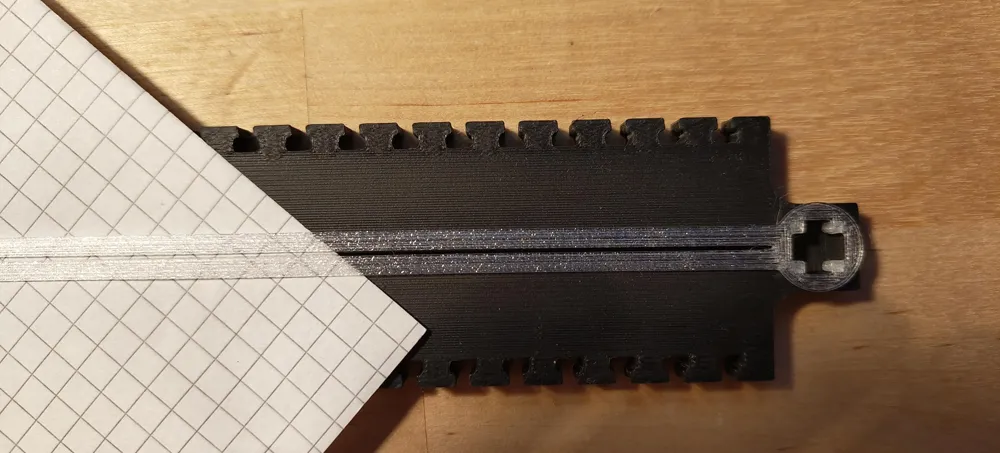

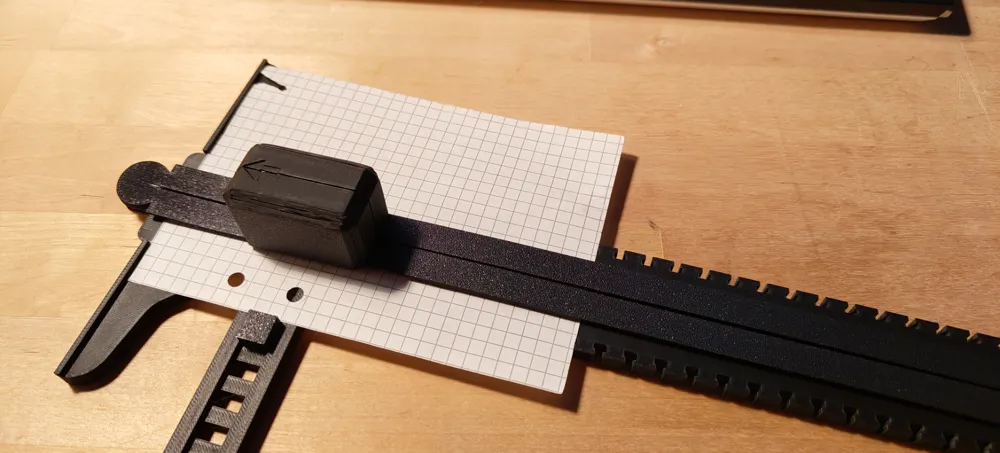

Recommend printing the middle guide rail with something translucent as it will be the part that helps you “free” aline the paper
Work in progress:
- One sided to see what your cutting
- Spliteble to extend the max width
V2. The base/angels are not cross compatible with the version 1. improvements and oversight from myside. The slots are now 6mm spaced in v2.
V2.1:

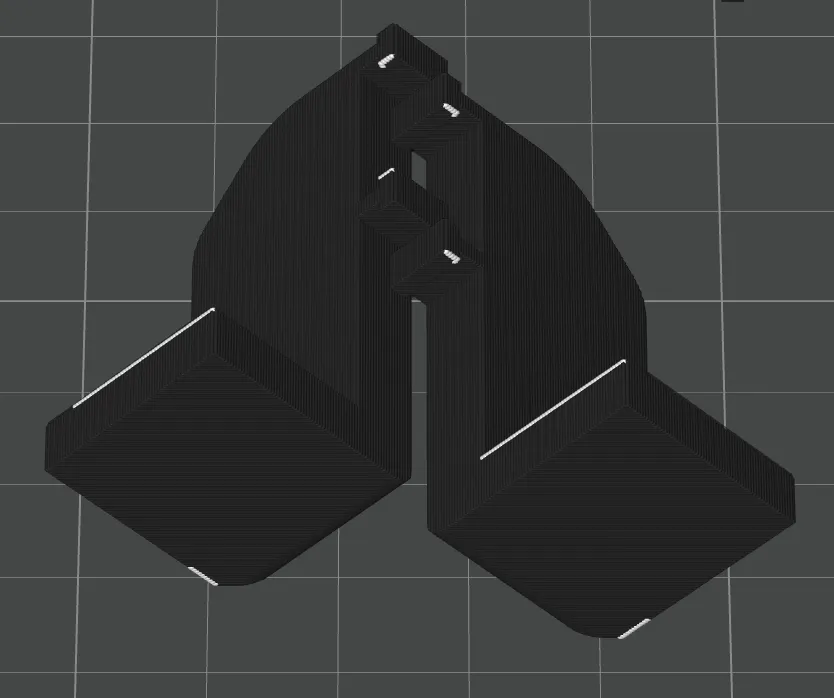

Added lip attachment that keeps the cutter on the table ledge as suggested by bernardvincent.
V2.2:

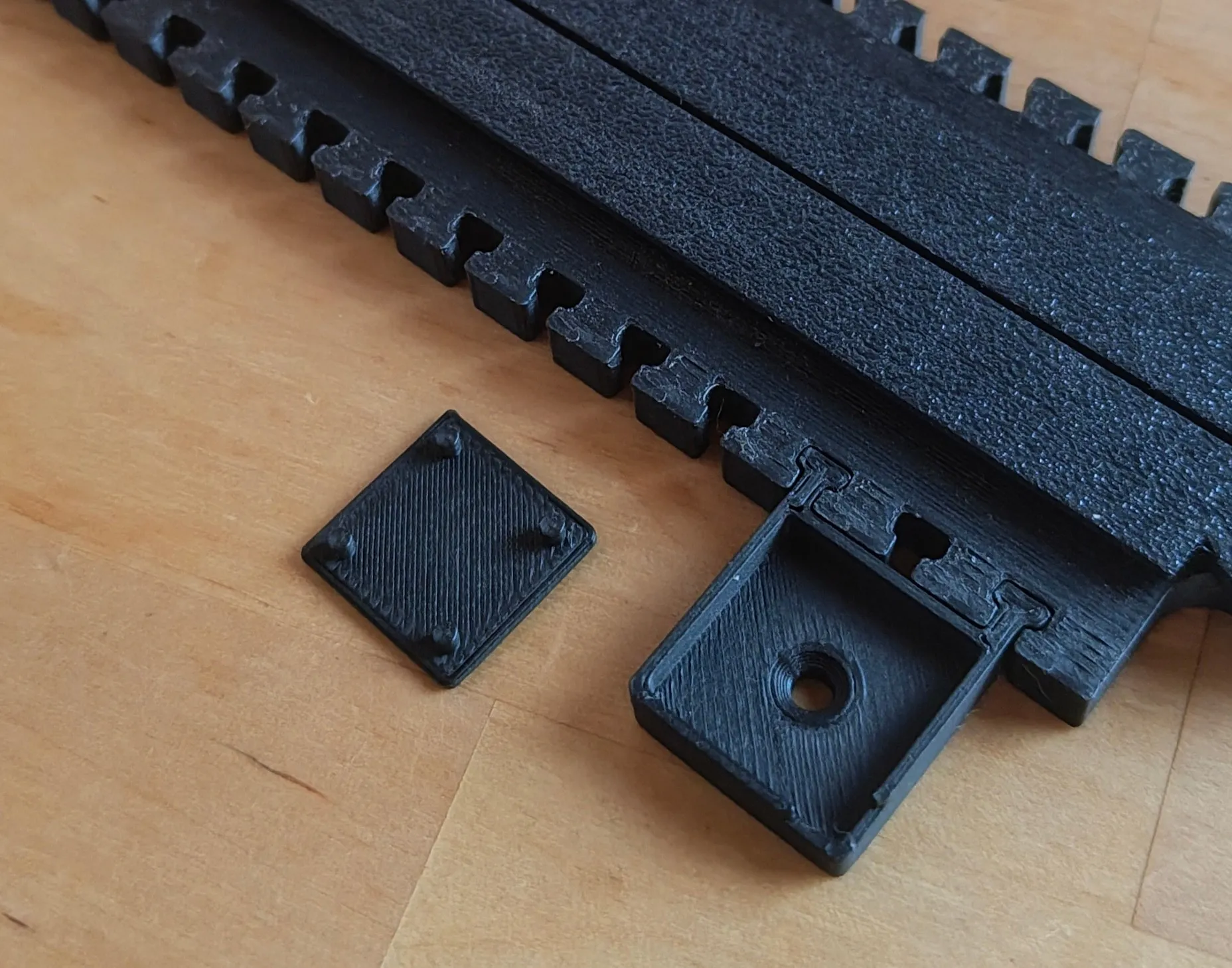

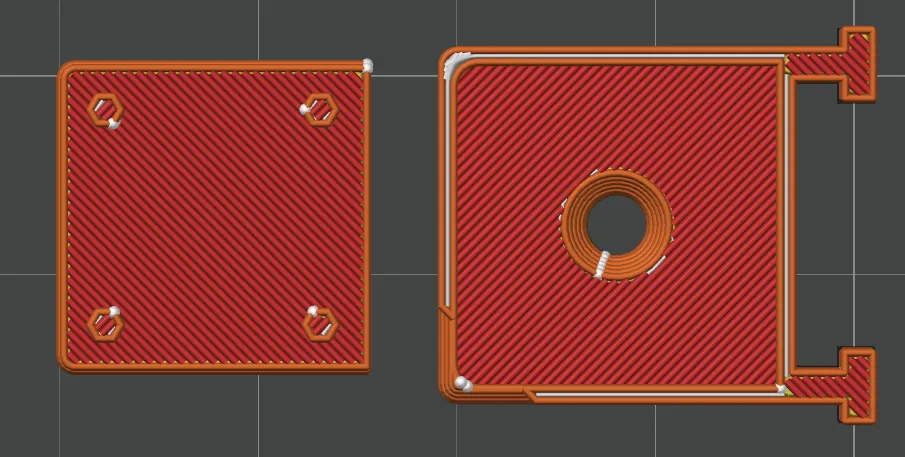

Added screw hole attachment as requested by po2gdHaeKaYk
would recommend using a washer and if you want to make the hole bigger the center offset is 2 mm.
