Swimbait
Print Profile(1)

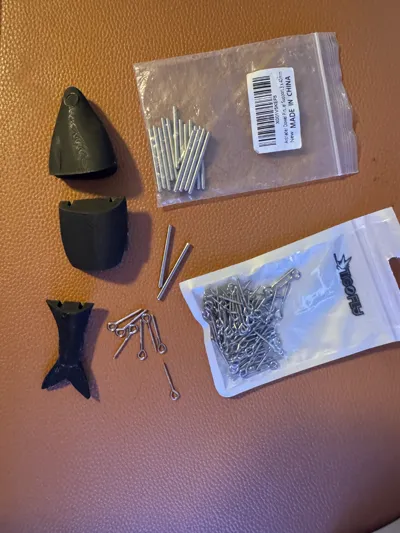

Bill of Materials
- 25mm Fishing Lure Screws x 7: https://www.amazon.com/Tigofly-Screws-Stainless-Hardware-Fishing/dp/B082GN7H6V/ref=sr_1_1?crid=1SDGGGFOB2F5W&dib=eyJ2IjoiMSJ9.2rSGRX0RODjiy2AGzJQIPOTwxZ7W7yp2EwP86M9b-Fs.qBbeE69jnWm-J5ErfKiqgr-Et92FjRkrZRYrOpLiDRU&dib_tag=se&keywords=tigofly+25mm&qid=1738112207&sprefix=tigofly+25mm%2Caps%2C104&sr=8-1
- 3x40mm Dowel Pin x 2: https://www.amazon.com/uxcell-Stainless-Support-Fasten-Elements/dp/B07MNVWRGH/ref=sr_1_3?crid=3Q9PU44IK2SAG&dib=eyJ2IjoiMSJ9.3M4lCo_HK-A8u0T87a00qvAzPBFCFZsR9xL3bc5kKzaf7d25rCSdXCpdZplXGU6wA-kU00zmQHB0KBgk9WKEEg6GW5AcQ849LrsLSlgttpeDz9wUx8bZdpKY0xYkwIhUMKj7k3LR0Xvny7c9gjwf25IO_lwh2CmhyE5UW8C6u9SbHL2N8S6_2y8G_XXyz-GD5hCw9h_hzyFctJRFrl2nCyLWW_xVh3rAtScVHeghD_0.nDQ2cGDwng9XJjLhNRAUfyIvidFkJP4Ri3vyHZm0jaM&dib_tag=se&keywords=3x40mm+dowel+pin&qid=1738112548&sprefix=3x40mm+dowel+pin%2Caps%2C117&sr=8-3
- 8mm Fishing Lure Eyes x 2: assorted colors and sizes on amazon
- Super Glue x 1: Any kind will do, I use Loctite
- Treble Hooks x 2: I use #6 trebble hooks, pick a size suitable for the fish your targeting
- Split Rings x 2: I buy my assorted split rings with the hooks on amazon
- #7 lead shot x 2: I use lead shot from 00 buck, As long as it isnt bigger than 8.2mm or .328"
Description

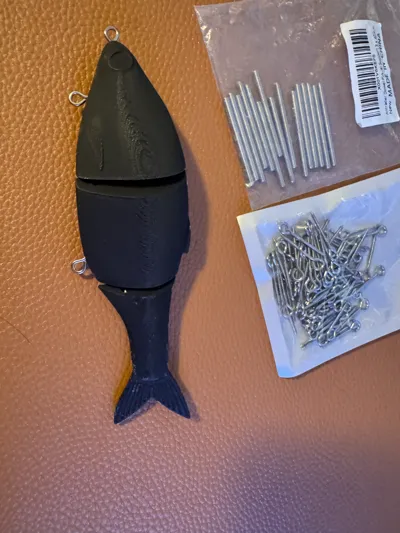

This is a swimbait that I designed after losing too many expensive lures. This jointed lure swims with life like action and works great. By changing the volume of air trapped in the lure via the infill setting, you can customize the action on the lure to be floating (15%), slow sinking (25%) or fast sinking (>25%). It uses some hardware that can be easily found on amazon. There are two spots to add lead balls or weights which allow the lure to sink upright like a real fish would.
