Description

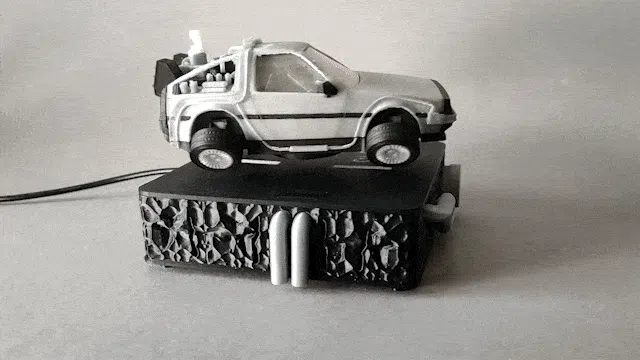

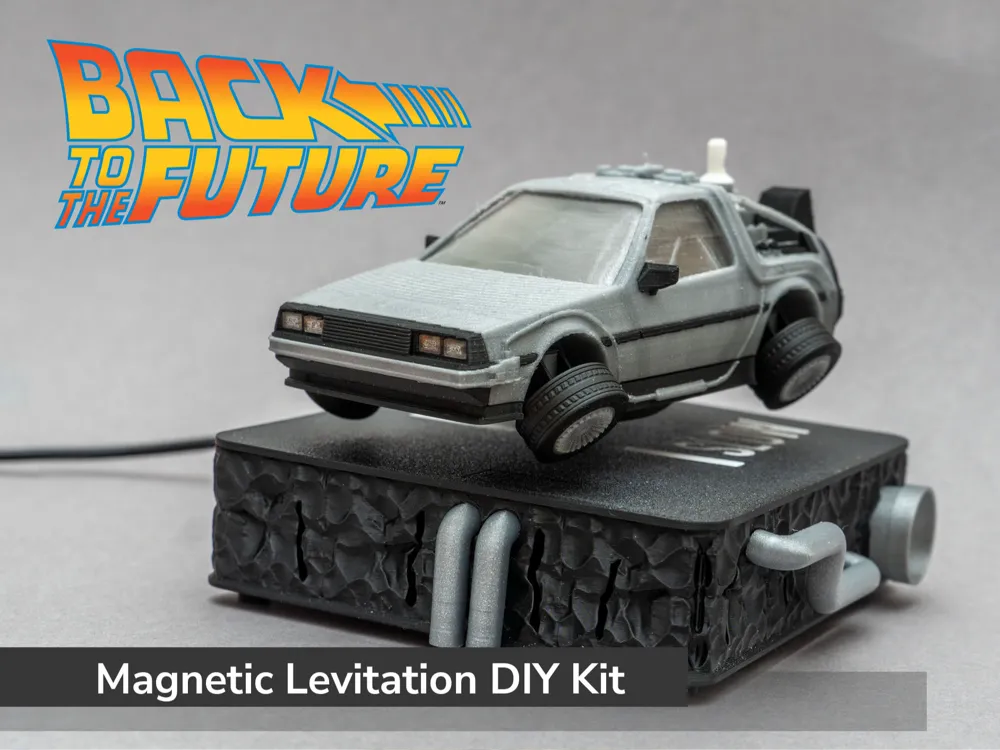

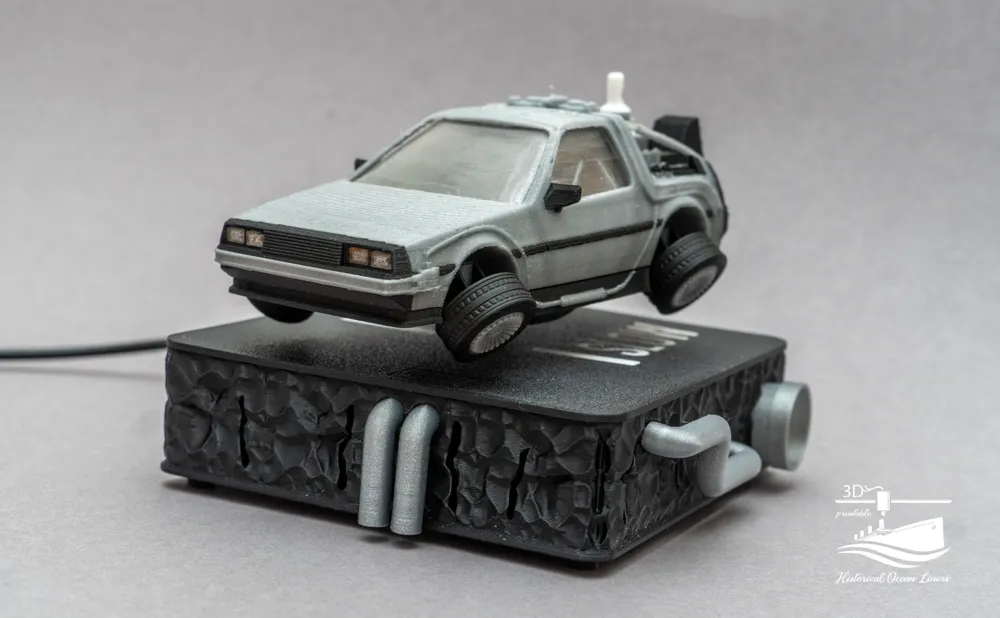

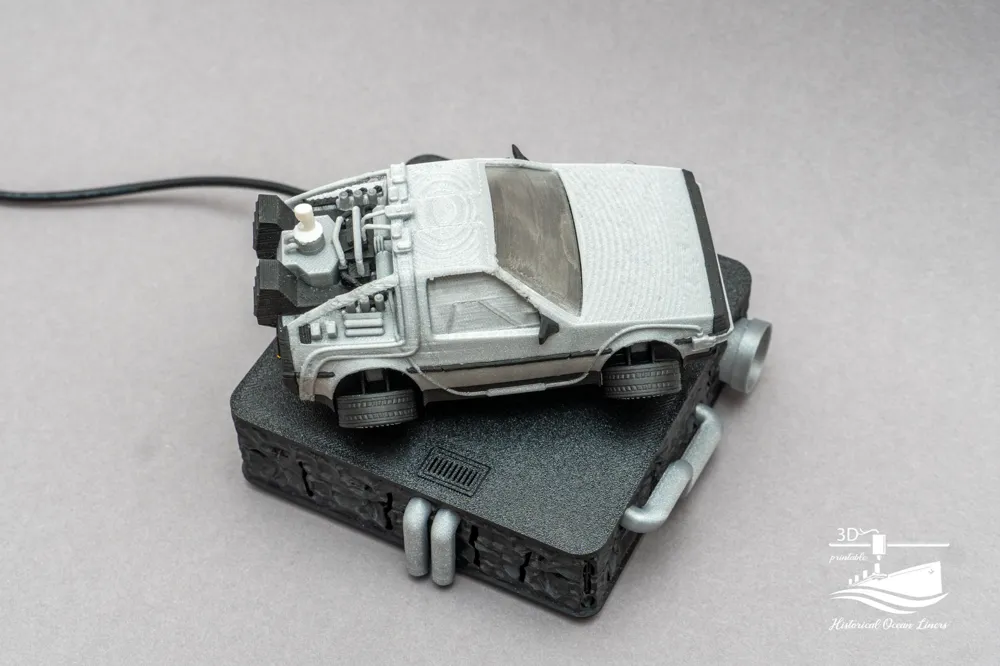

A floating Delorean

I was intrigued by this idea when I first saw the Magnetic Levitation DIY Kit in the store. I had also wanted to realize a toonified model of the Delorean for a long time and so it was clear that both wishes would fit together perfectly.

I realized the whole project to the best of my ability and tried to design it in such a way that it could also be copied by others. Here and there there may be small irregularities, but I have tried to explain it as well as possible in the attached instructions and hope that there are few problems.

It was not easy to implement this idea and I would like to emphasize that small differences may occur here and there due to different settings or filaments. I made an effort to try everything out until it worked for me. Unfortunately, this does not mean that it will be the same for everyone. However, I also explain here how you can at least use a few little tricks here and there to solve small problems.

Tools

You only need a standard tool for processing.

Cutter Knife
file for sanding or sandpaperfile
superglue is
fine pliers

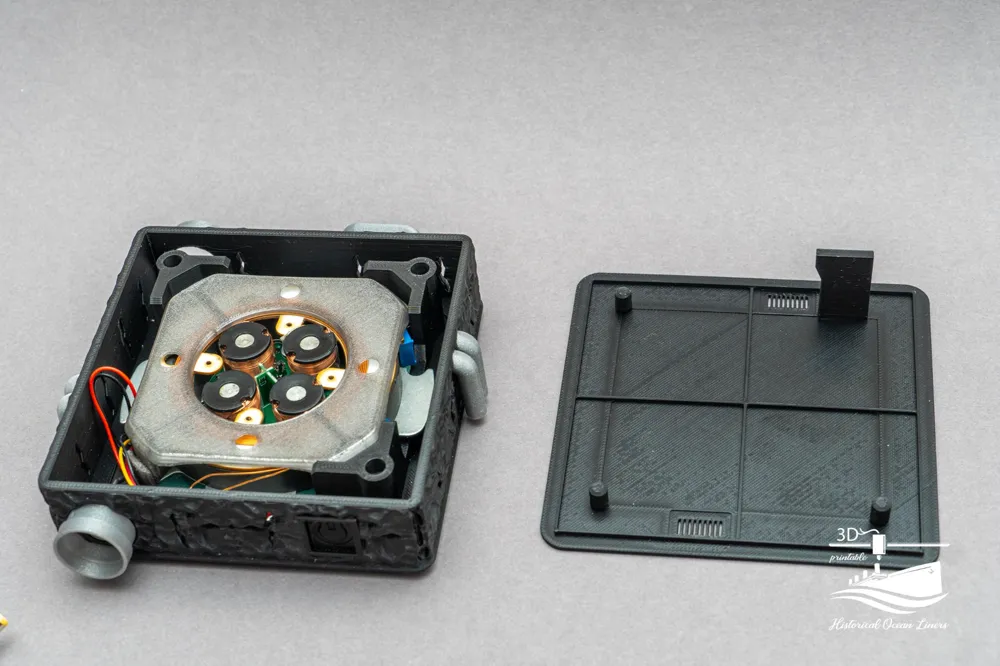

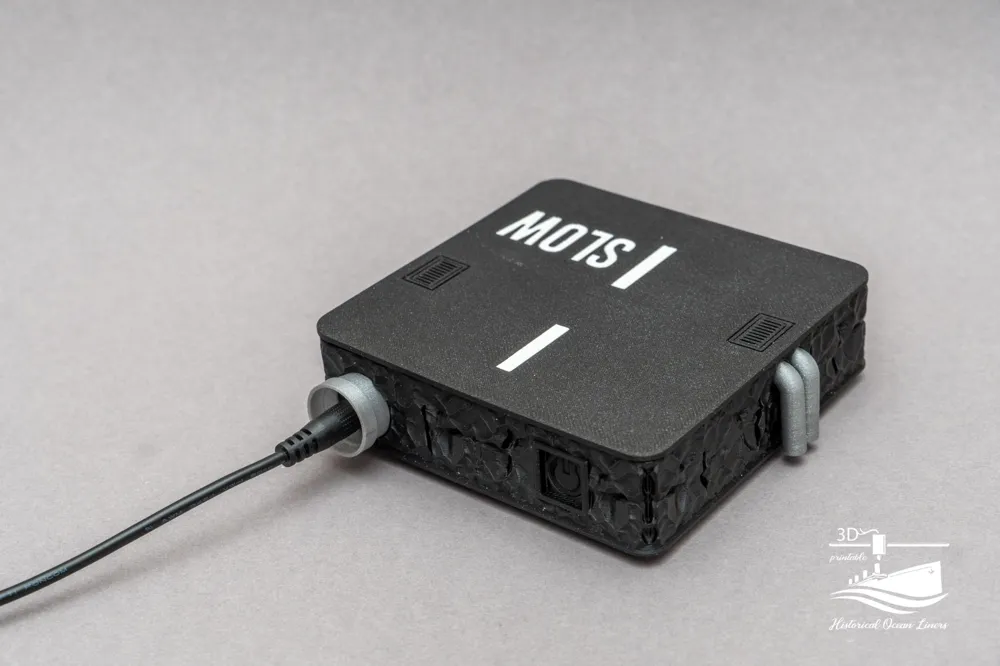

The Base

Let's start with the base, which is still quite easy to implement. Printed in PETG HF, as the coil can get quite warm if you make a mistake. You should definitely stop after a few failed attempts and let everything cool down first.

The rest is all in the assembly instructions

magnetic levitation diy kit
