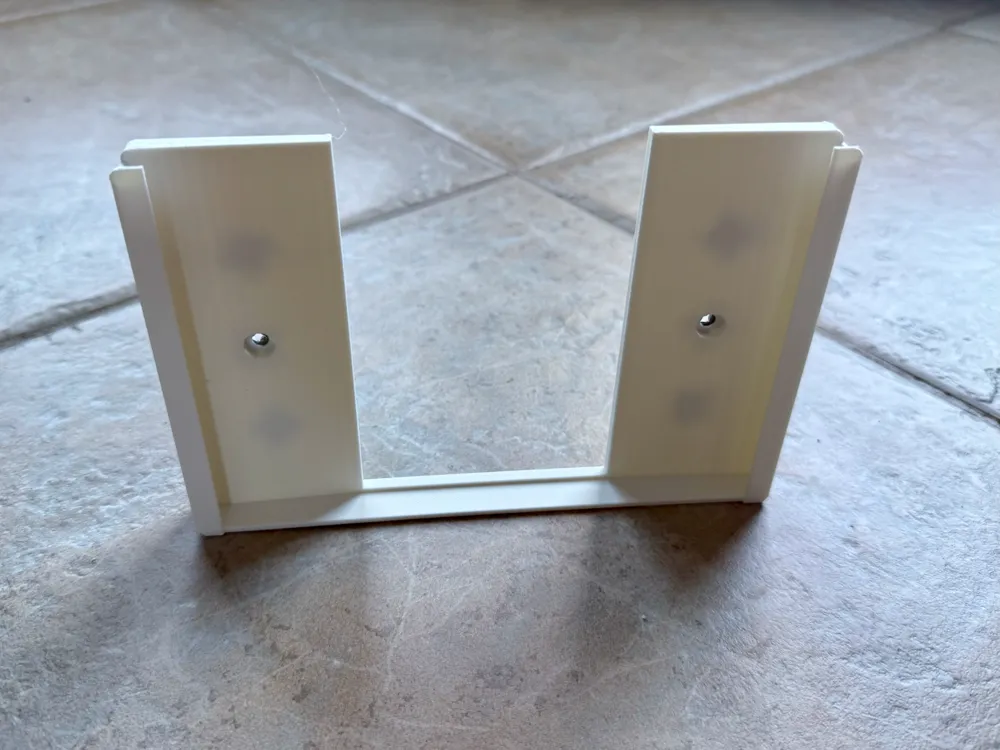

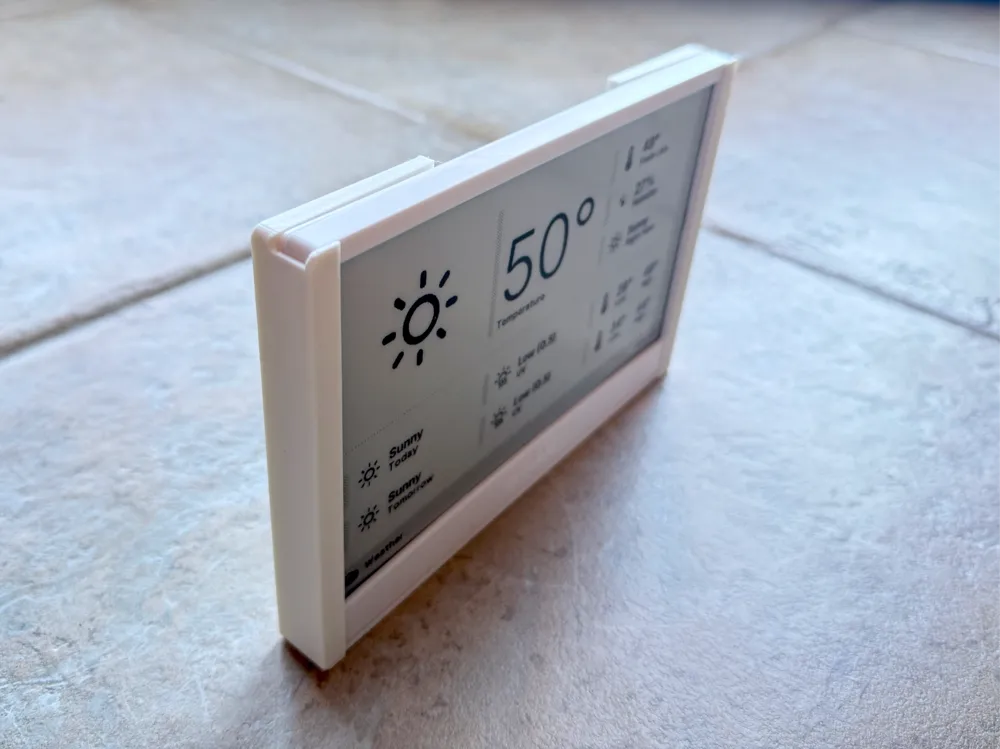

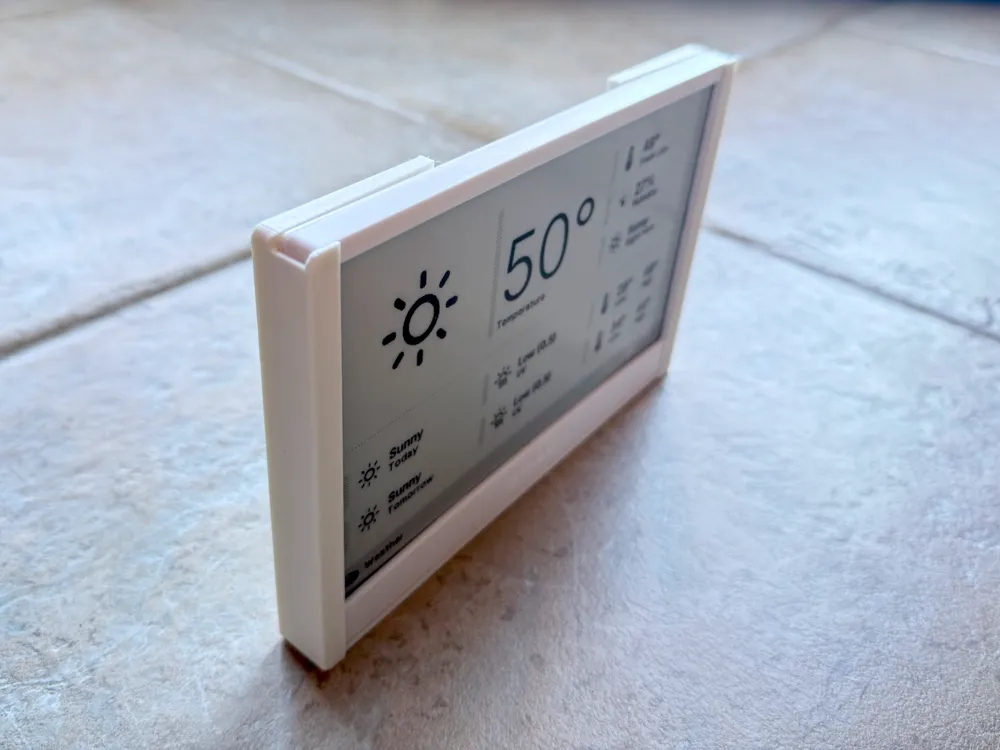

The Fridge Magnet Mount for TRMNL as designed by the makers of TRMNL

(https://github.com/usetrmnl/mounts/tree/main/designs/fridge_magnet)

Original description from creators below:

for placement on magnetic surfaces, such as a kitchen fridge. may not work on smaller bar fridges or ice machines due to materials used in constructions.

features

easy removal from the mount for battery charging (entire mount can also be removed)

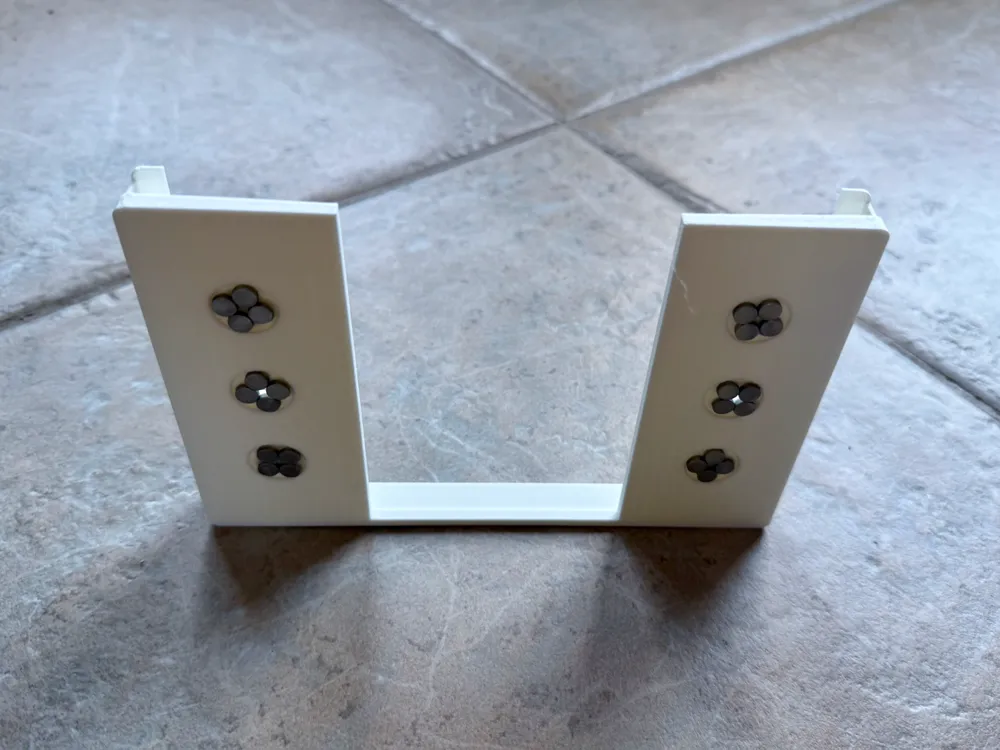

recessed spots for up to 6x magnets (5/8" diameter - ex N35 Neodymium)

in testing we found that only 3-4x magnets are required on flat surfaces. if a refrigerator door is curved, 6x magnets are recommended. if the magnetic surface is flat but some household members prefer to slam doors, 6x magnets are recommended.

print instructions

DIY:

import STL file to any slicer tool (STEP file also provided for edits)
disable supports / not required
recommend 30% infill with rectilinear infill pattern

Online: insert a recommended print farm with tips like above

installation

if using magnets, we recommend super glue with an extended curing time. your brand's bottle may require just 30-45 seconds, but in testing our magnets detached from the mount unless given at least 60 minutes to dry.
