Drywall Electrical Outlet Locator and template

Remixed by
IP Report

Print Profile(2)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 7 walls, 15% infill
0.2mm layer, 7 walls, 15% infill
Designer
1 h
1 plate
4.6(25)

Drywall Outlet box locator Split
Drywall Outlet box locator Split
2 h
1 plate
5.0(3)

Open in Bambu Studio
Boost
149
565
35
15
643
529
Released

Description

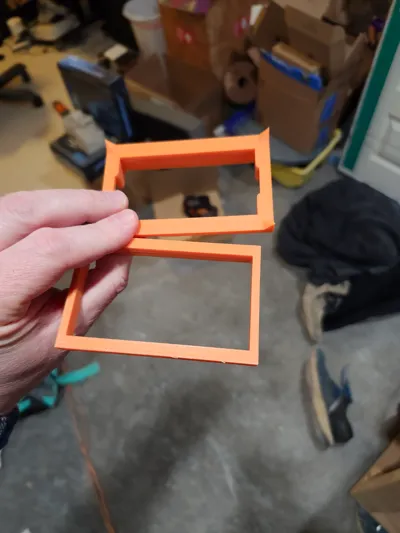

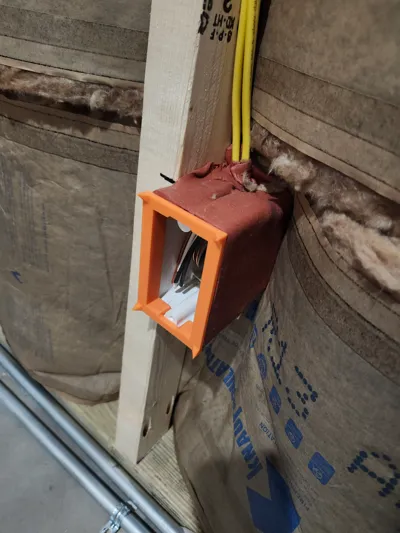

This simple and effective outlet finder is great! Just print, peel off the electrical box template that doubles as support, and slide into the box. Then put up your drywall and hit it a couple of times to get the spikes to mark the back side. Pull off your dry wall and cut to the points.

The electrical box template can be used with a level to mark out both the full box cut and the smaller cut for low voltage brackets such as cable and ethernet pass throughs.
