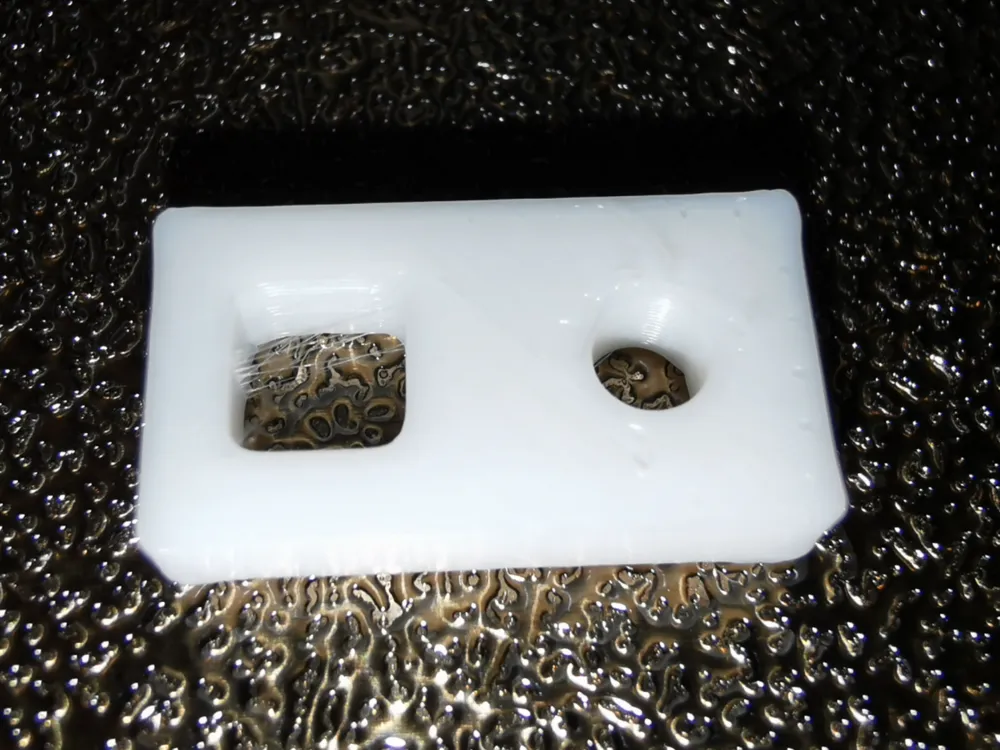

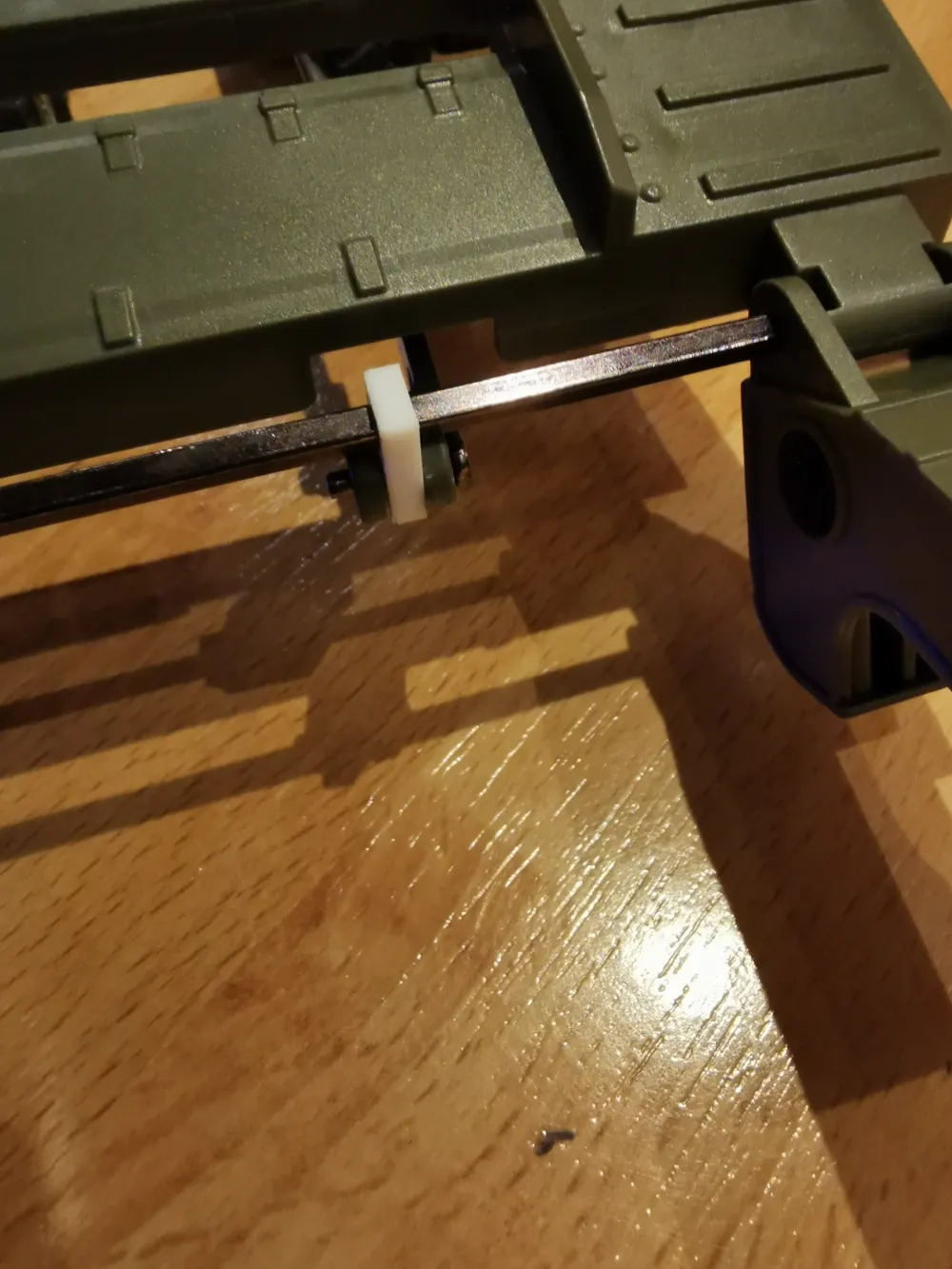

Connector piece that joins the trailer motor to the square profile bar the rear ramps are connected to. Allows the rear ramps on the trailer to go up and down.

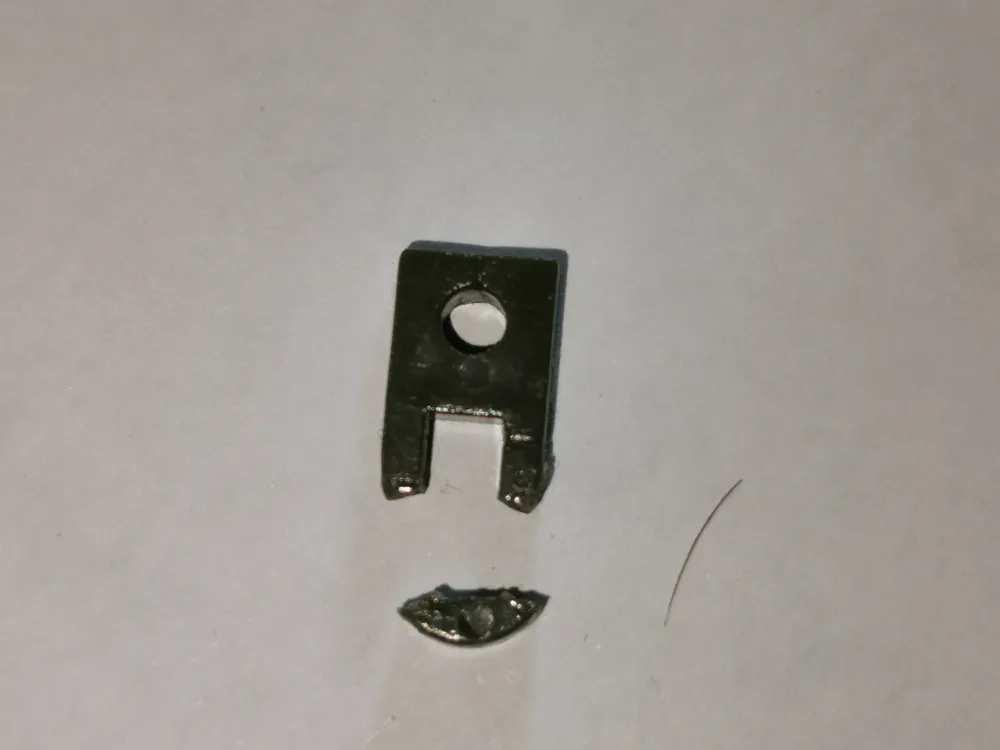

I broke the connector previously by driving another car into it. Tolerances on the square hole might need to be a bit tighter. Will see how the current version holds up and will re-model if needed. Feedback welcome.
